Compact Modular distribution terminals - SVBKA
SVBKA

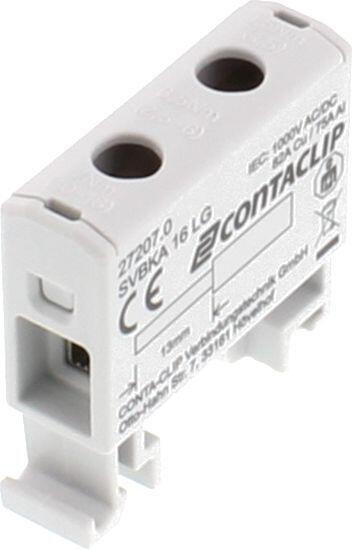

The SVBKA screw-distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. The SVBKA blocks can be used with aluminum and copper cables from 1.5 to 240 mm². They can be used in installation and distribution board construction and also in controller construction for machinery. The SVBKA blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
The SVBKA screw-distributor blocks guarantee IP20 protection, even when you are connecting larger conductor cross-sections. For smaller cable cross-sections, finger safety is ensured by the BS-SVBKA covers (available as accessory).
- IP20 protection
- Wire connection cross sections 1.5 - 240 mm²
- Suitable for copper and aluminium cables
- Foot can be snapped on DIN 35 or direct mounted
- Housing made of polyamide 6.6 UL 94 V-0
Selected variant
Specifications
| Color | Light Grey |
|---|---|
| Operating voltage | 1000 V AC |
| Rated voltage | 1000 V DC |
| Rated current aluminium | 75 A |
| Rated current copper | 82 A |
| Mounting | TS 35/7,5 and direct mount |
| Overvoltage category | III |
| Contamination degree | 3 |
| Length | 44.6 mm |
| Width | 13.5 mm |
| Height TS 35/7.5 | 42.5 mm |
| IP Class | IP20 |
| Connections | 2 |
| Number of inputs A | 1 |
| Input A: rated cross-section | 16 mm² |
| Input A: wire cross-section rigid, min. | 1.5 mm² |
| Input A: wire cross-section rigid, max. | 16 mm² |
| Input A: wire cross-section stranded, min. | 1.5 mm² |
| Input A: wire cross-section stranded, max. | 10 mm² |
| Input A: wire cross-section with wire-end ferrules, min. | 1.5 mm² |
| Input A: wire cross-section with wire-end ferrules, max. | 10 mm² |
| Input A: stripping length | 13 mm |
| Input A: screw head | Allen key |
| Input A: torque, min. | 1.5 |
|---|---|
| Input A: torque, max. | 7 |
| Number of outputs A | 1 |
| Output A: rated cross-section | 16 mm² |
| Output A: wire cross-section rigid, min. | 1.5 mm² |
| Output A: wire cross-section rigid, max. | 16 mm² |
| Output A: wire cross-section stranded, min. | 1.5 mm² |
| Output A: wire cross-section stranded, max. | 10 mm² |
| Output A: wire cross-section stranded with wire-end ferrules, min. | 1.5 mm² |
| Output A: wire cross-section stranded with wire-end ferrules, max. | 10 mm² |
| Output A: stripping length | 13 mm |
| Output A: screw head | Allen key |
| Output A: torque, min. | 1.5 |
| Output A: torque, max. | 7 |
| Insulation Material | Polyamide 6.6 |
| Flamklass | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Tariff code | 85369010 |
| Country of origin | EEC |
| Weight | 15 g |
| Pack Size | 10 |
Product description
The SVBKA screw-distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. The SVBKA blocks can be used with aluminum and copper cables from 1.5 to 240 mm². They can be used in installation and distribution board construction and also in controller construction for machinery. The SVBKA blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
The SVBKA screw-distributor blocks guarantee IP20 protection, even when you are connecting larger conductor cross-sections. For smaller cable cross-sections, finger safety is ensured by the BS-SVBKA covers (available as accessory).
