CONTA-CLIP
Distribution blocks Au/Cu - SVBA
SVBA

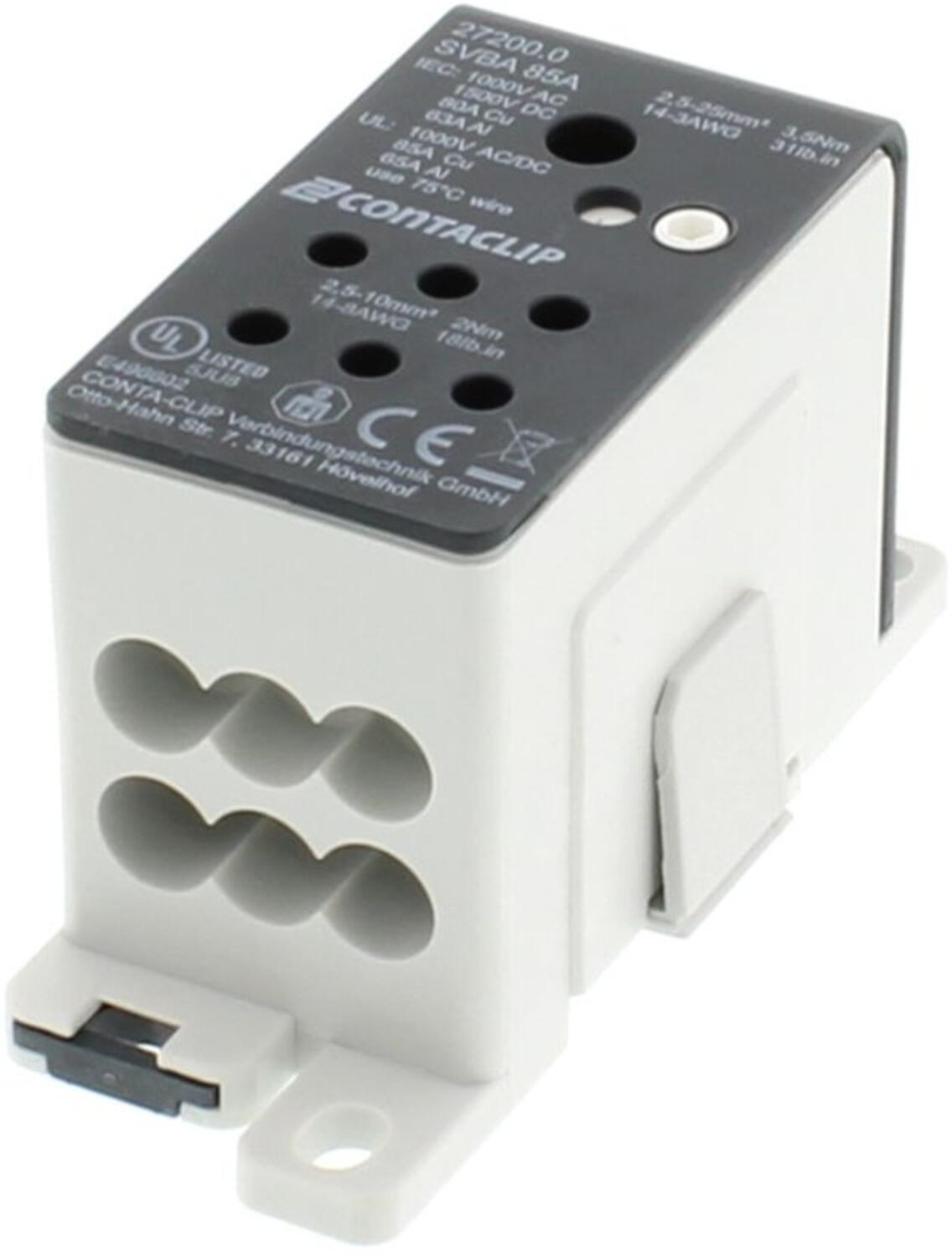

The SVBA screw-distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. You can use the distributor block to establish an electromechanical connection between a wire with a large cross-section and one or more wires with small cross-sections. They can be used in installation and distribution board construction and also in controller construction for machinery. The SVBA blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing. The individual blocks can be simply clicked together using a plastic connecting clip.
The SVBA blocks are suitable for aluminum and copper cables from 1.5 to 500 mm². They can be easily encoded using the exchangeable colour-coded marking plates for the N, PE, phases (plates are included in delivery). In addition, the built-in adjustable phase tag makes it easy to display which phase is applied to the block.
- IP20 protection (SVBA 1100A: IP10)
- Foot base can be snapped on TS 35 DIN rail or suitable for direct mounting
- Built-in adjustable phase marking (not for SVBA 1100A)
- Interchangeable markings for N, PE, DC + etc. (not for SVBA 1100A)
- Suitable for copper and aluminum conductors
Selected variant
Specifications
| Color | Dark grey |
|---|---|
| Operating voltage | 1000 V AC |
| Rated voltage | 1500 V DC |
| Rated current aluminium | 63 A |
| Rated current copper | 80 A |
| SCCR rating | 10 kV |
| Mounting | TS 35/7,5 and direct mount |
| Overvoltage category | III |
| Contamination degree | 3 |
| Approvals | UL |
| Length | 89.5 mm |
| Width | 36 mm |
| Height TS 35/7.5 | 52 mm |
| Height | 49 mm |
| IP Class | IP20 |
| Connections | 7 |
| Number of inputs A | 1 |
| Input A: diameter | 10.5 mm |
| Input A: rated cross-section | 25 mm² |
| Input A: wire cross-section rigid, min. | 2.5 mm² |
| Input A: wire cross-section rigid, max. | 25 mm² |
| Input A: wire cross-section stranded, min. | 2.5 mm² |
| Input A: wire cross-section stranded, max. | 25 mm² |
| Input A: wire cross-section with wire-end ferrules, min. | 2.5 mm² |
| Input A: wire cross-section with wire-end ferrules, max. | 25 mm² |
| Input A: stripping length | 20 mm |
| Input A: screw head | Allen key |
|---|---|
| Input A: torque, max. | 3.5 |
| Number of outputs A | 6 |
| Output A: diameter | 4.4 mm |
| Output A: rated cross-section | 10 mm² |
| Output A: wire cross-section rigid, min. | 2.5 mm² |
| Output A: wire cross-section rigid, max. | 10 mm² |
| Output A: wire cross-section stranded, min. | 2.5 mm² |
| Output A: wire cross-section stranded, max. | 6 mm² |
| Output A: wire cross-section stranded with wire-end ferrules, min. | 2.5 mm² |
| Output A: wire cross-section stranded with wire-end ferrules, max. | 6 mm² |
| Output A: stripping length | 10 mm |
| Output A: screw head | Allen key |
| Output A: torque, max. | 2 |
| Insulation Material | Polyamide 6.6 |
| Flamklass | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Rated Voltage To UL | 1000 V |
| UL test standard | UL 1953 |
| Tariff code | 85369010 |
| Country of origin | EEC |
| Weight | 124 g |
| Pack Size | 1 |
Product description
The SVBA screw-distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. You can use the distributor block to establish an electromechanical connection between a wire with a large cross-section and one or more wires with small cross-sections. They can be used in installation and distribution board construction and also in controller construction for machinery. The SVBA blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing. The individual blocks can be simply clicked together using a plastic connecting clip.
The SVBA blocks are suitable for aluminum and copper cables from 1.5 to 500 mm². They can be easily encoded using the exchangeable colour-coded marking plates for the N, PE, phases (plates are included in delivery). In addition, the built-in adjustable phase tag makes it easy to display which phase is applied to the block.
