CONTA-CLIP
Distribution blocks CU - SVB
SVB

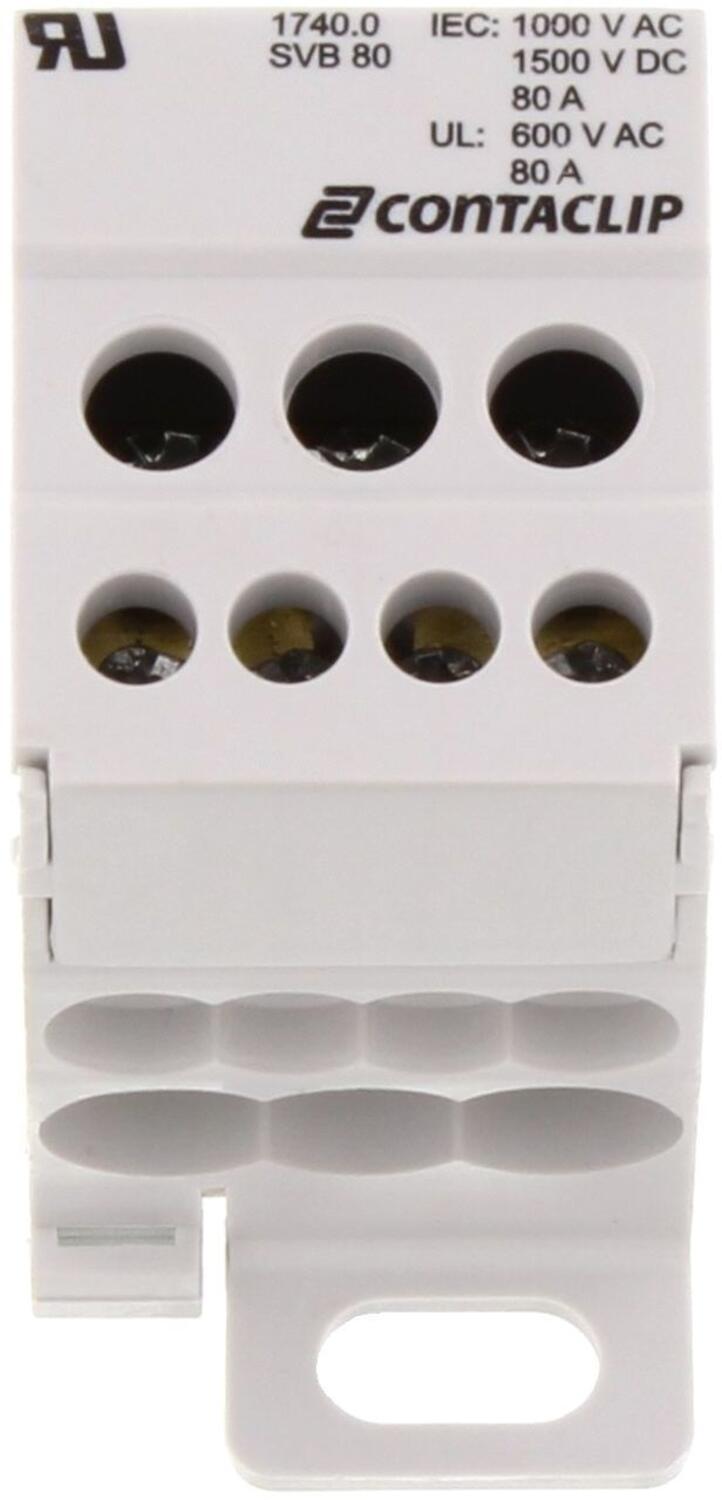

The SVB screw-type distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. You can use the distributor block to establish an electromechanical connection between a wire with a large cross-section and one or more wires with small cross-sections. They can be used in installation and distribution board construction and also in controller construction for machinery.
The SVB blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
- High short-circuit resistance rating
- IP20-class protection
- 1000VAC / 1500VDC rated
- TS 35 din rail or direct mounting
- Housing made from polyamide 6.6 UL 94-V0
Selected variant
Specifications
| Color | Light Grey |
|---|---|
| Operating voltage | 1000 V AC |
| Rated voltage | 1500 V DC |
| Rated current copper | 80 A |
| Req. Series fuse class J | 80 A |
| SCCR rating | 100 kV |
| Mounting | TS 35/7,5 and direct mount |
| Rated impulse voltage | 2.5 kV |
| Overvoltage category | III |
| Short-circuit current resistance ICW over 1s | 1.9 kA |
| Short-circuit current resistance IPK (peak value) | 2.7 kA |
| Contamination degree | 3 |
| Approvals | UL, cUL, EAC |
| Length | 66 mm |
| Width | 27 mm |
| Height TS 35/7.5 | 50 mm |
| Height | 47 mm |
| Connections | 7 |
| Number of inputs A | 1 |
| Input A: diameter | 7 mm |
| Input A: rated cross-section | 16 mm² |
| Input A: wire cross-section rigid, min. | 2.5 mm² |
| Input A: wire cross-section rigid, max. | 16 mm² |
| Input A: wire cross-section stranded, min. | 2.5 mm² |
| Input A: wire cross-section stranded, max. | 16 mm² |
| Input A: wire cross-section with wire-end ferrules, min. | 2.5 mm² |
| Input A: wire cross-section with wire-end ferrules, max. | 16 mm² |
| Input A: stripping length | 12 mm |
| Input A: screw head | Slotted / Phillips |
| Input A: screw thread | M 5 |
| Input A: torque, min. | 1.5 |
| Input A: torque, max. | 3 |
| Number of outputs A | 2 |
| Output A: diameter | 7 mm |
| Output A: rated cross-section | 16 mm² |
| Output A: wire cross-section rigid, min. | 2.5 mm² |
| Output A: wire cross-section rigid, max. | 16 mm² |
| Output A: wire cross-section stranded, min. | 2.5 mm² |
| Output A: wire cross-section stranded, max. | 16 mm² |
| Output A: wire cross-section stranded with wire-end ferrules, min. | 2.5 mm² |
|---|---|
| Output A: wire cross-section stranded with wire-end ferrules, max. | 16 mm² |
| Output A: stripping length | 12 mm |
| Output A: screw head | Slotted / Phillips |
| Output A: screw thread | M 5 |
| Output A: torque, min. | 1.5 |
| Output A: torque, max. | 3 |
| Number of outputs B | 4 |
| Output B: diameter | 4.5 mm |
| Output B: rated cross-section | 6 mm² |
| Output B: wire cross-section rigid, min. | 2.5 mm² |
| Output B: wire cross-section rigid, max. | 6 mm² |
| Output B: wire cross-section stranded, min. | 2.5 mm² |
| 3139_Output B: wire cross-section stranded, max. (mm²) | 6 |
| Output B: wire cross-section stranded with wire-end ferrules, min. | 2.5 mm² |
| Output B: wire cross-section stranded with wire-end ferrules, max. | 6 mm² |
| Output B: stripping length | 12 mm |
| Output B: screw head | Slotted / Phillips |
| Output B: screw threading | M 4 |
| Output B: torque, min. | 0.8 |
| Output B: torque, max. | 1.5 |
| Insulation Material | Polyamide 6.6 |
| Flamklass | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Rated Voltage To UL | 600 V |
| Rated Current To UL | 80 A |
| UL test standard | UL 1059 |
| UL overvoltage protection - req. Series fuse class J | 80 A |
| UL SCCR rating | 100 kA |
| Rated voltage cUL | 600 V |
| Rated current cUL | 80 A |
| cUL test standard | C22.2 No 158 |
| EAC test standard | TR ZU 004/2011 |
| Tariff code | 85369010 |
| Country of origin | FR |
| Weight | 61.4 g |
| Pack Size | 1 |
Product description
The SVB screw-type distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. You can use the distributor block to establish an electromechanical connection between a wire with a large cross-section and one or more wires with small cross-sections. They can be used in installation and distribution board construction and also in controller construction for machinery.
The SVB blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
