CONTA-CLIP
Terminal Marker Strips
SB

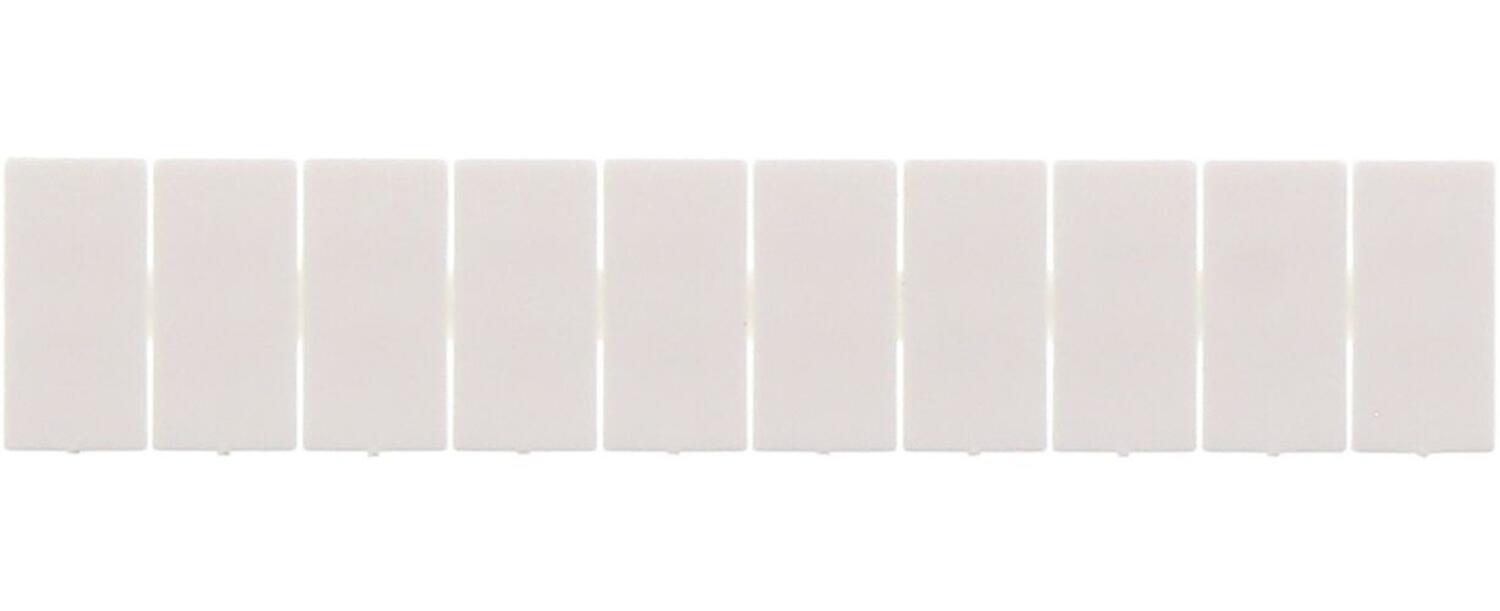

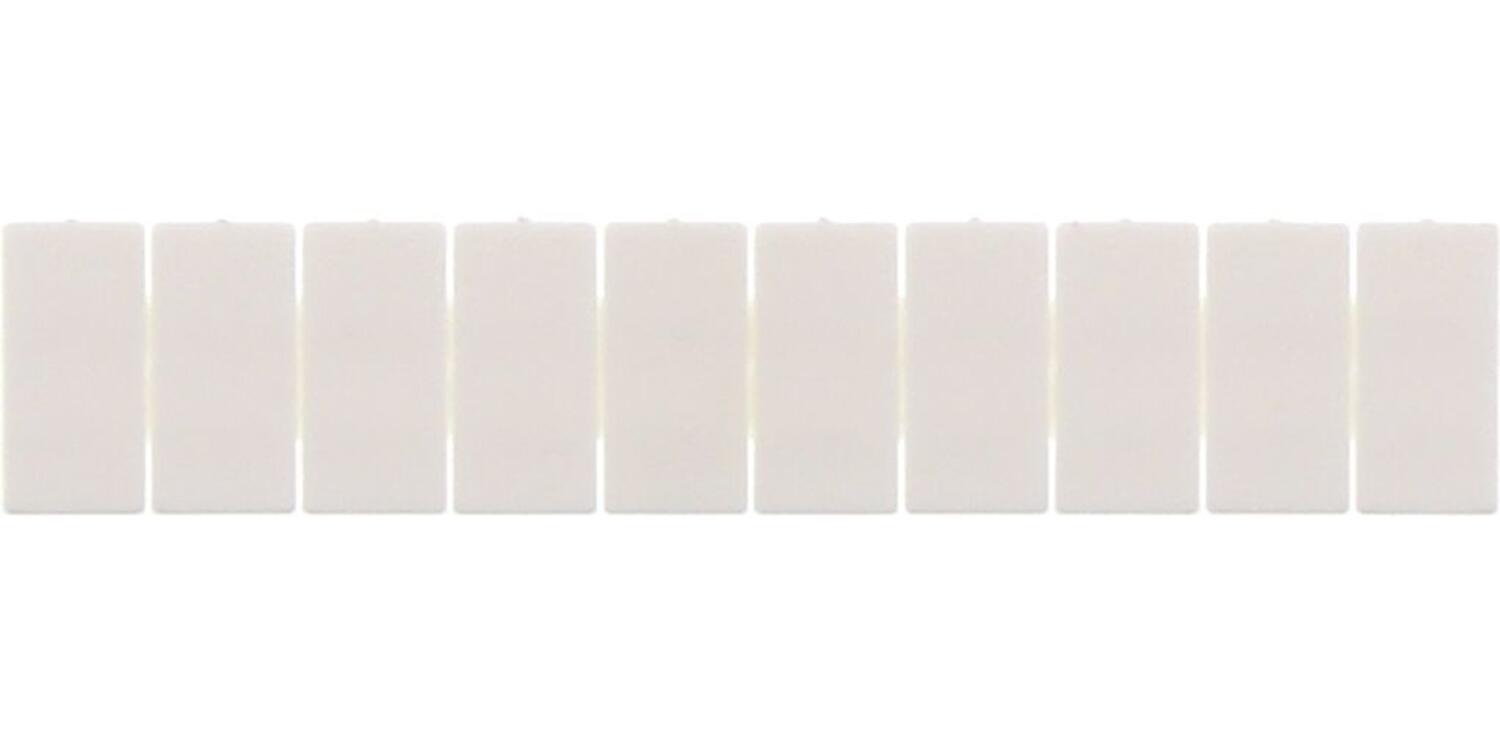

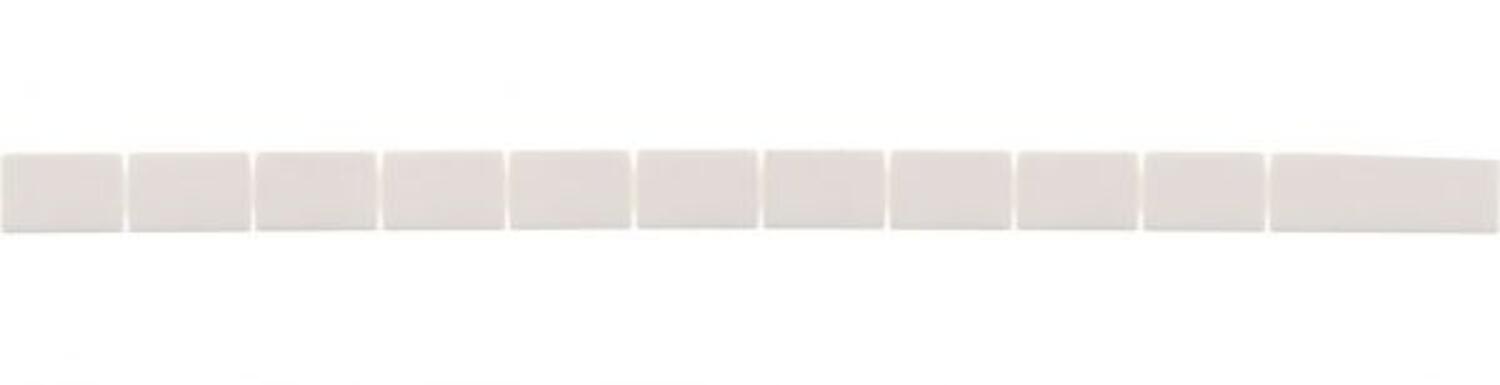

The SB range of terminal markers generally contain up to 10 markers on one strip, depending on size.
The strips are taken from the PMC Pocket-Maxicards, which have one sheet which generally contains 5 strips of 10 markers, again depending on size.
The strips are available as with consecutive number/character sequences in horizontal (FW) or vertical (FS) format and individual characters/numbers in horizontal (GW) or vertical (GS).
MC Maxicards are blank sheets containing up to 20 strips of 10 (200 markers). The sheets are delivered custom marked or blank to be used on the EMS plotting system or by hand using the BS 1 marker pen.
You can order custom marking sheets or purchase your own plotter. Please call with your requirements.
- Pre-Printed
- Blanks
- Horizontal or Vertical
- Can be hand marked
Selected variant
Specifications
| Color | White |
|---|---|
| Number of markers per row | 10 |
| Length | 10 mm |
| Width | 5 mm |
| Terminal width | ≥ 10,00 mm |
| Flamklass | UL94-V2 |
| Operating temperature from | -40 °C |
| Operating temperature to | 105 °C |
| Marker material | Polyamide 6.6 |
|---|---|
| Halogen free | Yes |
| Tariff code | 39269097 |
| Country of origin | DE |
| Weight | 0.06 g |
| Pack Size | 200 |
Product description
The SB range of terminal markers generally contain up to 10 markers on one strip, depending on size.
The strips are taken from the PMC Pocket-Maxicards, which have one sheet which generally contains 5 strips of 10 markers, again depending on size.
The strips are available as with consecutive number/character sequences in horizontal (FW) or vertical (FS) format and individual characters/numbers in horizontal (GW) or vertical (GS).
MC Maxicards are blank sheets containing up to 20 strips of 10 (200 markers). The sheets are delivered custom marked or blank to be used on the EMS plotting system or by hand using the BS 1 marker pen.
You can order custom marking sheets or purchase your own plotter. Please call with your requirements.
