CONTA-CLIP
Test-disconnect terminals are mostly used in the sectors of electricity generation and supply.They are tailored to the variety of switching
demands for current-converter secondary circuits that predominate in these sectors. Current transformers must always have a secondary
circuit when electricity meters and measuring instruments are being replaced, or when making comparative measurements.

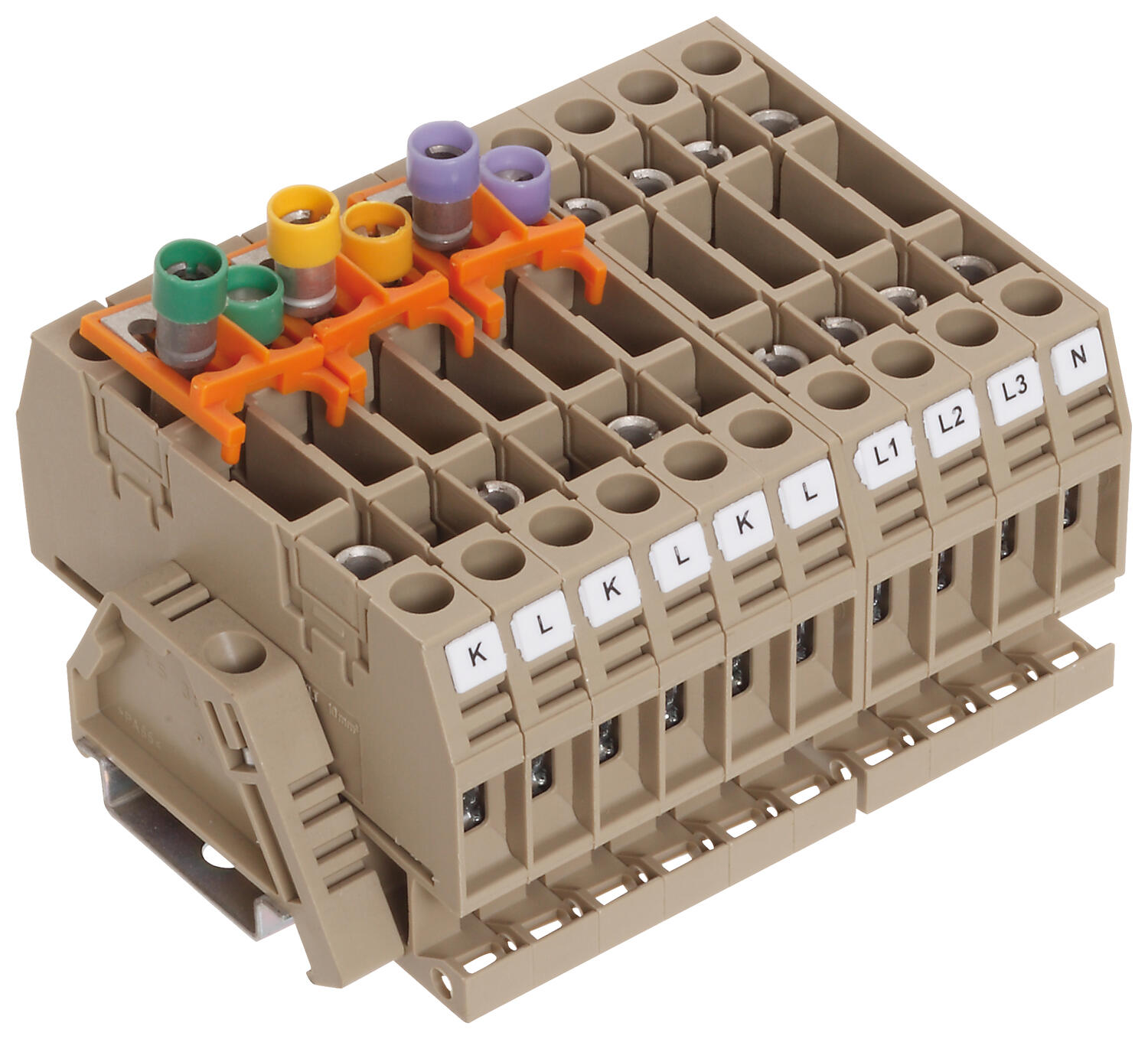

CONTA-CLIP test-disconnect terminals are available in the following three basic versions, each with or without a pre-assembled socket plug.
All versions provide touch-safe protection according to DGUV-3.
A captive, screw-on sliding partition is used to separate the current and voltage paths.
The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.
In all versions, the STB 14/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.
The VH 19 connecting sleeves and the BS 25 screws or STB 14/4 socket plugs are required for fastening the QVS cross-switches above the terminal block. The cross-switches are available from 2 to 4 poles.
The QSB internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.
The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVS cross-switches.
Approvals | CSA, CSA US |
---|---|
Color | Beige |
Connections | 2 |
Contamination degree | 3 |
Country of origin | DE |
Cross connect channels | 2 |
Cross section single wire from | 0.2 mm² |
Cross section single wire to | 10 mm² |
Cross section stranded wire from | 0.2 mm² |
Cross section stranded wire to | 10 mm² |
Cross section stranded with ferrule from | 0.2 mm² |
Cross section stranded with ferrule to | 10 mm² |
Cross-Section | 10 mm² |
CSA test standard | C22.2 No 158 |
CSAus test standard | UL 1059 |
Flamklass | UL94-V2 |
Height TS 32 | 51.5 mm |
Height TS 35/7.5 | 47 mm |
Insulation Material | Polyamide 6.6 |
Length | 72 mm |
Mounting | TS 35/7,5 and TS 32 |
Number of levels | 1 |
Operating temperature from | -40 °C |
Operating temperature to | 105 °C |
---|---|
Overvoltage category | III |
Pack Size | 50 |
Plug gauge acc. EN 60 947-1 | A5 |
Rated Current CSA | 45 A |
Rated current CSAus | 45 A |
Rated Current IEC | 10 A |
Rated impulse voltage | 4 kV |
Rated wire cross section from (AWG) | 8 |
Rated wire cross section to (AWG) | 22 |
Rated voltage CSAus | 600 V |
Rated Voltage IEC | 400 V |
Screw size | M 4 |
Screw type | Slotted |
Stripping Length | 12 mm |
Tariff code | 85369010 |
Torque max | 2 |
Torque Min | 1.2 |
Weight | 24.66 g |
Width | 8 mm |
Voltage CSA | 600 V |
Test-disconnect terminals are mostly used in the sectors of electricity generation and supply.They are tailored to the variety of switching
demands for current-converter secondary circuits that predominate in these sectors. Current transformers must always have a secondary
circuit when electricity meters and measuring instruments are being replaced, or when making comparative measurements.
CONTA-CLIP test-disconnect terminals are available in the following three basic versions, each with or without a pre-assembled socket plug.
All versions provide touch-safe protection according to DGUV-3.
A captive, screw-on sliding partition is used to separate the current and voltage paths.
The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.
In all versions, the STB 14/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.
The VH 19 connecting sleeves and the BS 25 screws or STB 14/4 socket plugs are required for fastening the QVS cross-switches above the terminal block. The cross-switches are available from 2 to 4 poles.
The QSB internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.
The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVS cross-switches.
Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.
The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.
Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Additional information | Cross connect channels | Number of test pick off options | Weight | ||
---|---|---|---|---|---|---|
![]()

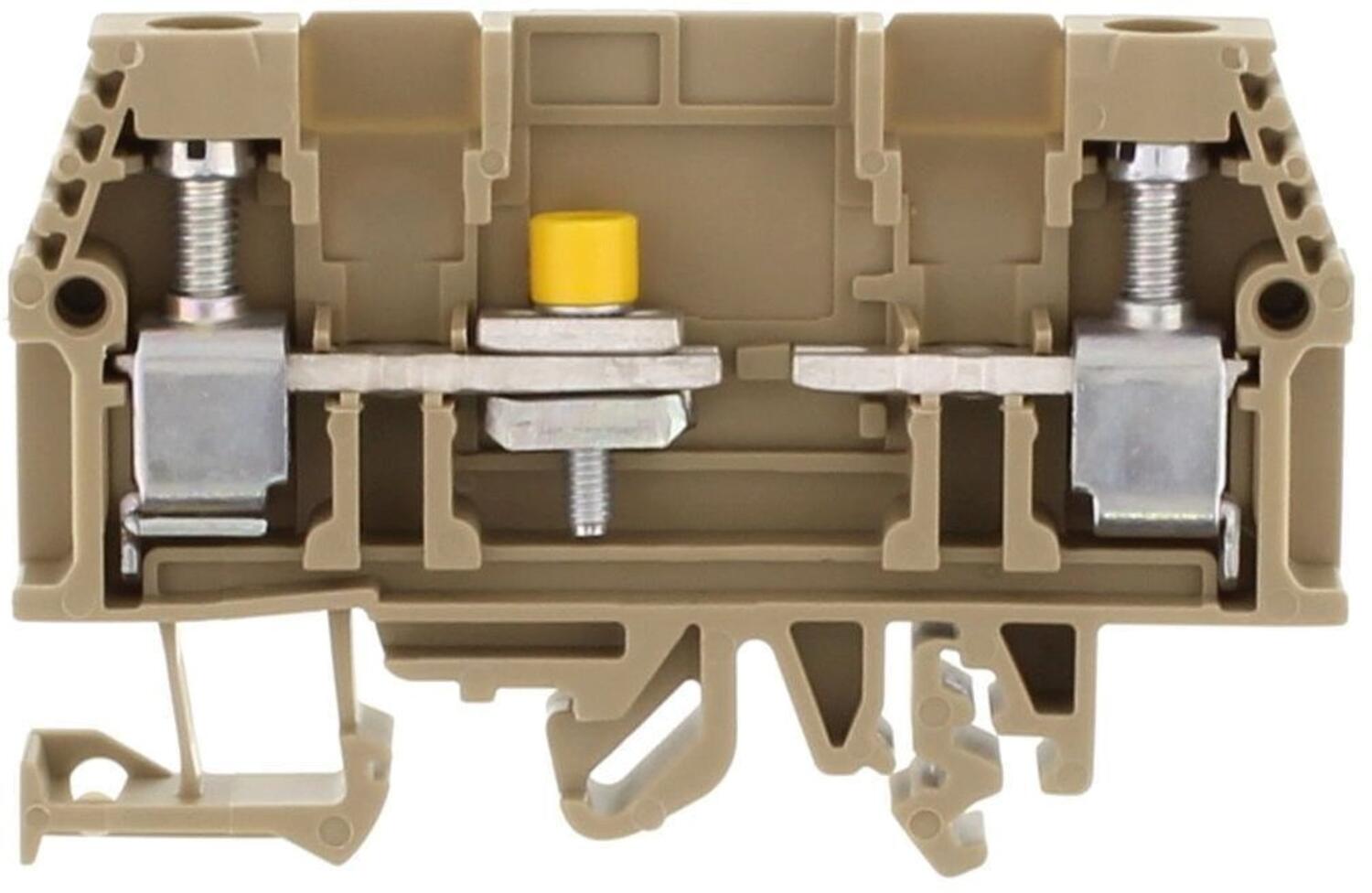

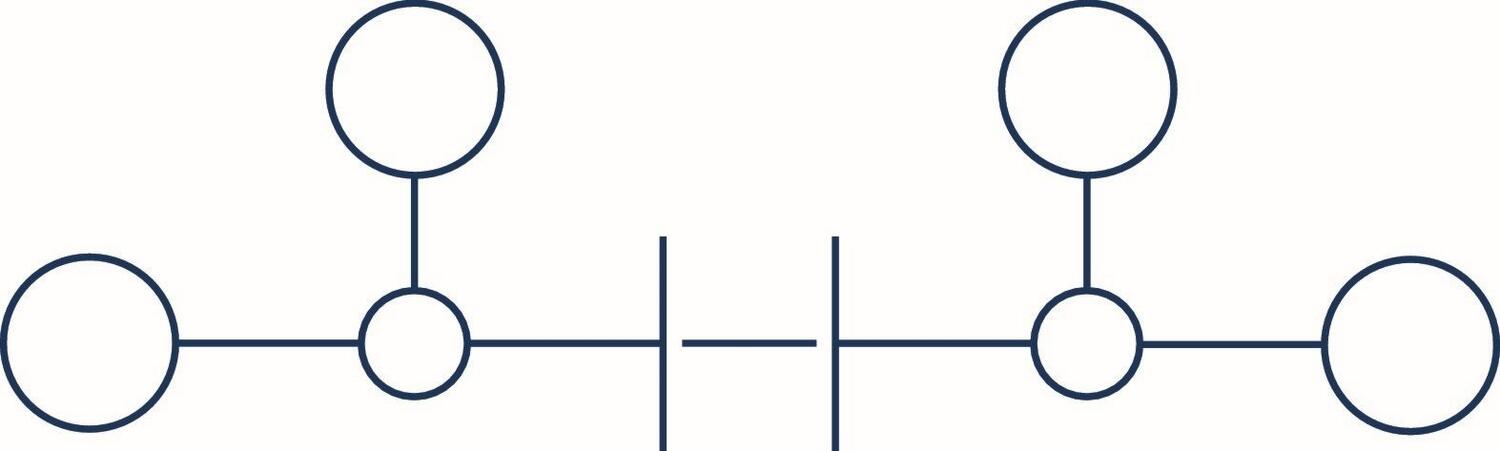

PTK 10/LT , Test-disconnect terminal
Art:
1130.2
Copied
|
|
2
|
|
24.66 g
|
| |
![]()

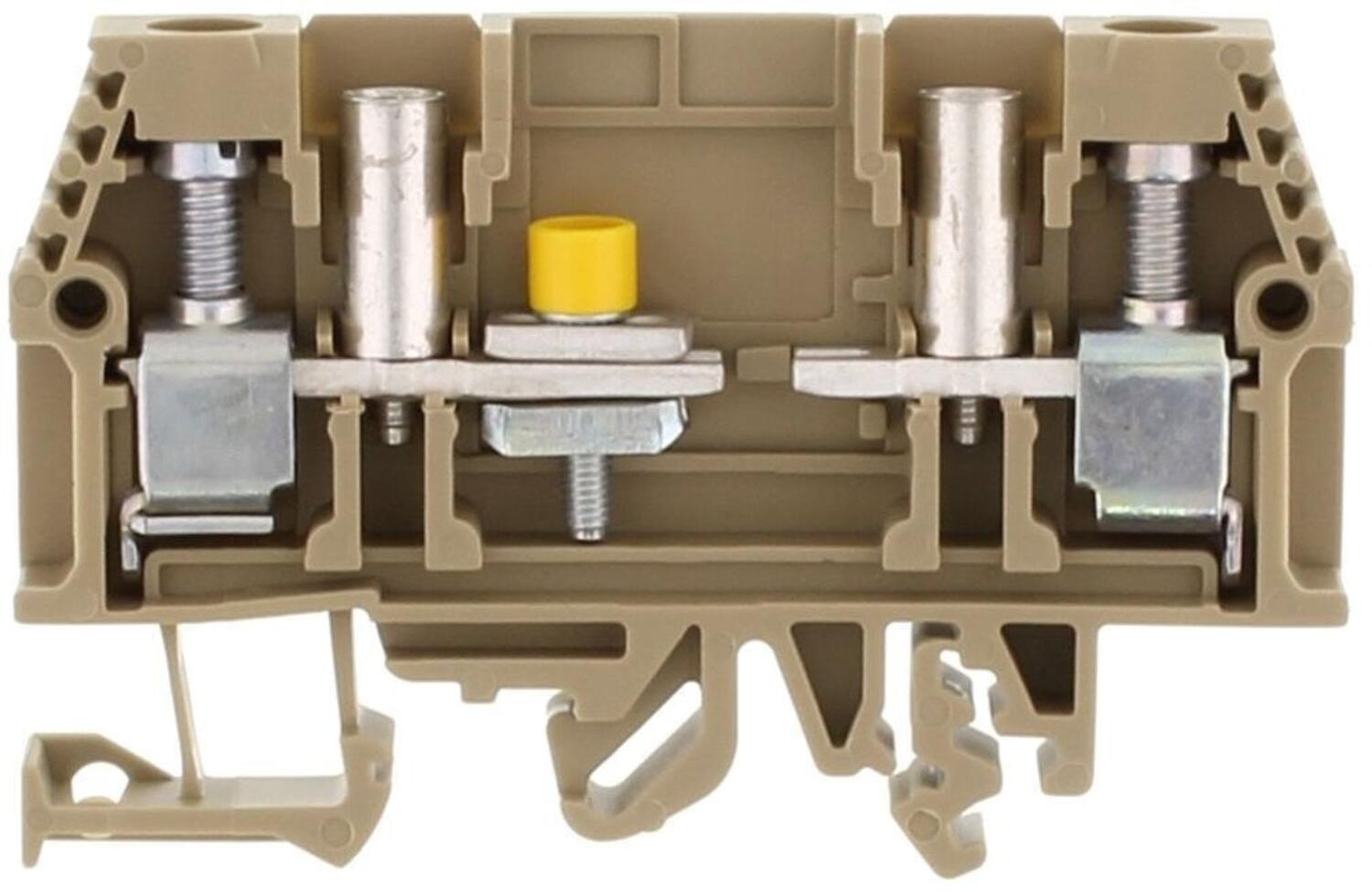

PTK 10/LT/STB, Test-disconnect terminal with sockets
Art:
1131.2
Copied
|
with sockets
|
|
2
|
28.9 g
|
| |
![]()
PTK 10/QT, Test-disconnect terminal, separated perpendicularly
Art:
1132.2
Copied
|
|
2
|
|
25.14 g
|
| |
![]()

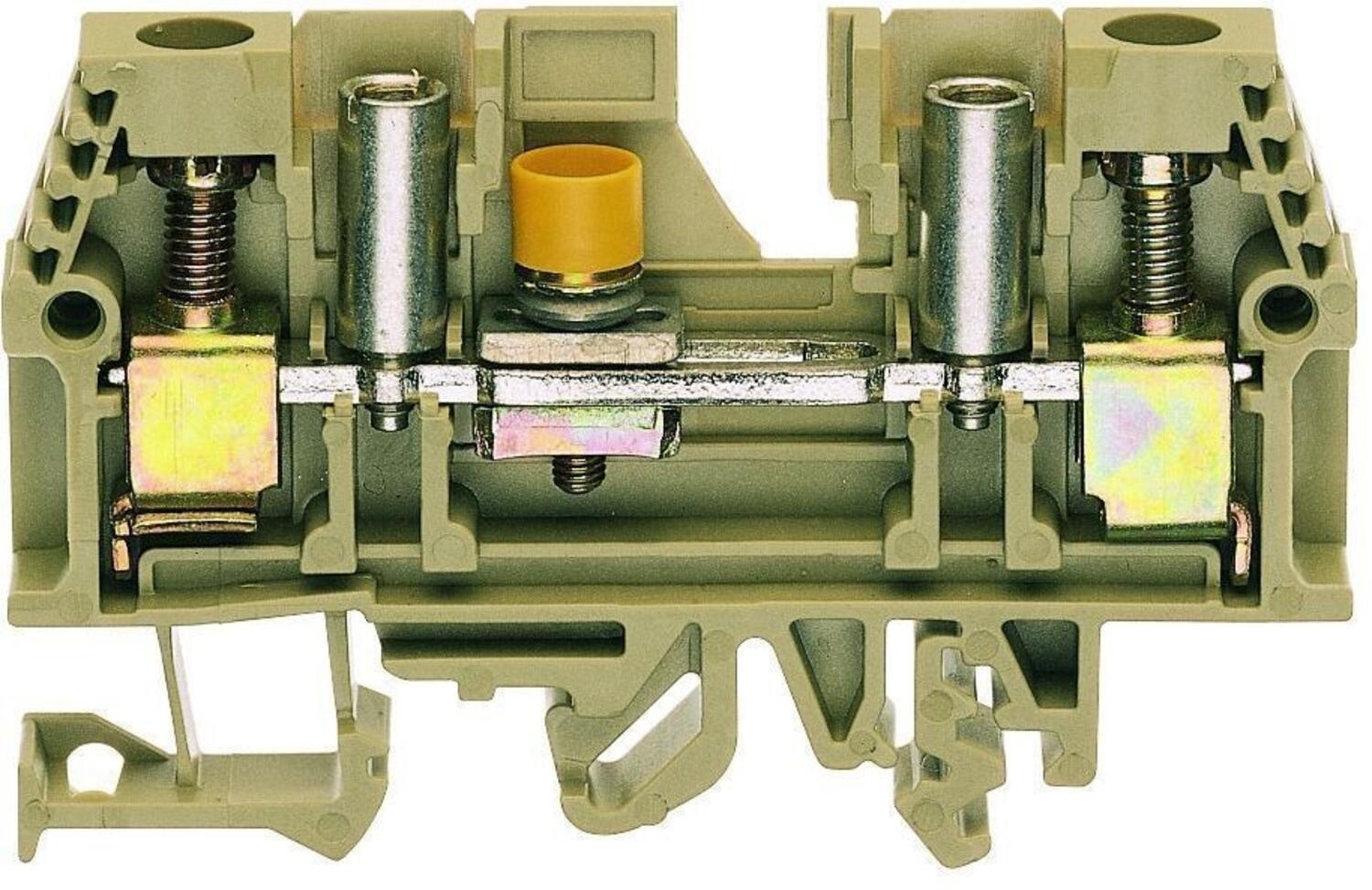

PTK 10/QT, Test-disconnect terminal with sockets, separated perpendicularly
Art:
1133.2
Copied
|
with sockets
|
|
2
|
29.74 g
|
| |
![]()
PTK 10/DU, Test-disconnect feed through terminal
Art:
1134.2
Copied
|
|
2
|
|
22.56 g
|
| |
![]()
PTK 10/DU/STB,Test-disconnect feed through terminal with sockets
Art:
1135.2
Copied
|
with sockets
|
|
2
|
22.56 g
|
|
Select a variant in the list
