SENSECA

Flow indicator with turnable scale

Model NOK is a flow indicator with a reed switch, that can be used to advantage in applications where oil or coloured media occur. It has a rotatable scale that never comes into contact with the media, resulting in simple reading.

Special versions

  • Without Switch
  • IP-class IP67
  • Stainless steel for aggressive media
Read more
  • For liquids and gases up to 50 bar pressure
  • Flow from 3 to 60 l/min. water
  • Wetted parts in nickel plated brass

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Contact Rating Max 15 VA
Flow Max l/min Double 15 l/min
Flow Range Max 15 l/min
Flow Range Min 3 l/min
IP Class IP65
Material Bolt Nickel-plated brass
Material Indication Call PVDF
Material of body Nickel-plated brass
Material of seals NBR
Material Scale Acrylic
Materials Spring Stainless steel 301
Pressure Range Max 50 bar
Temperature range of media to 90 °C
Type of flow component Flow Switches
Weight 1.3 kg
Viscosity 1 cSt
Voltage AC max 250 V

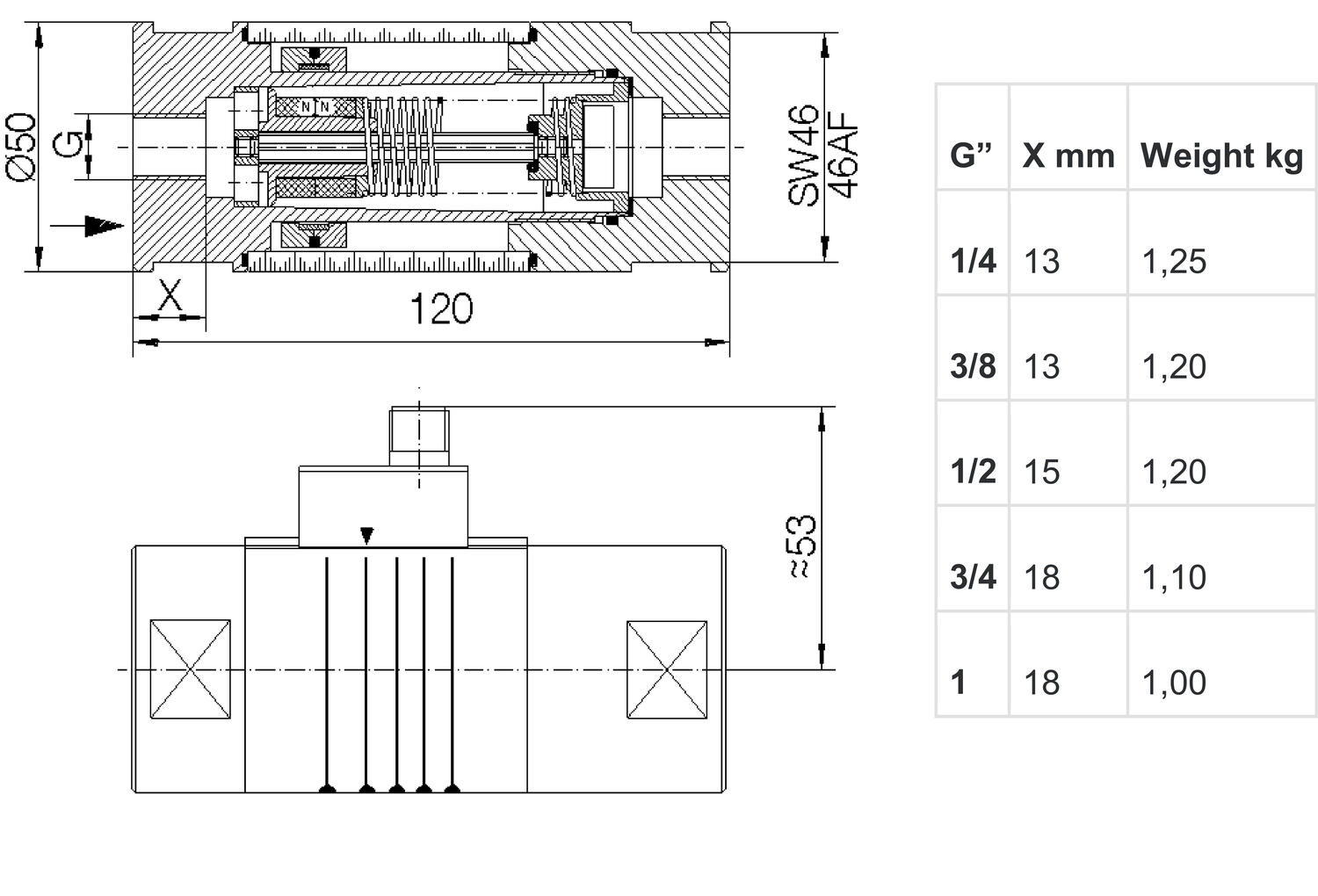

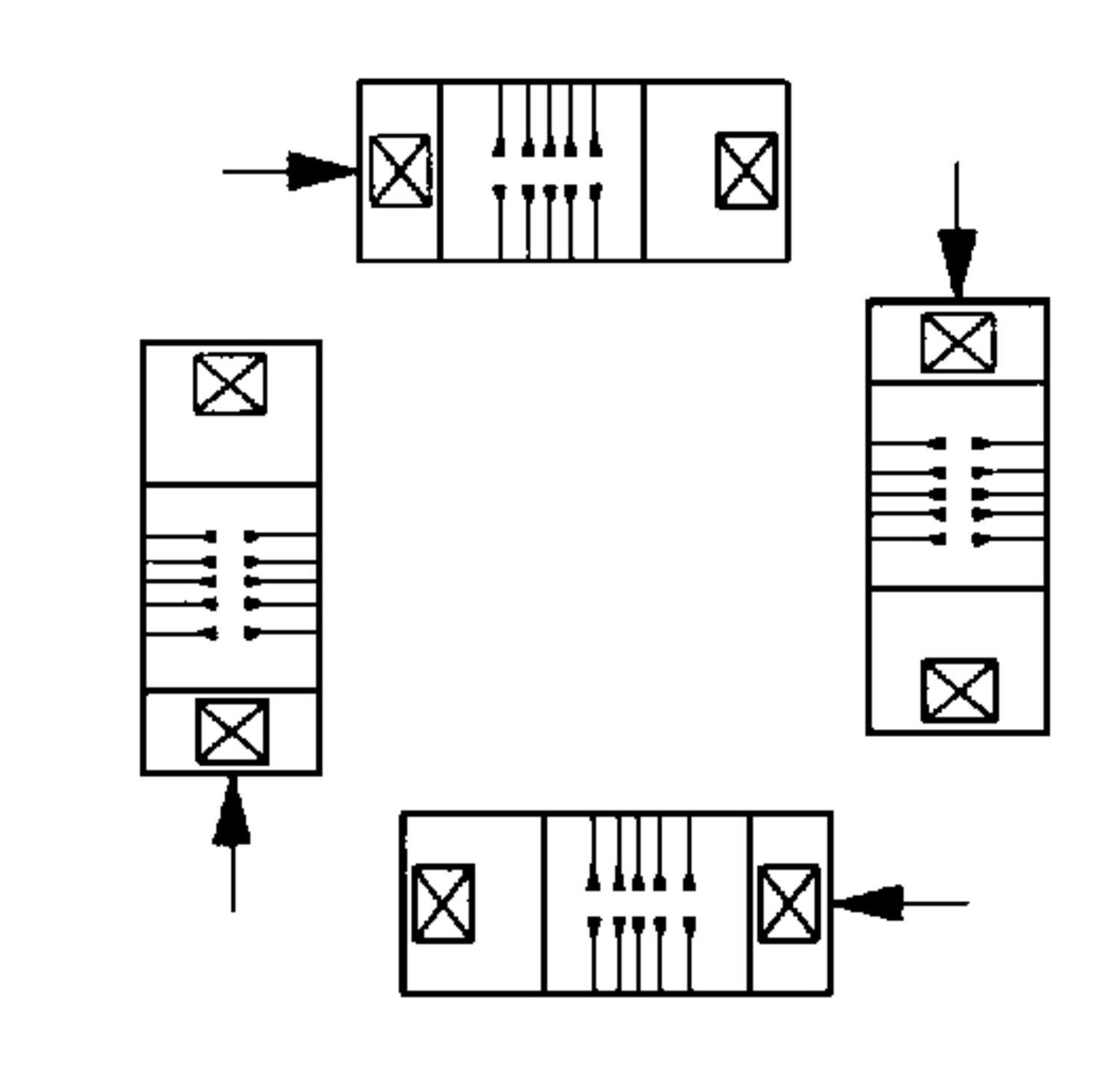

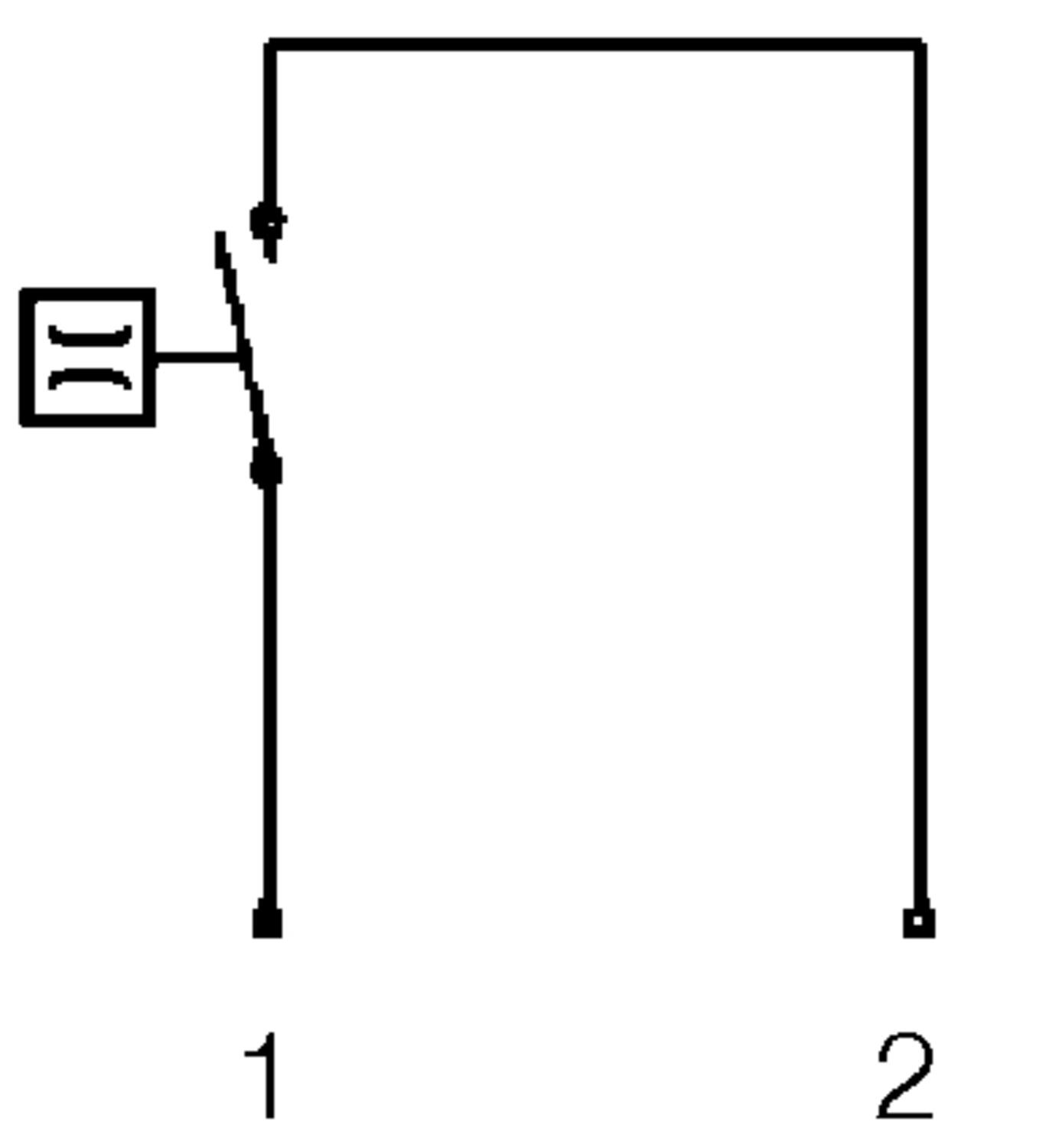

Measurements and connections

Technical illustrations

Product description

Model NOK is a flow indicator with a reed switch, that can be used to advantage in applications where oil or coloured media occur. It has a rotatable scale that never comes into contact with the media, resulting in simple reading.

Special versions

  • Without Switch
  • IP-class IP67
  • Stainless steel for aggressive media

Accessories

Articles Flow Max l/min Double Flow Range Max Flow Range Min Weight
Photo of model NOK.
Flow meter w. switch 1/4", 3-15 l/min
Art:
NOK-008GM015 Copied
15 l/min
15 l/min
3 l/min
1.3 kg
Photo of model NOK.
Flow meter w. switch 3/8", 3-15 l/min
Art:
NOK-010GM015 Copied
15 l/min
15 l/min
3 l/min
1.25 kg
Photo of model NOK.
FLOW SW,5-30l/MIN,G1/2
Art:
NOK-015GM030 Copied
30 l/min
30 l/min
5 l/min
1.25 kg
Photo of model NOK.
FLOW SW,5-50l/MIN,G3/4
Art:
NOK-020GM050 Copied
50 l/min
50 l/min
5 l/min
1.15 kg
Photo of model NOK.
"Flow meter w. switch 1"", 10-60 l/min"
Art:
NOK-025GM060 Copied
60 l/min
60 l/min
10 l/min
1.05 kg

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
