Honsberg - UR1 Series Flow Switch
Paddle

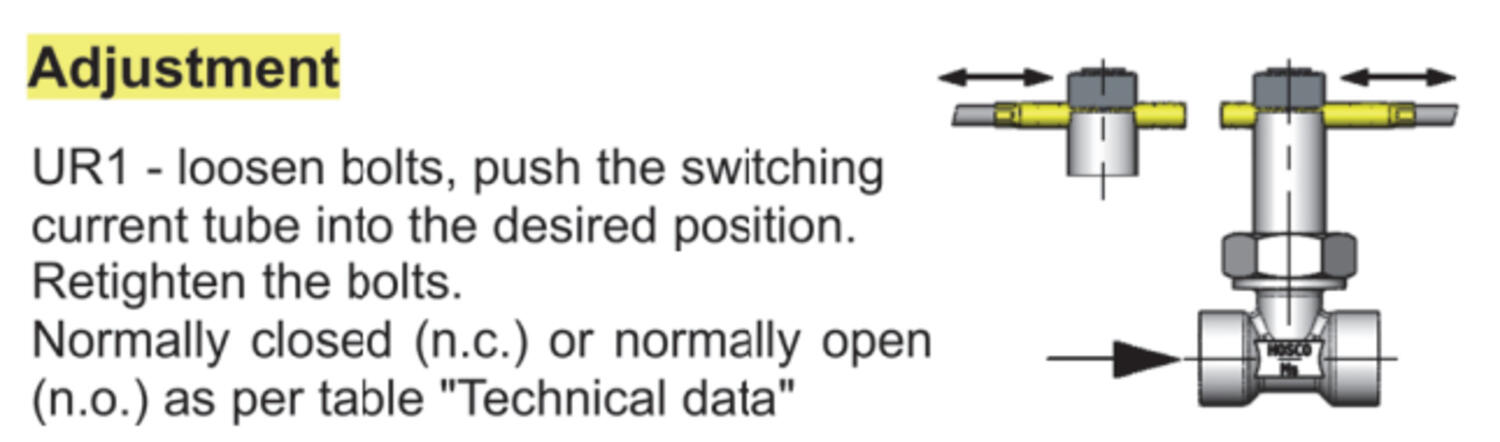

The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.
Special versions
• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex
• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)
- Switching range 1,3..35 l/min
- Water (oils, gases and aggressive media available on request)
- G⅜" up to G2"
- Brass or stainless steel wetted parts
- Max pressure 25 bar
Selected variant
Specifications
| Contact Rating Max | 50 A |
|---|---|
| Flow Max l/min Double | 10 l/min |
| IP Class | IP65 |
| Material breaker body | Hard ferrite |
| Material of body | Nickel-plated brass, Stainless steel 303 |
| Material of connection | Nickel-plated brass |
| Material of seals | NBR |
| Materials Paddle | Stainless steel 301 |
| Materials Wetted Parts | Nickel-plated brass, Stainless steel, Hard ferrite, NBR |
| Pressure Range Max | 25 bar |
|---|---|
| Temperature range of media from | 20 °C |
| Temperature range of media to | 110 °C |
| Type of flow component | Flow Switches |
| Weight | 0.35 kg |
| Viscosity | 1 cSt |
| Voltage AC max | 230 V |
Product description
The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.
Special versions
• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex
• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)
