BERNSTEIN

Inductive sensor M18, -40...+100ºC

  • Sn = 5,0 mm
  • 2m cable
  • M12 connector

Selected variant

bernstein.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Electrical connection Cable 2 m
IP Class IP67
LED Yes
Load Max 200 mA
Manufacturer Part No 6502905023
Material of body Nickel-plated brass
Mounting Flush mounted
Output PNP NO
Sensing 5 mm
Sensor type Inductive
Temperature range from -40 °C
Temperature range to 100 °C
Voltage DC max 30 V
Voltage DC min 10 V

Downloads

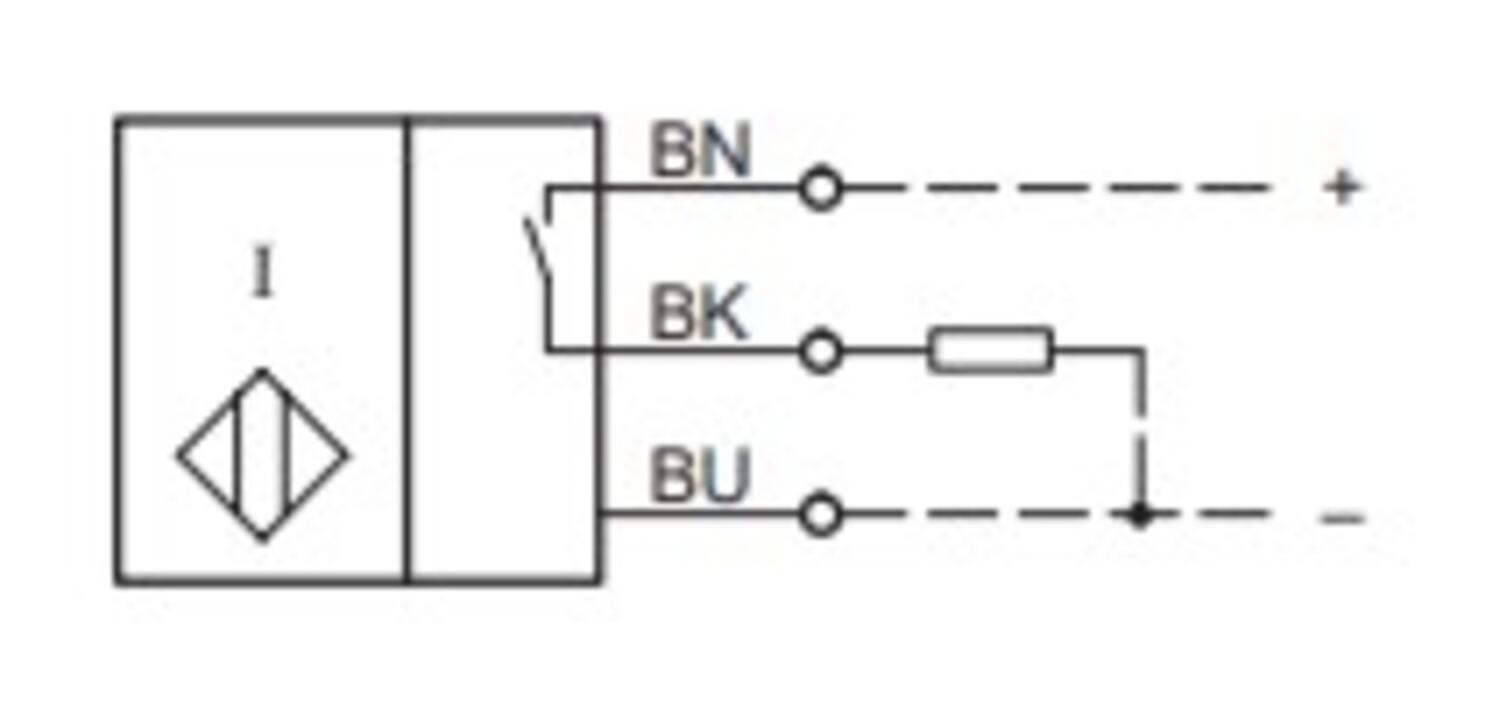

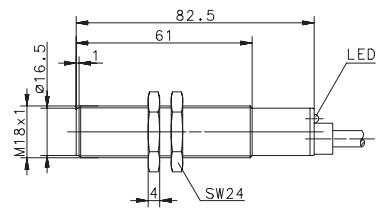

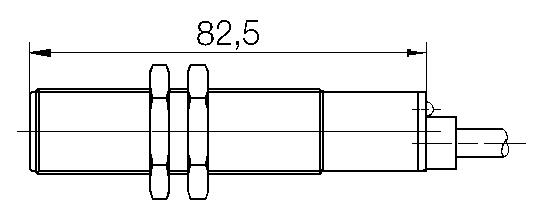

Measurements and connections

Accessories

Related products

Articles Electrical connection Manufacturer Part No
M18 standard
IND M18 MF PNP NO T=100°C
Art:
650.2905.023 Copied
Cable 2 m
6502905023
M18 standard
Inductive sensor, M18, flush mount, PNP, NO, -40-+100°C, connector
Art:
650.2940.006 Copied
M12 4 pole connector
6502940006

Selected variant

Select a variant in the list
