Datalogic - S65-V - Colour sensor
The S65-V colour sensors offer the best performances for colour detection in compact housing. The S65-V is suitable for automatic packaging applications, quality control and part checking in the production process. The sensor can memorise and recognise 3 colours on 3 independent channels. The auxiliary functions include key-lock and synchronisation with external events through a specific input. The control panel presents two setting push-buttons, outputs LEDs and a 4-digit display for functioning messages and sensor configuration. Complete remote control is possible for the version with the RS485 serial interface.
Features & Benefits:
·White emission
·C or C+I selectable functioning mode
·Teach-in push-button and display 4 digits indicator
·1.5KHz switching frequency
·RS485 serial interface
Applications:
·Packaging lines
·Sorting
·Wood working machines
·Glass working machines
·Automotive
- 3 independent NPN or PNP outputs and RS 485 serial interface
- LED with white light and RGB receiver
- Reaction time of 335 μs

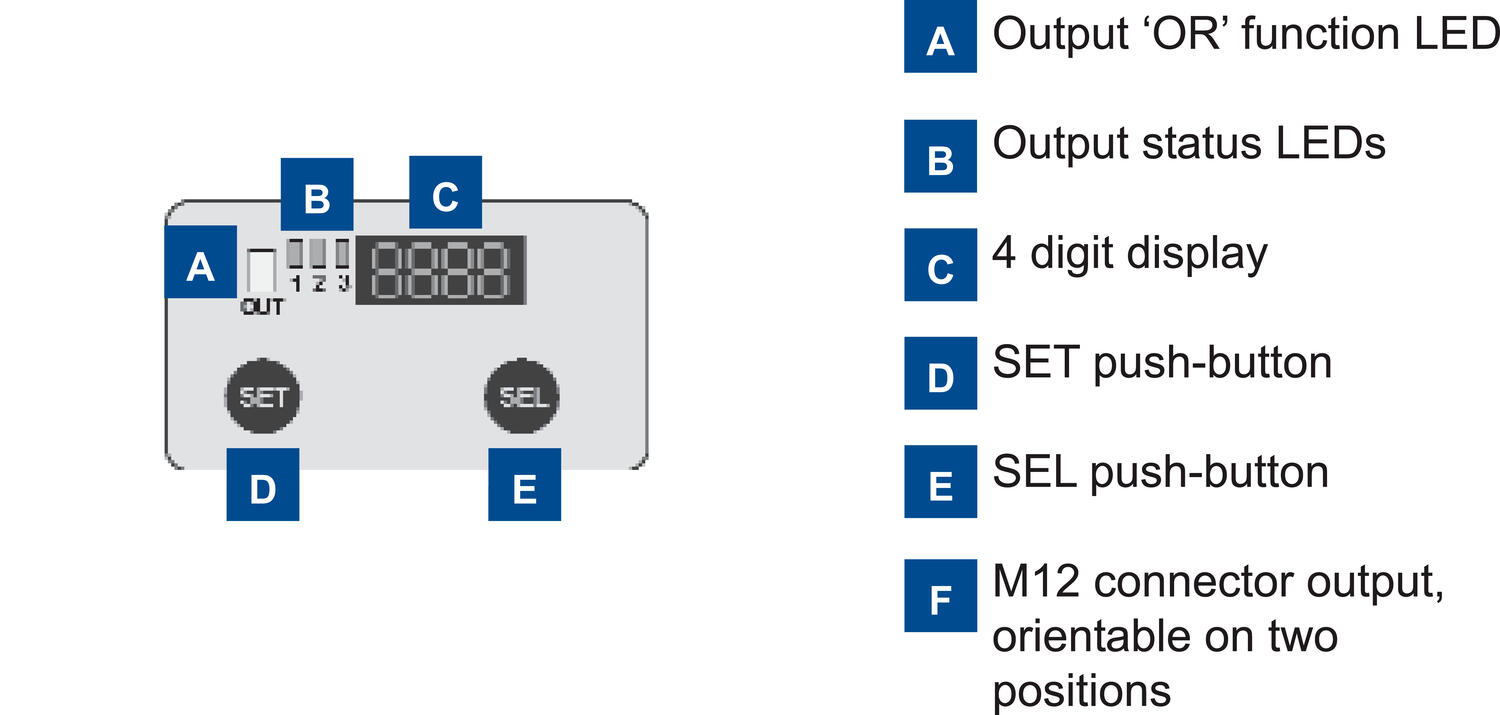

- 2 push-button easy setting and 4 digit display
Selected variant
Specifications
| Approvals | CE, UL |
|---|---|

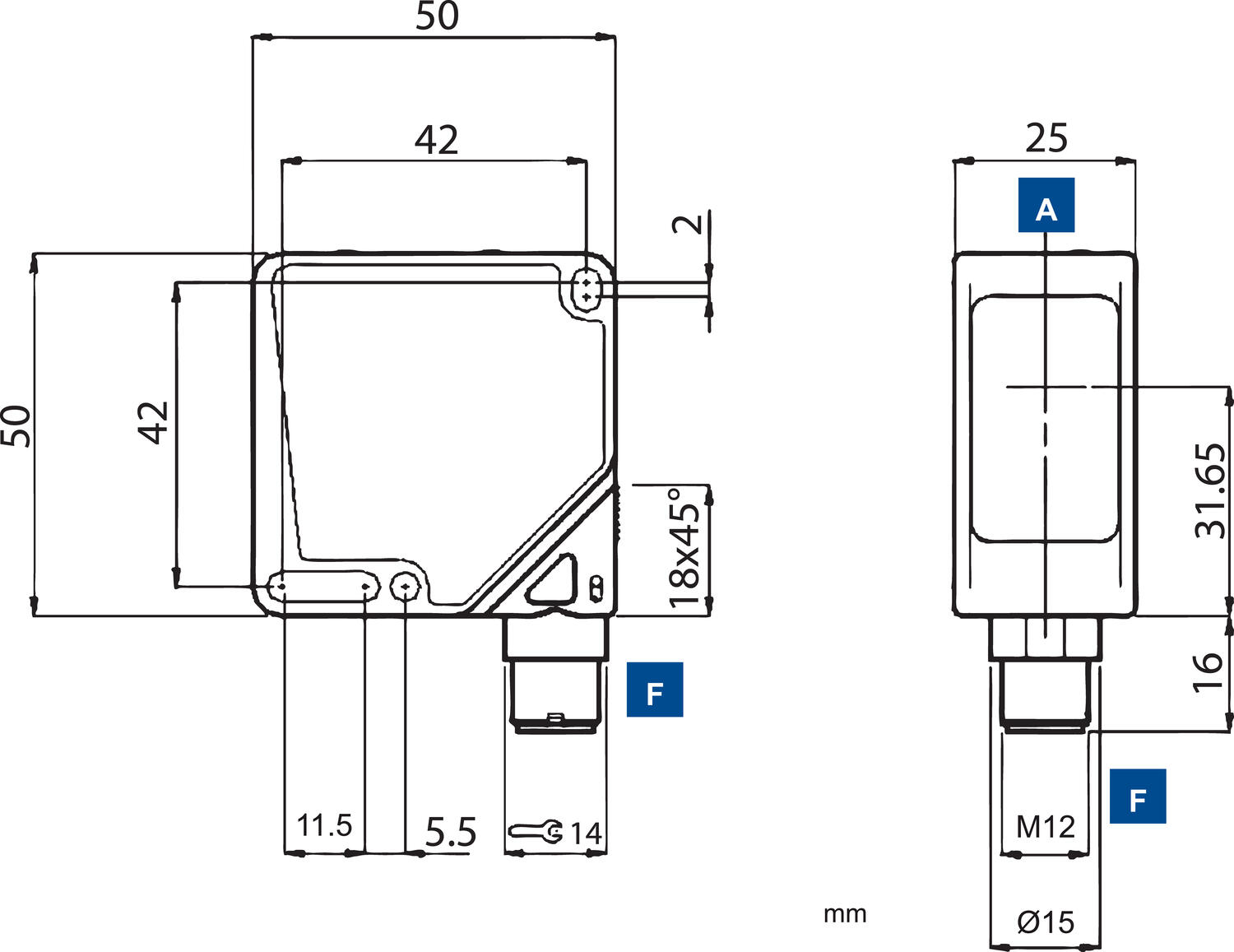

| Dimension (mm) | 50 x 50 x 25 |
| Distance Max | 45 mm |
| Distance Min | 5 mm |

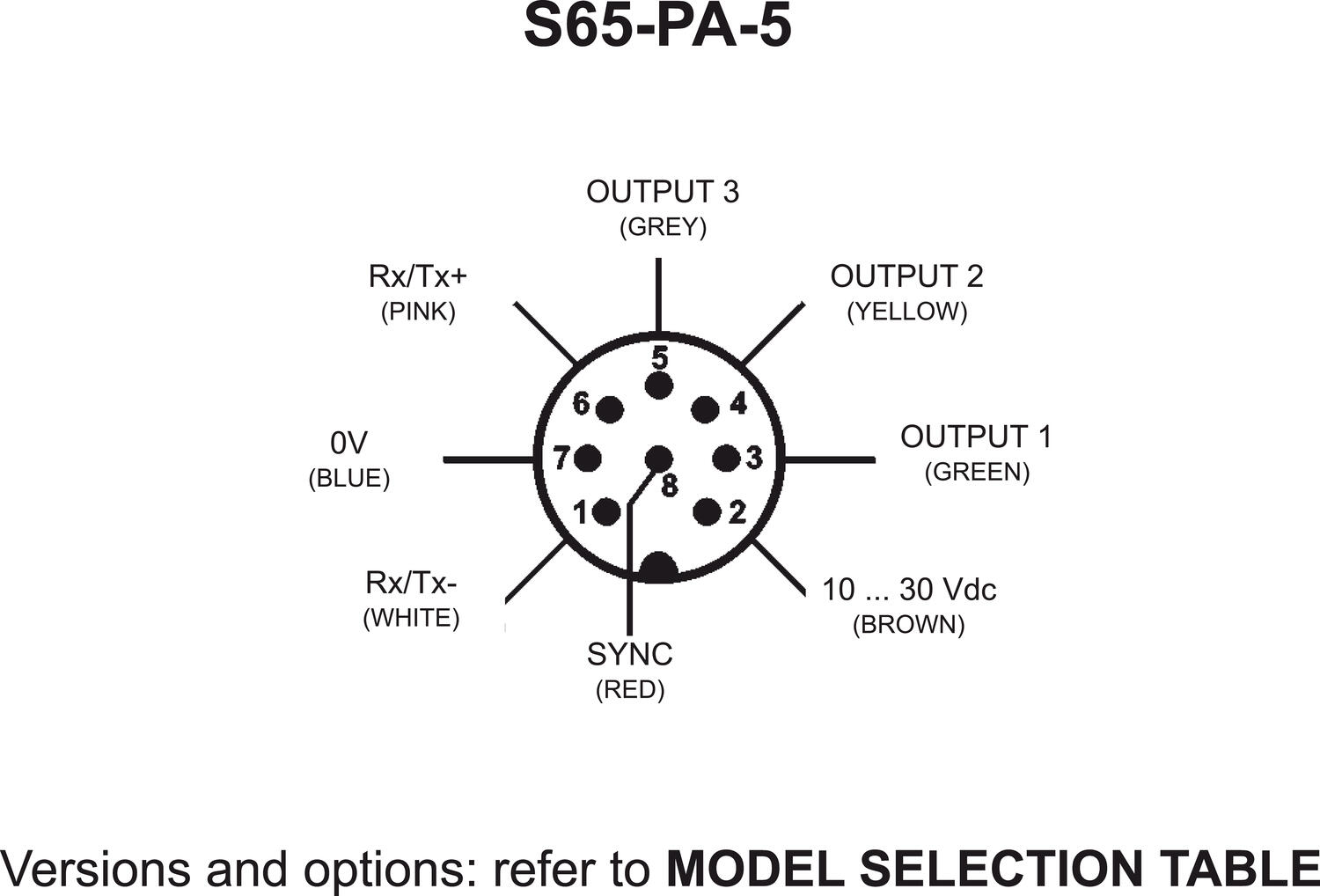

| Electrical connection | M12 8 pole connector |
| IP Class | IP67 |
| LED indicator | Yes |
| Lens material | Glass |
| Light type | White LED |
| Material of body | ABS plastic |
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Color sensor |
|---|---|
| Power consumption max | 0.06 A |
| Reaction time | 0.335 ms |
| Sensitivity setting | Yes |
| Supply voltage | 10-30 V DC |
| Temperature range bearing, from | -20 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -10 °C |
| Temperature range to | 55 °C |
| Type of light | LED |
| Weight | 100 g |
Product description
The S65-V colour sensors offer the best performances for colour detection in compact housing. The S65-V is suitable for automatic packaging applications, quality control and part checking in the production process. The sensor can memorise and recognise 3 colours on 3 independent channels. The auxiliary functions include key-lock and synchronisation with external events through a specific input. The control panel presents two setting push-buttons, outputs LEDs and a 4-digit display for functioning messages and sensor configuration. Complete remote control is possible for the version with the RS485 serial interface.
Features & Benefits:
·White emission
·C or C+I selectable functioning mode
·Teach-in push-button and display 4 digits indicator
·1.5KHz switching frequency
·RS485 serial interface
Applications:
·Packaging lines
·Sorting
·Wood working machines
·Glass working machines
·Automotive
