Datalogic - S80 - Laser distance sensor
The S80 series is a class 2 laser distance sensor with time of flight measurement technology provides the S80-Y0 proximity sensor with a 0.3 - 4 m distance and S80-YL0 with a sensing range of 0.3 to 7 m both with scalable range. The S80-Y1 and S80-Y2 retro reflective sensors have operating distances reaching 20 or 100 m. Models with two digital outputs, both the NPN and PNP, are available together with 4-20 mA analogue output and RS485 serial interface
Applications:
·Level Control
·Pallet presence on stocker cranes
·Unwinding coils
·Pallet positioning
·Distance measurement of a moving pallet

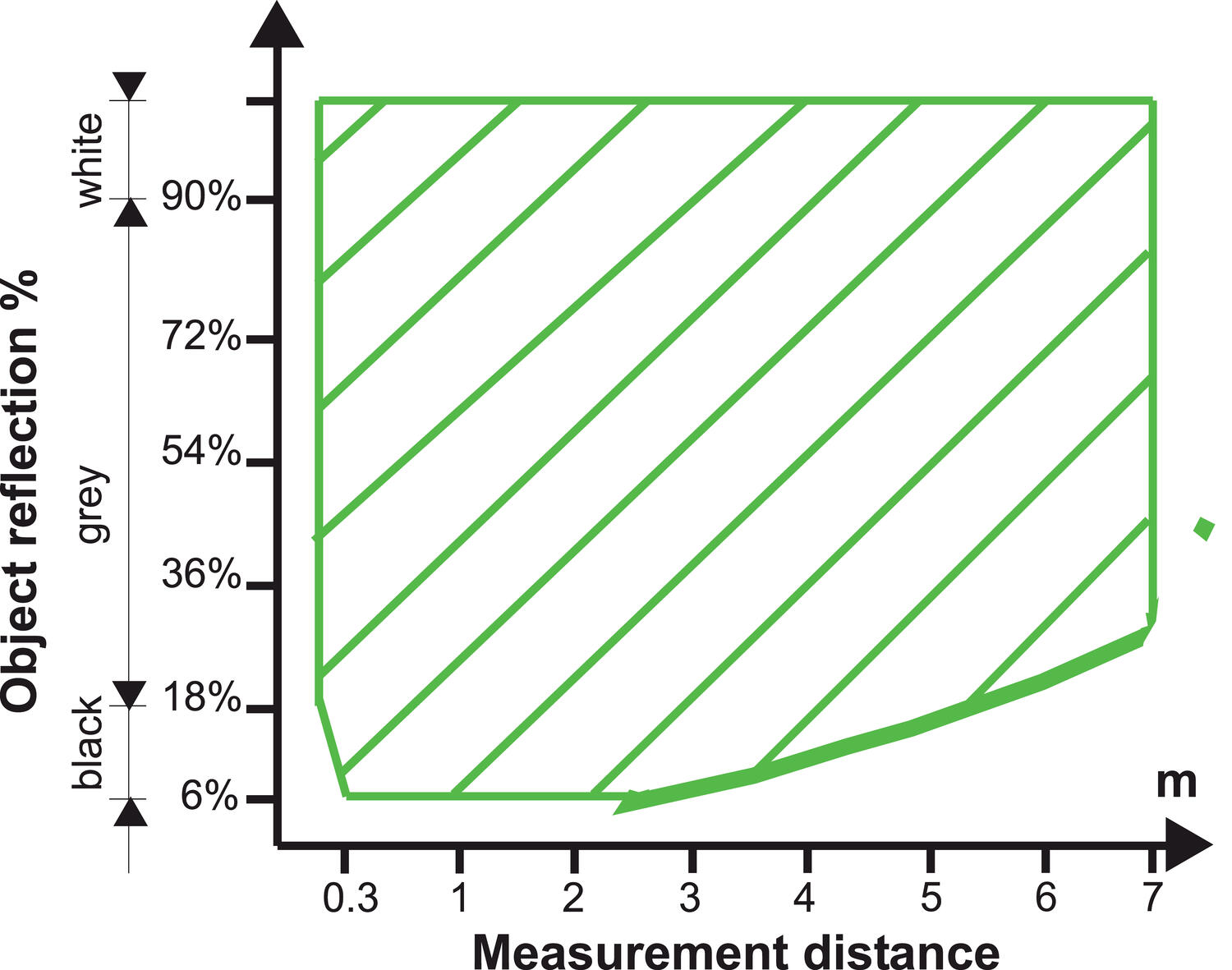

- Sensing range of up to 7m
- Retro reflective sensing range of 20m or 100m

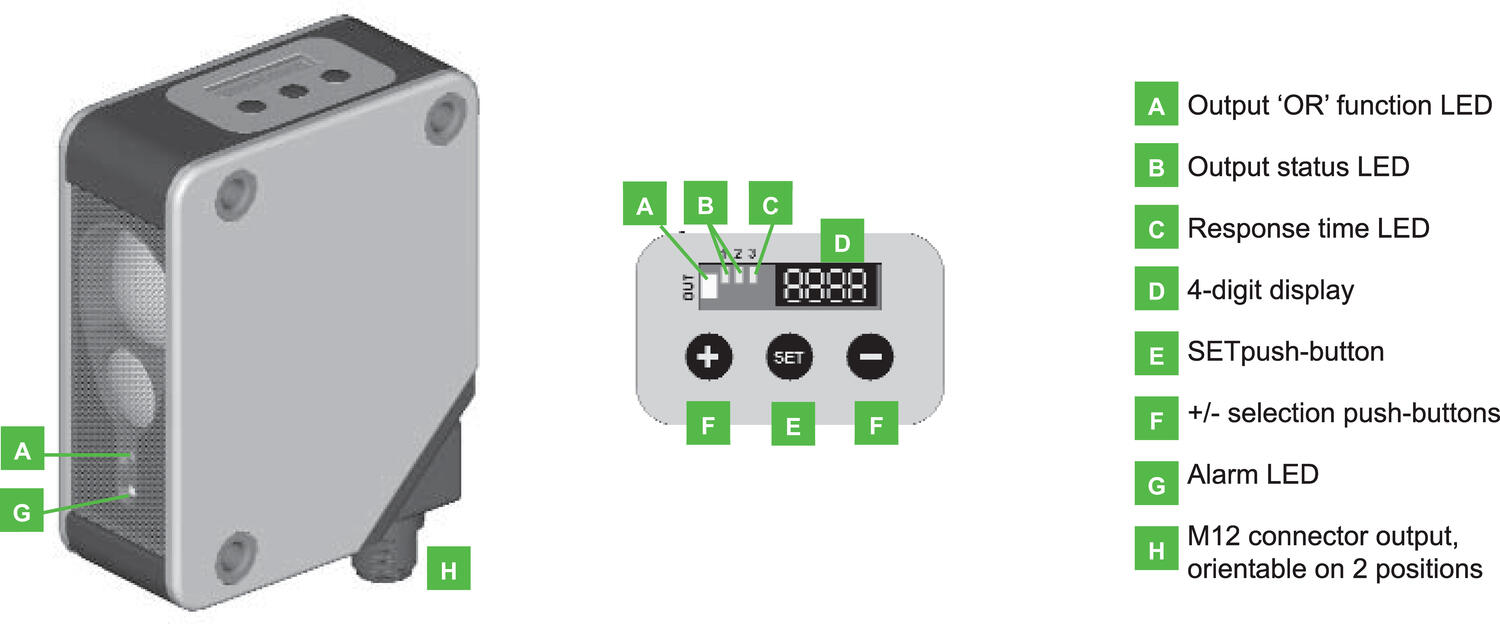

- 4 digit display and RS485 serial interface

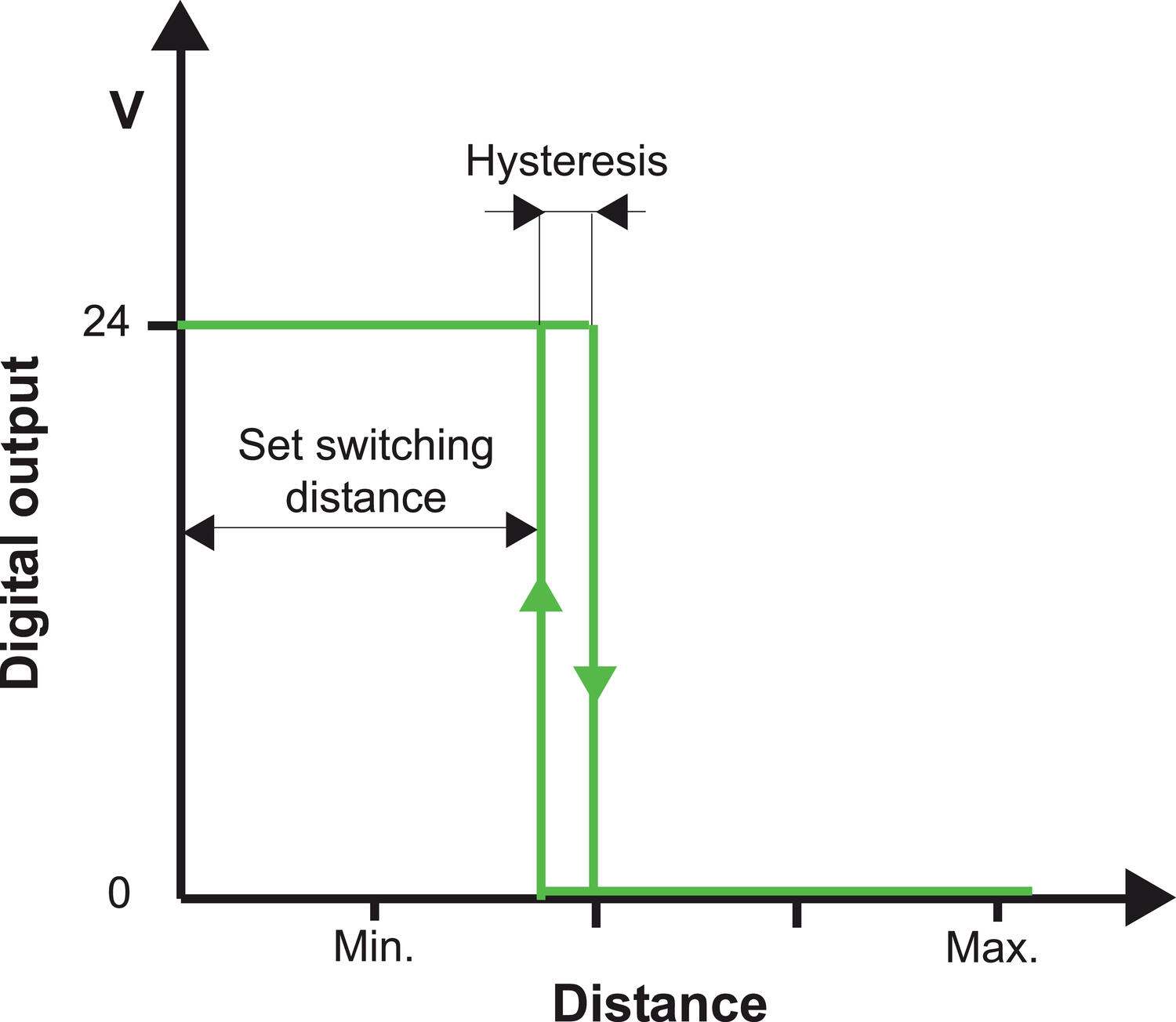

- 2 PNP NO or 2 NPN NO
- 4..20 mA analogue output
Selected variant
Specifications
| Approvals | CE, UL |
|---|---|
| Distance Max | 7000 mm |
| Distance Min | 300 mm |

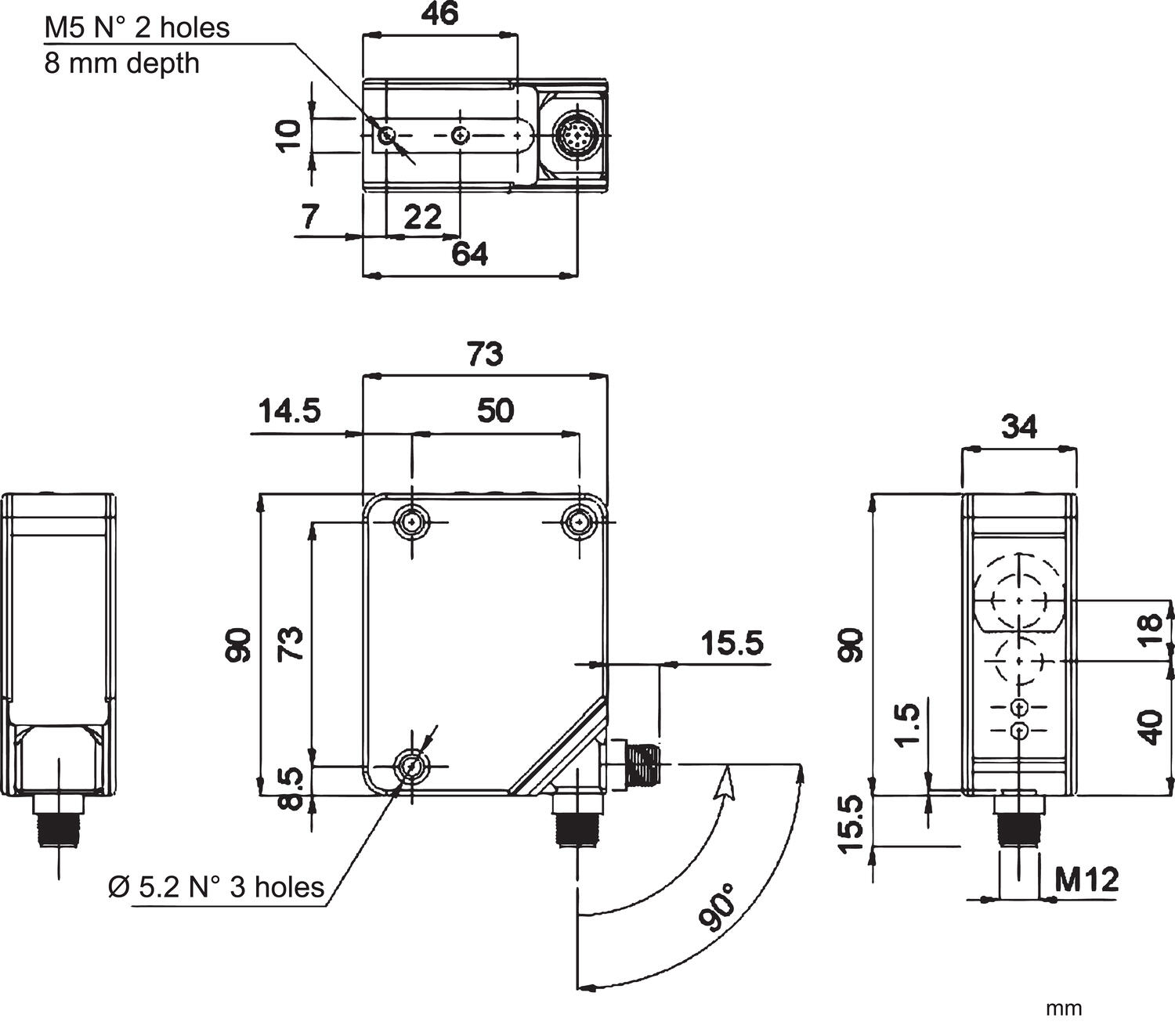

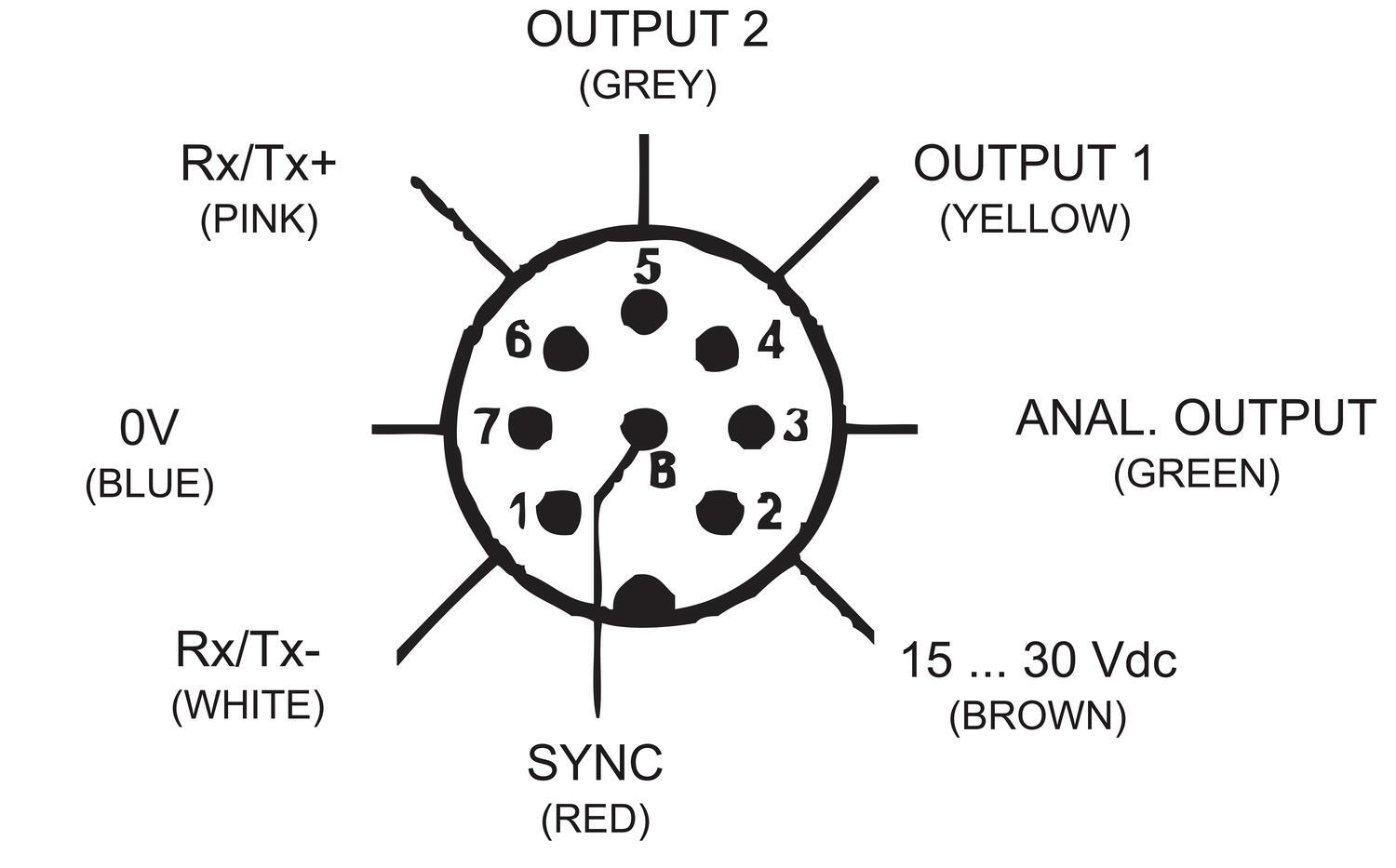

| Electrical connection | M12 8 pole connector |
| Function | Dark On/Light On |
| IP Class | IP67 |
| LED indicator | Yes |
| Lens material | Glass |
| Light type | Red laser |
| Material of body | Aluminium |
| Output | 4-20 mA, PNP, RS422 |
| Output current max | 0.1 A |
|---|---|
| Photocell technology | Distance measuring laser |
| Reaction time | 6 ms |
| Supply voltage | 15-30 V DC |
| Temperature range bearing, from | -25 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -10 °C |
| Temperature range to | 50 °C |
| Weight | 330 g |
Product description
The S80 series is a class 2 laser distance sensor with time of flight measurement technology provides the S80-Y0 proximity sensor with a 0.3 - 4 m distance and S80-YL0 with a sensing range of 0.3 to 7 m both with scalable range. The S80-Y1 and S80-Y2 retro reflective sensors have operating distances reaching 20 or 100 m. Models with two digital outputs, both the NPN and PNP, are available together with 4-20 mA analogue output and RS485 serial interface
Applications:
·Level Control
·Pallet presence on stocker cranes
·Unwinding coils
·Pallet positioning
·Distance measurement of a moving pallet
