Takex - F80 Fibre Amplifier with large digital display and long distances

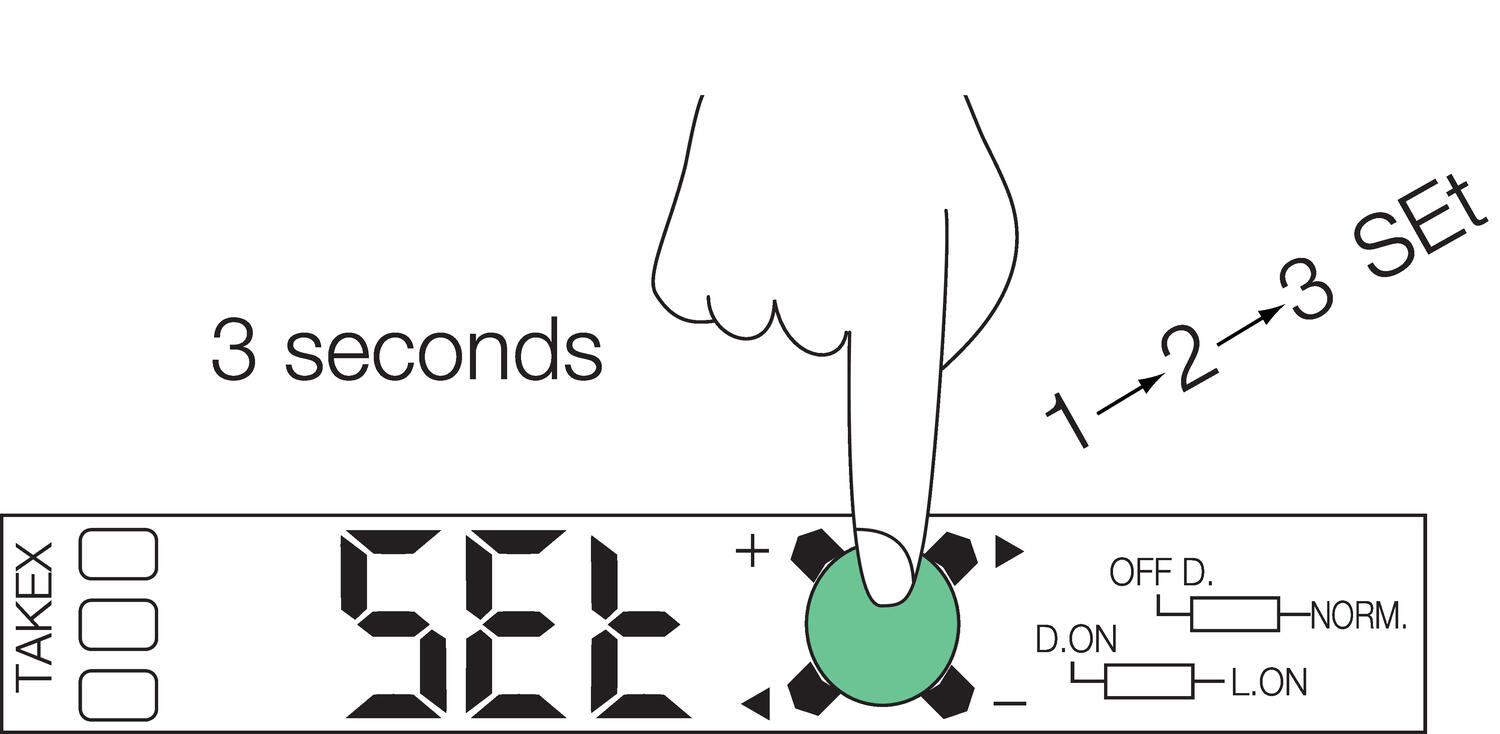

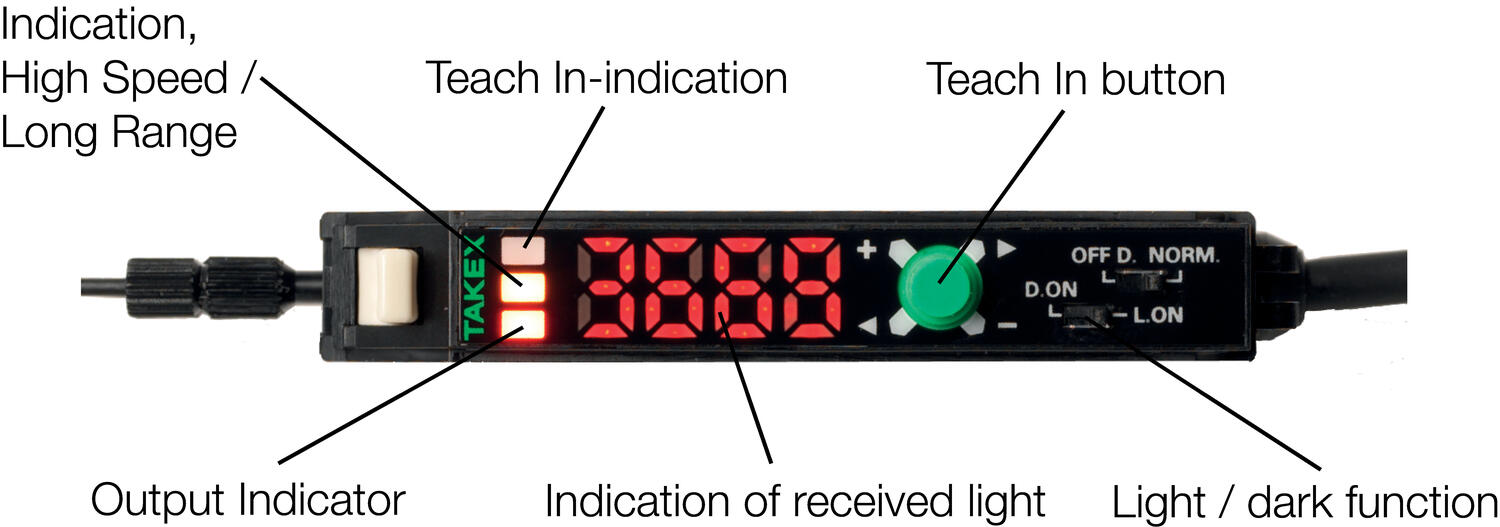

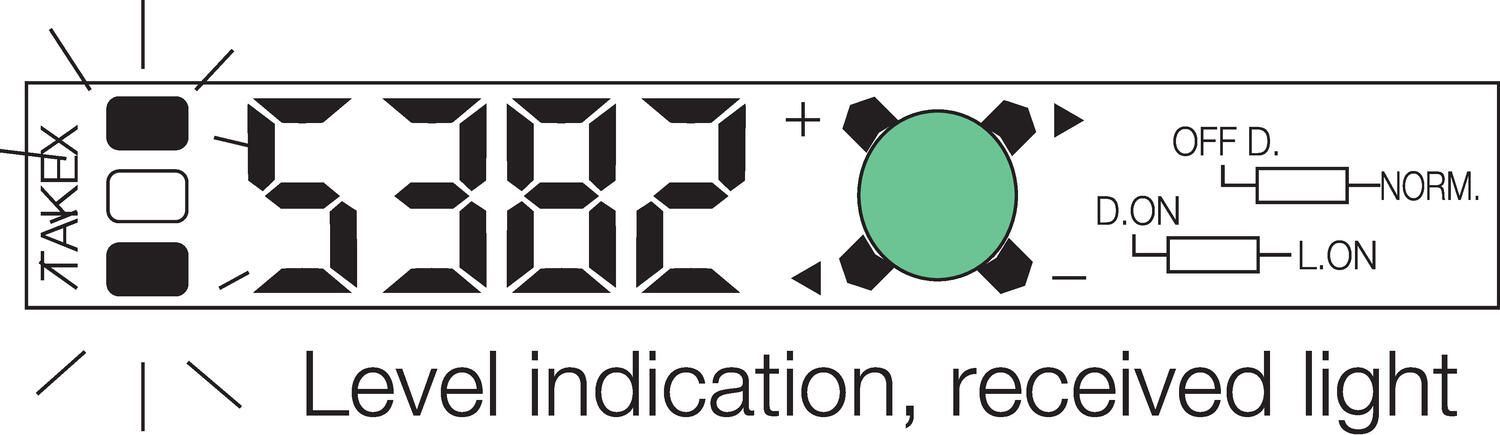

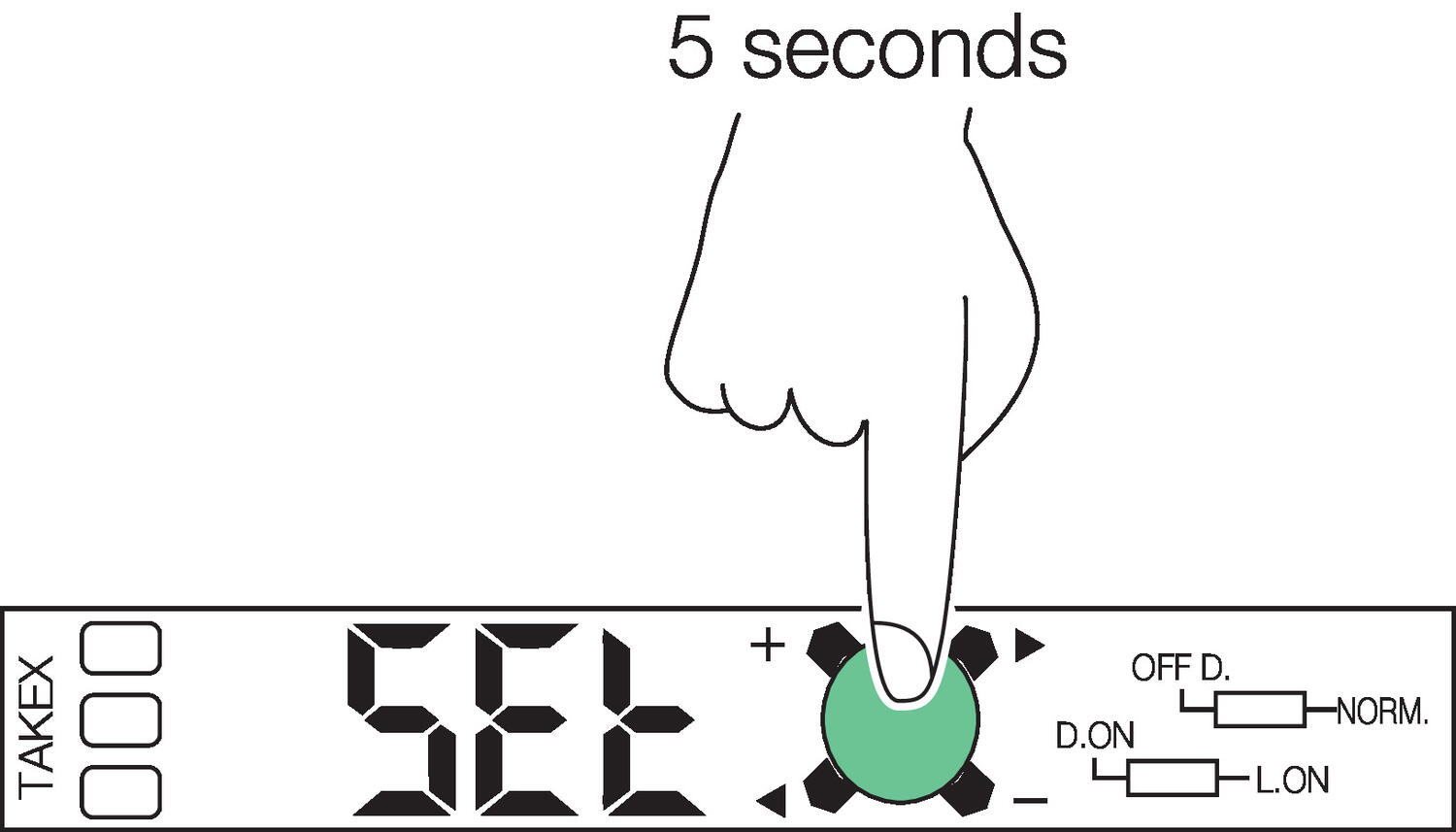

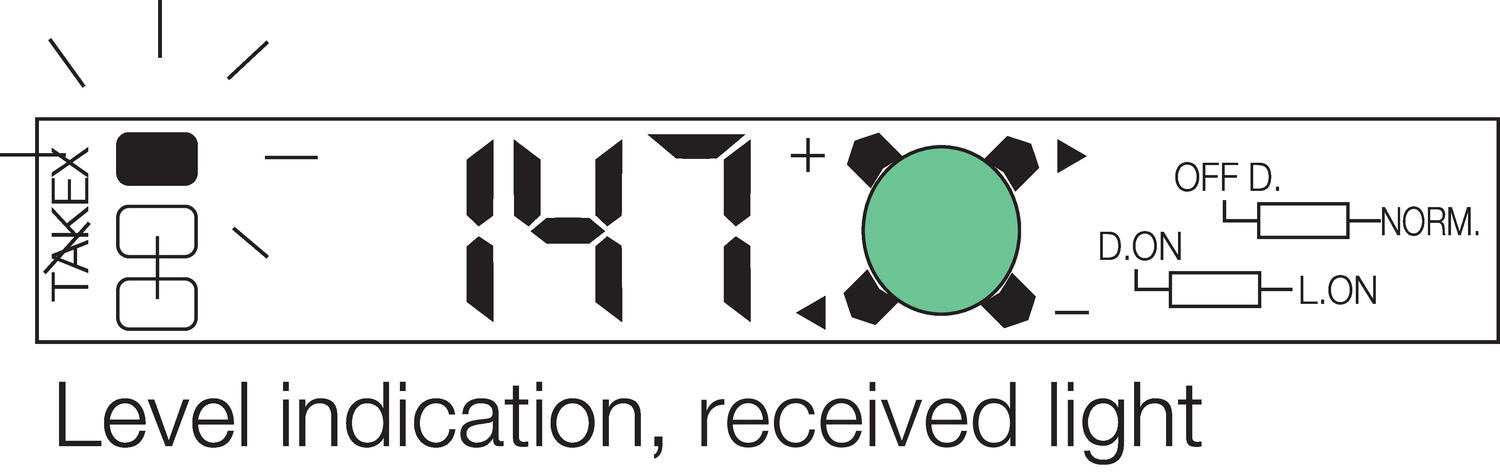

The F80 amplifier has a large, clear display which facilitates the reading of incoming light. On this amplifier, you can choose whether you want long detection distances or a fast reaction time. Reading takes place with Teach In via the green button on the amplifier. You also have the option of manually changing the value on the amplifier to the level at which you want your output signal.
- Large digital display

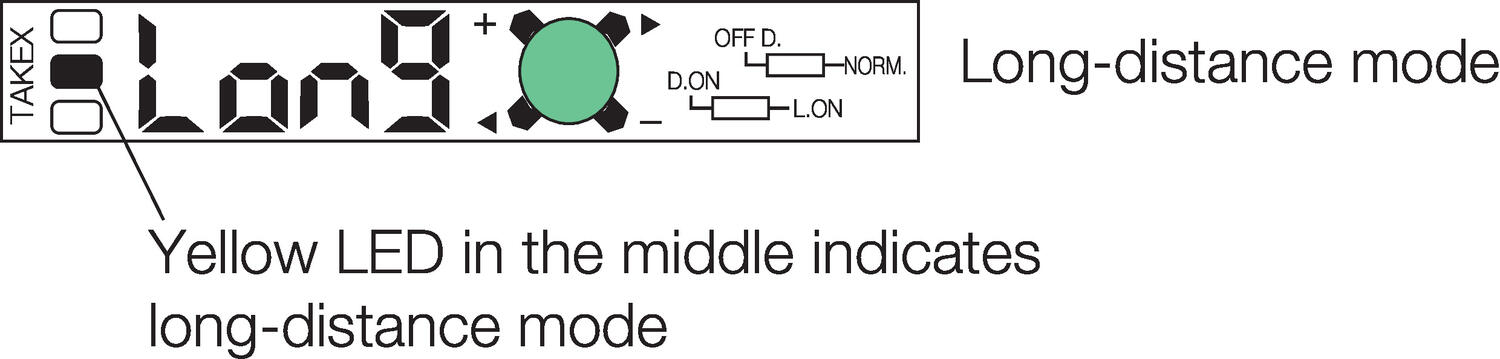

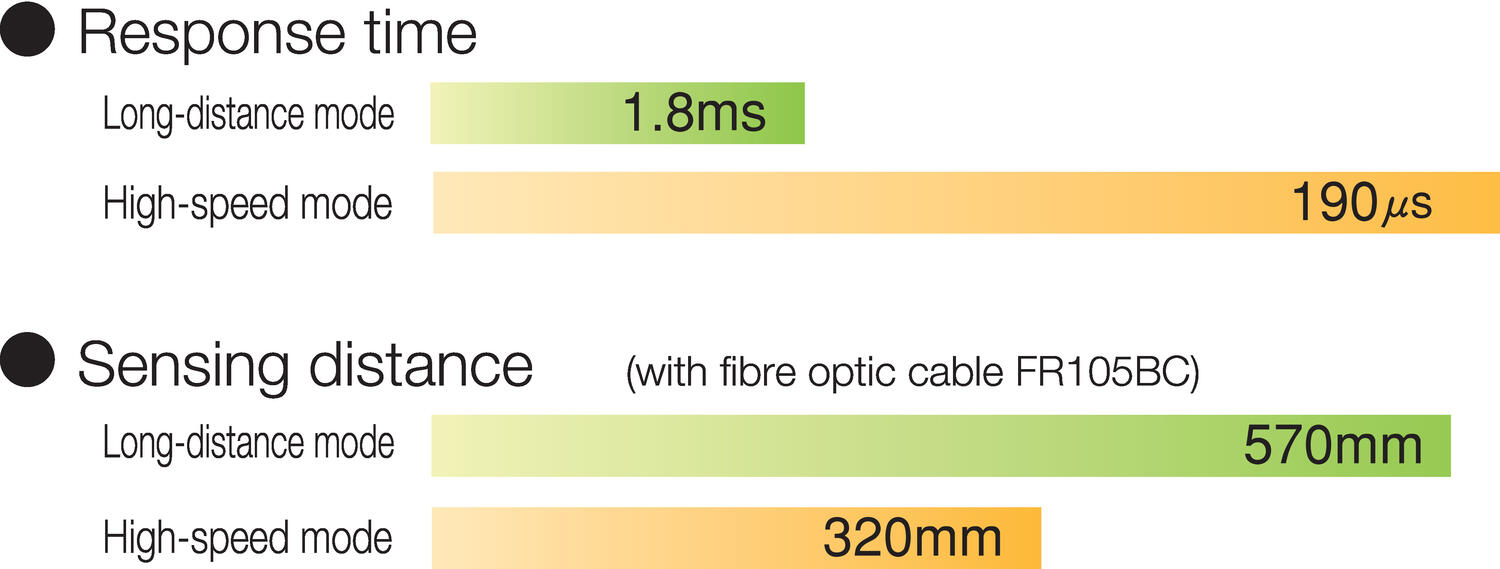

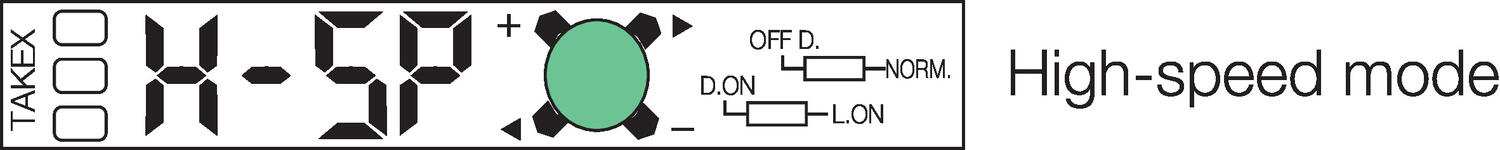

- Long distances/fast reaction time

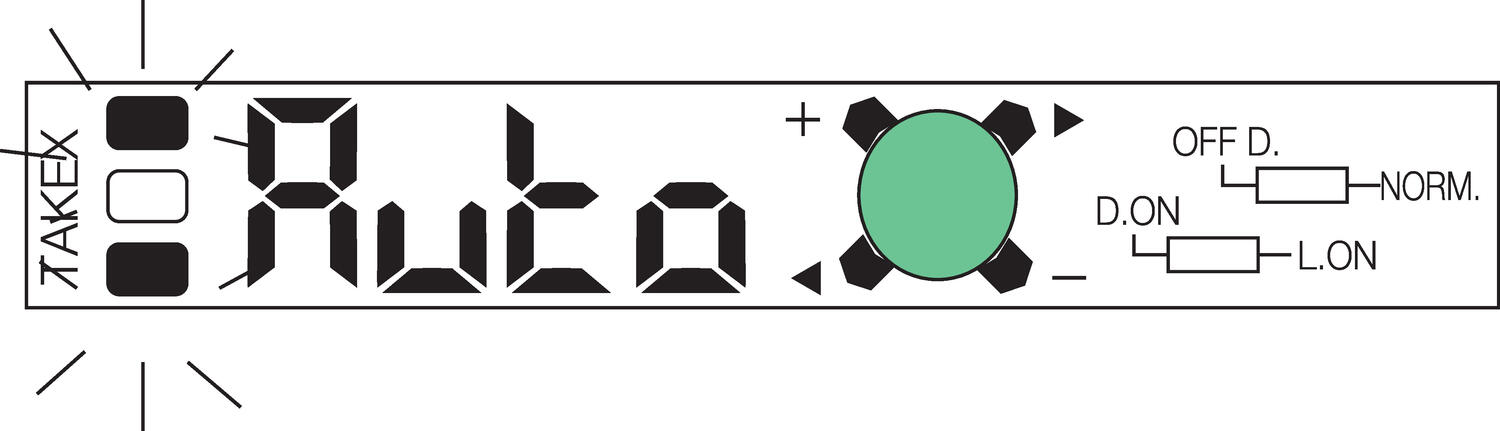

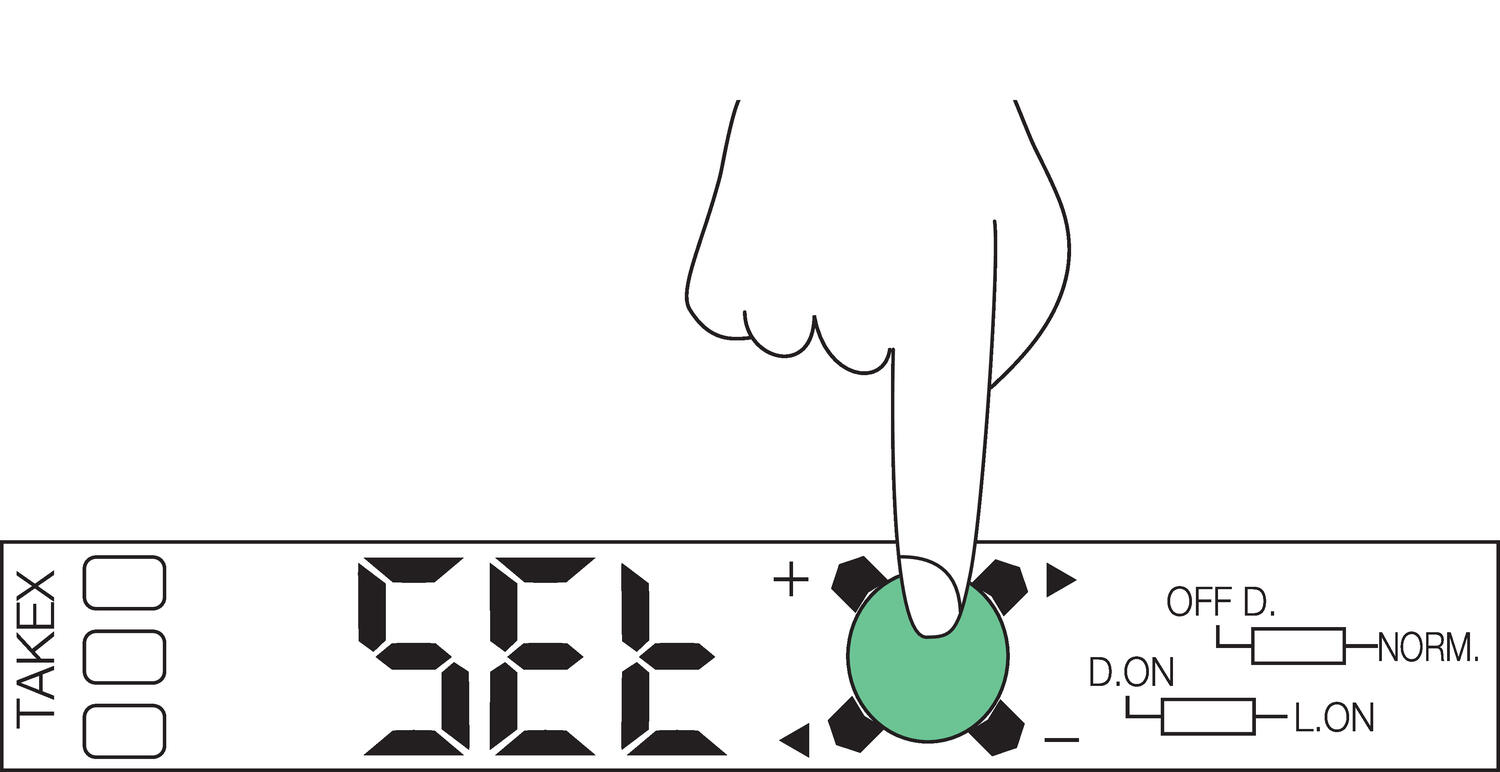

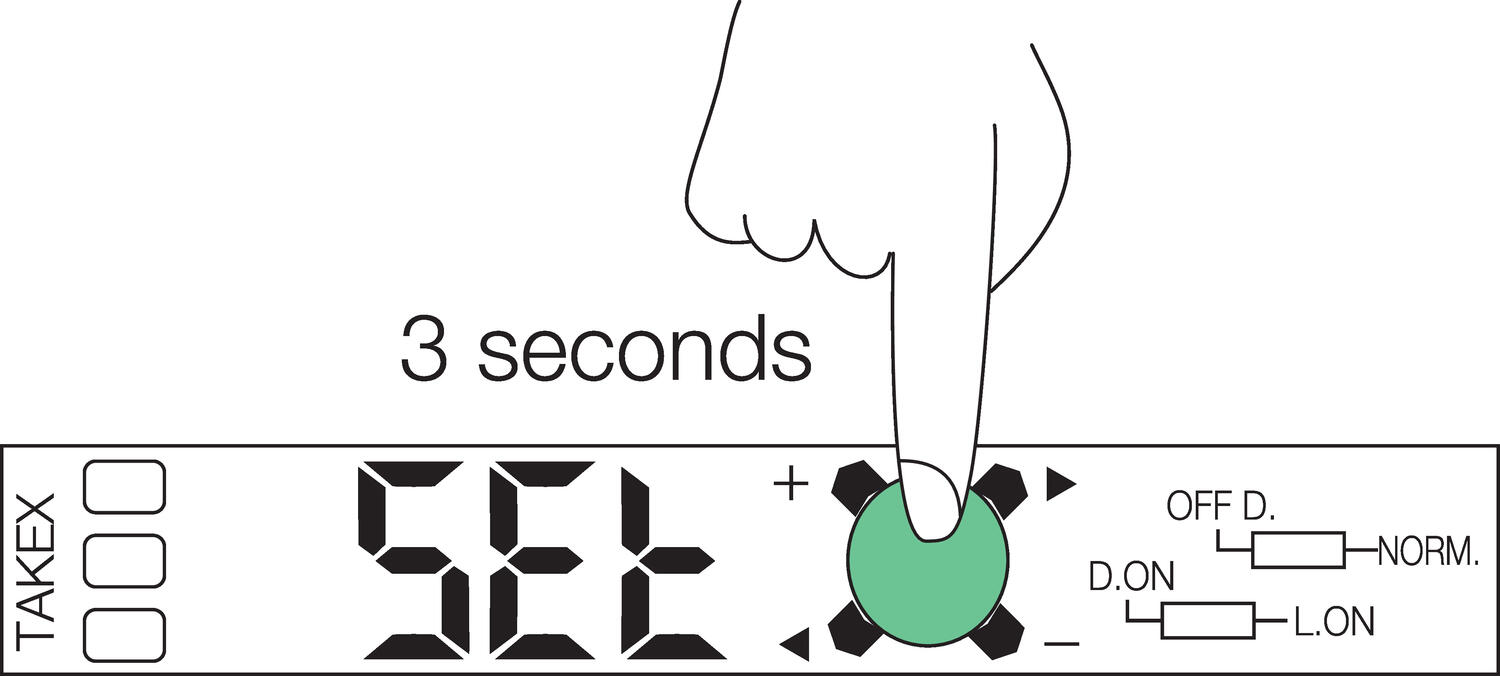

- Teach In
Selected variant
Specifications
| Approvals | CE |
|---|---|
| Electrical connection | Cable 2 m |
| Function | Dark On/Light On |
| IP Class | IP40 |
| Light / Dark Switching | Yes |
| Light type | Red LED |

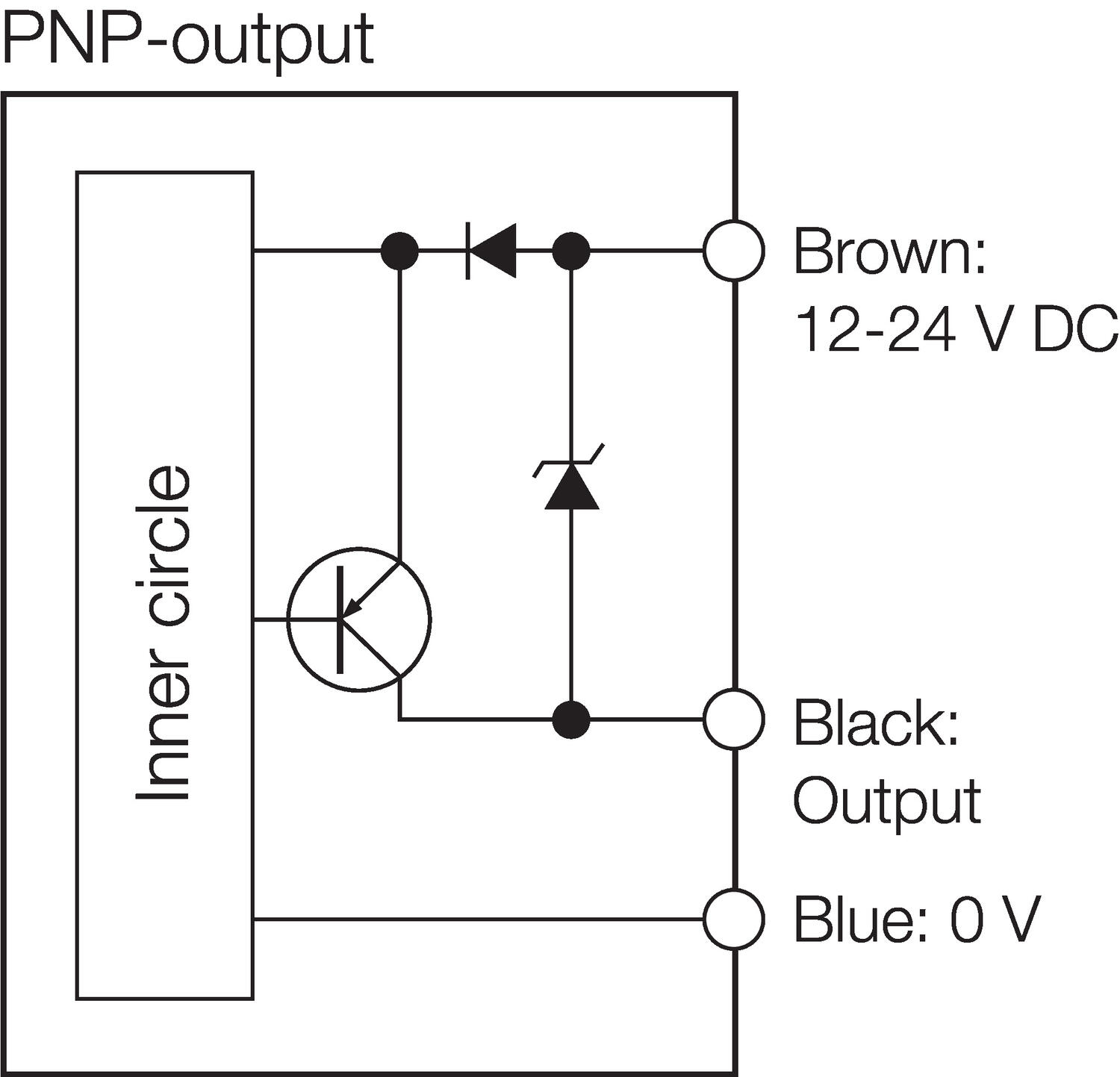

| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Fiber amblified |
|---|---|
| Power consumption max | 0.032 A |
| Reaction time | 0.19 ms |
| Temperature range from | -25 °C |
| Temperature range to | 55 °C |
| Voltage DC max | 24 V |
| Voltage DC min | 12 V |
Product description
The F80 amplifier has a large, clear display which facilitates the reading of incoming light. On this amplifier, you can choose whether you want long detection distances or a fast reaction time. Reading takes place with Teach In via the green button on the amplifier. You also have the option of manually changing the value on the amplifier to the level at which you want your output signal.
