Takex - G Series compact photoelectric sensor

Compact one-piece photoelectric sensor to fit narrow machines. If detection to a reflector is required, GMR2RS it a natural first choice. A polarised lens eliminates any ghost reflections. The “protective casing with bracket” accessory permits very robust and secure fitting. A separate alarm output is provided as additional security.

Read more
  • Compact one-piece photoelectric sensor
  • Cable or connector

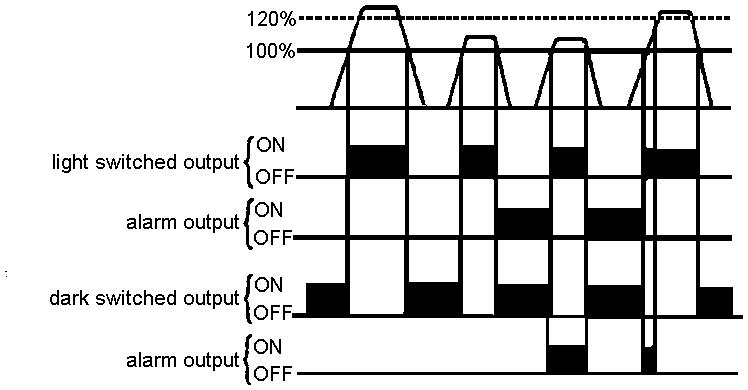

  • Alarm output
  • IP67

Selected variant

Selected variant

Specifications

Approvals CE
Distance Min 0 mm
Electrical connection Cable 2 m
Function Dark On/Light On
IP Class IP67
Light / Dark Switching Yes
Light type Red LED
Output PNP
Photocell technology Transmitter / receiver
Power consumption max 0,025 A
Reaction time 0,5 ms
Sensing 7000 mm
Temperature range from -25 °C
Temperature range to 55 °C
Voltage DC max 24 V
Voltage DC min 12 V

Downloads

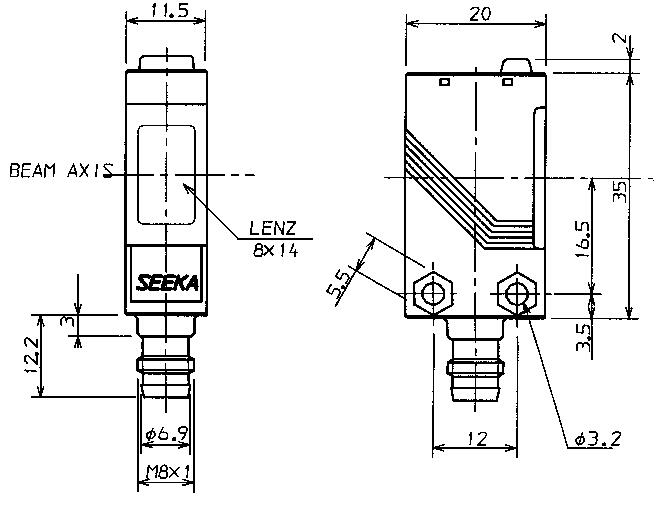

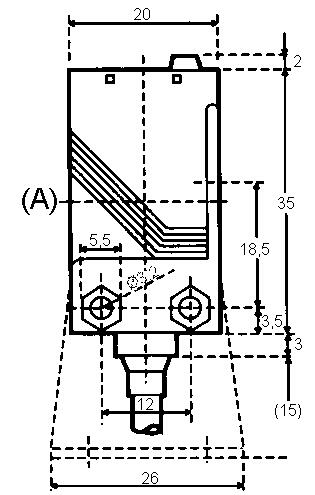

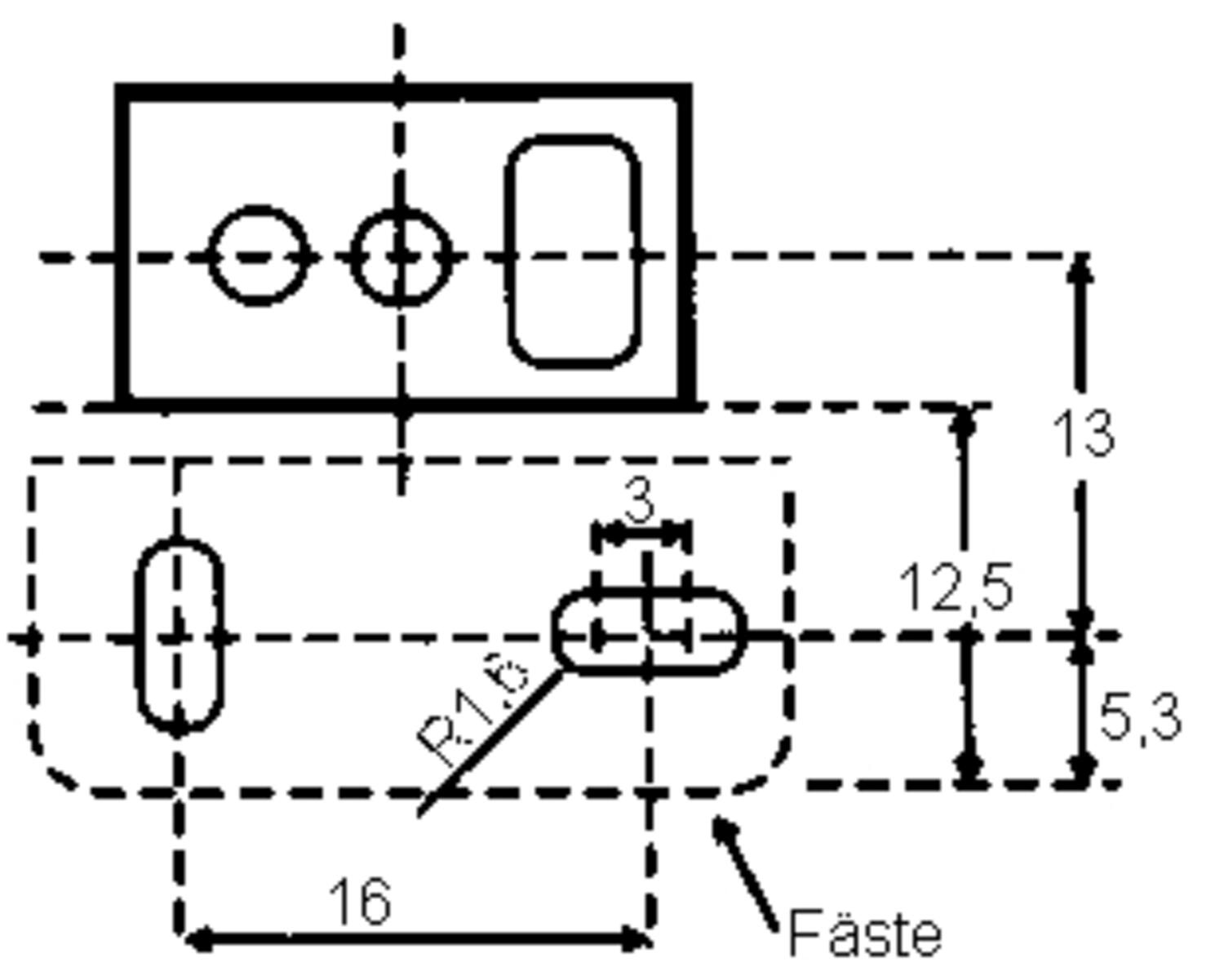

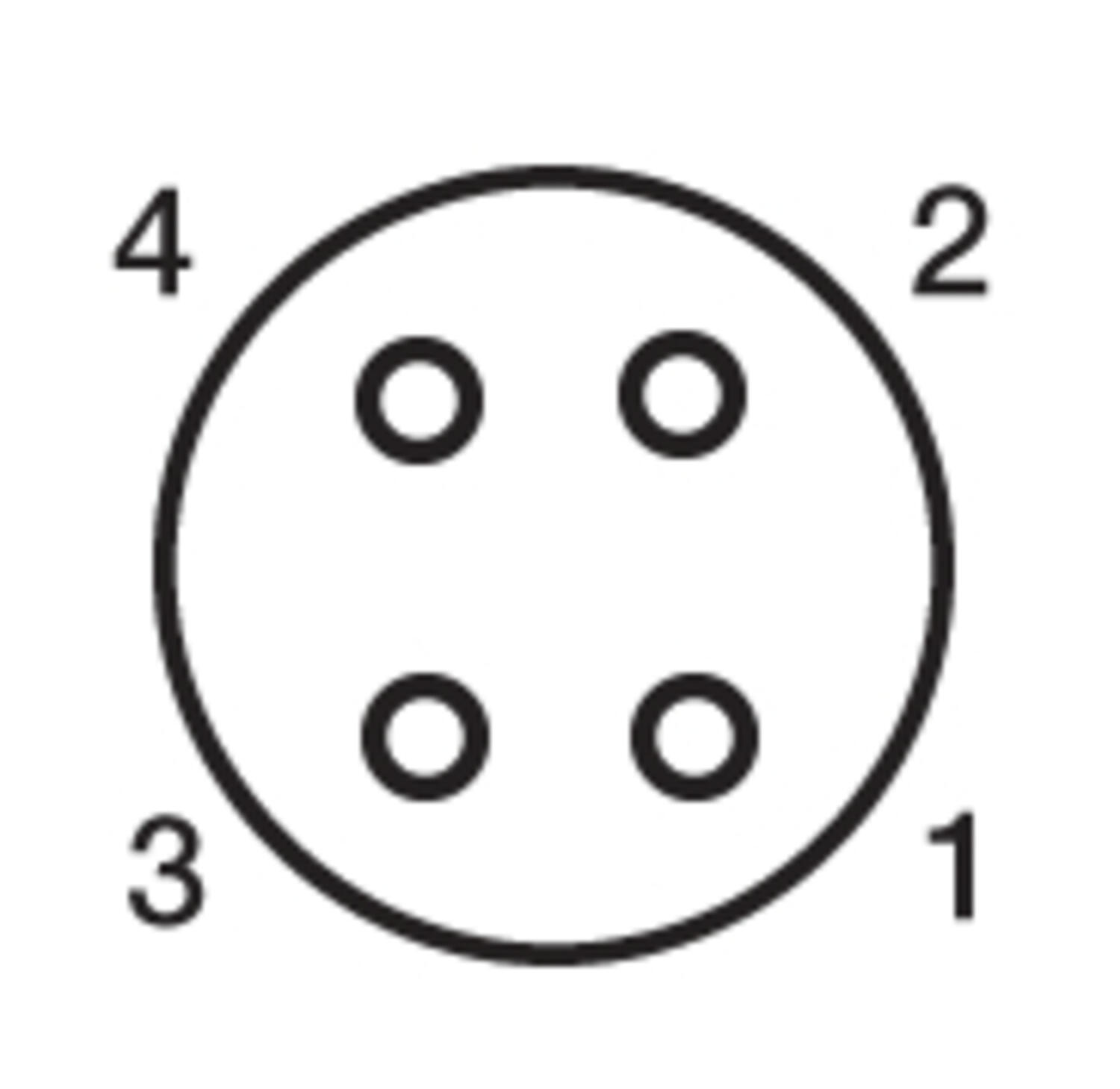

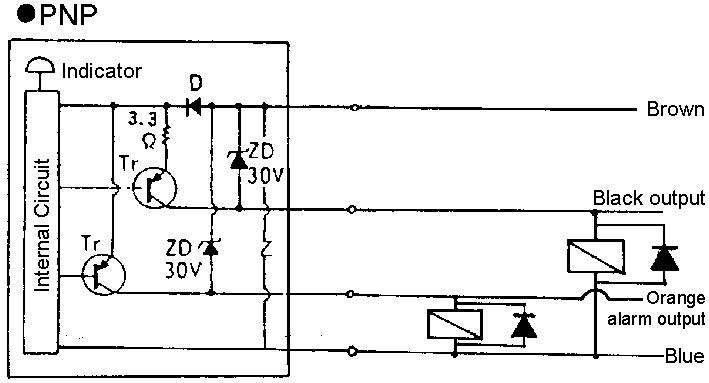

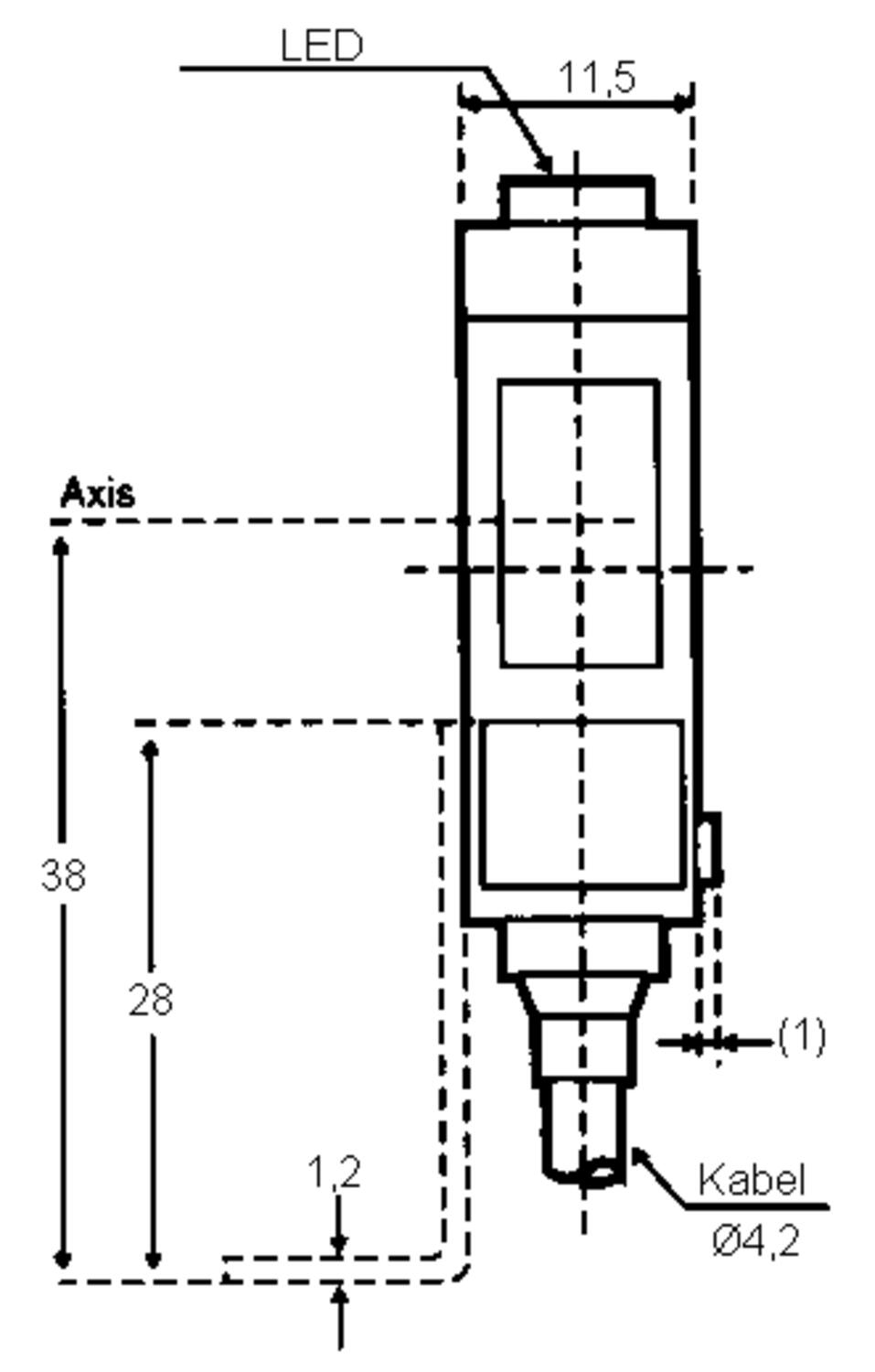

Measurements and connections

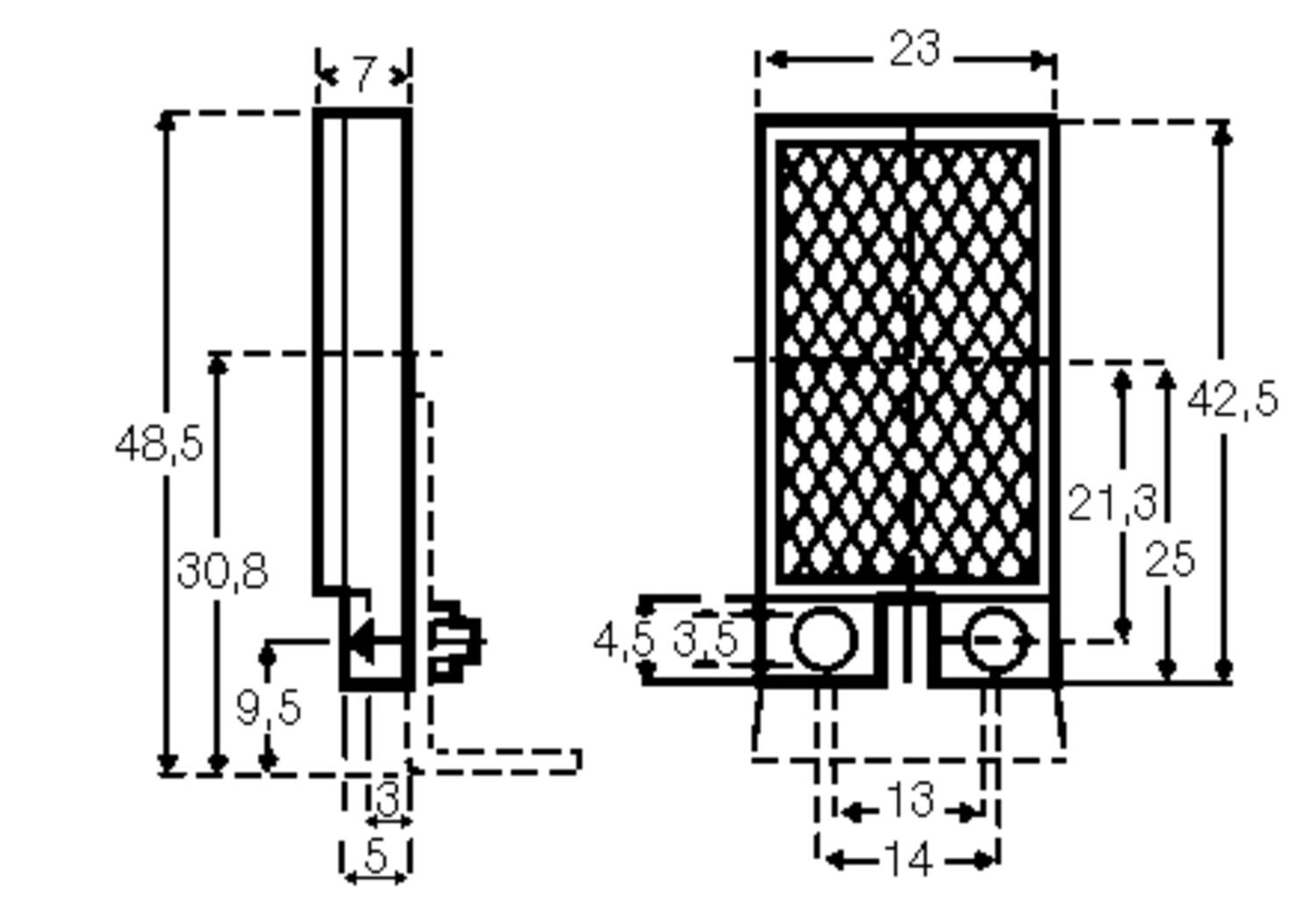

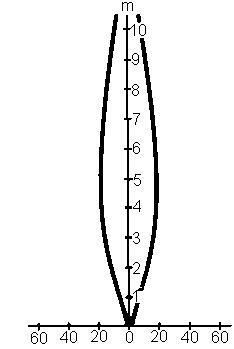

Technical illustrations

Product description

Compact one-piece photoelectric sensor to fit narrow machines. If detection to a reflector is required, GMR2RS it a natural first choice. A polarised lens eliminates any ghost reflections. The “protective casing with bracket” accessory permits very robust and secure fitting. A separate alarm output is provided as additional security.

Accessories

Related products

Articles Distance Max Distance Min Electrical connection Photocell technology Sensing
0 mm
Cable 2 m
Transmitter / receiver
7000 mm
0 mm
M8 4 pole connector
Transmitter / receiver
7000 mm
1500 mm
30 mm
Cable 2 m
Polorised retro reflective
1500 mm
1500 mm
30 mm
M8 4 pole connector
Polorised retro reflective
1500 mm
0 mm
Cable 2 m
Diffuse proximity
500 mm
0 mm
M8 4 pole connector
Diffuse proximity
500 mm
