Takex - M5, M6 Photoelectric sensors with built-in amplifier
The UX series of photoelectric sensors come with a built-in amplifier. In terms of size, they are similar to fibre but no separate amplifiers are required. The stainless steel housings and polysulphone lenses are chemical-resistant and so these photoelectric sensors are ideal for use anywhere where cleanliness is required, such as when working with food or medicines, where the photoelectric sensors will come into contact with detergents.
Technical data
Order number | UXT100D-PNP | UXT50DS-PNP | UXR5V-PNP |
|
Function | Through-beam | Diffuse Reflection |
| |
Housing size | M5x0.5 | M5x0.5 side-facing | M6x0.75 |
|
Detection distance | 1000 mm | 500 mm | 3 - 50 mm* |
|
Smallest detectable objects | Ø4 mm | Ø5 mm | - |
|
Supply voltage | 12-24 V DC ±10 % max. 10 % |
| ||
Internal consumption | Transmitter 15 mA max., receiver 15 mA max. | 20 mA max. |
| |
Output | PNP open collector 80 mA (30 V DC max.), short circuit-proof |
| ||
Function | Dark on | Light on |
| |
Reaction time | 0.5 ms (max.) |
| ||
Light source | Visible red LED (630 nm) | Visible red LED (625 nm) | Infrared LED (870 nm) |
|
LED indication | Orange LED output indication. Green LED comes on when detection is satisfactory |
| ||
Sensitivity setting | - | Potentiometer |
| |
Protection class | IP67 |
| ||
Enclosure material | Stainless housing. Lens made from polysulphone. |
| ||
Temperature range | -25 °C to +55 °C |
| ||
Connection | 2 m cable |
| ||
* To 100x100 mm white paper.
Dimensions
UXT100D |
UXT50DS |
UXR5V |
Connection
Order number
Order no. | Version | Output | Distance |
UXT100D-PNP | Through-beam | PNP | 1000 mm |
UXT50DS-PNP | Through-beam, side-facing | PNP | 500 mm |
UXR5V-PNP | Diffuse Reflection | PNP | 3-50 mm |
- Stainless housing and chemical-resistant lenses
- Side-facing through-beam in M5 housing
- Built-in amplifier
- IP67
Selected variant
Specifications
| Approvals | CE |
|---|---|
| Distance Min | 0 mm |
| Electrical connection | Cable 2 m |
| Function | Dark On |
| IP Class | IP67 |
| Lens material | Polysulfone |
| Light / Dark Switching | Yes |
| Light type | Red LED |
| Material of body | Stainless steel |
| Output | PNP |
| Output current max | 0.08 A |
|---|---|
| Photocell technology | Transmitter / receiver |
| Power consumption max | 0.015 A |
| Reaction time | 0.5 ms |
| Sensing | 1000 mm |
| Temperature range from | -25 °C |
| Temperature range to | 55 °C |
| Voltage DC max | 24 V |
| Voltage DC min | 12 V |
Product description
The UX series of photoelectric sensors come with a built-in amplifier. In terms of size, they are similar to fibre but no separate amplifiers are required. The stainless steel housings and polysulphone lenses are chemical-resistant and so these photoelectric sensors are ideal for use anywhere where cleanliness is required, such as when working with food or medicines, where the photoelectric sensors will come into contact with detergents.
Technical data
Order number | UXT100D-PNP | UXT50DS-PNP | UXR5V-PNP |
|
Function | Through-beam | Diffuse Reflection |
| |
Housing size | M5x0.5 | M5x0.5 side-facing | M6x0.75 |
|
Detection distance | 1000 mm | 500 mm | 3 - 50 mm* |
|
Smallest detectable objects | Ø4 mm | Ø5 mm | - |
|
Supply voltage | 12-24 V DC ±10 % max. 10 % |
| ||
Internal consumption | Transmitter 15 mA max., receiver 15 mA max. | 20 mA max. |
| |
Output | PNP open collector 80 mA (30 V DC max.), short circuit-proof |
| ||
Function | Dark on | Light on |
| |
Reaction time | 0.5 ms (max.) |
| ||
Light source | Visible red LED (630 nm) | Visible red LED (625 nm) | Infrared LED (870 nm) |
|
LED indication | Orange LED output indication. Green LED comes on when detection is satisfactory |
| ||
Sensitivity setting | - | Potentiometer |
| |
Protection class | IP67 |
| ||
Enclosure material | Stainless housing. Lens made from polysulphone. |
| ||
Temperature range | -25 °C to +55 °C |
| ||
Connection | 2 m cable |
| ||
* To 100x100 mm white paper.
Dimensions

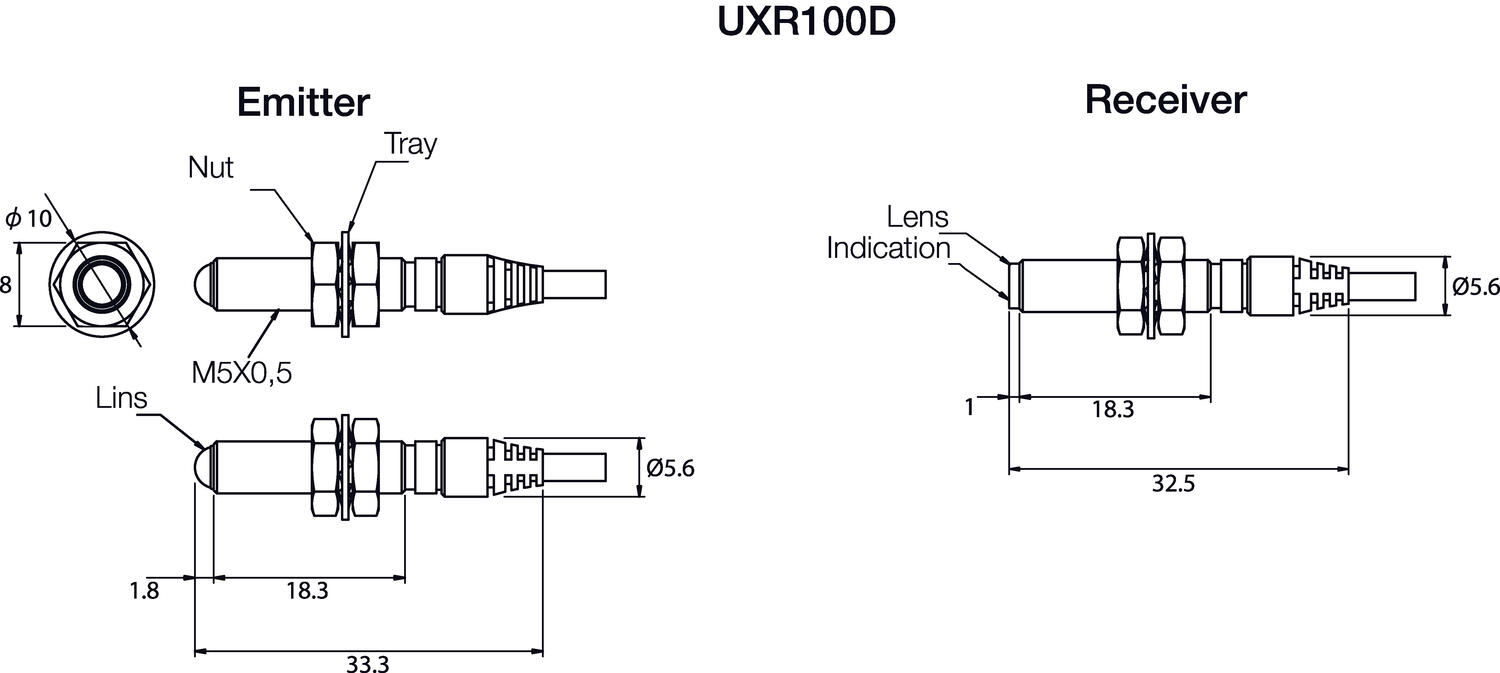

UXT100D |
UXT50DS |
UXR5V |
Connection
Order number
Order no. | Version | Output | Distance |
UXT100D-PNP | Through-beam | PNP | 1000 mm |
UXT50DS-PNP | Through-beam, side-facing | PNP | 500 mm |
UXR5V-PNP | Diffuse Reflection | PNP | 3-50 mm |
