TECSIS
P3355/P3354
Small and compact pressure transducer, uniquely developed for volume applications where there are demands for high requirements at a low cost. Extreme pressure and vibration resistant thanks to their compact dimensions and low weight in combination with the well-tested thinfilm measuring cell that has good long-term stability and high overpressure protection without internal gaskets.
- Mobile hydraulics
- High volume
- 0…6 bar up to 0…600 bar
- High temperature resistance
Selected variant
Specifications
| Connection | Male thread |
|---|---|

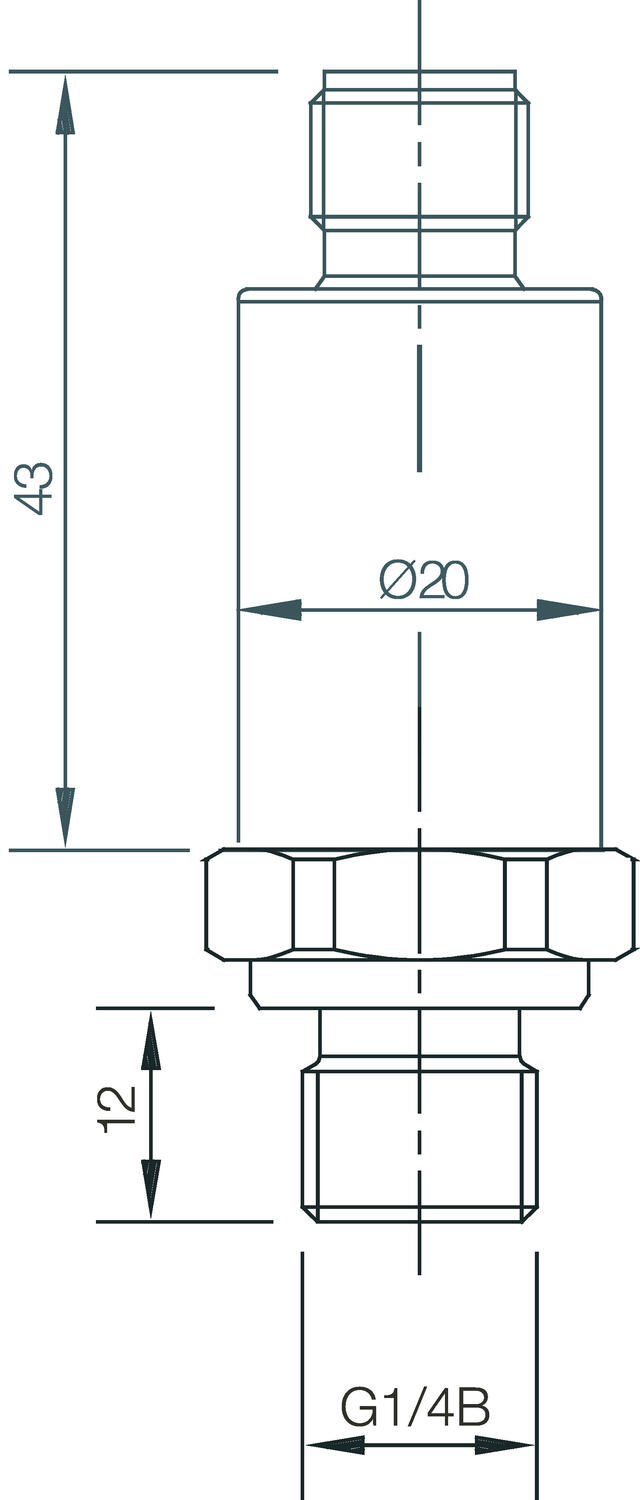

| Connection Thread | G1/4 |
| EMC | Emission EN61326, Interface EN61326 |
| IP Class | IP67 |
| Material of body | Fibre reinforced plastic (PBT) |
| Materials Wetted Parts | Stainless steel SIS2350 (316Ti) |
| Pressure Range | 6 bar |
| Response Time | 2 ms |
| Shock Resistance | 500g according to DIN EN837 |

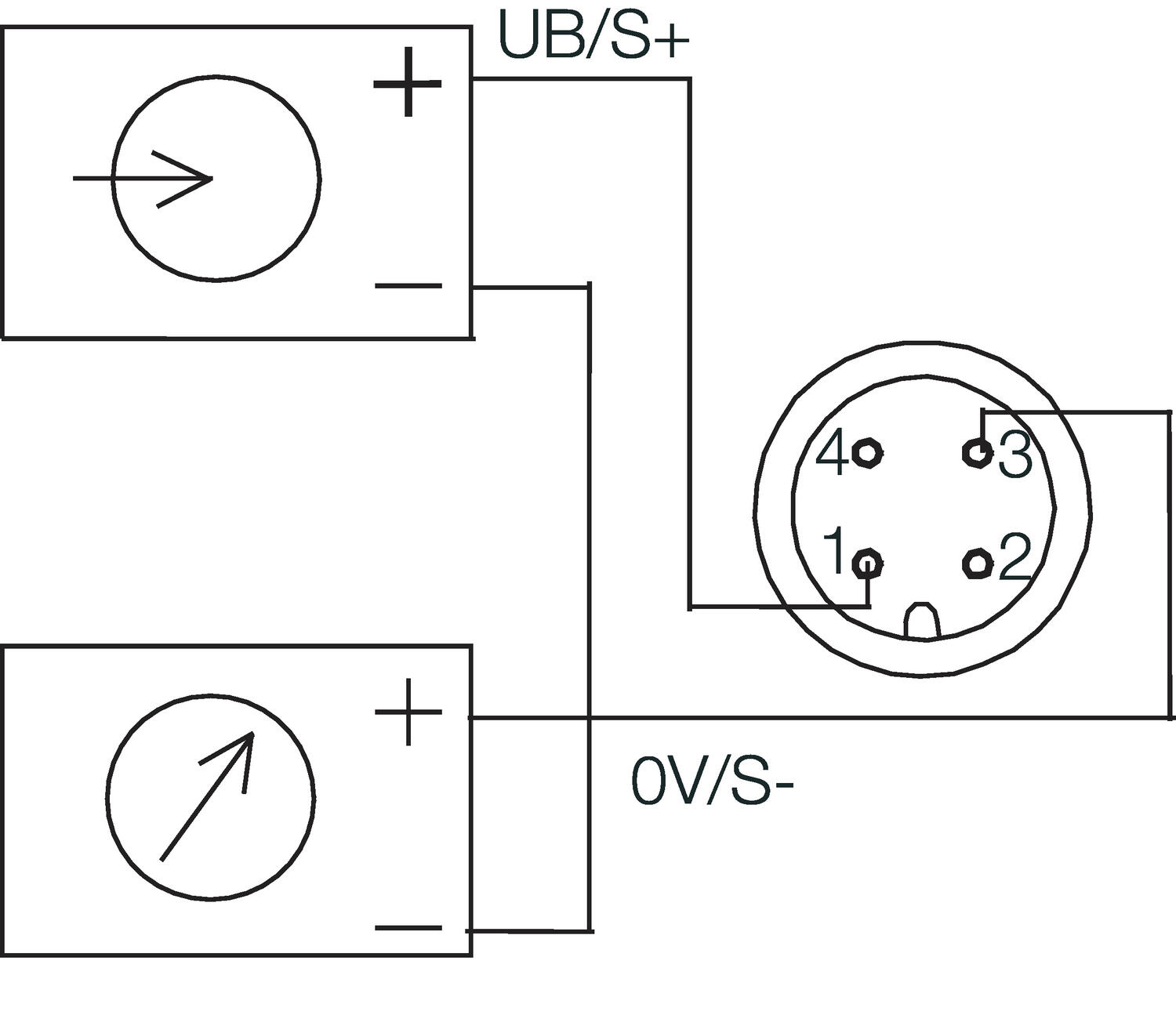

| Signal type | 4-20 mA |
| Supply Voltage DC Max | 36 V DC |
|---|---|
| Supply Voltage DC Min | 10 V DC |
| Temperature ambient from | -40 °C |
| Temperature ambient to | 100 °C |
| Temperature range of media from | -40 °C |
| Temperature range of media to | 125 °C |
| Weight | 70 g |
| Vibration Resistance | 20g according to IEC68-2 |
Product description
Small and compact pressure transducer, uniquely developed for volume applications where there are demands for high requirements at a low cost. Extreme pressure and vibration resistant thanks to their compact dimensions and low weight in combination with the well-tested thinfilm measuring cell that has good long-term stability and high overpressure protection without internal gaskets.
