BEI SENSORS

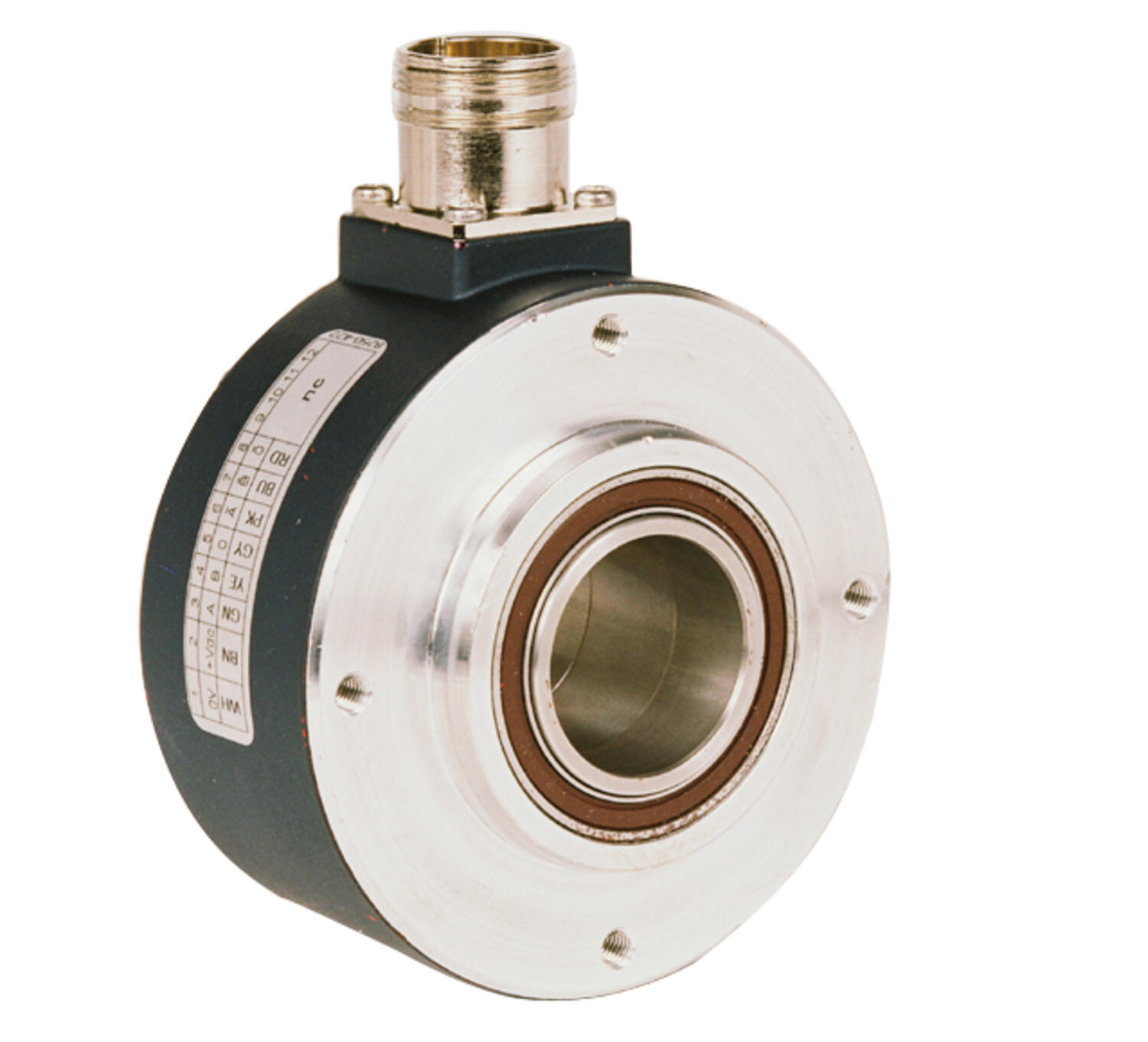

PHU9 absolute hollow shaft encoder, for demanding environments

  • Diameter 90mm, bore 30mm
  • Resolution (Max): 13x16 bits
  • Output SSI, parallel and CANopen
  • IP65

Selected variant

Sensata-BEI Sensors.png

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Sensor type Absolute
Housing diametre 90 mm
Shaft Diameter 30 mm
Resolution Max. 13 bit resoluutiolle ja 12 bit kierroksille
Connection Thread Cable
IP Class IP65
Speed max. 3600 rpm
Supply Voltage DC Min 10 V DC
Supply Voltage DC Max 30 V DC
Temperature range from -20 °C
Temperature range to 85 °C
Output SSI
Version Multiturn

Downloads

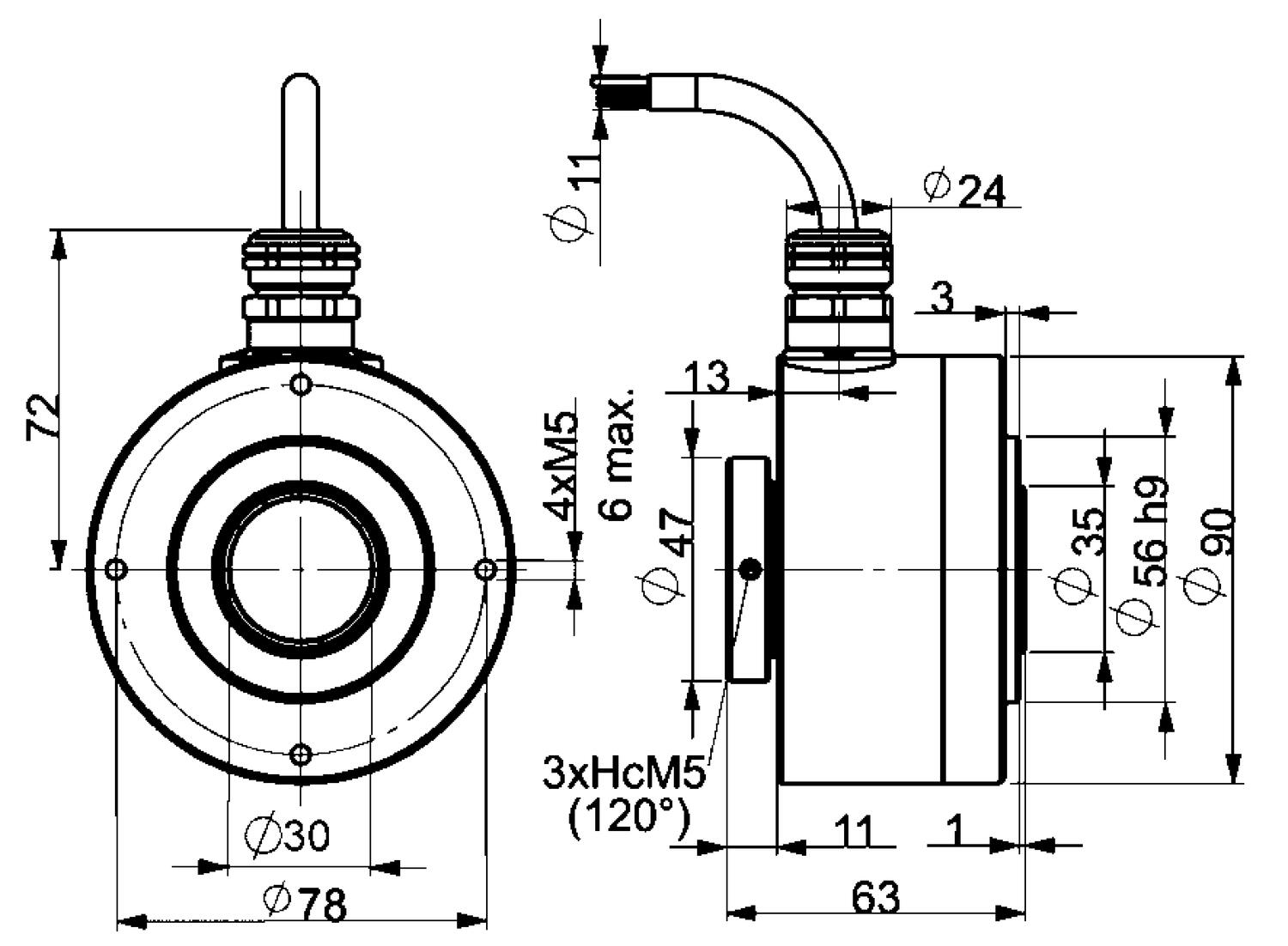

Measurements and connections

Technical illustrations

Accessories

Articles Sensor type Housing diametre Shaft Diameter Resolution Connection Thread IP Class Speed max. Supply Voltage DC Min Supply Voltage DC Max Temperature range from Temperature range to Output Version
253407_566.tif
Absolute encoder, ø90, ø30, multi-turn, SSI, Gray, cable
Art:
PHU930PSSG13125 Copied
Absolute
90 mm
30 mm
Max. 13 bit resoluutiolle ja 12 bit kierroksille
Cable
IP65
3600 rpm
10 V DC
30 V DC
-20 °C
85 °C
SSI
Multiturn
253407_566.tif
Absolute encoder, ø90, ø30, multi-turn, SSI, Gray, M23 connector
Art:
PHU930PSSG13126 Copied
Absolute
90 mm
30 mm
Max. 13 bit resoluutiolle ja 12 bit kierroksille
M23 contact
IP65
3600 rpm
10 V DC
30 V DC
-20 °C
85 °C
SSI
Multiturn
253407_566.tif
Absolute encoder, ø90, ø30, multi-turn, SSI, binary, cable
Art:
PHU930PSSB13125 Copied
Absolute
90 mm
30 mm
Max. 13 bit resoluutiolle ja 12 bit kierroksille
Cable
IP65
3600 rpm
10 V DC
30 V DC
-20 °C
85 °C
SSI
Multiturn
253407_566.tif
Absolute encoder, ø90, ø30, multi-turn, SSI, binary, M23 connector
Art:
PHU930PSSB13126 Copied
Absolute
90 mm
30 mm
Max. 13 bit resoluutiolle ja 12 bit kierroksille
M23 contact
IP65
3600 rpm
10 V DC
30 V DC
-20 °C
85 °C
SSI
Multiturn

Selected variant

Select a variant in the list
