PIL
PIL P44 Ultrasonic Sensor Analog and Transistor Output
- Sensing distance 60-3500 mm
- Output 0-10 V + 4-20 mA + 2 PNP NO/NC
- M12 connector
- Teach button
- Teach button
Selected variant
Specifications

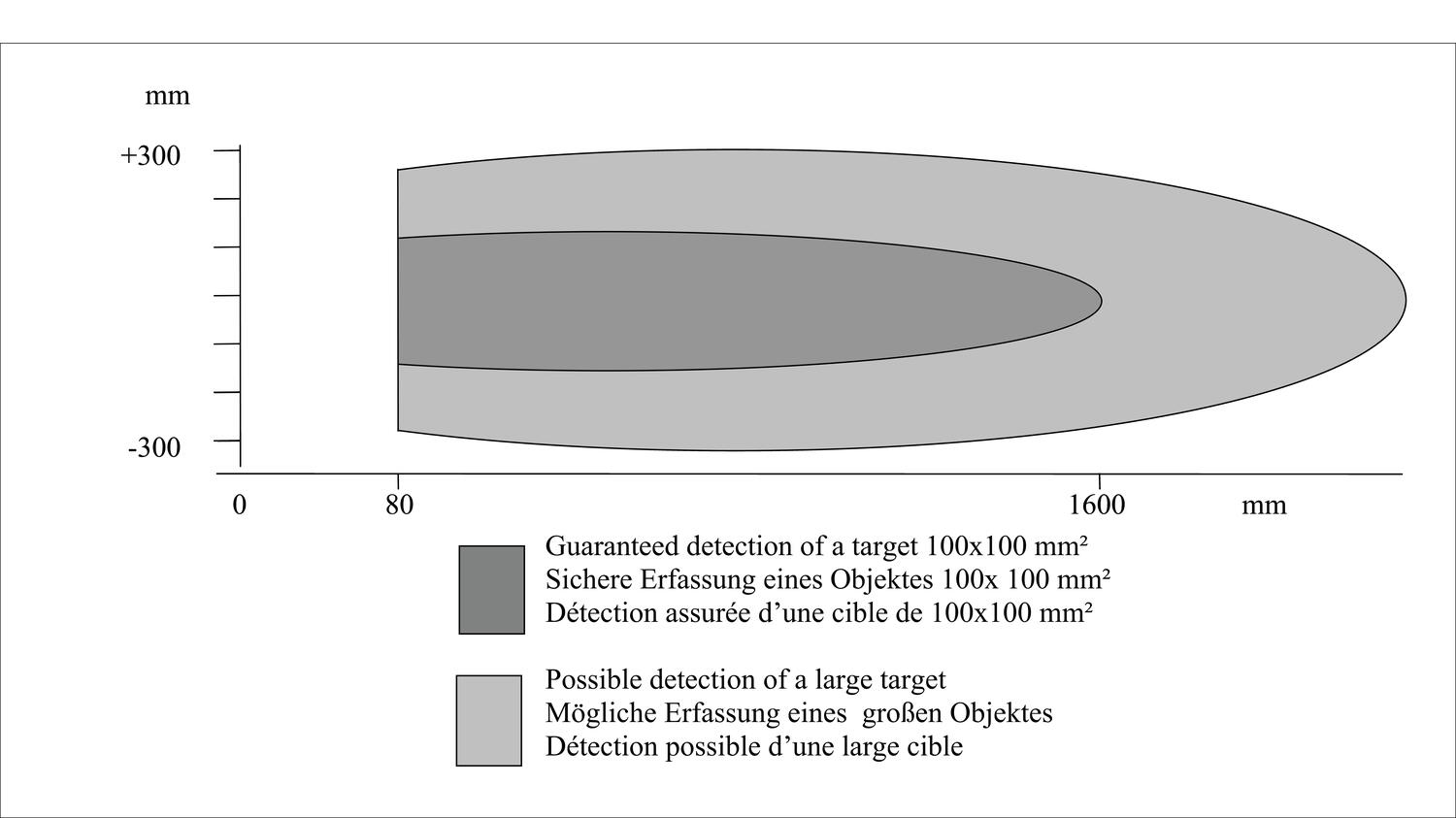

| Distance Max | 1600 mm |
|---|---|
| Distance Min | 80 mm |

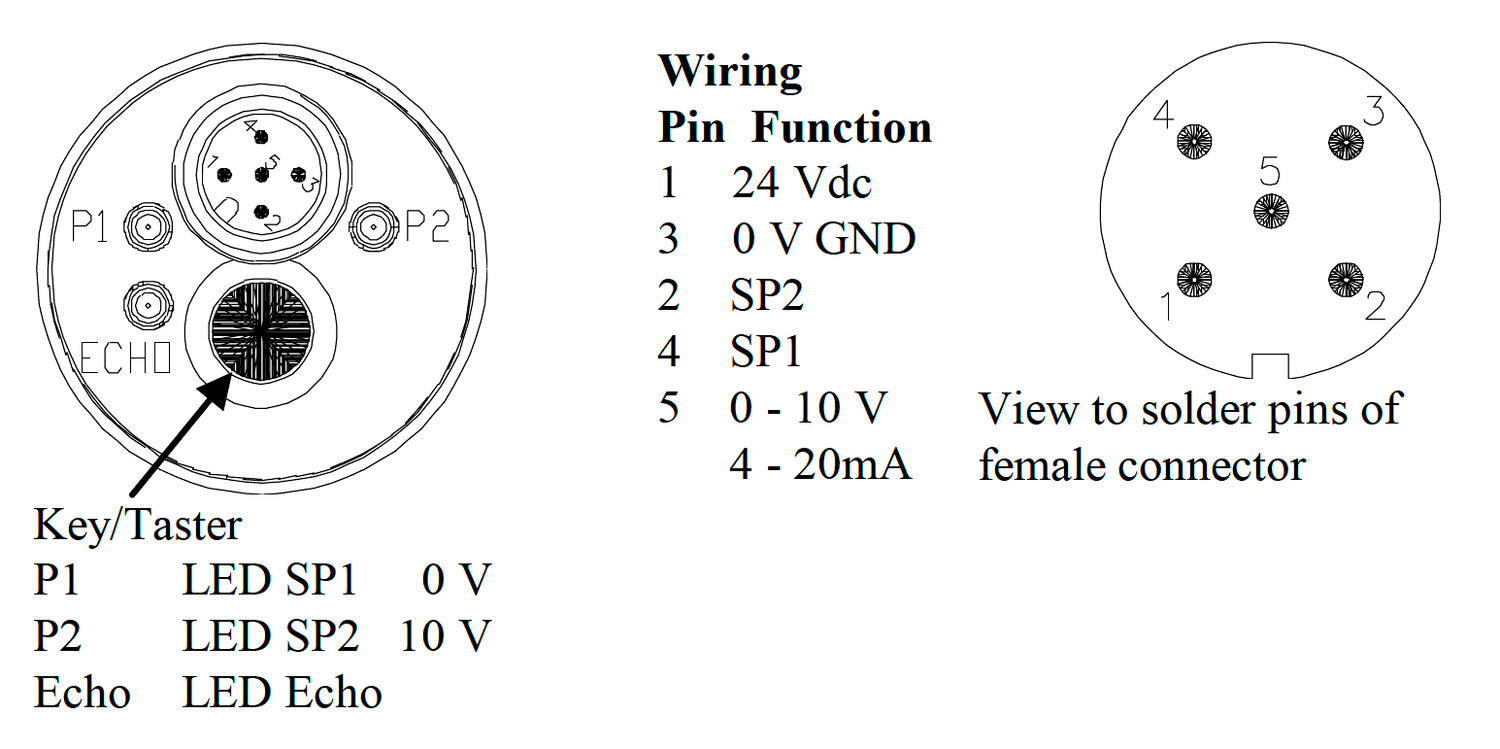

| Electrical connection | M12 5 pole connector |
| IP Class | IP67 |
| Material of body | PBT |
| Operating Frequency | 1 Hz |
| Resolution | 2 mm |
| Supply Voltage DC Max | 30 V DC |
| Supply Voltage DC Min | 15 V DC |
| Temperature range from | -15 °C |
| Temperature range to | 70 °C |
