VETTER

Cable pulling grip, KM type

Selected variant

VETTER.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Average Tensile Strength 3.3 kN
Cable diameter 7-9 mm
Weight 0.02 kg

Downloads

Measurements and connections

Accessories

Related products

Related

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

spring and motor drums for moving installations
Product news

Spring and motor drums for moving installations

Our supplier Stemmann-Technik (Wabtec Corporation) offers customer-specific cable reels for various applications. The selection includes a wide range of spring and motor cable reels for different purposes. The reels are designed according to customer requirements.

Molex Junior Timer
Product news

Updated Molex MPM Junior Timer connector cable

Junior Timer connectors are a popular choice for magnet valve electrical quick connectors. Molex MPM Junior Timer connector cables have been on the market for a long time, but now Molex has also introduced the new Molex MPM Junior Timer connector.

Food cable
Product news

New cabling solutions for food and beverage industry applications

The food and beverage industries have placed high expectations on products and packages. OEM Automatic meets these expectations by expanding the range of its cable & connection technology product area with products developed especially for the needs of the food and beverage industry.

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Articles Average Tensile Strength Cable diameter Weight
261746_566.tif

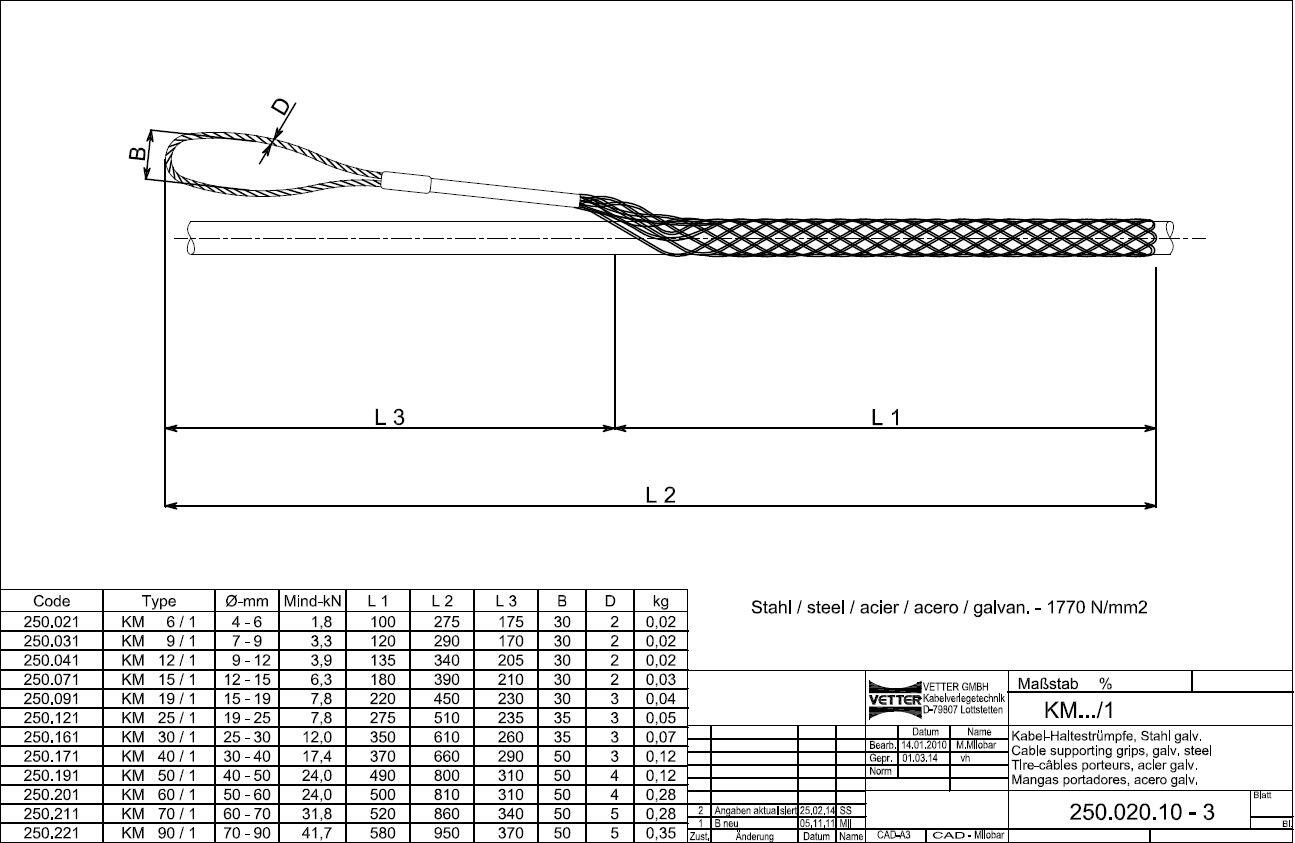

Cable strain relief, Ø 7-9mm
Art:
M9/1 Copied
3.3 kN
7-9 mm
0.02 kg
261746_566.tif
Cable pulling grip KM-type, 9-12
Art:
M12/1 Copied
3.9 kN
9-12 mm
0.02 kg
261746_566.tif
KABELSTRUMPA FÖR Ø 12-15 mm
Art:
M15/1 Copied
6.3 kN
12-15 mm
0.03 kg
261747_566.tif

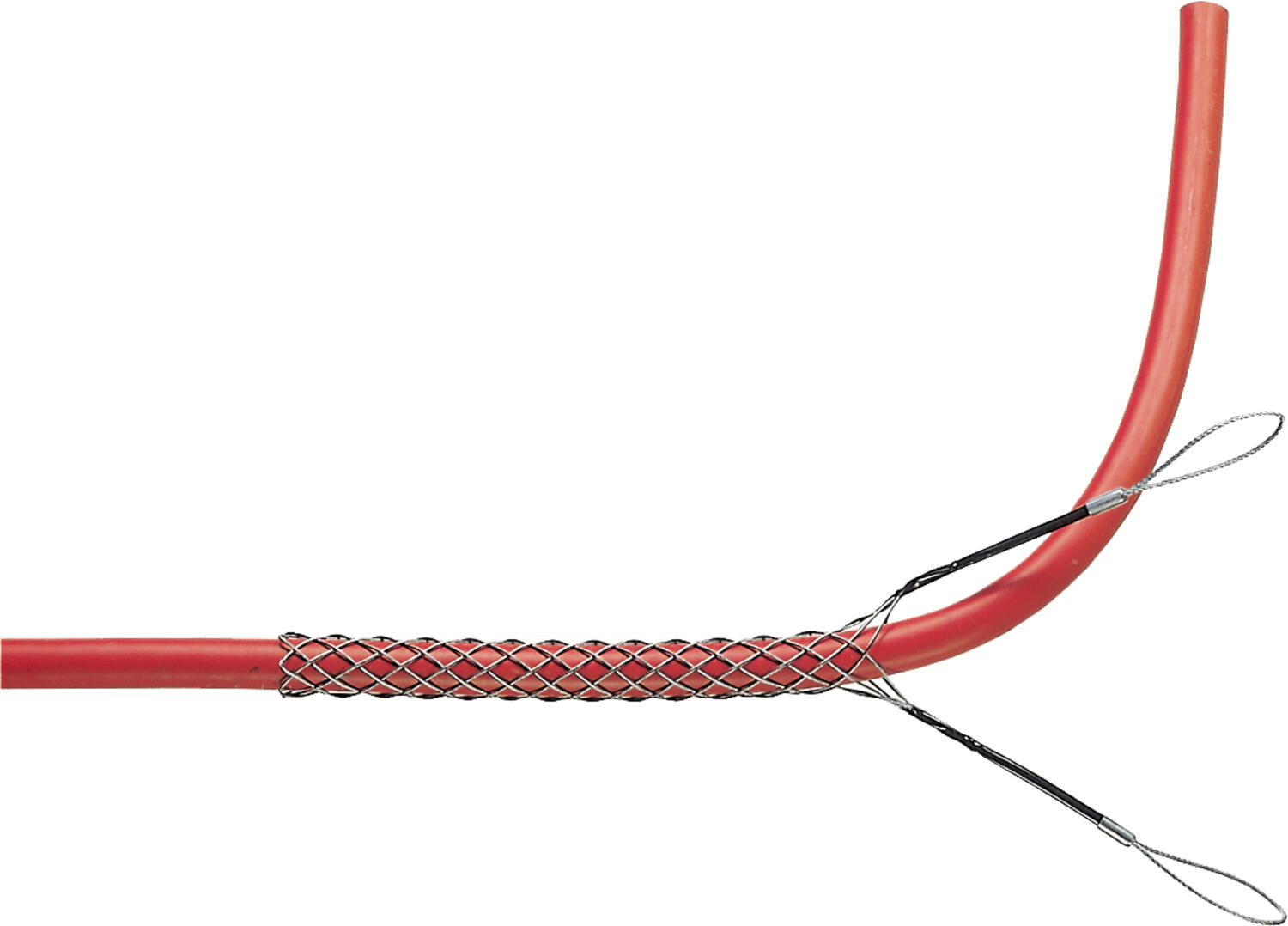

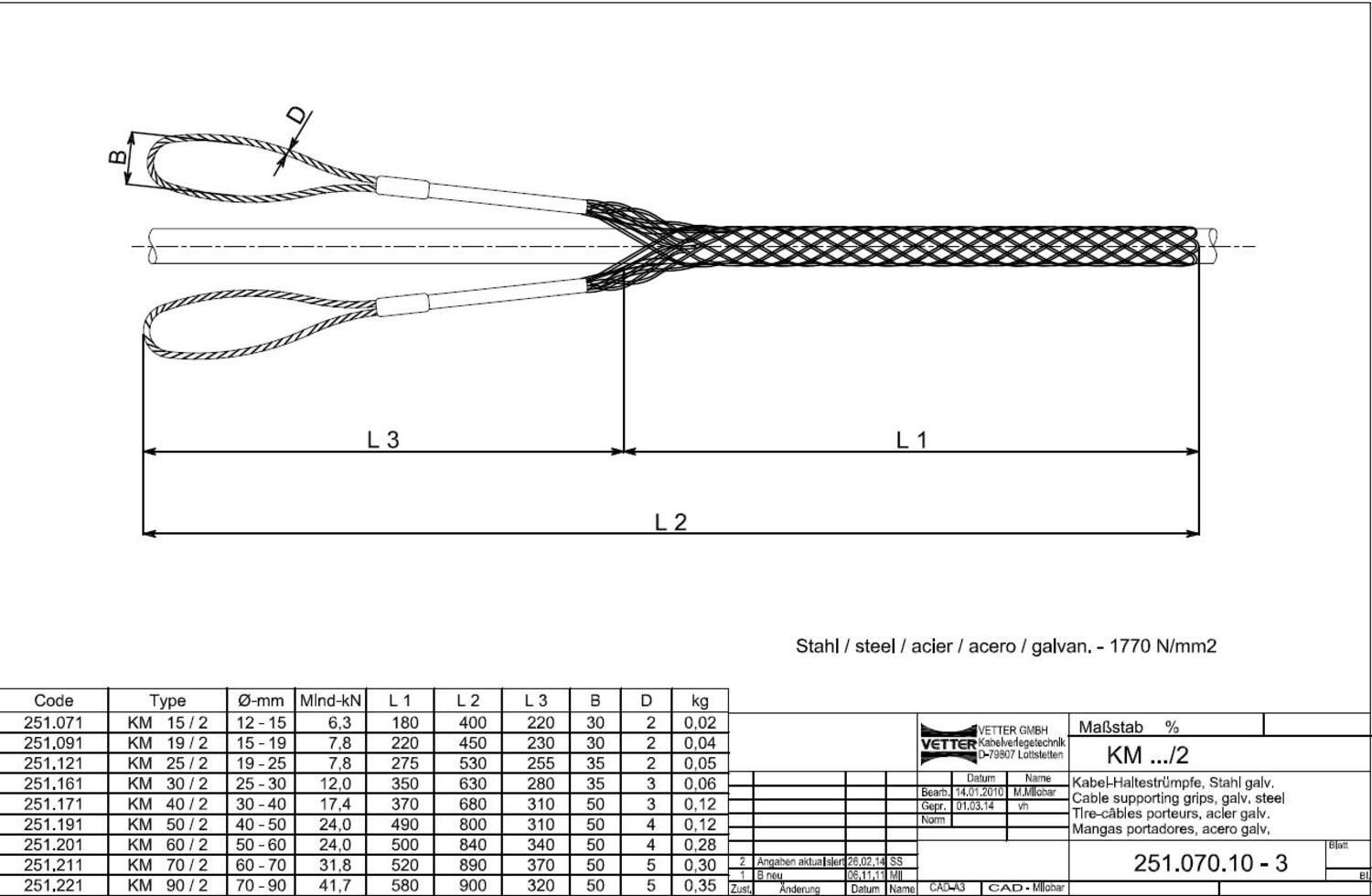

Cable pulling grip KM-type, 12-15, 2 loops
Art:
M15/2 Copied
6.3 kN
12-15 mm
0.02 kg
261748_566.tif

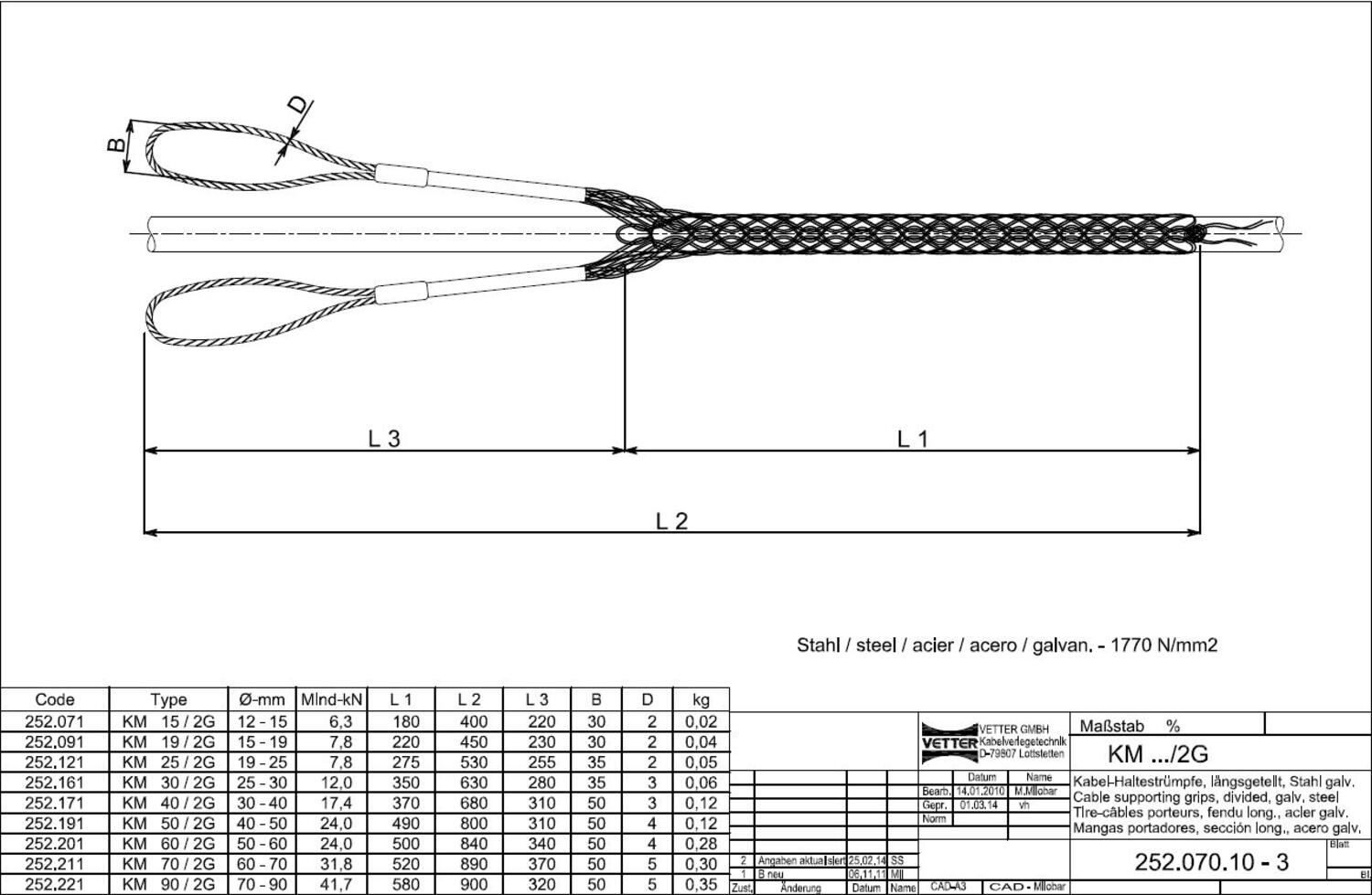

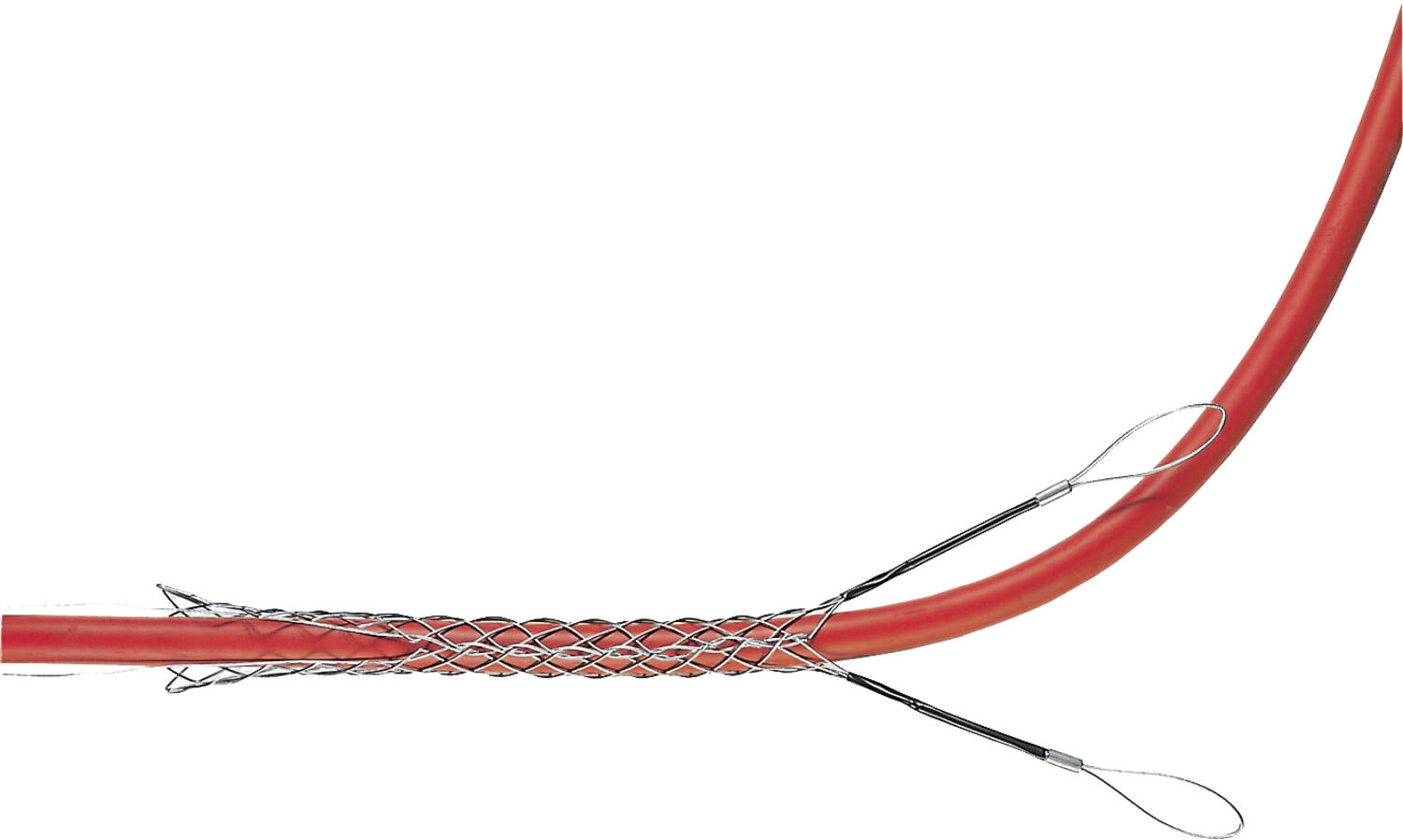

Cable pulling grip KM-type, 12-15, 2 loops lateral divided
Art:
M15/2G Copied
6.3 kN
12-15 mm
0.02 kg
261746_566.tif
KABELSTRUMPA FÖR Ø 15-19mm
Art:
M19/1 Copied
7.8 kN
15-19 mm
0.04 kg
261748_566.tif
Cable pulling grip KM-type, 15-19, 2 loops lateral divided
Art:
M19/2G Copied
7.8 kN
15-19 mm
0.04 kg
261746_566.tif
KABELSTRUMPA FÖR Ø 19-25mm
Art:
M25/1 Copied
7.8 kN
19-25 mm
0.05 kg
261747_566.tif
Cable pulling grip KM-type, 19-25, 2 loops
Art:
M25/2 Copied
7.8 kN
19-25 mm
0.05 kg
261748_566.tif
Cable pulling grip KM-type, 19-25, 2 loops lateral divided
Art:
M25/2G Copied
7.8 kN
19-25 mm
0.05 kg
261746_566.tif
Cable pulling grip KM-type, 25-30
Art:
M30/1 Copied
12 kN
25-30 mm
0.07 kg
261747_566.tif
Cable pulling grip KM-type, 25-30, 2 loops
Art:
M30/2 Copied
12 kN
25-30 mm
0.06 kg
261746_566.tif
Cable pulling grip KM-type, 25-30, 2 loops lateral divided
Art:
M30/2G Copied
12 kN
25-30 mm
0.06 kg
261746_566.tif
Cable pulling grip KM-type, 30-40
Art:
M40/1 Copied
17.4 kN
30-40 mm
0.12 kg
261747_566.tif
Cable pulling grip KM-type, 30-40, 2 loops
Art:
M40/2 Copied
17.4 kN
30-40 mm
0.12 kg
261748_566.tif
Cable pulling grip KM-type, 30-40, 2 loops lateral divided
Art:
M40/2G Copied
17.4 kN
30-40 mm
0.12 kg
261746_566.tif
Cable pulling grip KM-type, 40-50
Art:
M50/1 Copied
24 kN
40-50 mm
0.12 kg
261747_566.tif
Cable pulling grip KM-type, 40-50, 2 loops
Art:
M50/2 Copied
24 kN
40-50 mm
0.12 kg
261748_566.tif
Cable pulling grip KM-type, 40-50, 2 loops lateral divided
Art:
M50/2G Copied
24 kN
40-50 mm
0.12 kg
261746_566.tif
Cable pulling grip KM-type, 50-60
Art:
M60/1 Copied
24 kN
50-60 mm
0.28 kg
261747_566.tif
Cable pulling grip KM-type, 50-60, 2 loops
Art:
M60/2 Copied
24 kN
50-60 mm
0.28 kg
261748_566.tif
Cable pulling grip KM-type, 50-60, 2 loops lateral divided
Art:
M60/2G Copied
24 kN
50-60 mm
0.28 kg
261746_566.tif
Cable pulling grip KM-type, 60-70
Art:
M70/1 Copied
31.8 kN
60-70 mm
0.3 kg
261747_566.tif
Cable pulling grip KM-type, 60-70, 2 loops
Art:
M70/2 Copied
31.8 kN
60-70 mm
0.3 kg
261748_566.tif
Cable pulling grip KM-type, 60-70, 2 loops lateral divided
Art:
M70/2G Copied
31.8 kN
60-70 mm
0.3 kg
261747_566.tif
Cable pulling grip KM-type, 15-19, 2 loops
Art:
M19/2 Copied
7.8 kN
15-19 mm
0.04 kg
