FLEXA

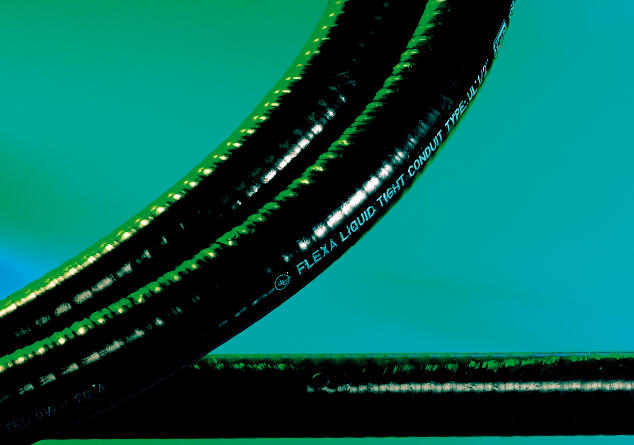

LIQUID-TIGHT-EF protective metal conduit

LIQUID-TIGHT-EF is a protective metal conduit made from galvanized steel, covered with a PVC sheathing. Suitable for use in various applications where liquid-tight construct is required. IP68 rated.



Examples of use include electrical installations in automation, machinery and equipment and automotive industry.

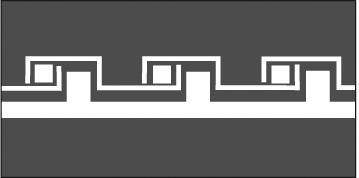

Profile

264784_566.tif



264783_566.tif





Read more
  • Conduit made from galvanized steel, PVC sheathing
  • Liquid-tight
  • Resistant against chemicals and oils
  • Flame-resistant
  • IP68 rated

Selected variant

FLEXA.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Diameter 5/16"
Dimensional Inner 10 mm
Dimensional Outer 14.5 mm
Pack size 50 m
Approvals VDE
Color Grey
Bending Radius -10% Static 105
Bending Radius -10% Dynamic 265
Temperature range from -25 °C
Temperature range to 90 °C
Weight / M 0.14

Downloads

Measurements and connections

Technical illustrations

Product description

LIQUID-TIGHT-EF is a protective metal conduit made from galvanized steel, covered with a PVC sheathing. Suitable for use in various applications where liquid-tight construct is required. IP68 rated.



Examples of use include electrical installations in automation, machinery and equipment and automotive industry.


Profile

264784_566.tif



264783_566.tif





Accessories

Related products

Articles Diameter Dimensional Inner Dimensional Outer Pack size Approvals Color Bending Radius -10% Static Bending Radius -10% Dynamic Temperature range from Temperature range to Weight / M
264782_566.tif
LIQUID-TIGHT-EF AD 5/16" grey
Art:
2080.111.010 Copied
5/16"
10 mm
14.5 mm
50 m
VDE
Grey
105
265
-25 °C
90 °C
0.14
264782_566.tif
LIQUID-TIGHT-EF AD3/8" grey
Art:
2080.111.012 Copied
3/8"
12.5 mm
18 mm
50 m
VDE
Grey
145
360
-25 °C
90 °C
0.26
264782_566.tif
LIQUID-TIGHT-EF AD1/2" grey
Art:
2080.111.016 Copied
1/2"
16 mm
21 mm
50 m
VDE
Grey
170
425
-25 °C
90 °C
0.32
264782_566.tif
LIQUID-TIGHT-EF AD3/4" grey
Art:
2080.111.021 Copied
3/4"
21 mm
26.5 mm
50 m
VDE
Grey
190
475
-25 °C
90 °C
0.44
264782_566.tif
LIQUID-TIGHT-EF AD1" grey
Art:
2080.111.026 Copied
1"
26.5 mm
33 mm
25 m
VDE
Grey
195
490
-25 °C
90 °C
0.7
264782_566.tif
LIQUID-TIGHT-EF AD 1 1/4" grey
Art:
2080.111.035 Copied
1 1/4"
35.5 mm
42 mm
25 m
VDE
Grey
250
625
-25 °C
90 °C
1
264782_566.tif
LIQUID-TIGHT-EF AD2" grey
Art:
2080.111.050 Copied
2"
51.5 mm
60 mm
25 m
VDE
Grey
320
780
-25 °C
90 °C
1.2
