USK plastic connector 5020.330.012 | OEM Automatic

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Weight kg / 100 ± 10%	0,66
IP Class	IP54
Thread	M12x1,5 met. EN 60423
Color	Grey
Pack Size	50
Material	Polypropylene
Temperature range to	110 °C

Type	USK-M
Temperature range from	-10 °C
Fits to	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS
Diameter	14 mm
Approvals	CSA 22.2, UL

Downloads

USK.pdf

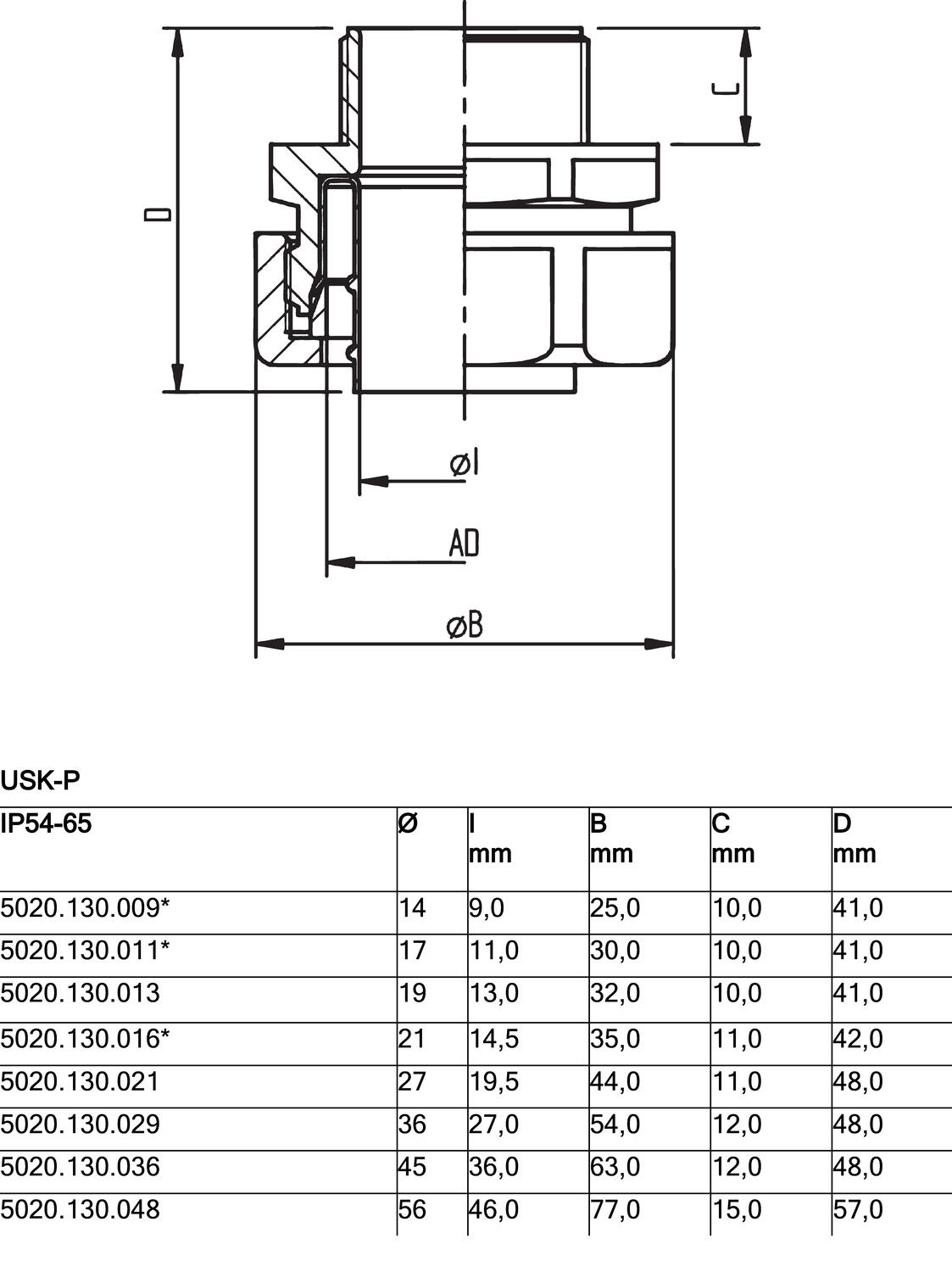

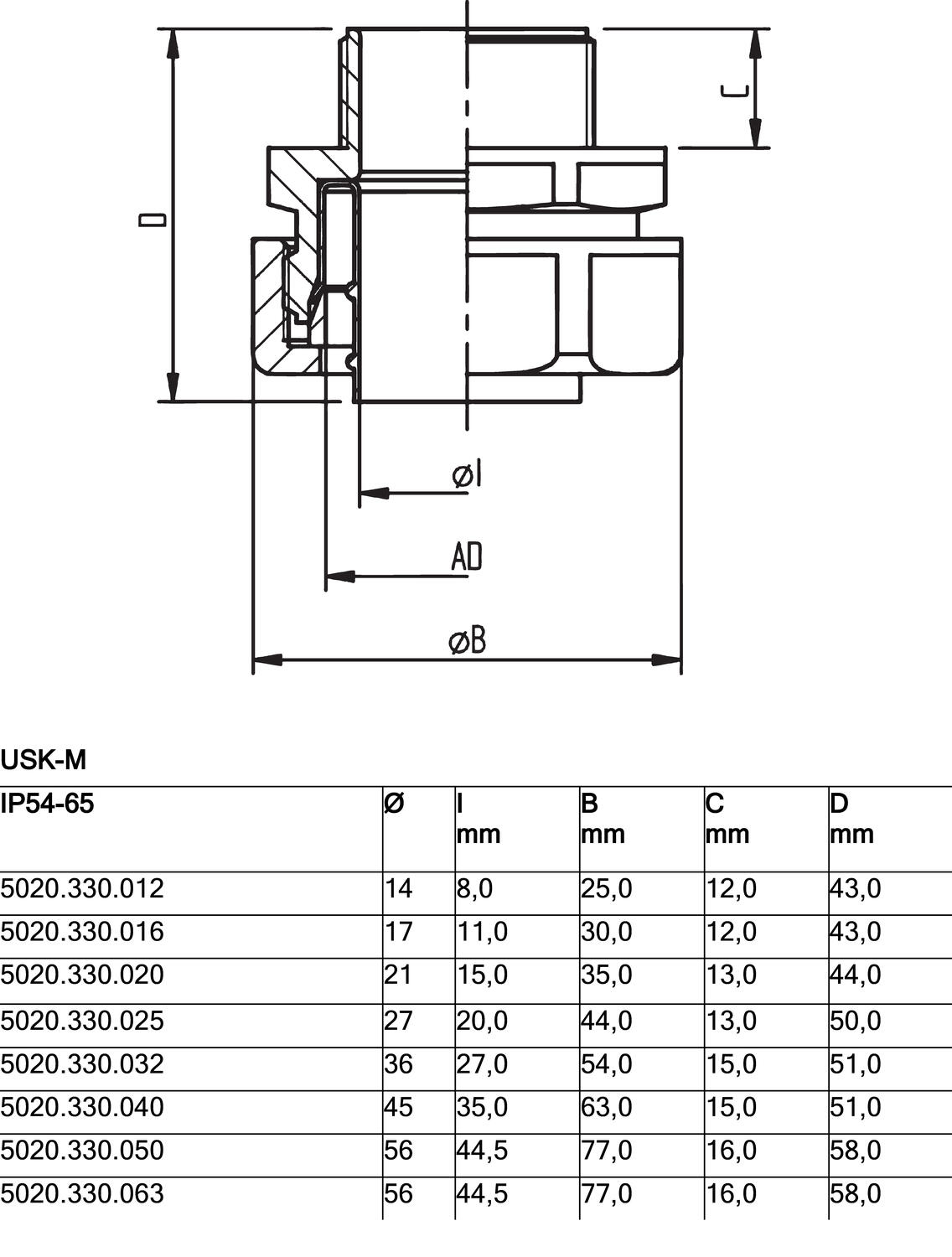

Measurements and connections

Product description

USK plastic connector is made of polypropylene. Resistant againt vibration and tension.

Products marked with * are NEMKO approved.

Accessories

Related products

Articles	Weight kg / 100 ± 10%	IP Class	Thread	Color	Pack Size	Material	Temperature range to	Type	Temperature range from	Fits to	Diameter	Approvals
USK-M AD14 M12 connector grey Art: 5020.330.012 Copied	0,66	IP54	M12x1,5 met. EN 60423	Grey	50	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	14 mm	CSA 22.2, UL
USK-M AD17 M16 connector grey Art: 5020.330.016 Copied	0,88	IP54	M16x1,5	Grey	50	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	17 mm	CSA 22.2, UL
AIRflex KOPPLING USK-M M20x1,5 Art: 5020.330.020 Copied	1,22	IP54	M20x1,5	Grey	50	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	21 mm	CSA 22.2, UL
USK-M AD27 M25 connector grey Art: 5020.330.025 Copied	2,4	IP54	M25x1,5	Grey	25	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	27 mm	CSA 22.2, UL
USK-M AD36 M32 connector grey Art: 5020.330.032 Copied	3,12	IP54	M32x1,5	Grey	25	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	36 mm	CSA 22.2, UL
AIRflex Connector USK-M M40x1,5 Art: 5020.330.040 Copied	3,92	IP54	M40x1,5	Grey	25	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	45 mm	CSA 22.2, UL
USK-M AD56 M50 connector grey Art: 5020.330.050 Copied	6,4	IP54	M50x1,5	Grey	10	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	56 mm	CSA 22.2, UL
USK-M AD56 M63 connector grey Art: 5020.330.063 Copied	8,8	IP54	M63x1,5	Grey	10	Polypropylene	110 °C	USK-M	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	56 mm	CSA 22.2, UL
USK-P AD14 PG9 connector grey Art: 5020.130.009* Copied	0,64	IP54	PG 9	Grey	50	Polypropylene	110 °C	USK-P	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	14 mm	CSA 22.2, UL
USK-P AD17 PG11 connector grey Art: 5020.130.011* Copied	0,86	IP54	PG 11	Grey	50	Polypropylene	110 °C	USK-P	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	17 mm	CSA 22.2, UL
USK-P AD19 PG13,5 connector grey Art: 5020.130.013 Copied	0,98	IP54	PG 13,5	Grey	50	Polypropylene	110 °C	US-P	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	19 mm	CSA 22.2, UL
USK-P AD27 PG21 connector grey Art: 5020.130.021 Copied	2,24	IP54	PG 21	Grey	25	Polypropylene	110 °C	USK-P	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	27 mm	CSA 22.2, UL
USK-P AD36 PG29 connector grey Art: 5020.130.029 Copied	3,12	IP54	PG 29	Grey	25	Polypropylene	110 °C	USK-P	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	36 mm	CSA 22.2, UL
USK-P AD45 PG36 connector grey Art: 5020.130.036 Copied	4,04	IP54	PG 36	Grey	25	Polypropylene	110 °C	USK-P	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	45 mm	CSA 22.2, UL
USK-P AD56 PG48 connector grey Art: 5020.130.048 Copied	6,6	IP54	PG 48	Grey	10	Polypropylene	110 °C	USK-P	-10 °C	AIRFLEX KUW-PU-AS, AIRFLEX KUW-PVZ-AS	56 mm	CSA 22.2, UL
