FLEXA

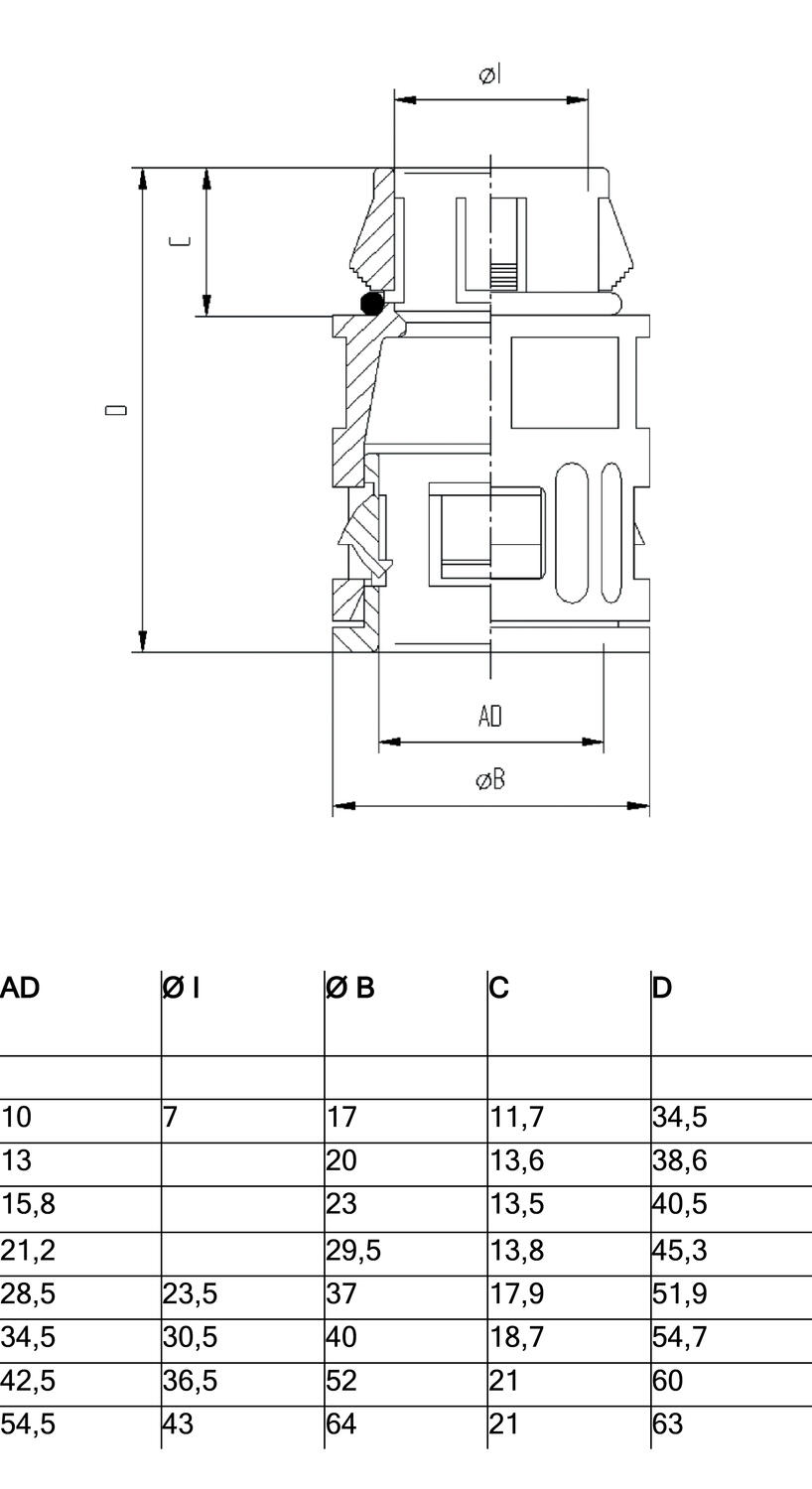

RQG1-S straight, quick-type
RQG1-S is a quick-type connector made of polyamide. Suitable wall thickness from 1mm up to 2,5mm. Resistant against chemicals.
Available also in grey color.
- Quick-type connector
- Installation without counter nut
- IP66
Selected variant
Specifications
| Hose Dimension AD | 10 |
|---|---|
| Pack Size | 50 |
| IP Class | IP66 |
| Approvals | CPT, Lloyd´s, REACH, RoHS, VDE |
| Color | Black |
| Temperature range from | -40 °C |
| Temperature range to | 120 °C |
| Material | Polyamide |
Downloads
Product description
RQG1-S is a quick-type connector made of polyamide. Suitable wall thickness from 1mm up to 2,5mm. Resistant against chemicals.
Available also in grey color.
