Selected variant
Specifications

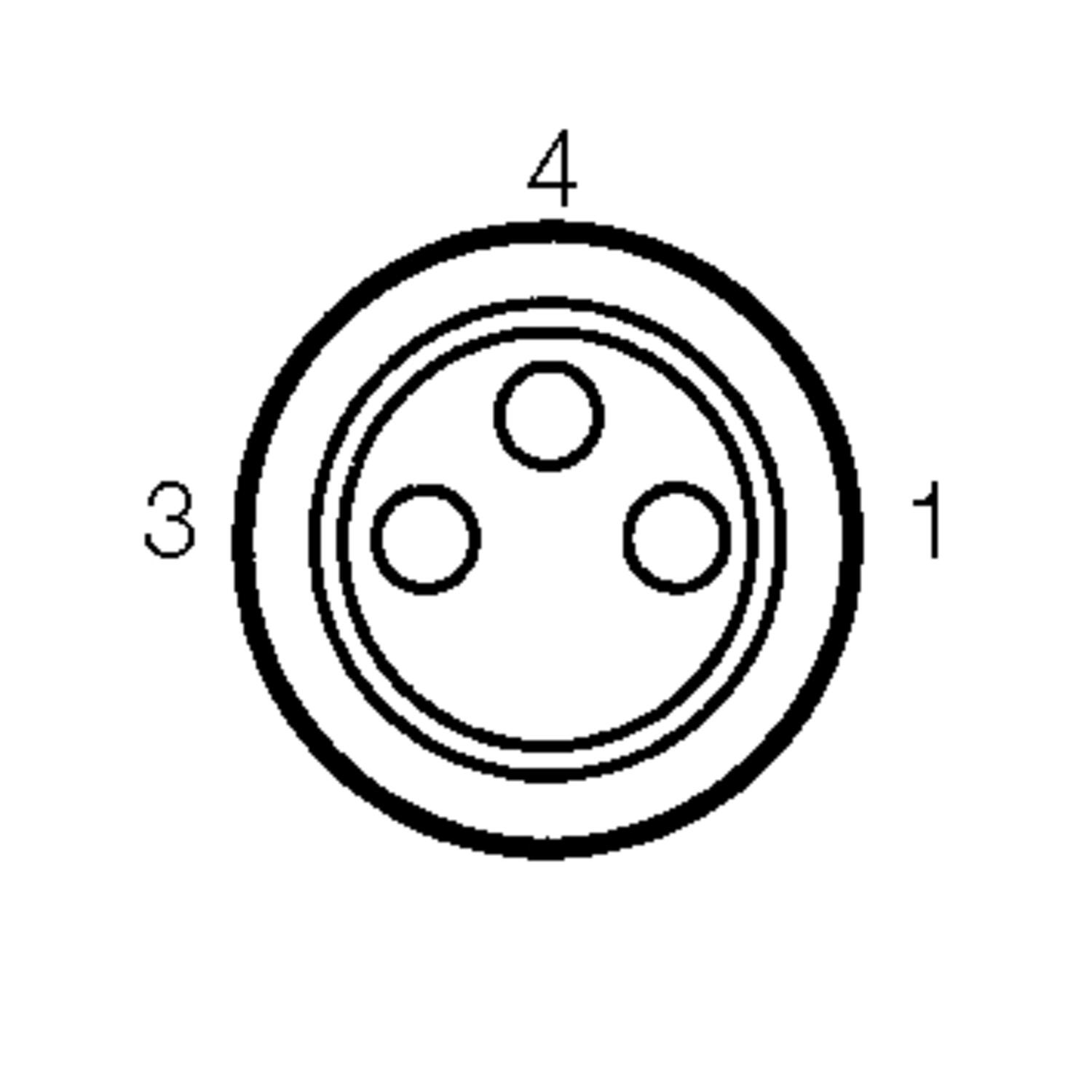

| Number of poles | 3 |
|---|---|
| Connection Thread | M8 |
| Contact Embodiment | Straight female |
| Material of connection | Nylon |
| Shielded | No |
| IP Class | IP67 |
| Halogen | No |
| Materials Contacts | Gold plated |
| Current max | 4 A |
| Voltage DC max | 75 V |
|---|---|
| UV-Resistant | No |
| Voltage AC max | 60 V |
| Temperature range to | 80 °C |
| Cable Diameter Max | 5 mm |
| Cable Diameter Min | 3.5 mm |
| Cross-Section Max | 0.25 mm² |
| Manufacturer Part No | 1200910001 |
