| IP Class | IP67 |
|---|---|
| Shielded | No |
| Voltage DC max | 75 V |
| Material of connection | Nylon |
| Connection Thread | M8 |
| Contact Embodiment | Straight male |
| Number of poles | 3 |
| Materials Contacts | Gold plated |
| Current max | 4 A |
| Voltage AC max | 60 V |
|---|---|
| Temperature range from | -40 °C |
| Temperature range to | 80 °C |
| Cable Diameter Max | 5 mm |
| Cable Diameter Min | 3,5 mm |
| Cross-Section Max | 0,25 mm² |
| Manufacturer Part No | 120091-0001 |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | IP Class | Shielded | Voltage DC max | Material of connection | Connection Thread | Contact Embodiment | Number of poles | Materials Contacts | Current max | Voltage AC max | Temperature range from | Temperature range to | Cable Diameter Max | Cable Diameter Min | Cross-Section Max | Manufacturer Part No | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M8 3 PIN WIREABLE MALE STRT Srew
Art:
N03MA03134
Copied
|
IP67
|
No
|
75 V
|
Nylon
|
M8
|
Straight male
|
3
|
Gold plated
|
4 A
|
60 V
|
-40 °C
|
80 °C
|
5 mm
|
3,5 mm
|
0,25 mm²
|
120091-0001
|
| |
|
M8 4 PIN WIREABLE MALE STRT
Art:
N04MA03134
Copied
|
IP67
|
No
|
75 V
|
Nylon
|
M8
|
Straight male
|
4
|
Gold plated
|
4 A
|
60 V
|
-40 °C
|
80 °C
|
5 mm
|
3,5 mm
|
0,25 mm²
|
120091-0001
|
| |

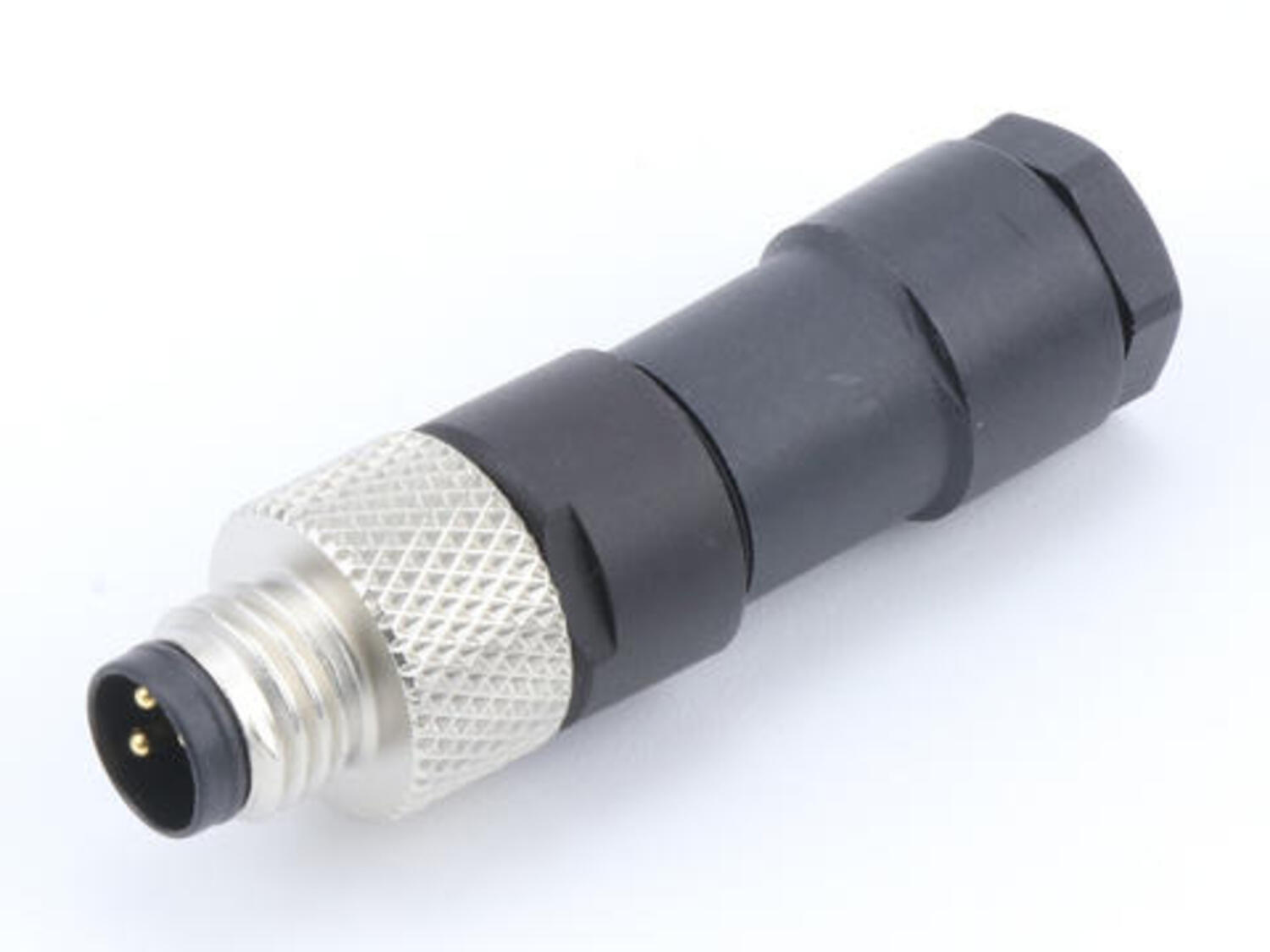

M8 attachable 3-pole str. male
Art:
N03MA03124
Copied
|
IP67
|
No
|
75 V
|
Nylon
|
M8
|
Straight male
|
3
|
Gold plated
|
4 A
|
60 V
|
-40 °C
|
80 °C
|
5 mm
|
3,5 mm
|
0,25 mm²
|
1200910004
|
| |
M8 attachable 4-pole 90º male
Art:
N04MA04124
Copied
|
IP67
|
No
|
75 V
|
Nylon
|
M8
|
Angle male
|
4
|
Gold plated
|
4 A
|
60 V
|
-40 °C
|
80 °C
|
5 mm
|
3,5 mm
|
0,25 mm²
|
1200910012
|
|
Select a variant in the list
