MOLEX

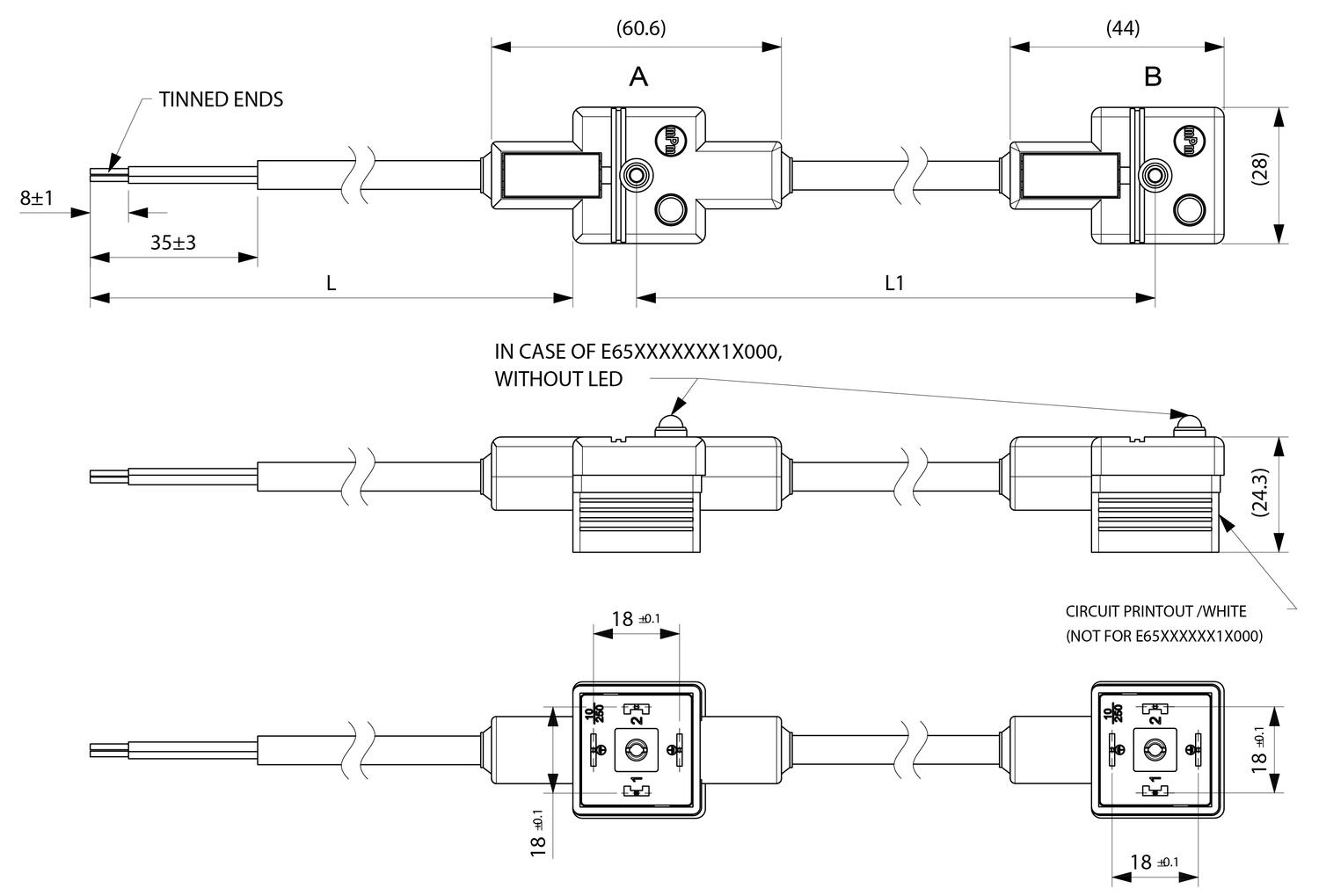

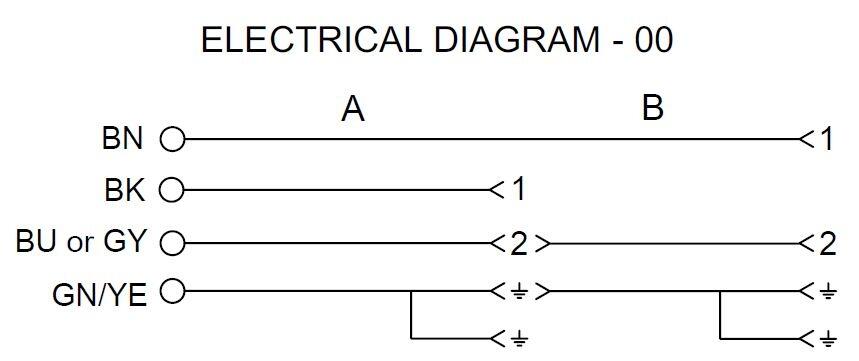

Molex - mPm Dual DIN overmoulded cable
- Dual function from a single cable
- Quick and simple installation
- EN175301-803 (DIN43650)-A/ISO4400
Selected variant
Specifications
| Cable length | 2000 mm |
|---|---|
| Material Cable | PUR/PVC |
| Halogen free | No |
| IP Class | IP67 |
| Cross-Section | 0.75 mm² |
| Color Cable | Black |
| LED indicator | No |
| Head 1 | DIN |
| Head 2 | Open |
|---|---|
| Temperature Range The Use Of | -40 °C |
| Temperature Range For Flexible Use | 90 °C |
| Temperature Range Flexible Use Of | -15 °C |
| Current max | 5 A |
| Isolation Outer | PUR |
| Isolation Internal | PVC |
