SCHAFFNER

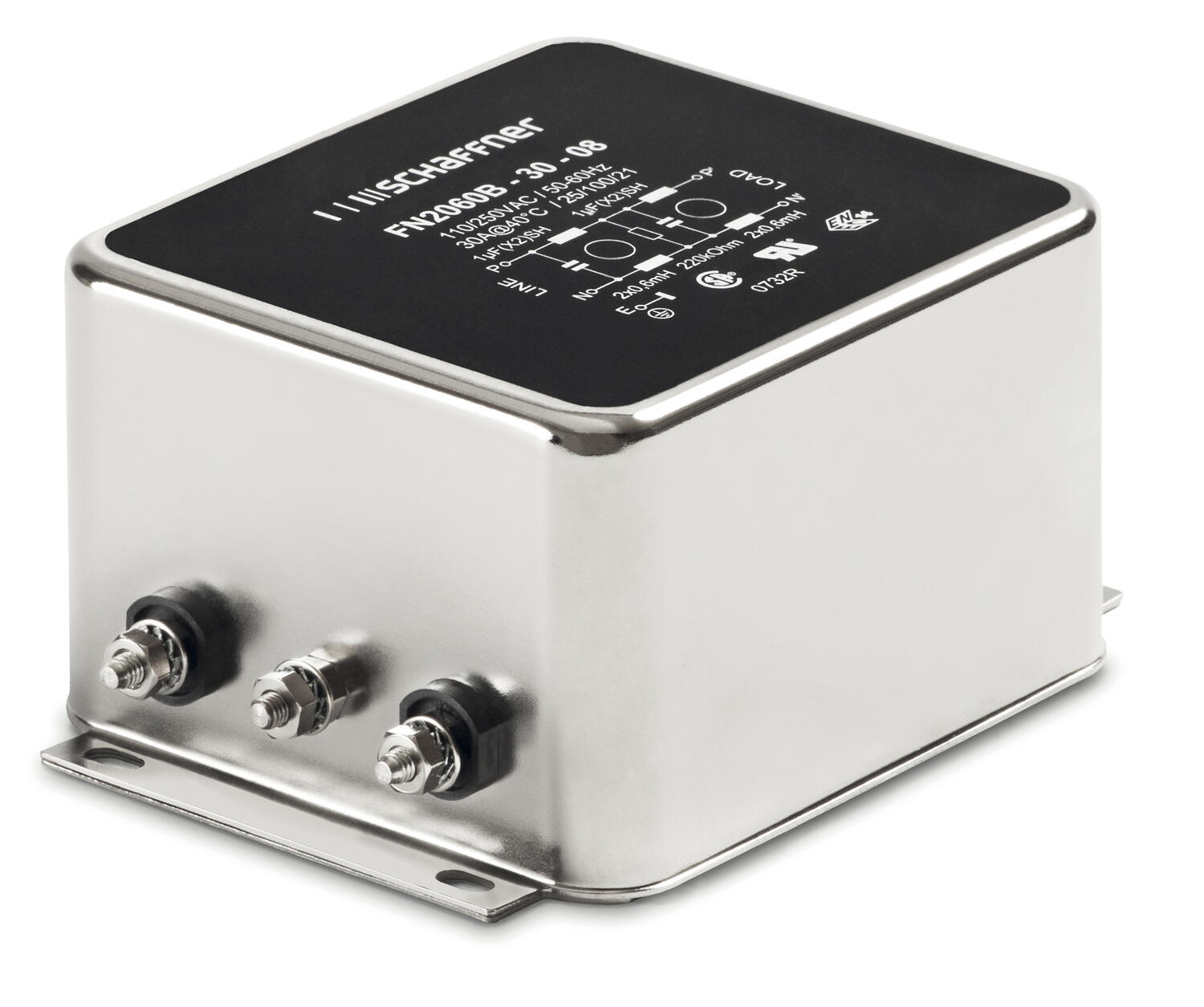

1-phase filters, FN2060-series
- 1-30 A
- DC-400 Hz

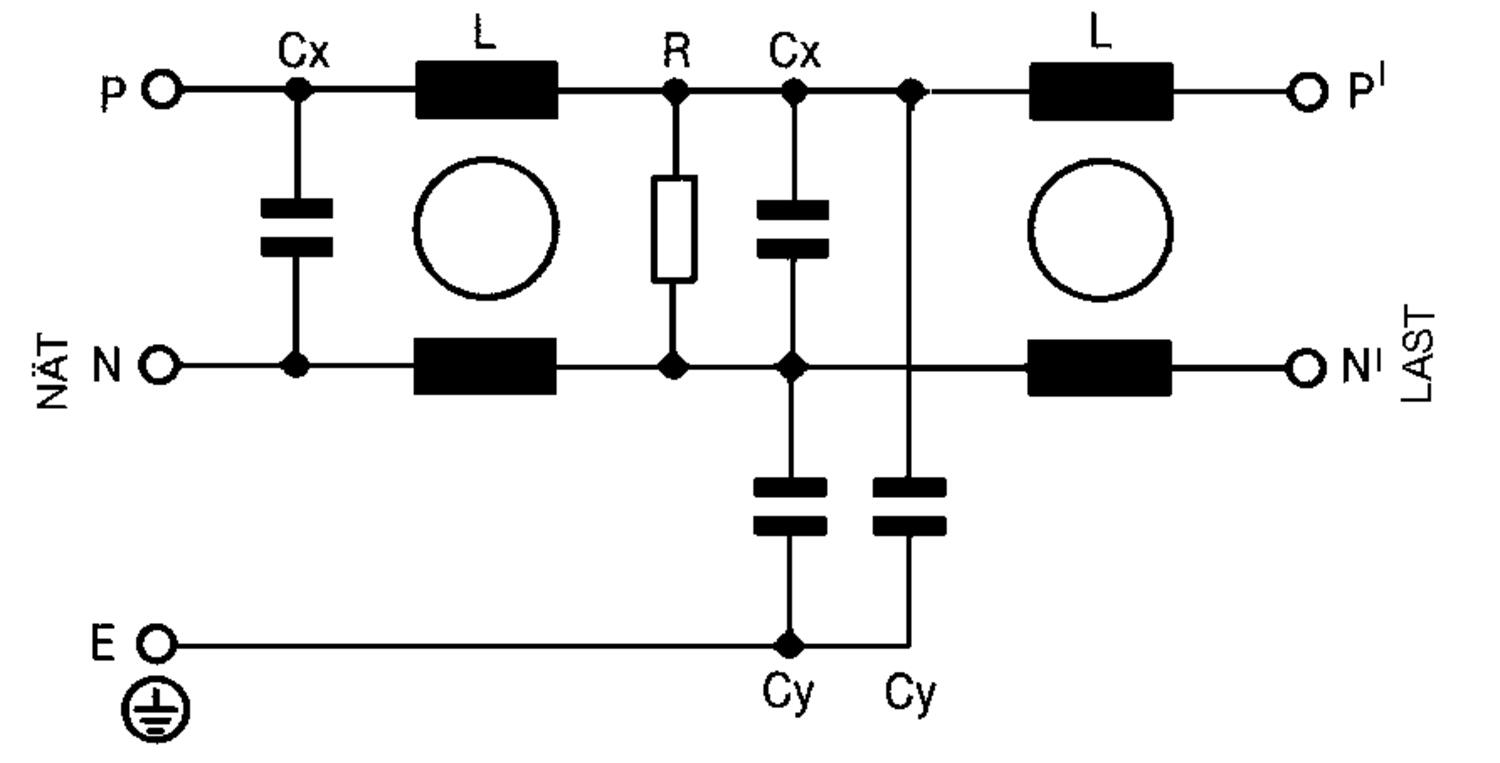

- 2-stage

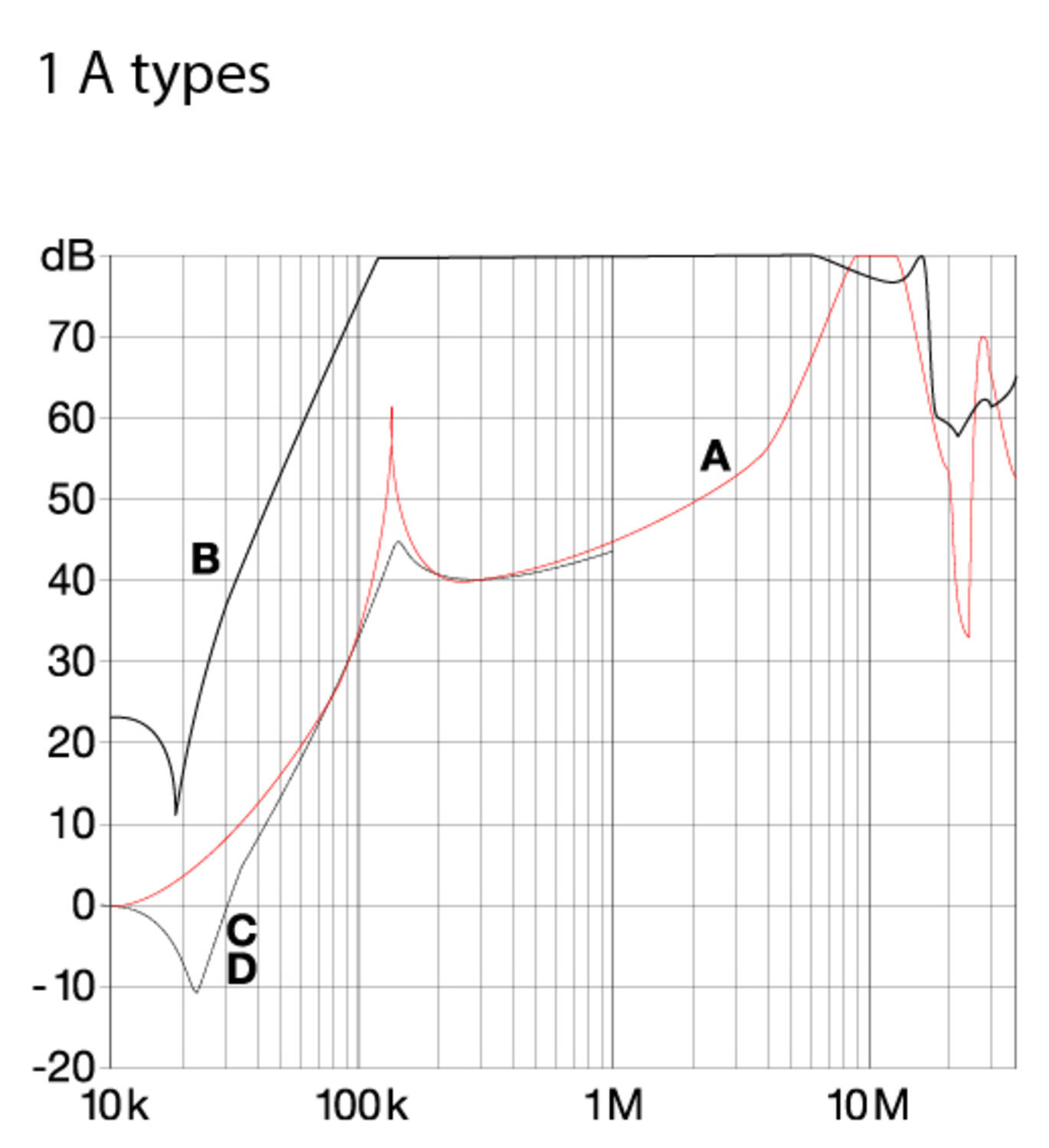

- High differential and common-mode attenuation
Selected variant
Specifications
| Approvals | CSA 22.2 N°8 1986, EN60939, IEC 60939, UL 1283 |
|---|---|
| Capacitance Cx | 0.22 µF |
| Capacitance Cy | 4.7 nF |
| Connection Thread | Flat plug |
| Flamklass | UL94-V2 |
| Frequenze | DC-400 Hz |
| High Potential Test Voltage "Hipot" | P->PE 2000 V AC, 2 s. P->N 1100 V DC, 2 s. |
| Inductance | 12 mH |
| Leakage Current Per Phase Max | 0.734 mA |
|---|---|
| MTBF (Mil-HB-217F) | 950000 h @ 40° C, 230 V AC |
| Operating Voltage Max | 250 V AC |
| Rated Current, At 40 ° C | 1 A |
| Temperature range from | -25 °C |
| Temperature range to | 100 °C |
| Weight | 0.12 kg |
