SCHAFFNER

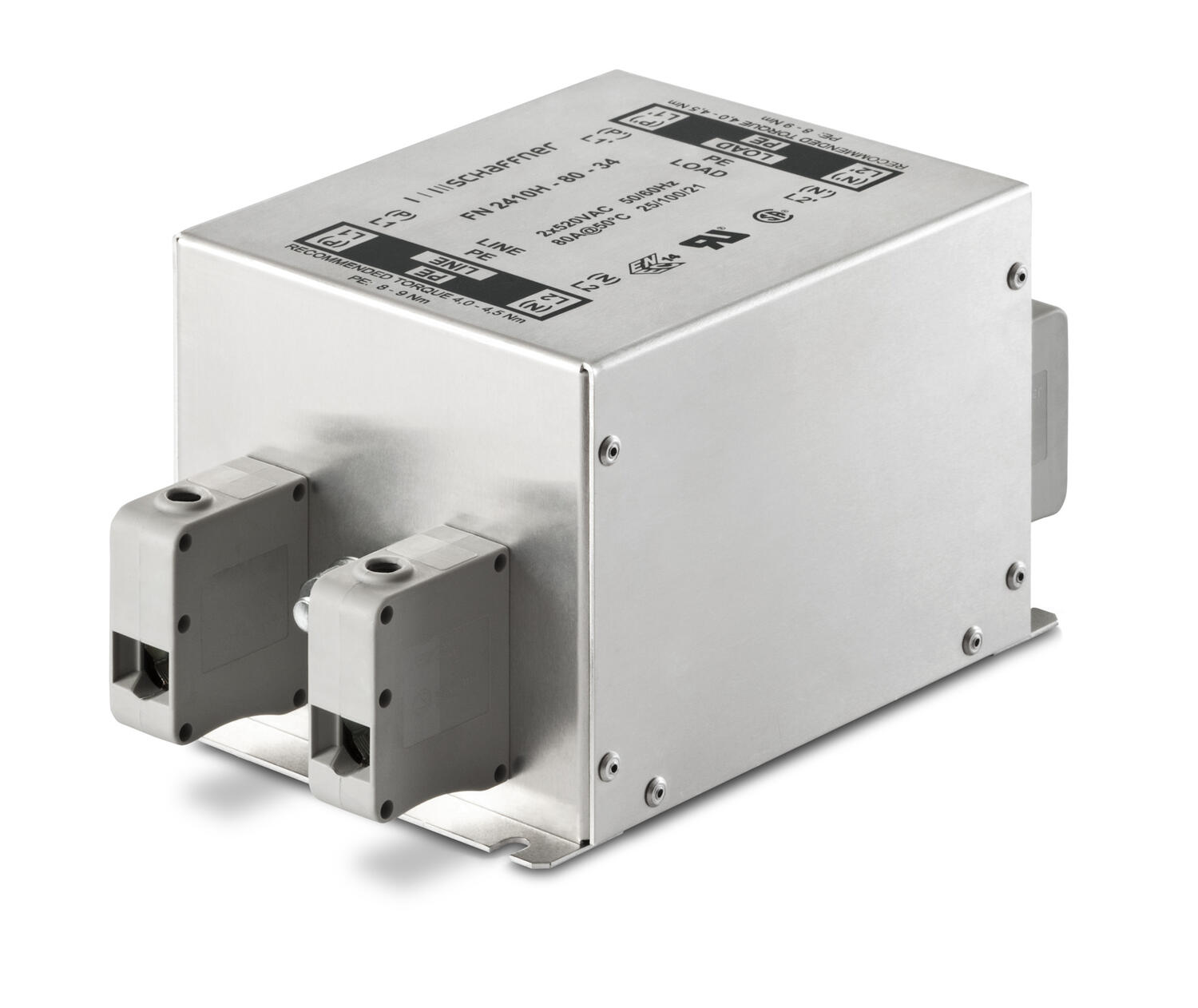

1-phase filters, FN2412-series
- 8-45 A
- 250 V AC or 2 x 520 V AC (H)
- 1-stage

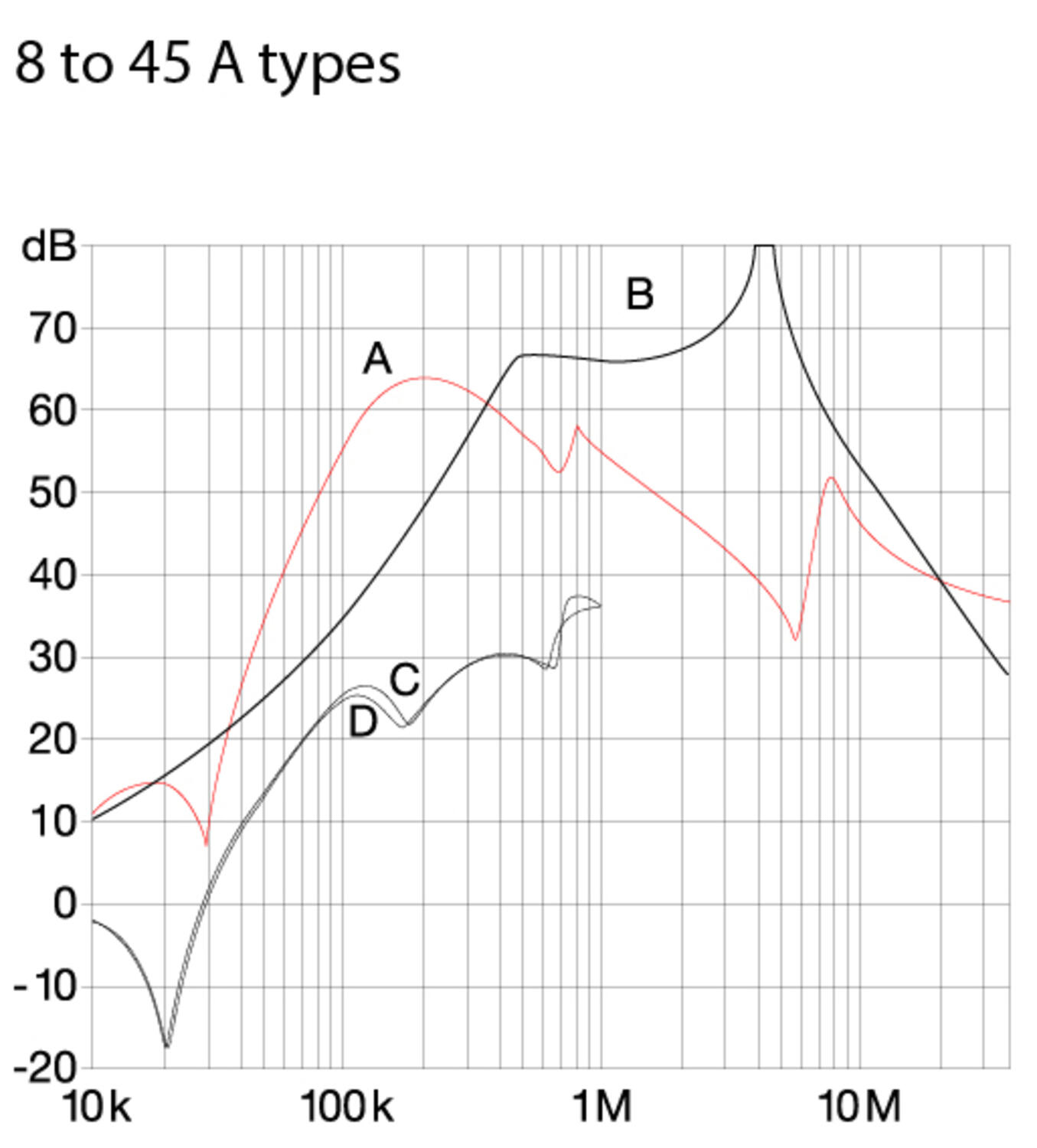

- Very good attenuation performance
Selected variant
Specifications
| Approvals | CSA 22.2 N°8 1986, EN60939, IEC 60939, UL 1283 |
|---|---|
| Connection Thread | Screw terminal |
| Flamklass | UL94-V2 |
| Frequenze | DC-400 Hz |
| High Potential Test Voltage "Hipot" | P->PE 2000 V AC, 2 s. P->N 1100 V DC, 2 s. |
| Leakage Current Per Phase Max | 3.4 mA |
| MTBF (Mil-HB-217F) | 1200000 h @ 50° C, 250 V AC |
| Number of phases | 1 |
|---|---|
| Operating Voltage Max | 250 V AC |
| Rated current at 50 °C | 8 A |
| Temperature range from | -25 °C |
| Temperature range to | 100 °C |
| Weight | 0.4 kg |
