STEGO
STEGO's filter fans have a special fan housing design so as to run as quietly as possible without sacrificing high airflow. Moreover, the location of the plates makes it especially difficult for water and dust to enter the cabinet.

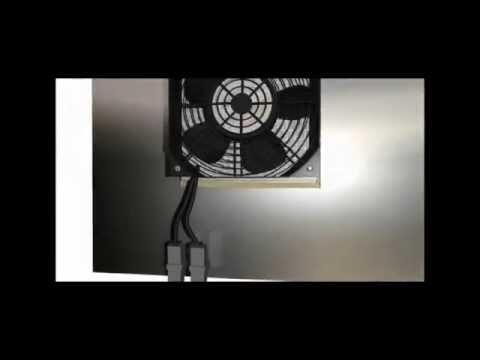

Filters and fans can be changed from the outside of the cabinet; consequently, the unit does not need to be turned off during fan maintenance.

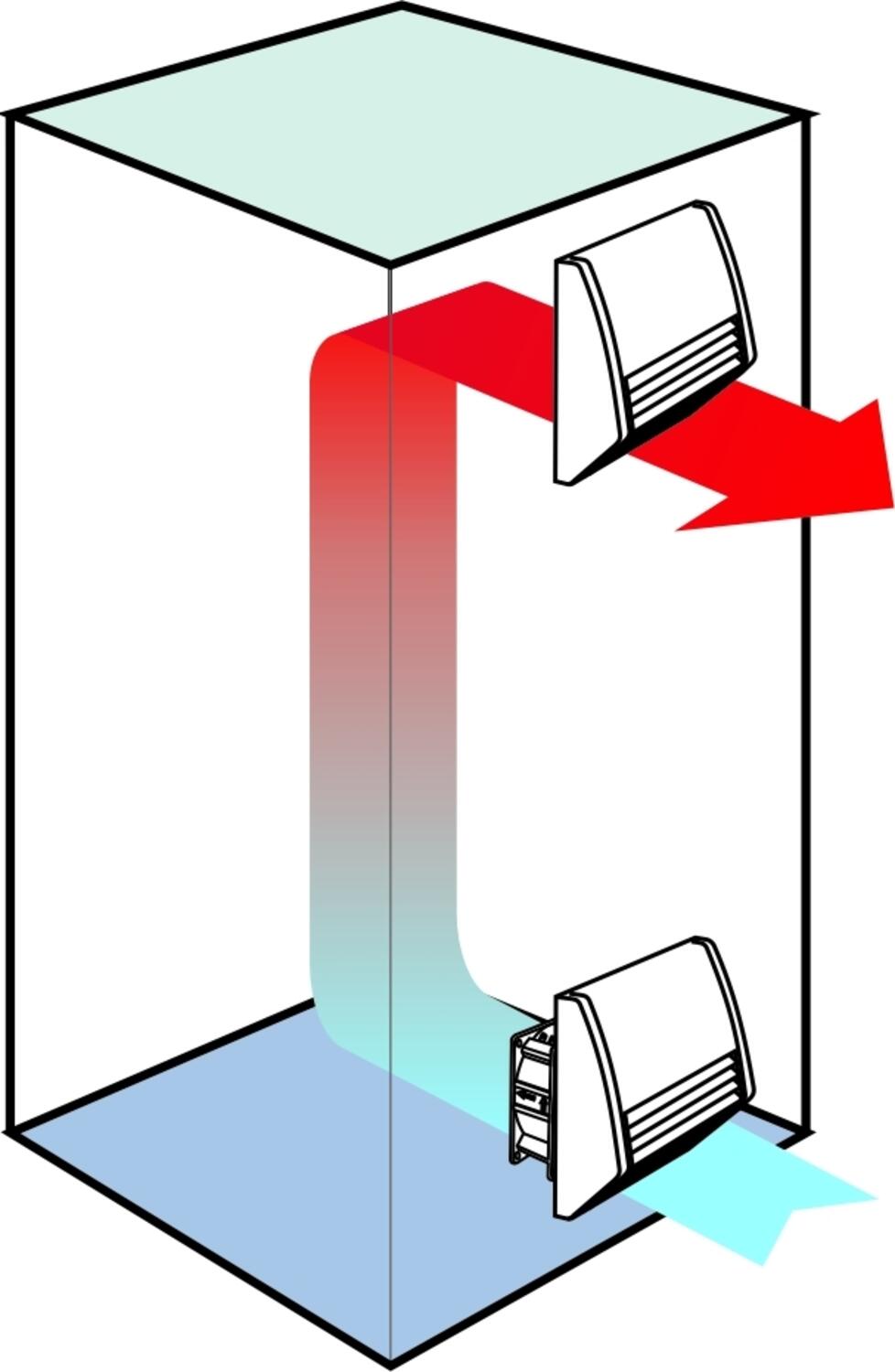

For optimal performance, the filter fan should be mounted at the lower edge of the cabinet. At the upper edge of the corresponding side, a exit cover with a filter should be mounted for evacuation of surplus air. The exit cover is the same as the fan housing and the cut-outs are also the same.
All filter fans are UL-approved and able to withstand the elements, including UV radiation.
Air Capacity | 21 m³/h |
---|---|
Air Volume Free Blowing | 21 m³/h |
Air Volume Free Blowing With G3 Filter | 16 m³/h |
Approvals | CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE |
Color | Grey RAL 7035 |
Depth | 80 mm |
Filtering degree | 94 % |
Flamklass | UL94-V0 |
Frequenze | 50 Hz |
Height | 134 mm |
Humidity Storage | <90% RH |
IP Class | IP54, IP55 |
Life span | 50000 h |
Material fan | Aluminium |
Material of rotor | Plastic |
Material Plastic Housing | Plastic |
---|---|
Number of fans | 1 |
Operating Humidity | < 90% RH |
Operational Temperature | -10°C ... +70°C |
Power Consumption | 13 W |
Punching | 97x97 mm |
Sound level | 31 dB |
Storage temperature | -40°C ... +70°C |
Structural Depth | 45 mm |
Weight | 0,6 kg |
Width | 129 mm |
Voltage max | 230 V ac |
Voltage min | 230 V ac |
STEGO's filter fans have a special fan housing design so as to run as quietly as possible without sacrificing high airflow. Moreover, the location of the plates makes it especially difficult for water and dust to enter the cabinet.
Filters and fans can be changed from the outside of the cabinet; consequently, the unit does not need to be turned off during fan maintenance.
For optimal performance, the filter fan should be mounted at the lower edge of the cabinet. At the upper edge of the corresponding side, a exit cover with a filter should be mounted for evacuation of surplus air. The exit cover is the same as the fan housing and the cut-outs are also the same.
All filter fans are UL-approved and able to withstand the elements, including UV radiation.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Air Capacity | Air Volume Free Blowing | Air Volume Free Blowing With G3 Filter | Approvals | Depth | Frequenze | Height | IP Class | Life span | Material fan | Material of rotor | Number of fans | Operational Temperature | Power Consumption | Punching | Sound level | Storage temperature | Structural Depth | Weight | Width | Voltage max | Voltage min | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

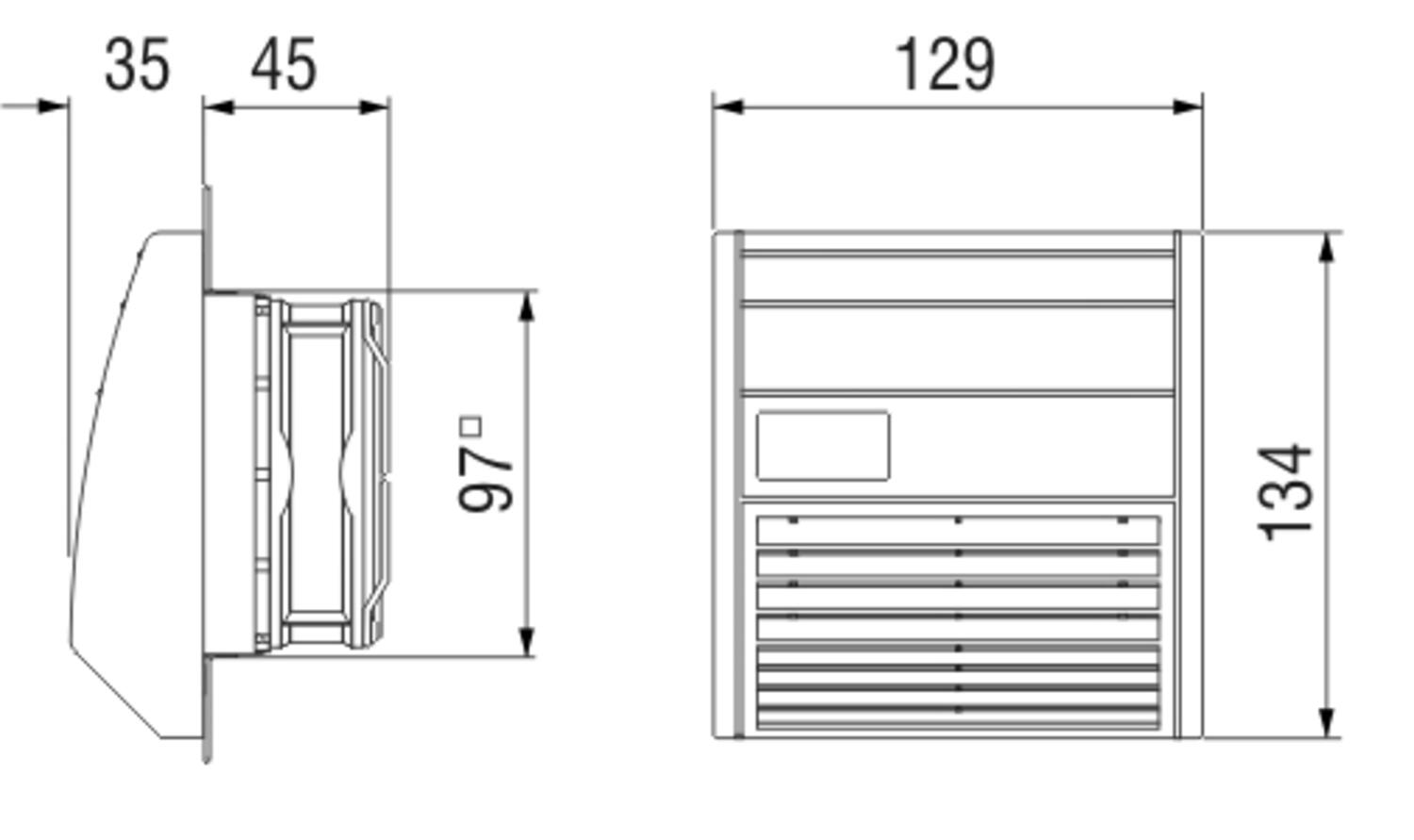

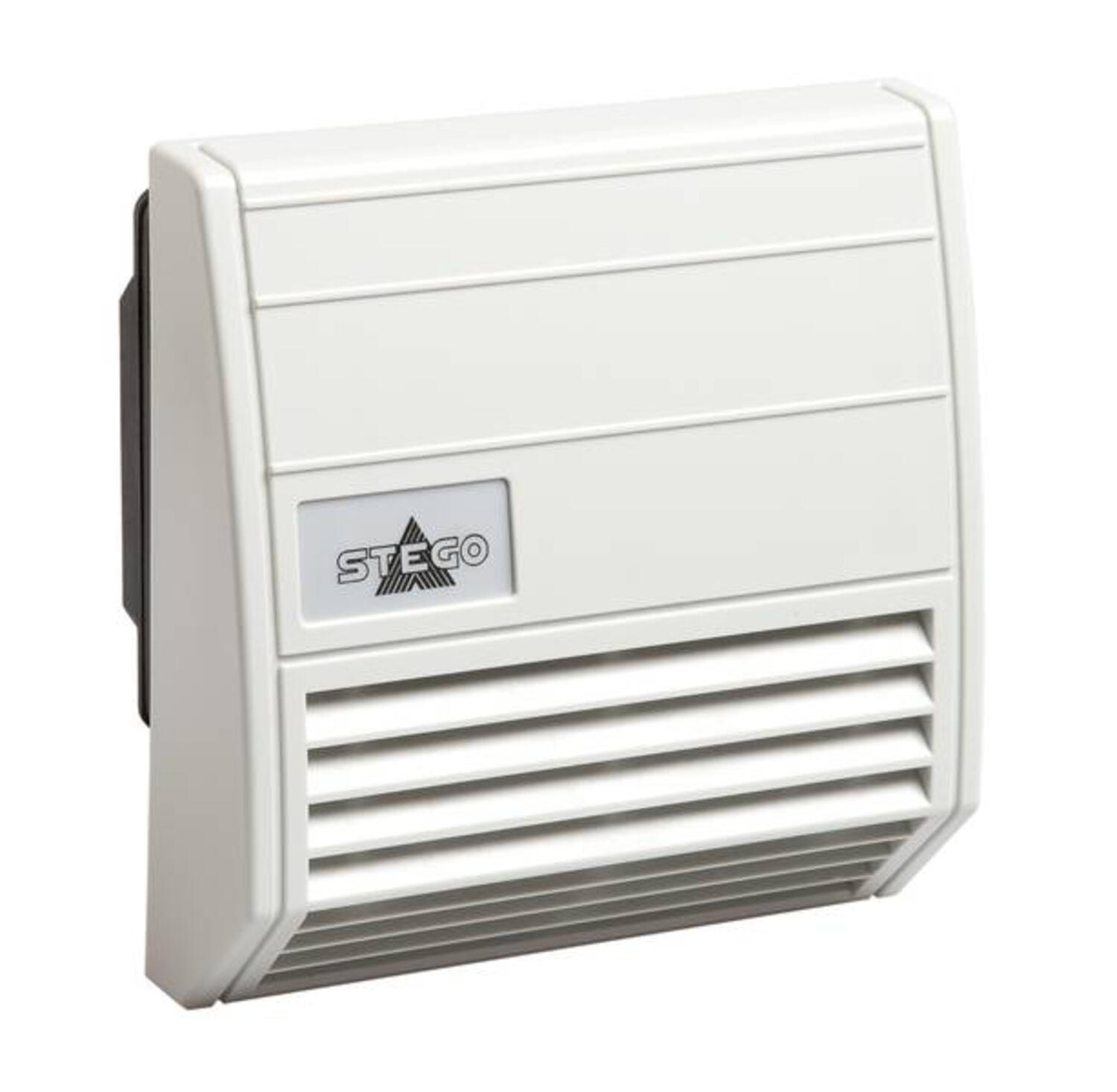

FF 018 Fan, 97 x 97 mm, 21m³/h, 230V ac, 50Hz, IP54
Art:
01800.0-00
Copied
|
21 m³/h
|
21 m³/h
|
16 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
80 mm
|
50 Hz
|
134 mm
|
IP54, IP55
|
50000 h
|
Aluminium
|
Plastic
|
1
|
-10°C ... +70°C
|
13 W
|
97x97 mm
|
31 dB
|
-40°C ... +70°C
|
45 mm
|
0,6 kg
|
129 mm
|
230 V ac
|
230 V ac
|
| |
![]()
FF 018 Fan, 97 x 97 mm, 24m³/h, 100-120V ac, 60Hz, IP54
Art:
01800.0-01
Copied
|
24 m³/h
|
24 m³/h
|
18 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1)
|
80 mm
|
60 Hz
|
134 mm
|
IP54, IP55
|
50000 h
|
Aluminium
|
Plastic
|
1
|
-10°C ... +70°C
|
13 W
|
97x97 mm
|
31 dB
|
-40°C ... +70°C
|
45 mm
|
0,6 kg
|
129 mm
|
120 V ac
|
120 V ac
|
| |
![]()
EF 018 Fan, Exit filter, 97 x 97 mm cutout, IP54
Art:
11800.0-00
Copied
|
24 m³/h
|
24 m³/h
|
18 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
80 mm
|
|
134 mm
|
IP54
|
|
|
|
|
-10°C ... +70°C
|
|
97x97 mm
|
|
-40°C ... +70°C
|
45 mm
|
0,3 kg
|
129 mm
|
|
|
| |
![]()
FF 018 Fan, 125 x 125 mm, 55m³/h, 230V ac, 50Hz, IP54
Art:
01801.0-00
Copied
|
55 m³/h
|
55 m³/h
|
42 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
98 mm
|
50 Hz
|
170 mm
|
IP54, IP55
|
50000 h
|
Aluminium
|
Plastic
|
1
|
-10°C ... +70°C
|
15 W
|
125x125 mm
|
40 dB
|
-40°C ... +70°C
|
58 mm
|
1 kg
|
157 mm
|
230 V ac
|
230 V ac
|
| |
![]()
FF 018 Fan, 125 x 125 mm, 63m³/h, 100-120V ac, 60Hz, IP54
Art:
01801.0-01
Copied
|
63 m³/h
|
63 m³/h
|
48 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
98 mm
|
60 Hz
|
170 mm
|
IP54, IP55
|
50000 h
|
Aluminium
|
Plastic
|
1
|
-10°C ... +70°C
|
15 W
|
125x125 mm
|
40 dB
|
-40°C ... +70°C
|
58 mm
|
1 kg
|
157 mm
|
120 V ac
|
120 V ac
|
| |
![]()
EF 018 Fan, Exit filter, 125 x 125 mm cutout, IP54
Art:
11801.0-00
Copied
|
63 m³/h
|
63 m³/h
|
48 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
98 mm
|
|
170 mm
|
IP54, IP55
|
|
|
|
|
-10°C ... +70°C
|
|
125x125 mm
|
|
-40°C ... +70°C
|
58 mm
|
0,4 kg
|
157 mm
|
|
|
| |
![]()
FF 018 Fan, 176 x 176 mm², 102m³/h, 230V ac, 50Hz, IP54
Art:
01802.0-00
Copied
|
102 m³/h
|
102 m³/h
|
68 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
136 mm
|
50 Hz
|
226 mm
|
IP54, IP55
|
50000 h
|
Aluminium
|
Plastic
|
1
|
-10°C ... +70°C
|
15 W
|
176x176 mm
|
39 dB
|
-40°C ... +70°C
|
86 mm
|
1,3 kg
|
209 mm
|
230 V ac
|
230 V ac
|
| |
![]()

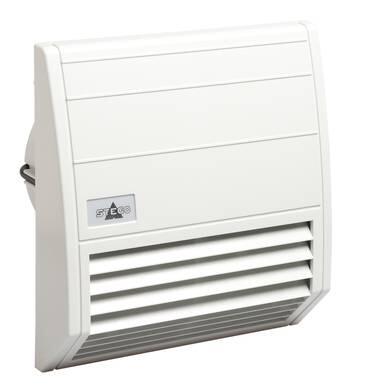

FF 018 Fan, 176 x 176 mm, 200m³/h, 230V ac, 50Hz, IP54
Art:
01804.0-00
Copied
|
200 m³/h
|
200 m³/h
|
125 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
145 mm
|
50 Hz
|
226 mm
|
IP54, IP55
|
50000 h
|
Aluminium
|
Steel
|
1
|
-25°C ... +50°C
|
45 W
|
176x176 mm
|
52 dB
|
-25°C ... +50°C
|
95 mm
|
1,7 kg
|
209 mm
|
230 V ac
|
230 V ac
|
| |
![]()
EF 018 Fan, Exit filter, 176 x 176 mm cutout, IP54
Art:
11802.0-00
Copied
|
117 m³/h
|
117 m³/h
|
78 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
136 mm
|
|
226 mm
|
IP54, IP55
|
|
|
|
|
-10°C ... +70°C
|
|
176x176 mm
|
|
-40°C ... +70°C
|
86 mm
|
0,6 kg
|
209 mm
|
|
|
| |
![]()

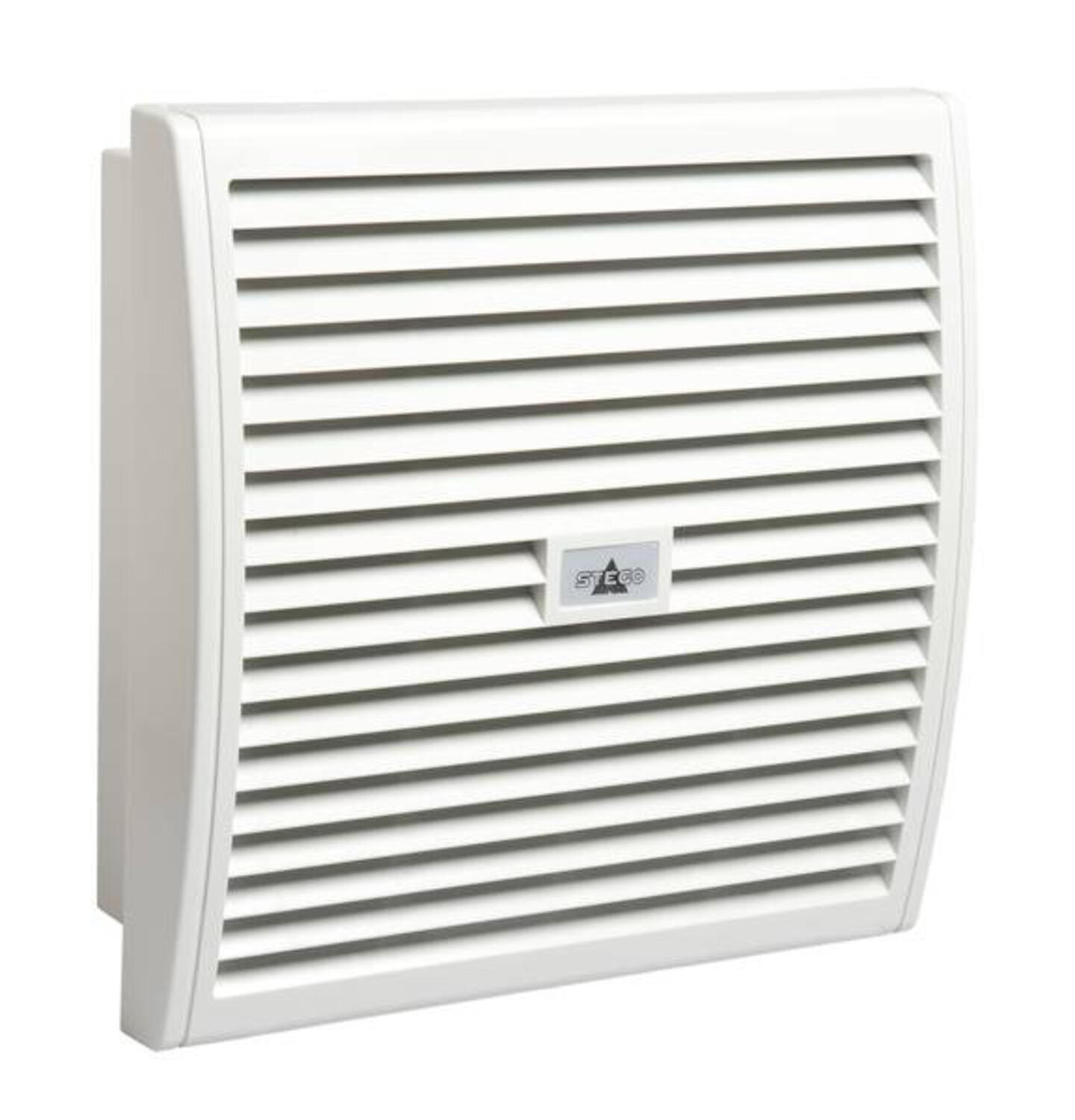

FF 018 Fan, 250 x 250 mm, 300m³/h, 230V ac, 50Hz, IP54
Art:
01803.0-00
Copied
|
300 m³/h
|
300 m³/h
|
230 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
110 mm
|
50 Hz
|
284 mm
|
IP54
|
50000 h
|
Aluminium
|
Plastic
|
4
|
-10°C ... +70°C
|
68 W
|
250x250 mm
|
56 dB
|
-40°C ... +70°C
|
65 mm
|
3,3 kg
|
284 mm
|
230 V ac
|
230 V ac
|
| |
![]()

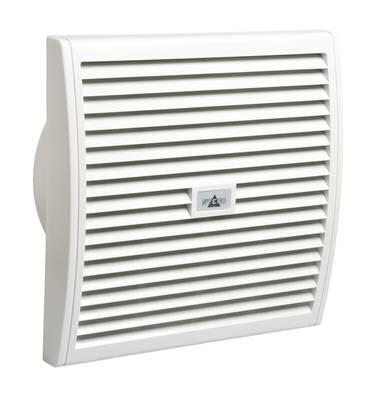

FF 018 Fan, 250 x 250 mm, 550m³/h, 230V ac, 50Hz, IP54
Art:
01805.0-00
Copied
|
550 m³/h
|
550 m³/h
|
300 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
152 mm
|
50 Hz
|
284 mm
|
IP54
|
50000 h
|
Aluminium
|
Steel
|
1
|
-25°C ... +70°C
|
64 W
|
250x250 mm
|
65 dB
|
-25°C ... +70°C
|
107 mm
|
2,7 kg
|
284 mm
|
230 V ac
|
230 V ac
|
| |
![]()
EF 018 Fan, Exit filter, 250 x 250 mm cutout, IP54
Art:
11803.0-00
Copied
|
345 m³/h
|
345 m³/h
|
264 m³/h
|
CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1)
|
67 mm
|
|
284 mm
|
IP54, IP55
|
|
|
|
|
-10°C ... +70°C
|
|
250x250 mm
|
|
-40°C ... +70°C
|
22 mm
|
1 kg
|
284 mm
|
|
|
|
Select a variant in the list
