DC/DC converters
DC-DC converter 24/12 V dc & 24/24 V dc
- 32 mm wide
- Isolated output voltage
- Wide input voltage range
- 20 % power boost

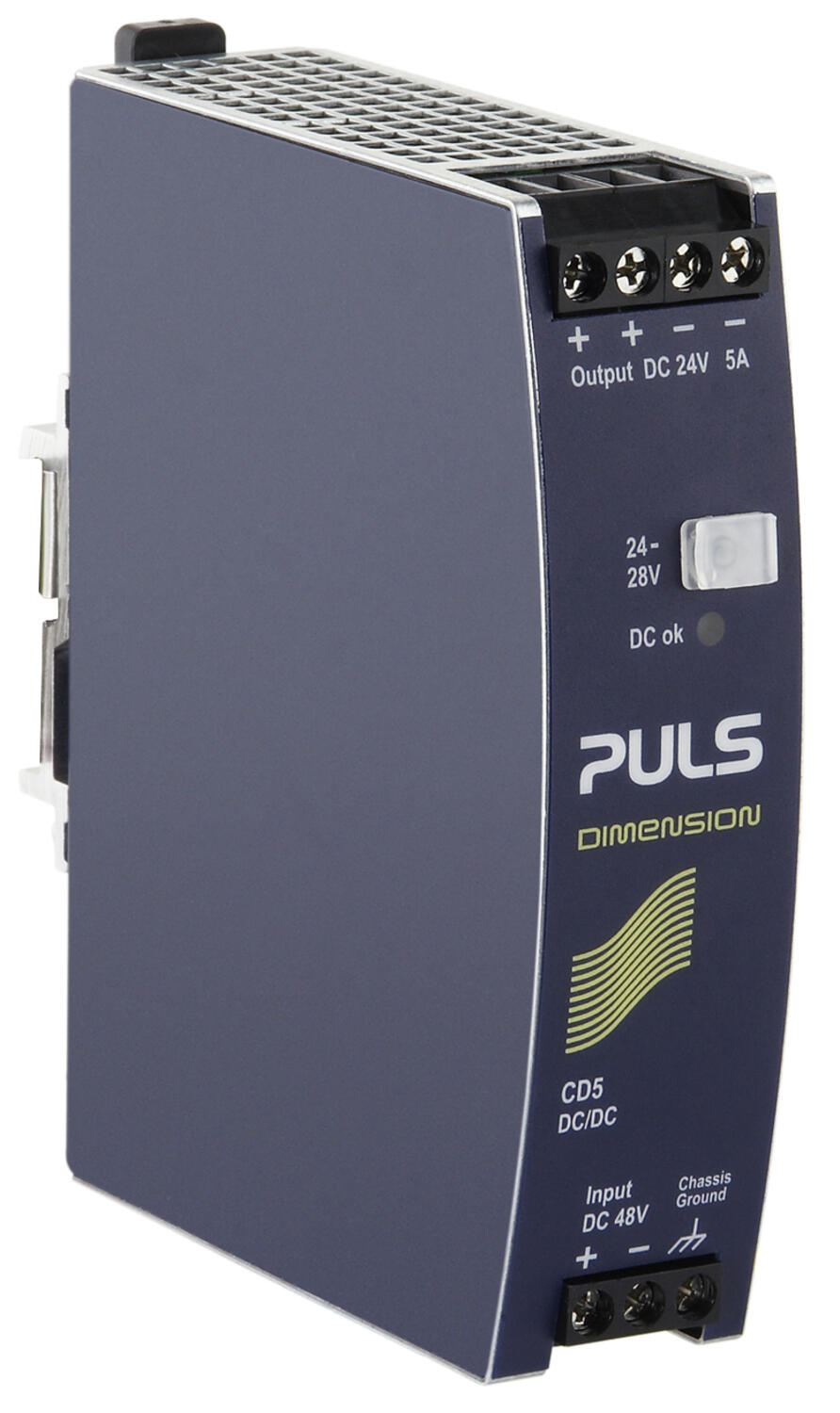

DC-DC converter 48/24 V dc & 12/24 V dc
48/24 V DC, 5 A & 12/24V DC, 4A
- Only 32 mm wide
- Isolated output voltage
- Wide input voltage range
- 20% Power Reserve
DC-DC converter 24/24 V dc
24/24 V DC, 10 A
- Width 42mm
- 94,2% efficiency
- 20% power reserve
- Galvanically separated SELV/PELV output

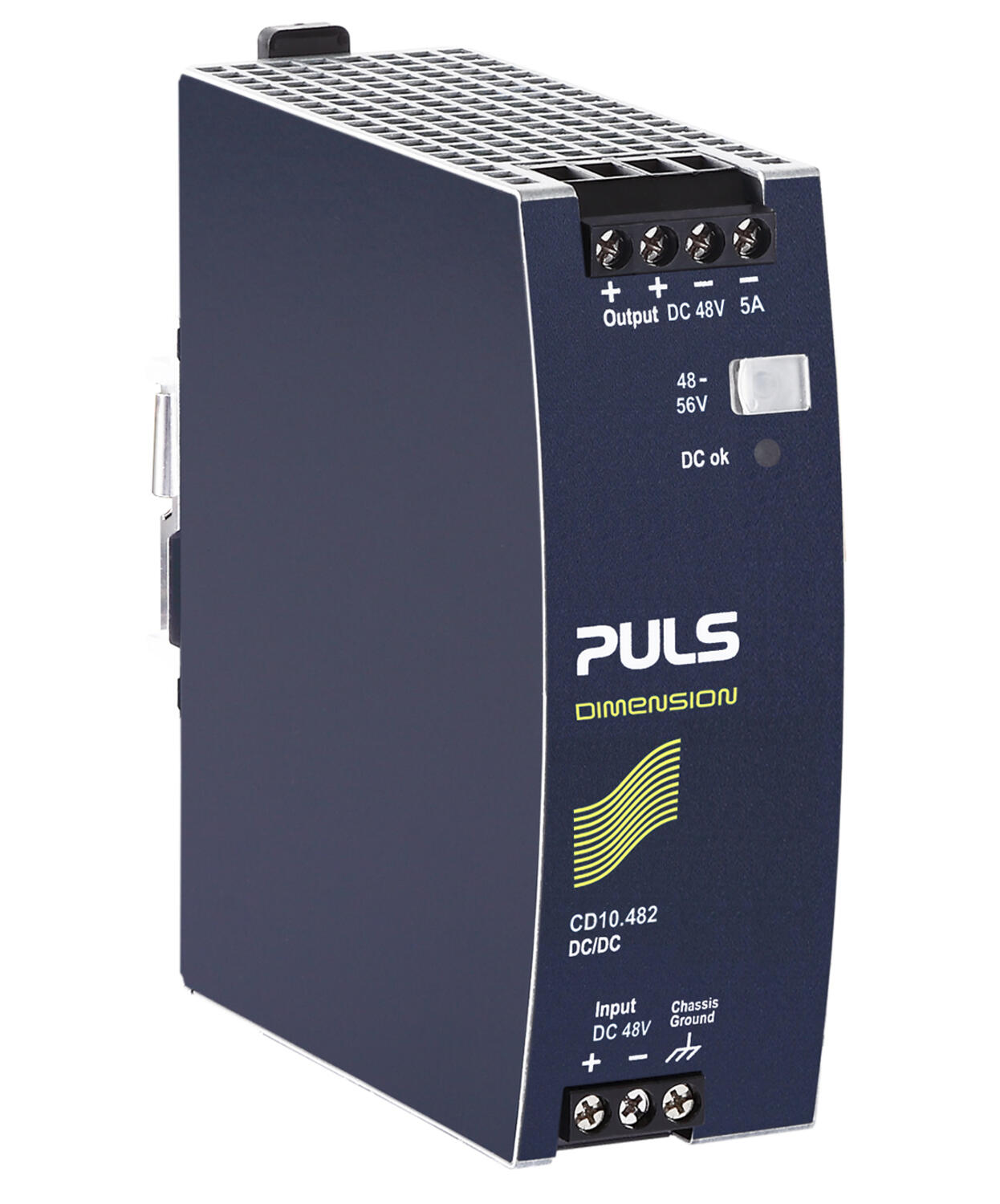

DC-DC converter 48/48 V dc
48/48 V DC, 5 A
- Width 42 mm
- 95,1% efficiency
- 20% power reserve
- Galvanically separated SELV/PELV output

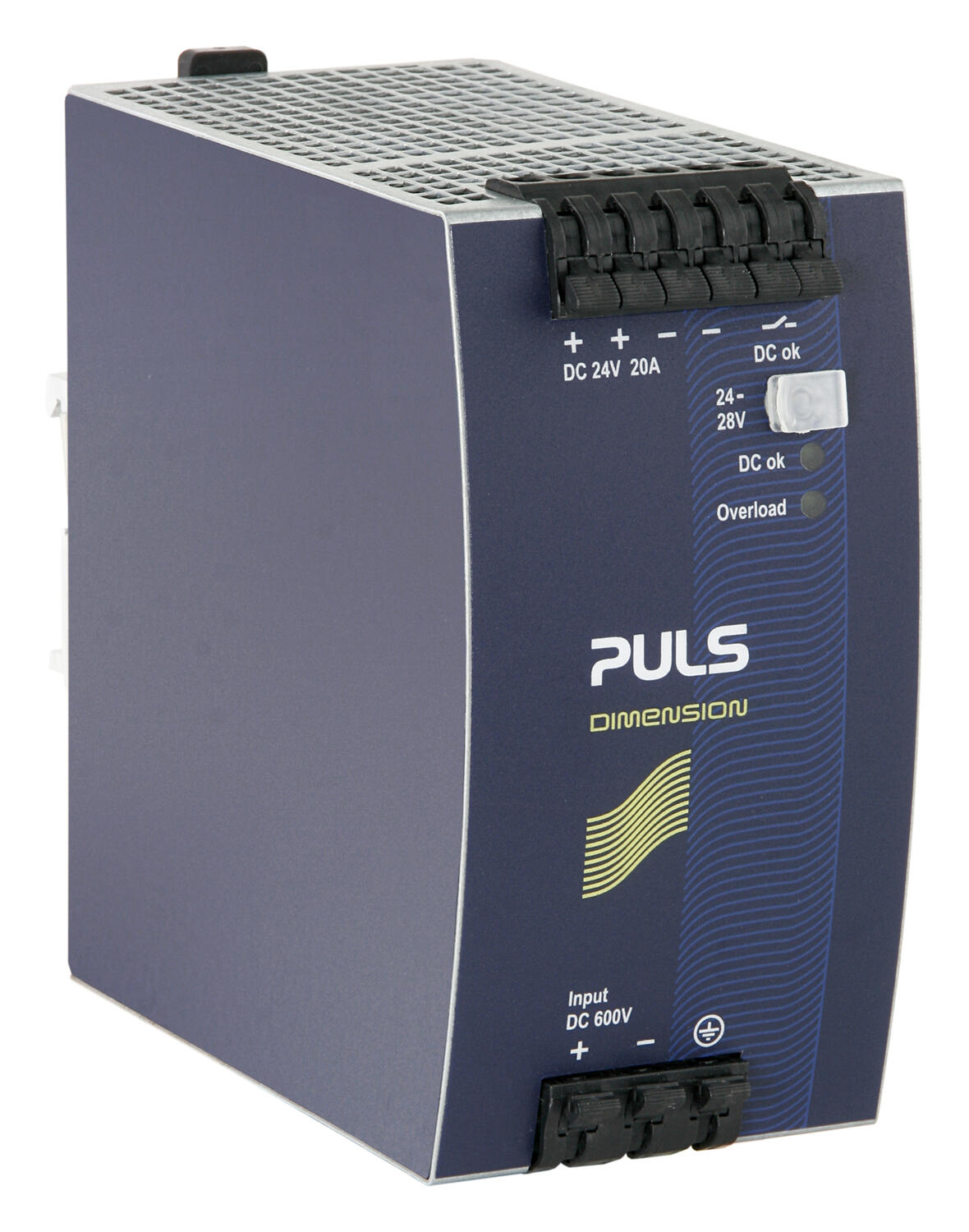

DC-DC converter 600/24 V dc
600/24 V DC, 20 A
- Optimized for intermediate DC-bus of Drive Systems
- 20 A
- 65 mm wide
- Up to 95% efficiency
- Integrated primary fuses
DC-DC converter 110/24 V dc
110/24 V DC, 8,3 A
- Width 39 mm
- 94,5 % efficiency
- Acc. to EN 50155 railway application standard
- Conformal coated PC-boards
- Wide temperature range -40°C...+70°C
