BACO
Mini Cam Switch 10 A

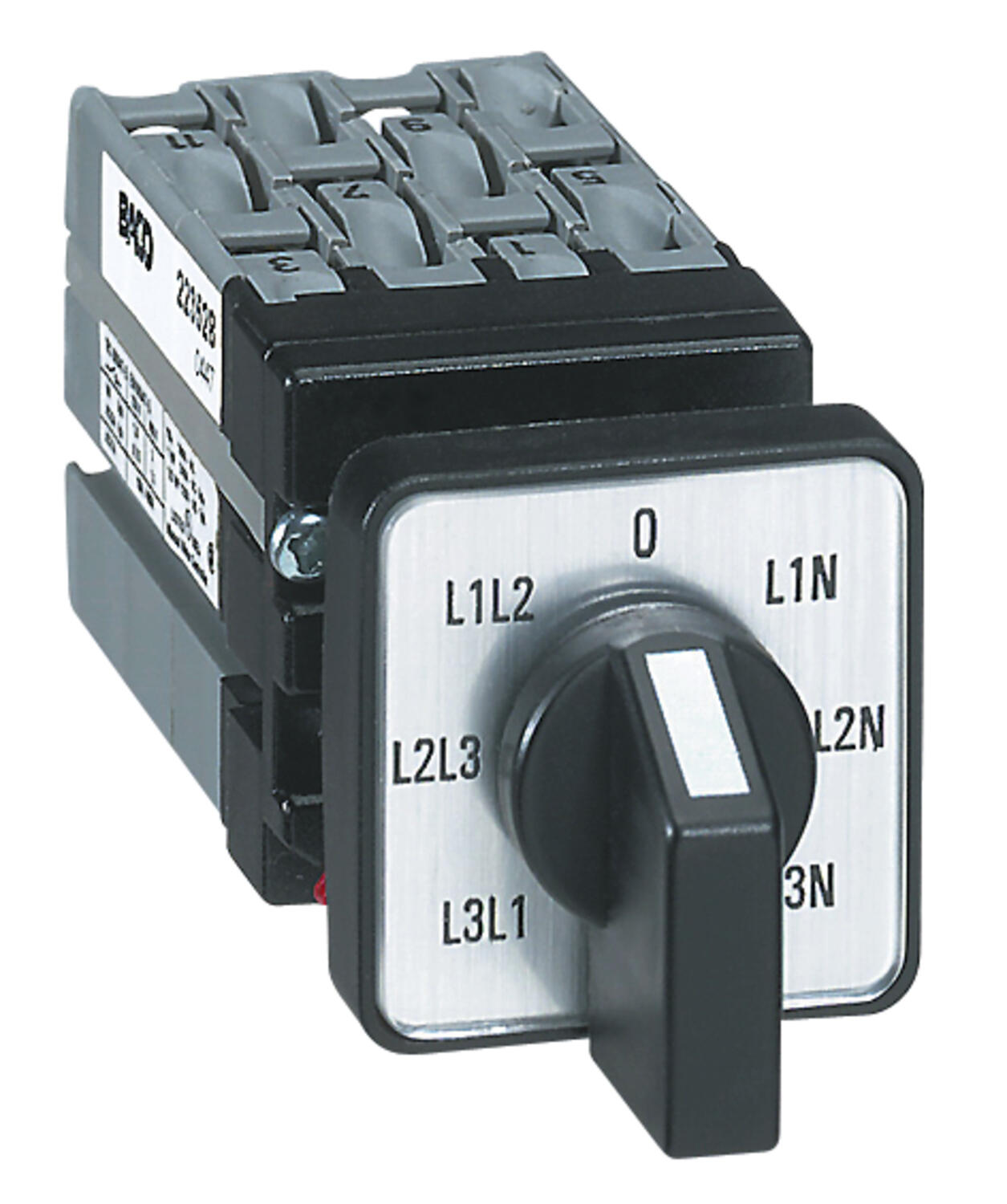

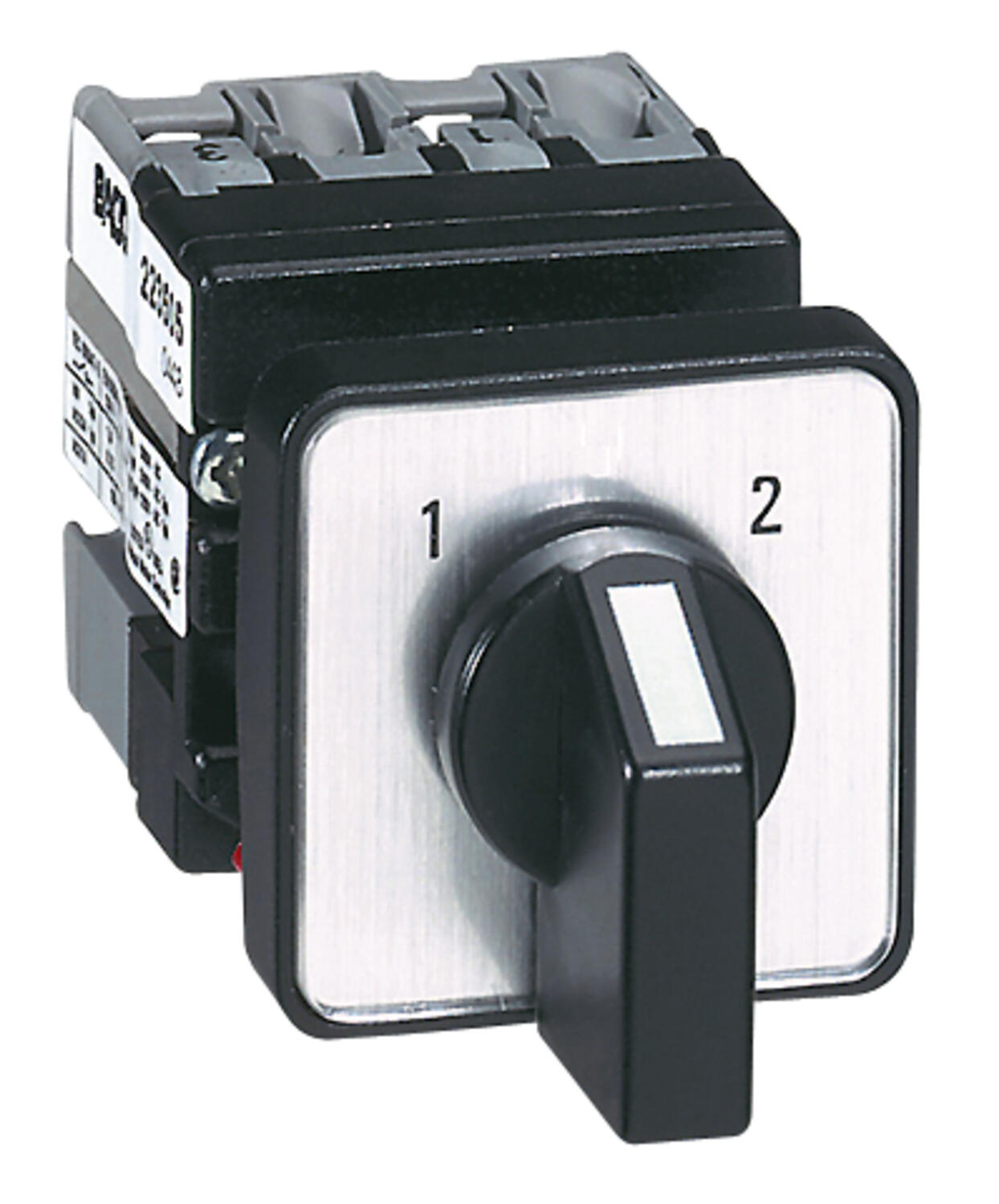

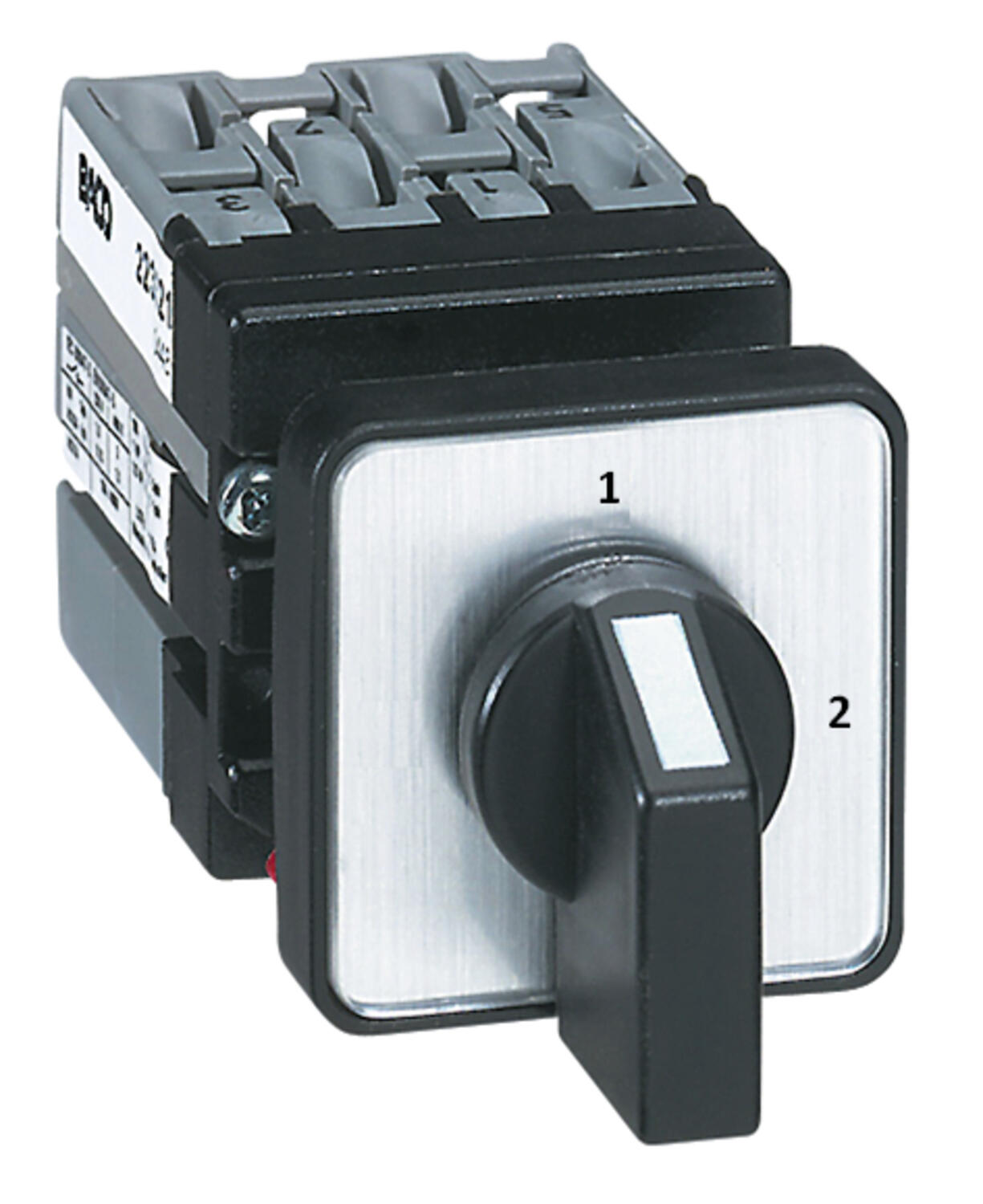

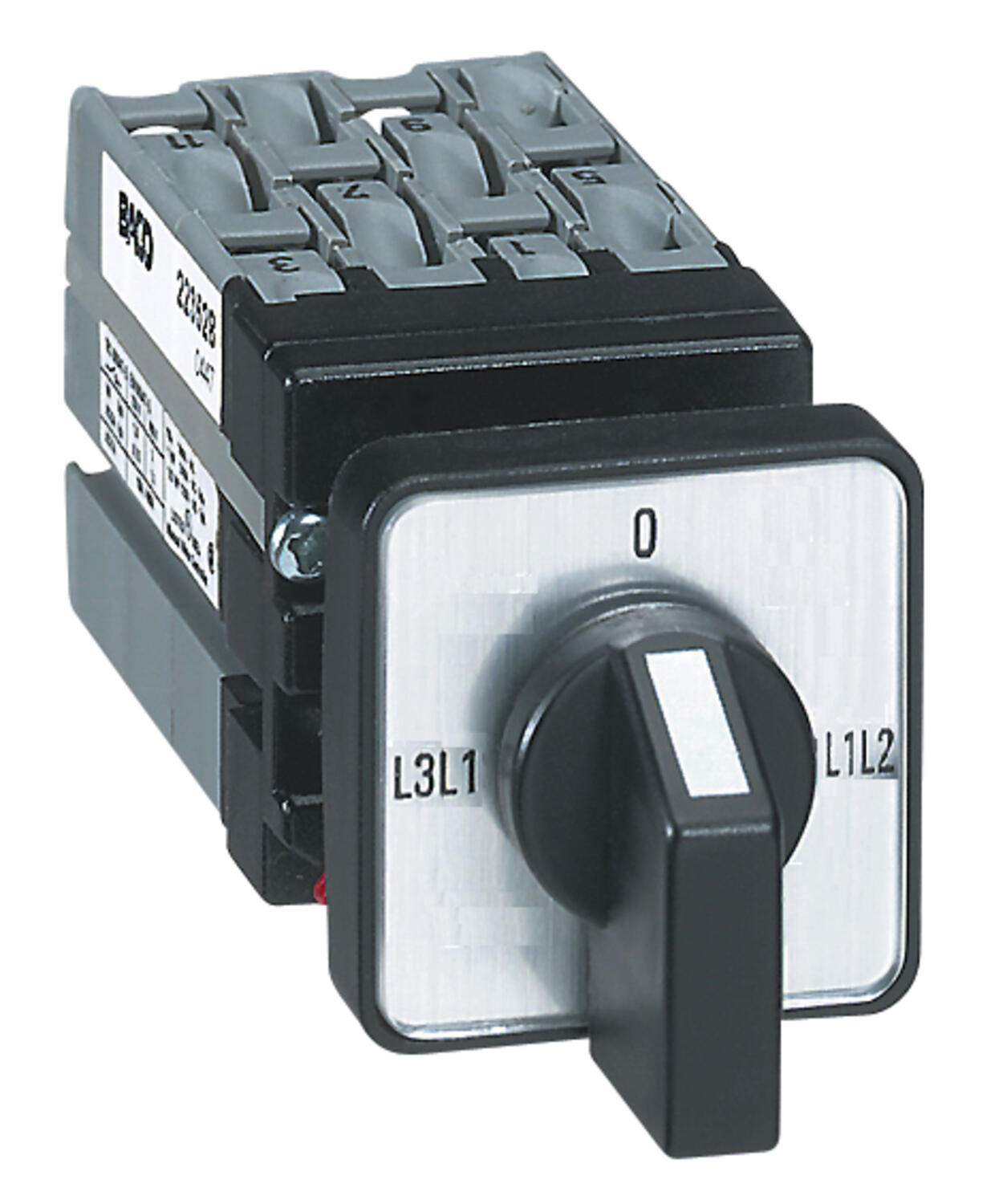

Miniature cam switches rated at 10A in a compact size ideal for applications with limited available space.

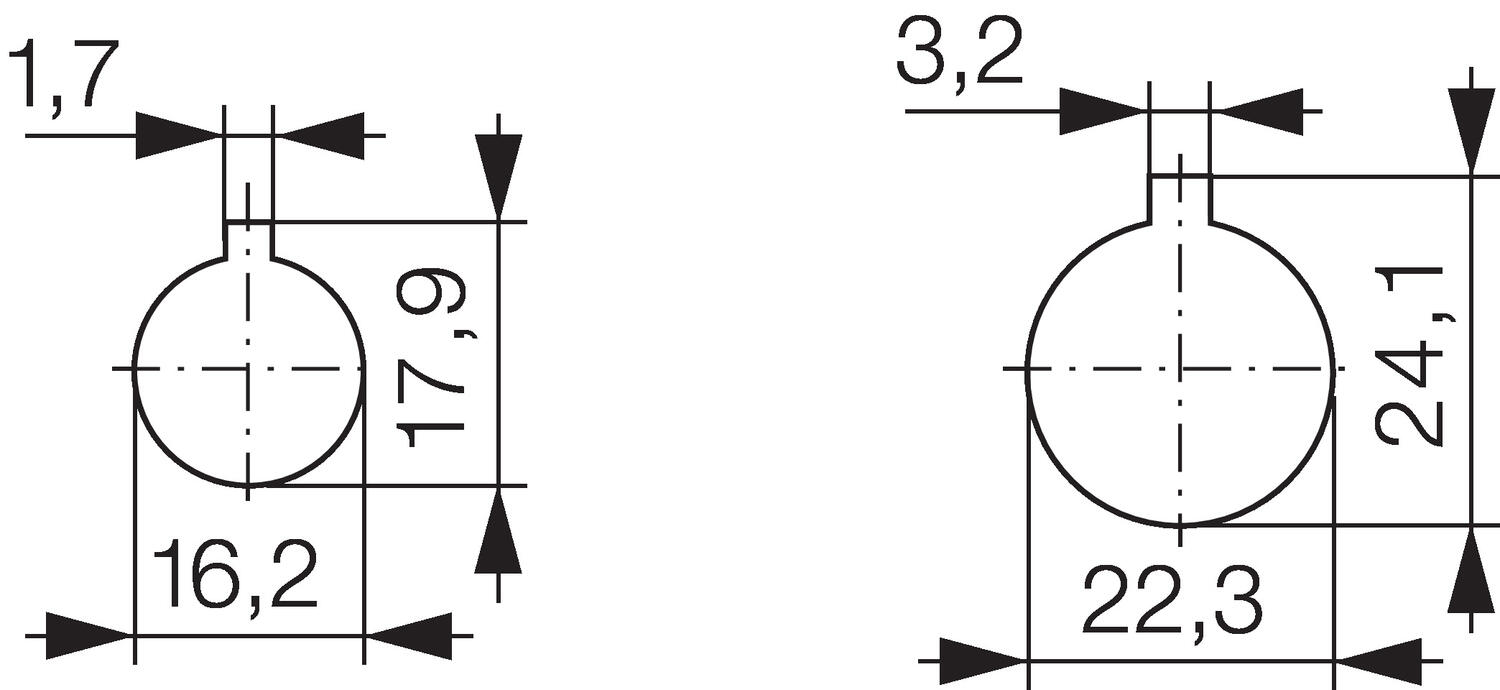

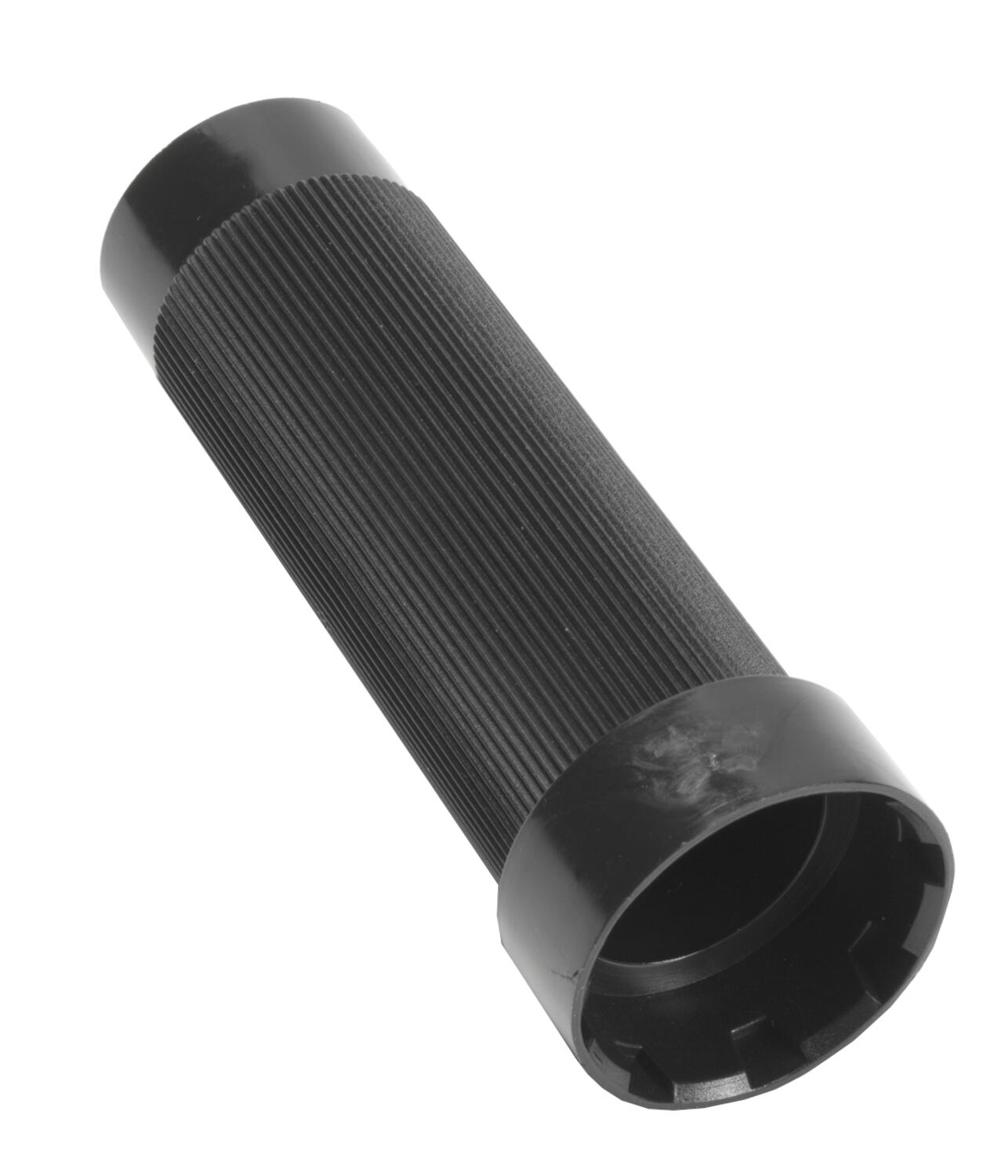

The mounting is simple with only a single hole required in either Ø16 mm or Ø22 mm.
The terminal screws are mounted at a 45º angle making electrical connection easier if the switch has already been mounted.

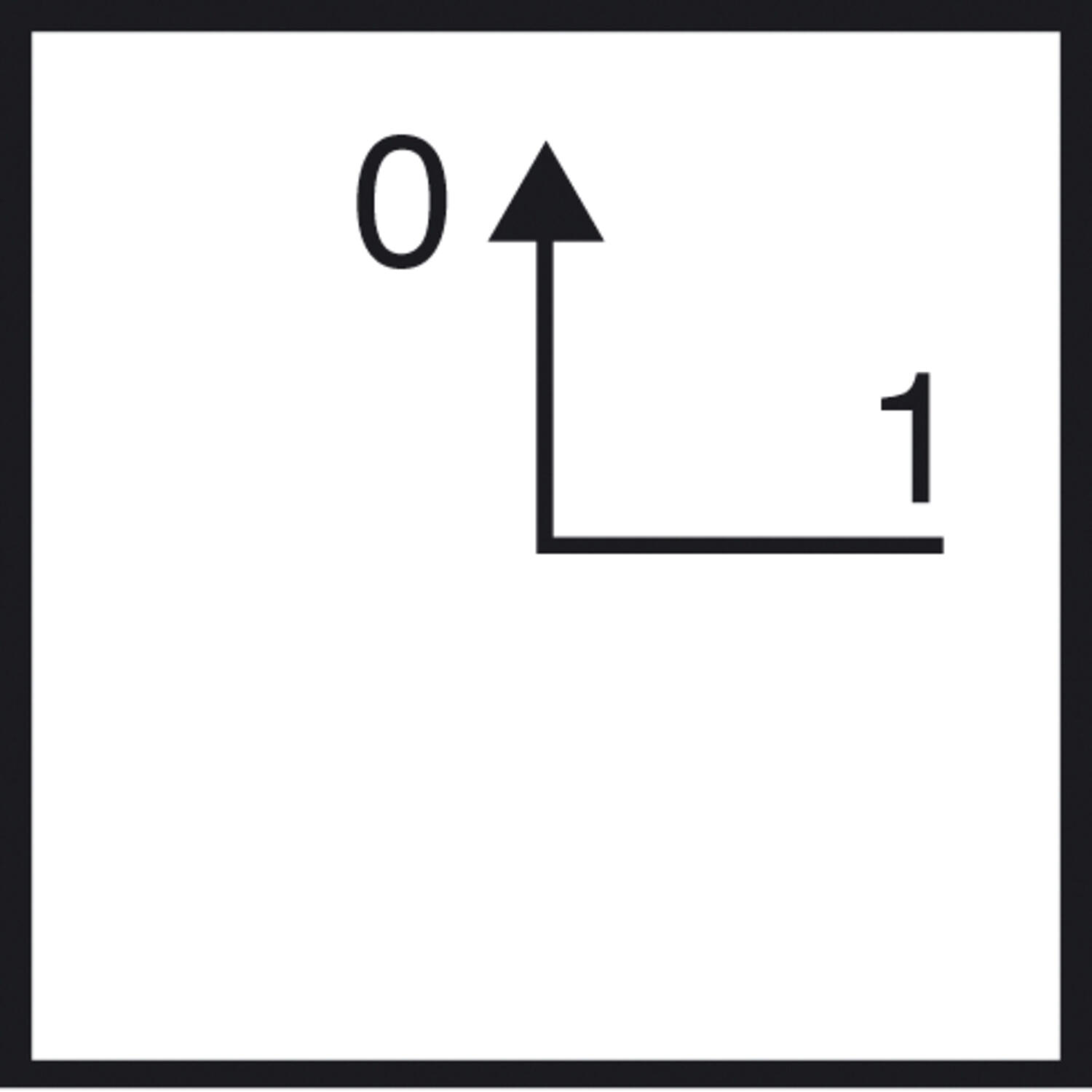

Each switch is supplied complete with engraved legend plate, frame and handle.
- Compact size
- Switching current 10 A
- Mounting Ø 22.5mm or Ø 16mm
- IP65
Selected variant
Specifications

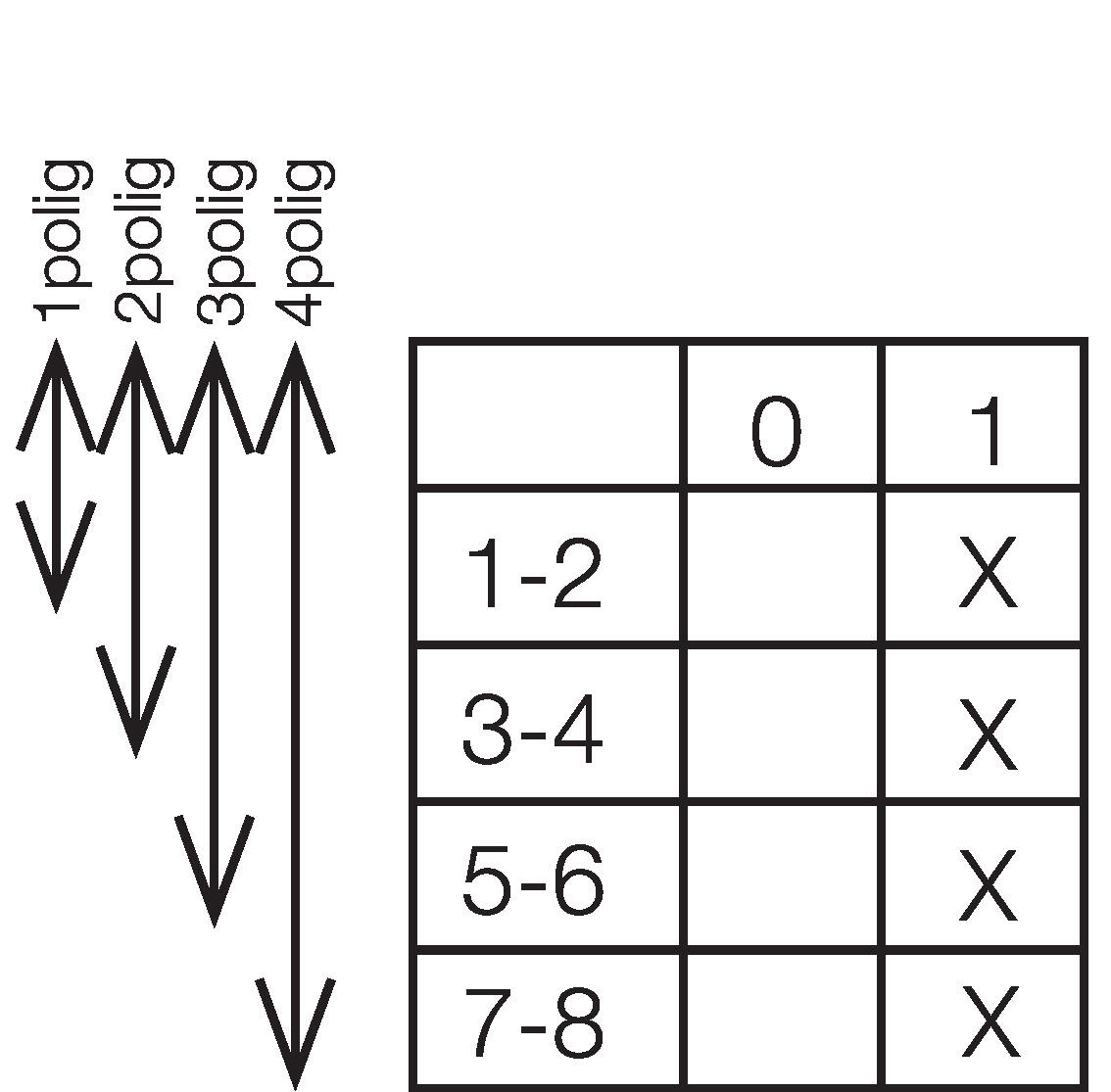

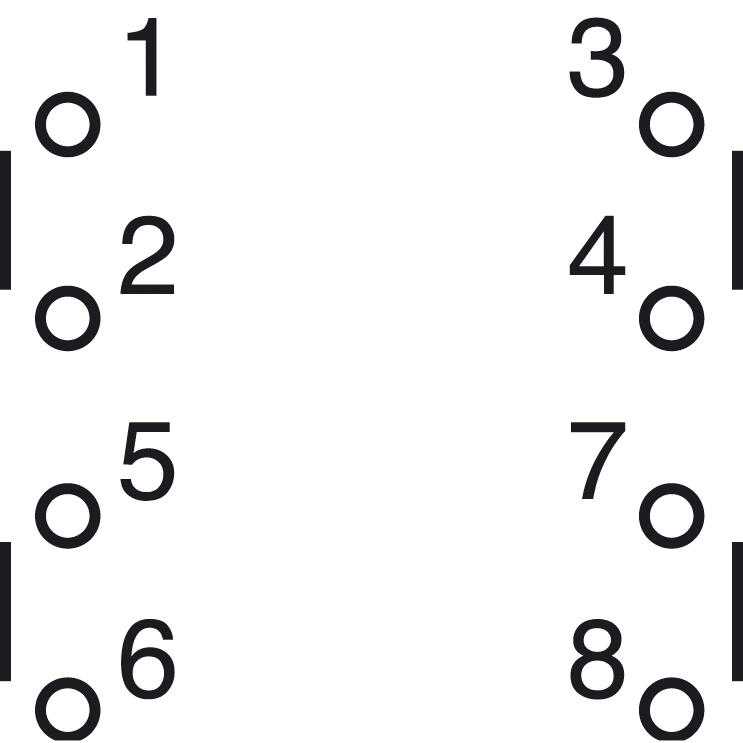

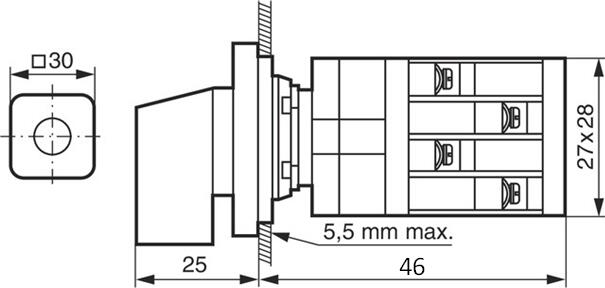

| Angle | 90° |
|---|---|
| Cable area max | 2x1,5 mm² |
| Cable area min | 1x0,5 mm² |
| Conventional free air thermal current Ith | 10 A |
| Function | Stable |
| Mounting | Single hole mounting Ø16 mm / Ø22,5 mm |
| Number Of Contacts | 1 |
| Number of poles | 1 |
| Number of positions | 2 |
| Plate | 30x30 |
| Protection rating front of panel | IP65 |
| Protection rating rear of panel | IP20 |
| Rated insulation voltage Ui | 500 V |
| Rated operating current Ie (AC15/230V) | 2.5 A |
|---|---|
| Rated operating current Ie (AC21A/22A) | 10 A |
| Rated operating current Ie (DC-1/24 VDC) | 10 A |
| Rated operating power (AC23A/3x230V) | 1.8 kW |
| Rated operating power (AC23A/3x400V) | 3 kW |
| Rated operating power (AC3/3x230V) | 1.8 kW |
| Rated operating power (AC3/3x400V) | 2.2 kW |
| Standards | CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508 |
| Temperature range from | -20 °C |
| Temperature range to | 50 °C |
| Type/Model | ON-OFF switch |
| Weight | 32 g |
Product description
Miniature cam switches rated at 10A in a compact size ideal for applications with limited available space.
The mounting is simple with only a single hole required in either Ø16 mm or Ø22 mm.
The terminal screws are mounted at a 45º angle making electrical connection easier if the switch has already been mounted.
Each switch is supplied complete with engraved legend plate, frame and handle.
