Control relays

Valvontareleet-Crouzet.tif
Total number of hits :
Crouzet MWS2 electrical relay with screw terminals labeled L1, L2, L3 and numbered connection points
CROUZET CONTROL

3 phase, phase control MWS, MWS2

  • Triggers alarm upon incorrect phase sequence/phase interruption
  • Wide range input voltage from 3x208-480 V ac
  • 17.5 mm cabinet with DIN rail
  • LED indication
  • Does not measure returned voltage
Product has 2 variants.
Read more Read more
Three-phase voltage monitoring relay by Crouzet with L1, L2 and L3 inputs, adjustable 208 to 480 V range and relay outputs
CROUZET CONTROL

Crouzet - 3 phase, phase control MWG

  • Triggers alarm when phase sequence or phase interruption faults occurs
  • Adjustable line voltage
  • Measures returned voltage to 70 %
  • 17.5 mm cabinet with DIN rail
Product has 1 variant.
Read more Read more
Three-phase voltage monitoring relay by Crouzet with L1, L2 and L3 terminals and adjustable voltage and under-voltage settings
CROUZET CONTROL

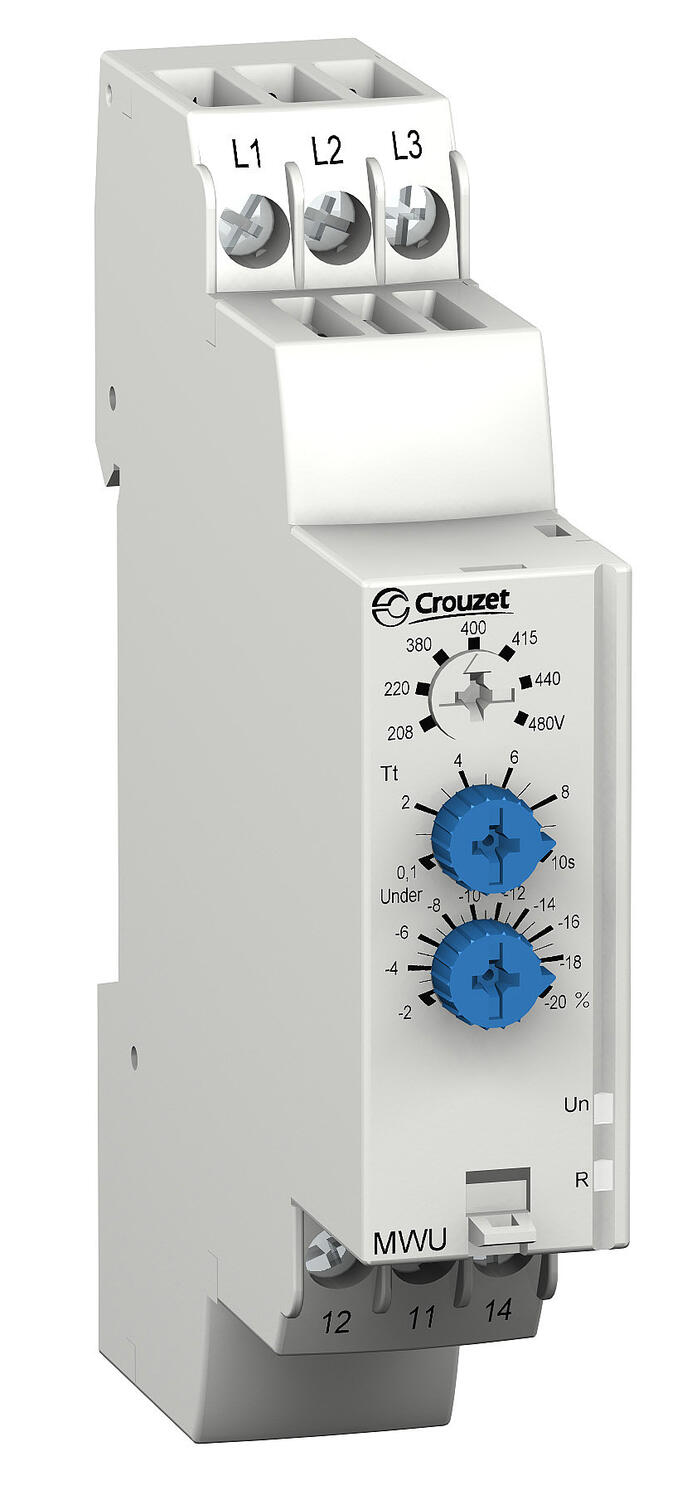

3 phase, phase control MWU

  • Triggers alarm upon incorrect phase sequence, phase interruption and under-voltage
  • Adjustable line voltage
  • Measures returned voltage to 98 %
  • 17.5 mm cabinet with DIN rail
Product has 1 variant.
Read more Read more
Crouzet MWA three-phase voltage monitoring relay with L1 L2 L3 inputs and adjustable voltage, delay and asymmetry settings
CROUZET CONTROL

3 phase, phase control MWA

  • Triggers alarm upon incorrect phase sequence, phase interruption and asymmetry
  • Adjustable line voltage
  • Measures returned voltage to 70%
  • 17.5 mm cabinet with DIN rail
Product has 1 variant.
Read more Read more
Crouzet three-phase voltage monitoring relay with L1 L2 L3 terminals and adjustable voltage, asymmetry and delay settings
CROUZET CONTROL

Crouzet - 3 phase, phase control MWUA

  • Triggers alarm upon incorrect phase sequence, phase interruption, asymmetry and over-/under-voltage
  • Adjustable line voltage
  • Measures returned voltage to 70 %
  • 17.5 mm cabinet with DIN rail
Product has 1 variant.
Read more Read more
Three-phase voltage monitoring relay, Crouzet HWUA, with adjustable overvoltage, undervoltage and phase asymmetry settings.
CROUZET CONTROL

3 phase, phase control HWUA

  • Triggers alarm upon incorrect phase sequence, phase interruption, asymmetry and over-/under-voltage
  • Adjustable line voltage
  • Measures returned voltage to 70 %
  • 35 mm cabinet with DIN rail
Product has 1 variant.
Read more Read more
Control relay
CROUZET CONTROL

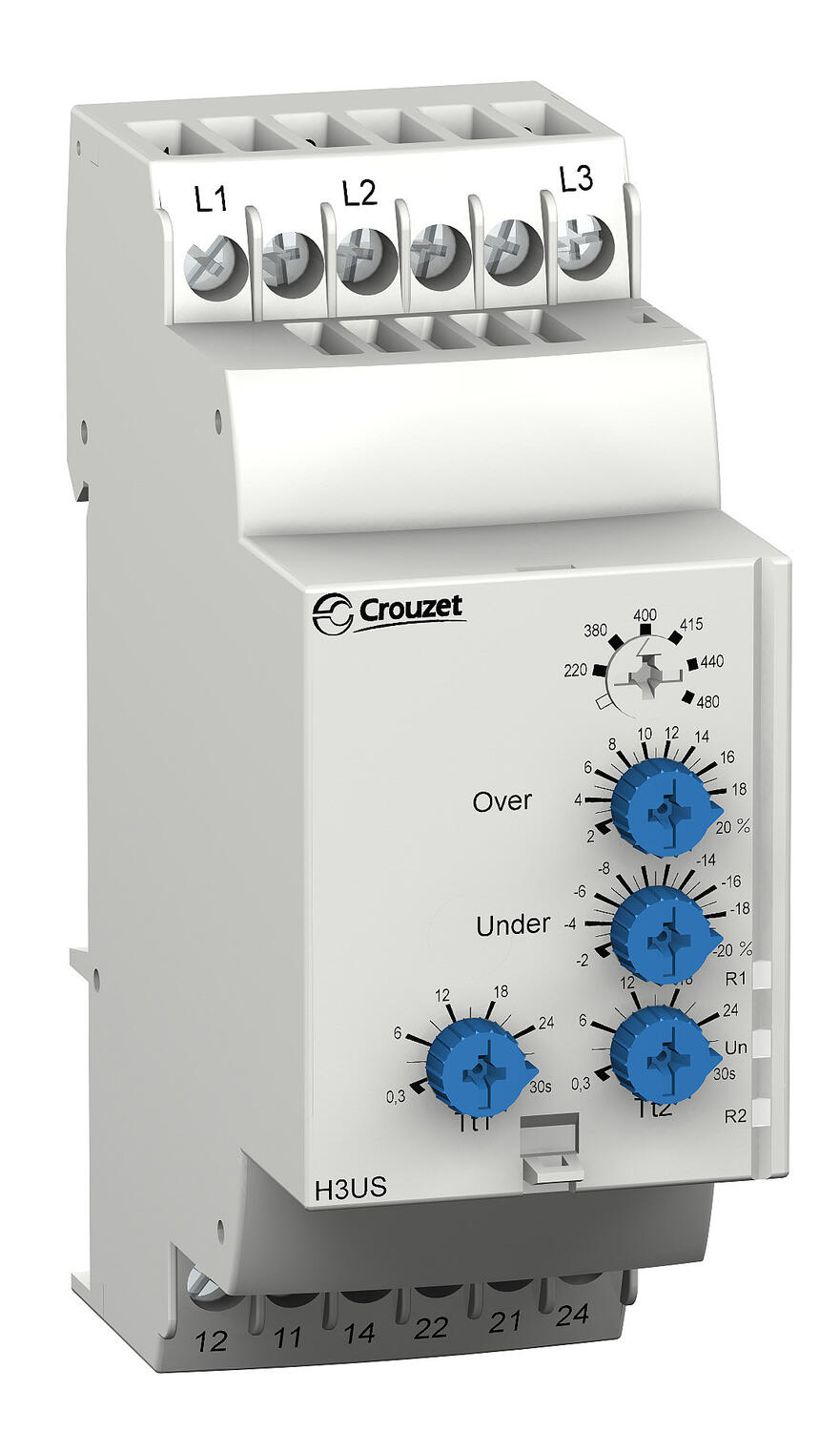

3 phase over/under voltage relay H3US, H3USN

  • Phase control of line voltage
  • Wide range input voltage
  • 35 mm cabinet with DIN rail
  • LED indication
Product has 2 variants.
Read more Read more
Control relay
CROUZET CONTROL

3 phase over/under voltage relay M3US

  • Phase control of line voltage
  • Wide range input voltage
  • 17.5 mm cabinet with DIN rail
  • LED indication
Product has 1 variant.
Read more Read more
Control relay
CROUZET CONTROL

1 phase over/under voltage relay HUL, HUH

  • Two modules, HUL 0.2-60 V, HUH 15-600 V
  • Galvanic isolation control/measurement
  • Automatic detection of ac or dc
  • 35 mm cabinet with DIN rail
Product has 2 variants.
Read more Read more
Control relay
CROUZET CONTROL

1 phase over/under voltage relay MUS, MUSF

  • Three models with different voltage ranges
  • Reconnectable over or under voltage
  • Automatic detection of AC or DC
  • 17.5 mm cabinet with DIN rail
Product has 5 variants.
Read more Read more
Control relay
CROUZET CONTROL

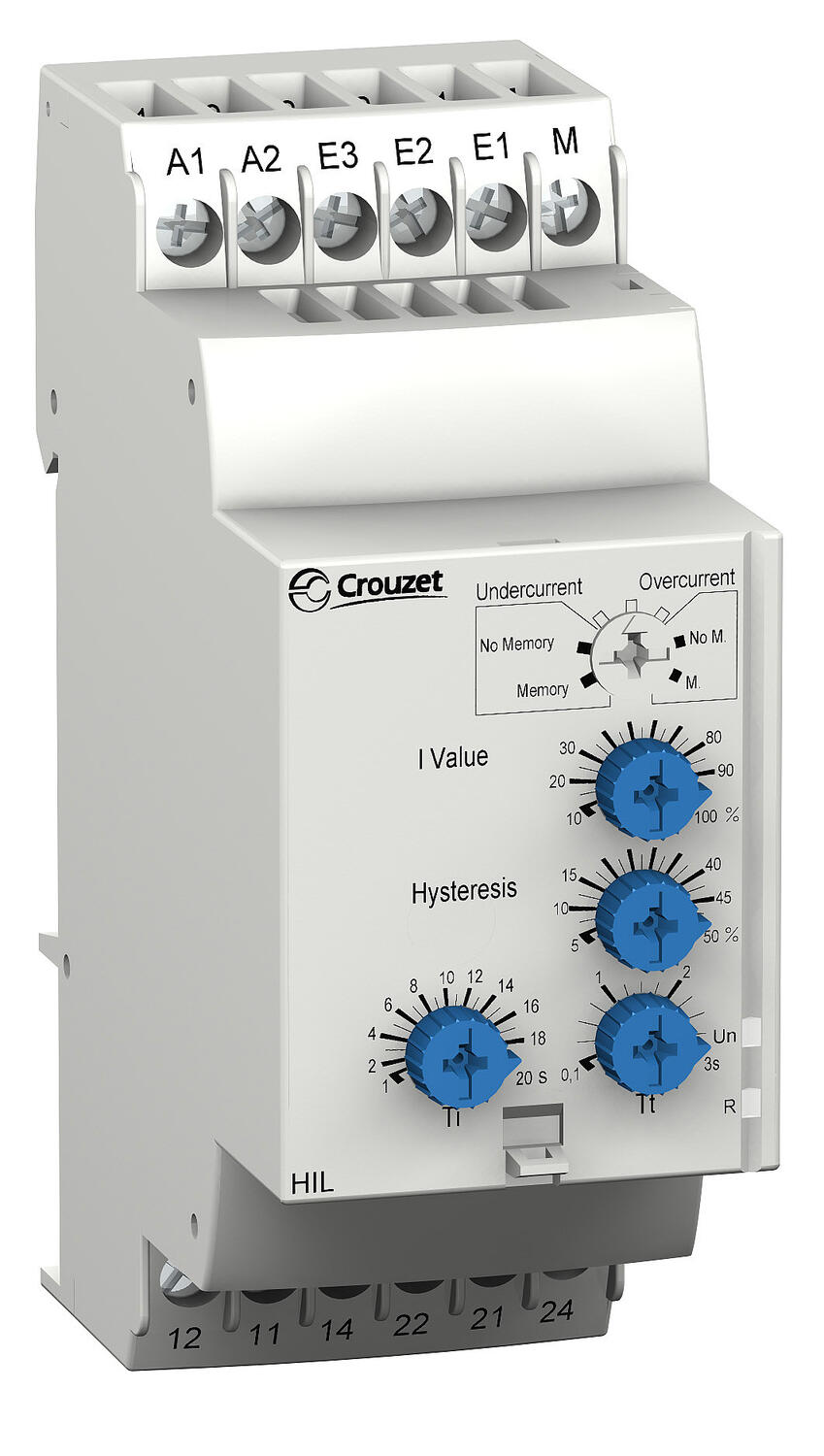

1 phase over/under current relay HIL, HIH

  • Two models: HIL 2 mA-500 mA, HIH 0.1 A-10 A
  • Galvanic isolation control/measurement
  • Automatic detection of ac or dc
  • 35 mm cabinet with DIN rail
Product has 2 variants.
Read more Read more
Control relay
CROUZET CONTROL

1 Phase Over/Under Current Relay MIC

  • Measurement range 2-20 A ac
  • Integrated current transformer
  • Over/under-current function
  • Measures true RMS
Product has 1 variant.
Read more Read more
Control relay
CROUZET CONTROL

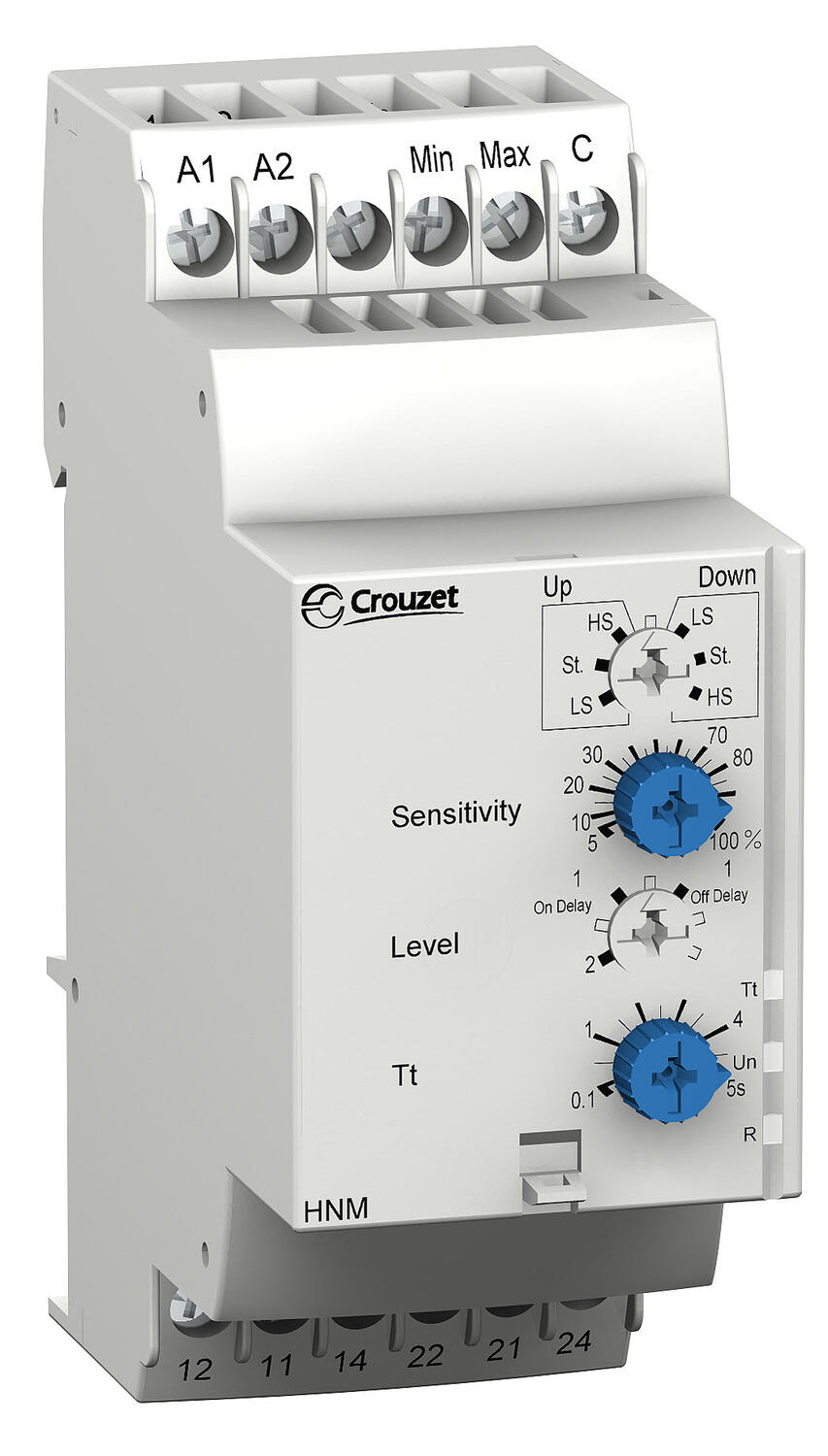

Level control Relays HNM, HNE

  • Control of one or two levels
  • Filling/emptying function
  • HNM resistive sensor
  • HNE digital sensor * obsolete
Product has 2 variants.
Read more Read more
Crouzet ENRM level control relay with screw terminals and adjustable sensitivity, level and delay settings
CROUZET CONTROL

Level control relay ENR

  • Regulation of 2 levels
  • Filling/emptying function
  • Mittaus johtavilla elektrodeilla. Leveys 22,5 mm
  • Sensitivity adjustable 5 kΩ - 100 kΩ
  • 24-240 V AC/DC
Product has 1 variant.
Read more Read more
Control relay
CROUZET CONTROL

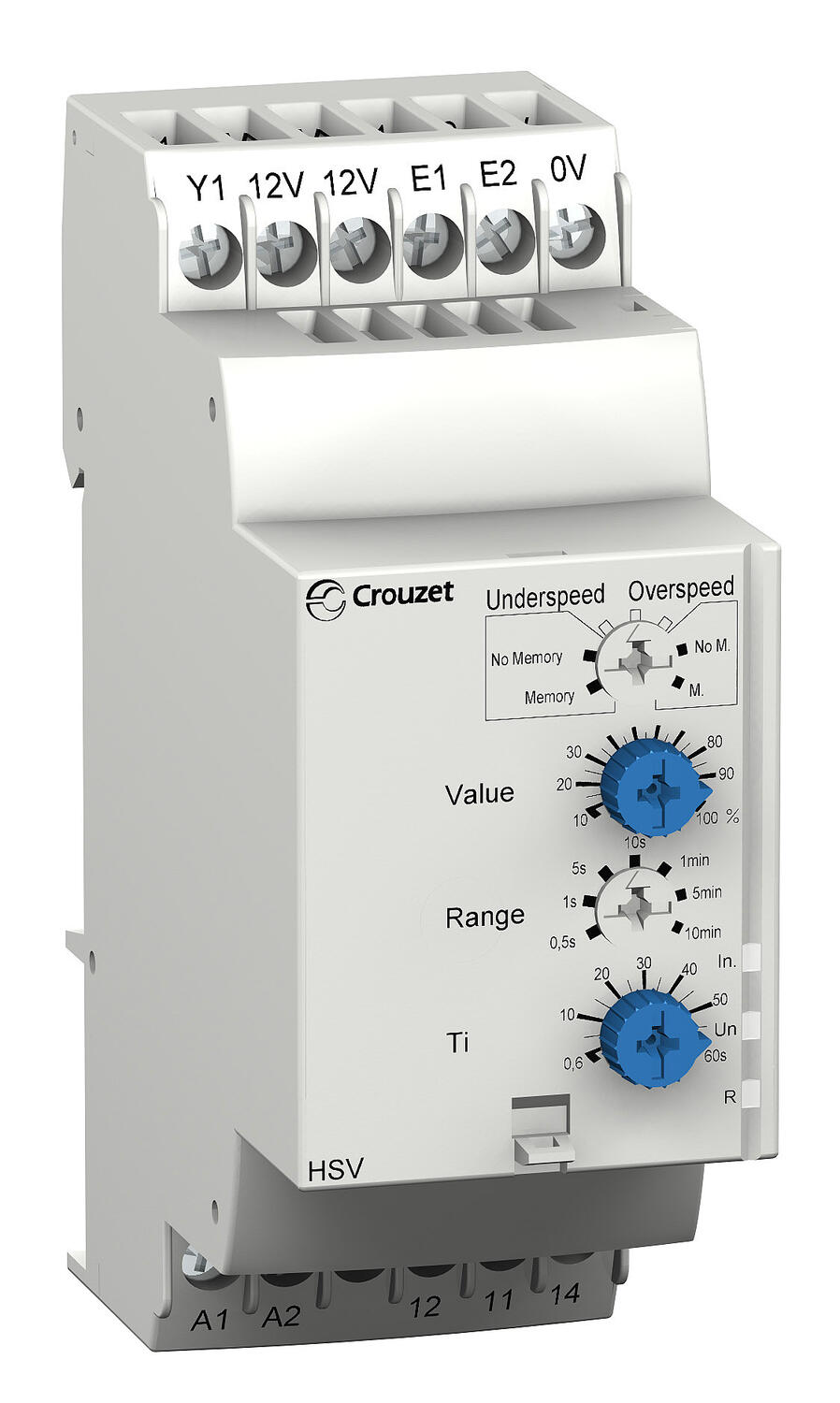

Speed monitoring relay HSV

  • Monitors over-/under-speed
  • Adjustable between 0.05 s and 10 min
  • Adjustable start time delay 0.6-30 s
  • Signal from four sensor alternatives
Product has 1 variant.
Read more Read more
Electronic timer relay by Crouzet with adjustable value, hysteresis and timing controls, plus screw terminals
CROUZET CONTROL

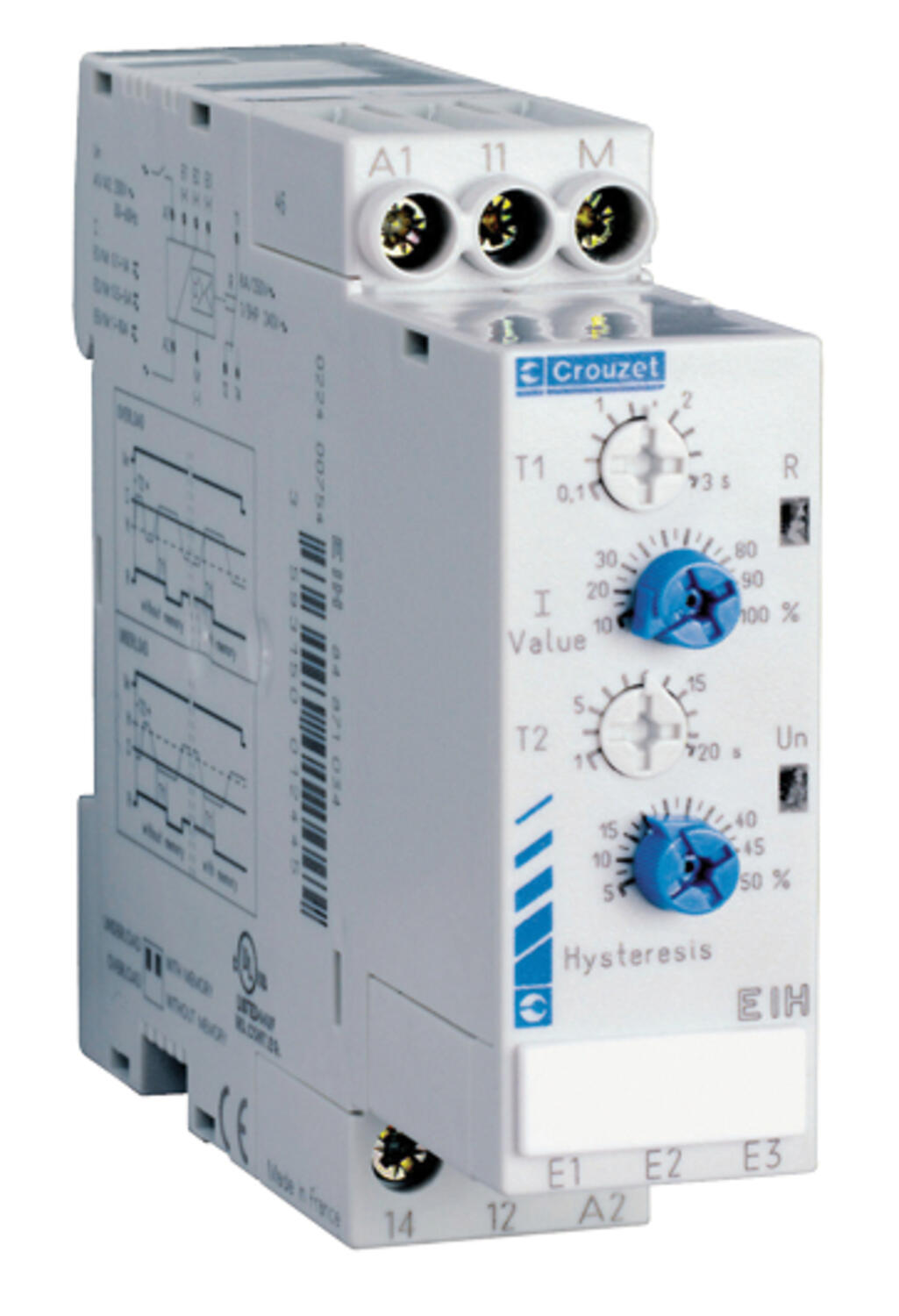

Current Monitor Relays EIL, EIH and EIT

Product has 1 variant.
Read more Read more
C-mac RP 81 Load Guard, a compact device with adjustable controls for start delay and COS.
COMADAN

Load guard RP81

  • Load guard for 3-phase motors
  • Power factor metering
  • Adjustable time delay 0-20 sek. at motor start
  • Selectable release of relay at max. or min. load
  • 1-pole relay output 8A / 250 VAC
Product has 1 variant.
Read more Read more
