BERNSTEIN

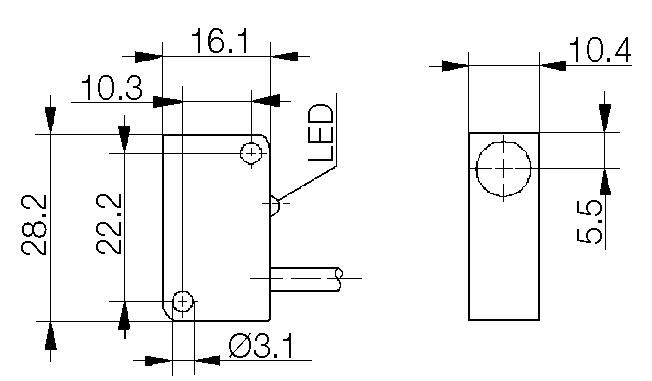

Inductive sensor, rectangular housing 28x16x11
- Sensor on the narrow side of the housing
- Sensing distance 2mm
- 2m connecting cable
- M8 connector
Selected variant
Specifications
| Electrical connection | Cable 2 m |
|---|---|
| IP Class | IP67 |
| LED | Yes |
| Load Max | 200 mA |
| Material of body | Plastic |
| Mounting | Flush mounted |
| Output | PNP NO |
| Sensing | 2 mm |
| Sensor type | Inductive |
|---|---|
| Size | 28x16x11 |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Voltage DC max | 30 V |
| Voltage DC min | 10 V |
