TAKEX

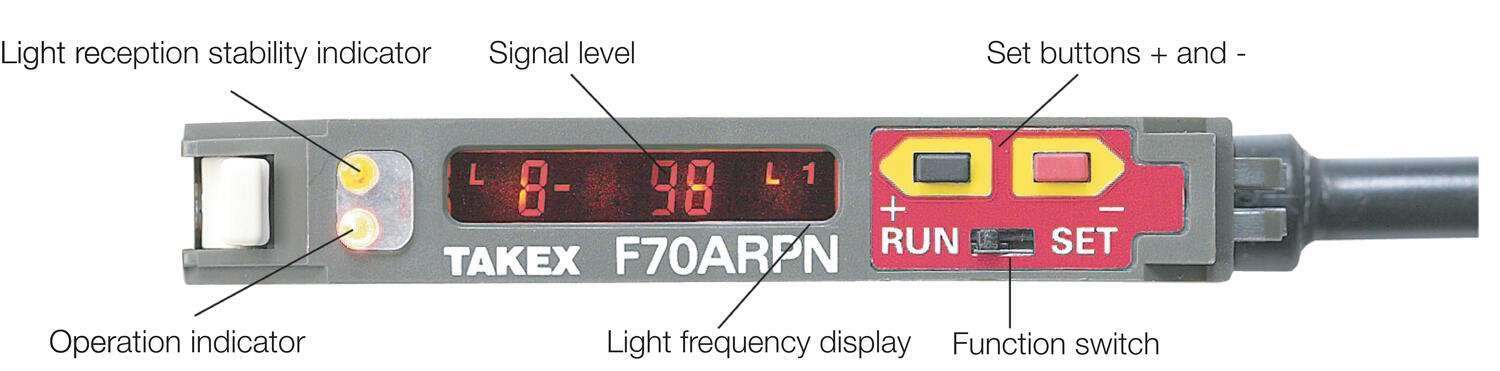

F70A fibre sensor
- Auto Teach function
- Long distances
- Anti mutual interference (2 sensors)
- Width only 9mm
Selected variant
Specifications
| Approvals | CE |
|---|---|
| Electrical connection | Cable 2 m |
| Function | Dark On/Light On |
| IP Class | IP40 |
| Light / Dark Switching | Yes |
| Light type | Red LED |
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Fiber amblified |
|---|---|
| Power consumption max | 0.05 A |
| Reaction time | 1.6 ms |
| Temperature range from | -25 °C |
| Temperature range to | 55 °C |
| Voltage DC max | 24 V |
| Voltage DC min | 12 V |
