TAKEX
Takex - F71 fibre amplifier with potentiometer setting

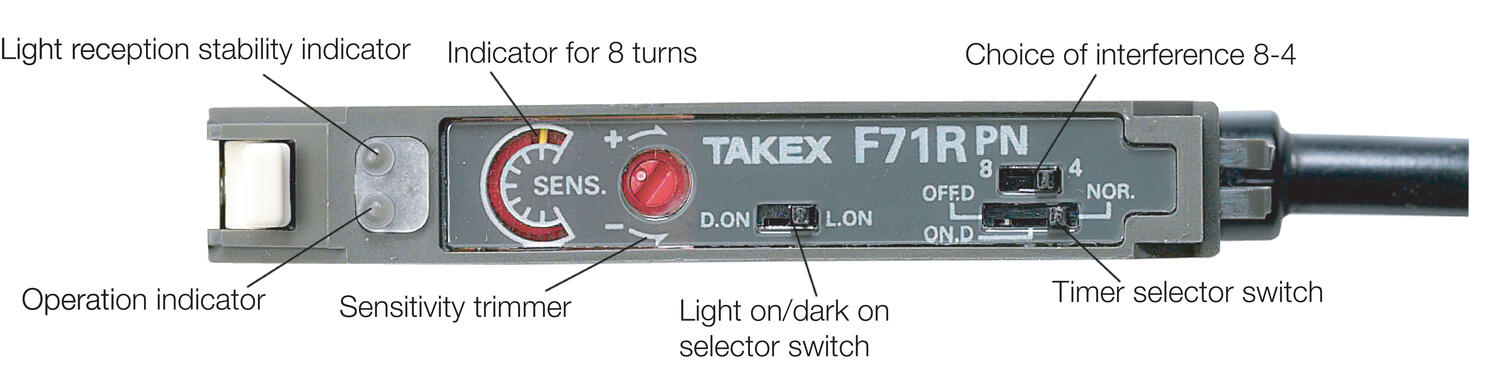

A space-saving amplifier with a simple 8-turn potentiometer and scale for setting. Onboard optical interference protection for up to 8 units (not applicable to F71RH). The interference protection means that the amplifiers do not react to one another's light, which is a problem when there are several adjacent detection points. F71RH has a fast reaction time, which is useful when - for example - you want to detect a colour marking on a fast rail or detect numbers of revolutions at high speeds. LED indication for output signal and for stable input signal. Light/dark on, time function and alarm output.

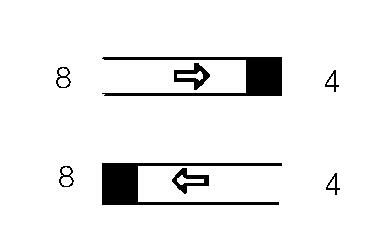

- Interference protection for up to 8 amplifiers, not F71RH
- Fast reaction time F71RH 30 µs
- Potentiometer setting (8 revolutions)

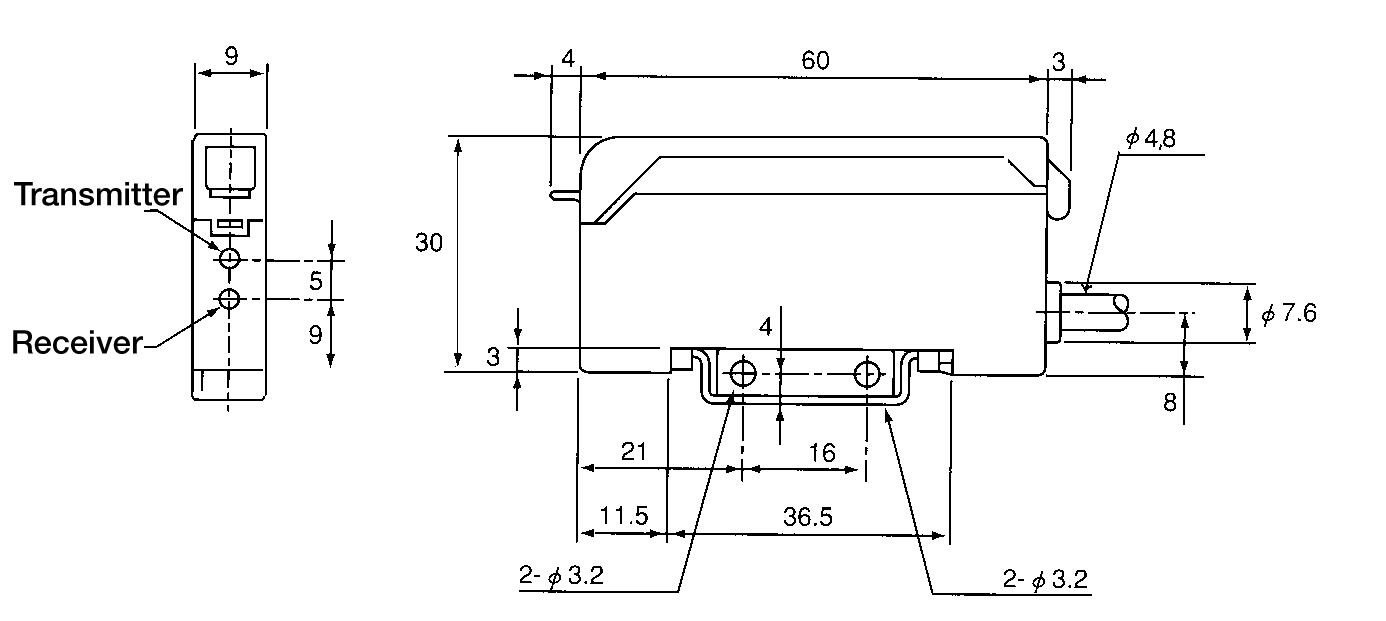

- Small construction dimensions (9 mm)
Selected variant
Specifications
| Approvals | CE |
|---|---|

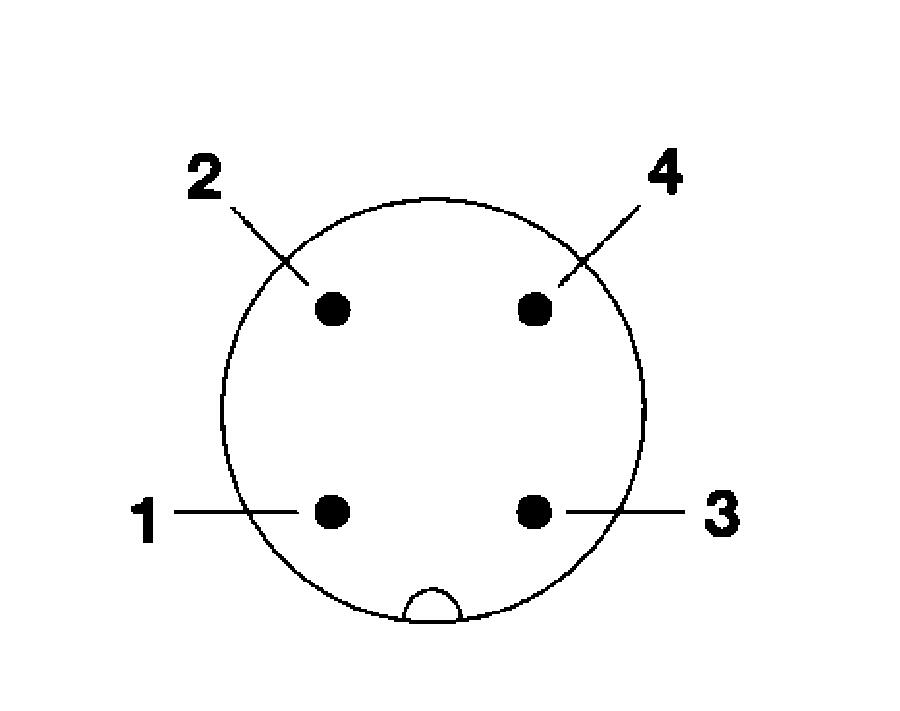

| Electrical connection | Cable 2 m |
| Function | Dark On/Light On |
| IP Class | IP40 |
| Light / Dark Switching | Yes |
| Light type | Red LED |
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Fiber amblified |
|---|---|
| Power consumption max | 0.04 A |
| Reaction time | 0.25 ms |
| Temperature range from | -25 °C |
| Temperature range to | 55 °C |
| Voltage DC max | 24 V |
| Voltage DC min | 12 V |
Product description
A space-saving amplifier with a simple 8-turn potentiometer and scale for setting. Onboard optical interference protection for up to 8 units (not applicable to F71RH). The interference protection means that the amplifiers do not react to one another's light, which is a problem when there are several adjacent detection points. F71RH has a fast reaction time, which is useful when - for example - you want to detect a colour marking on a fast rail or detect numbers of revolutions at high speeds. LED indication for output signal and for stable input signal. Light/dark on, time function and alarm output.
