Datalogic - DS3 - Area light curtain sensors with both digital and analogue output
The DS3 Curtains are used to detect, measure and check the position of objects, including transparent and small objects.
- Measurement heights from 150 to 600 mm
- Crossed beam - digital output / parallel beam - analogue output
- Distance up to 1.5 m between the transmitter / receiver
Selected variant
Specifications
| Approvals | CE, cULus |
|---|---|
| Detection Height | 150 mm |

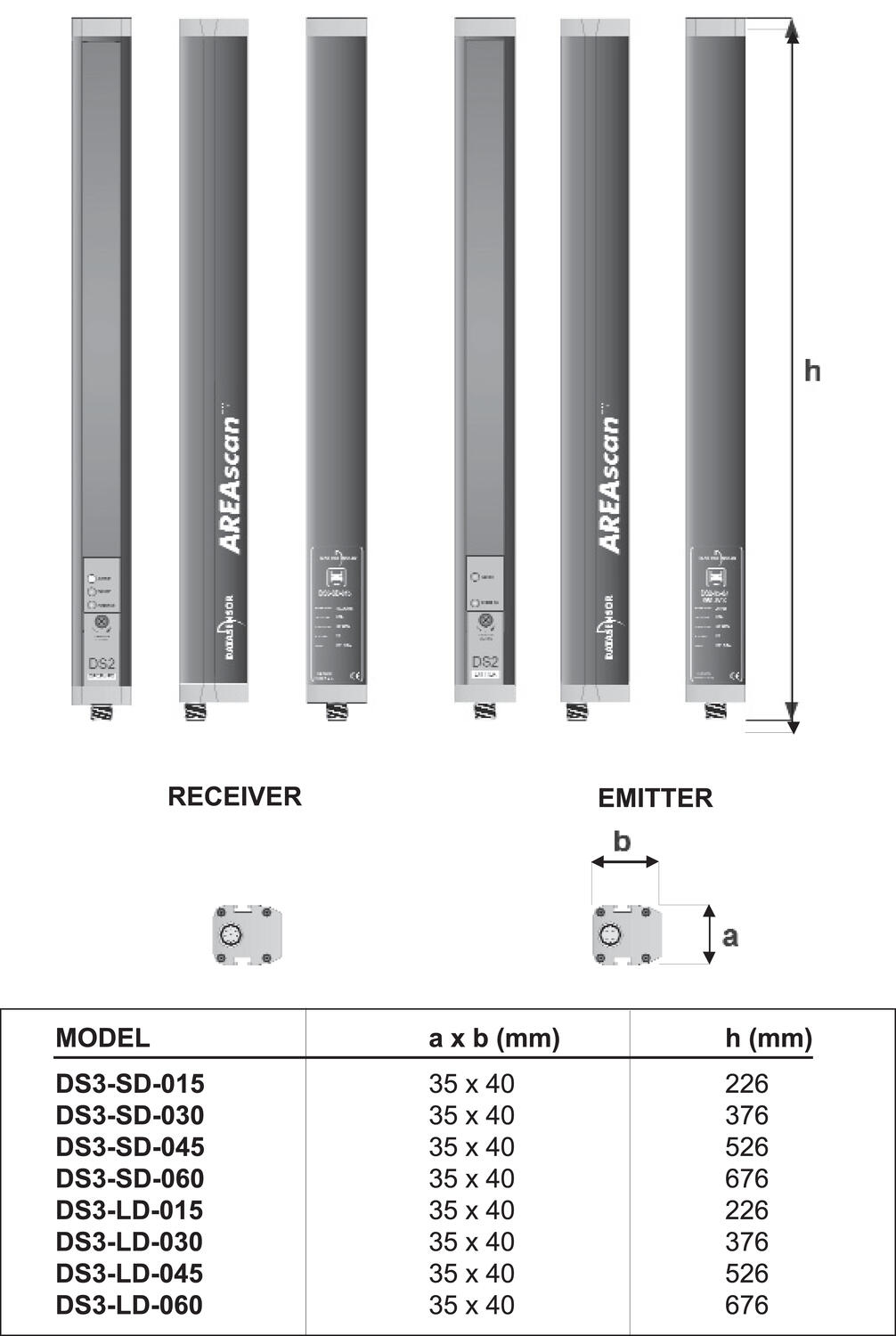

| Dimension (mm) | 35 x 40 x 226 |
| Distance Max | 600 mm |
| Distance Min | 200 mm |

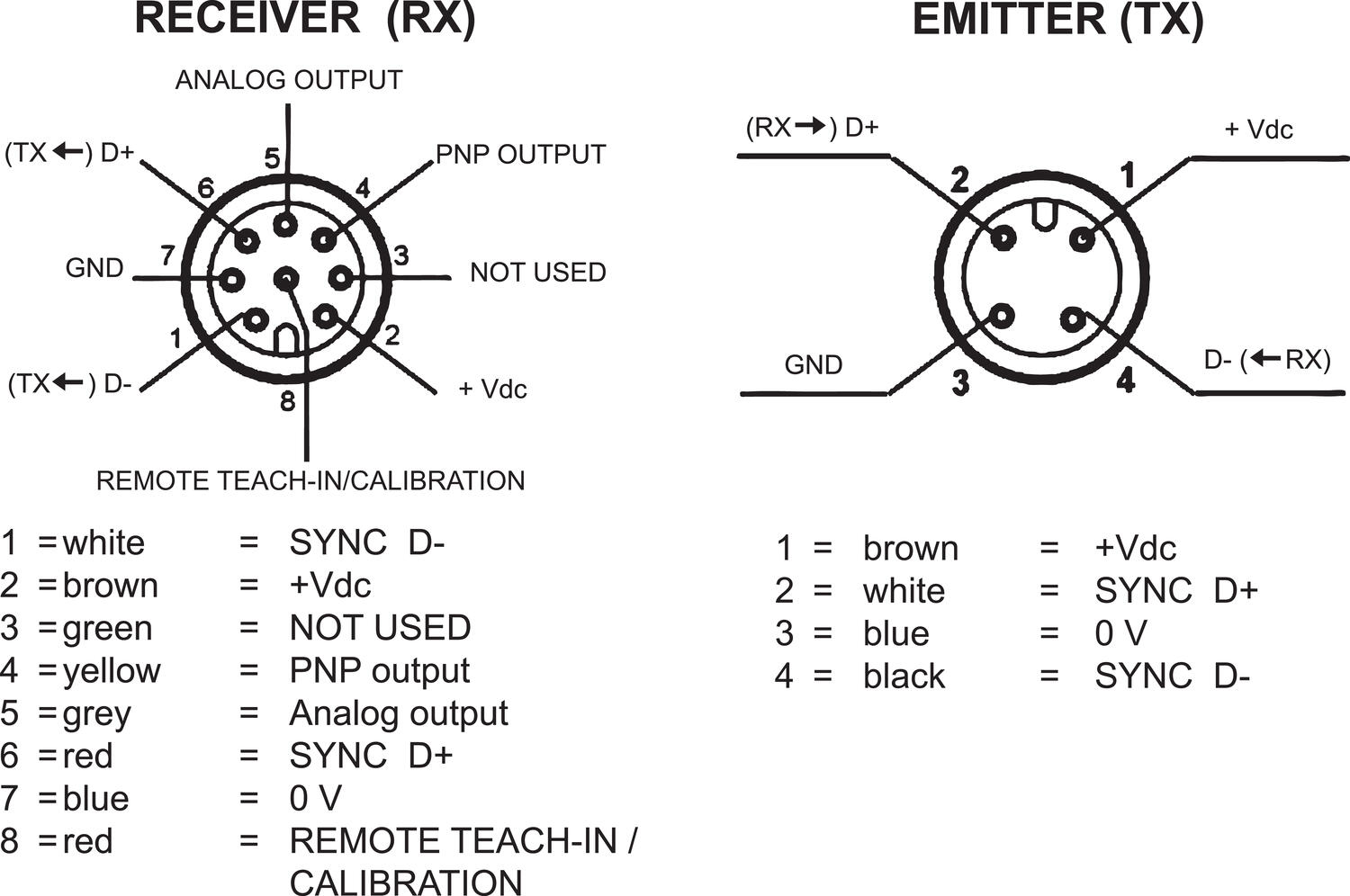

| Electrical connection | M12 8 pole connector, M12 4 pole connector |
| IP Class | IP65 |
| LED indicator | Yes |
| Lens material | PMMA |
| Light type | IR LED |
| Material of body | Aluminium |
| Output | 0-10V, PNP |
| Output current max | 0.1 A |
|---|---|
| Photocell technology | Curtain photocell |
| Power consumption max | 0.1 A |
| Reaction time | 3 ms |
| Supply voltage | 24 V DC |
| Temperature range bearing, from | -25 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -10 °C |
| Temperature range to | 55 °C |
| Weight | 310 g |
Downloads
Product description
The DS3 Curtains are used to detect, measure and check the position of objects, including transparent and small objects.
