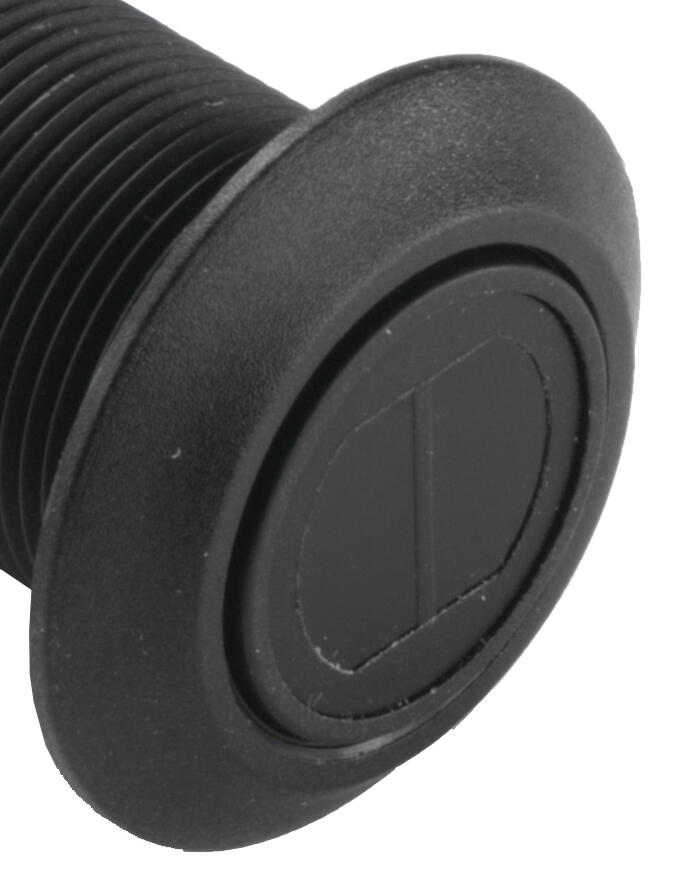

Datalogic - S15 - M18 Photoelectric Sensors - M12 Connector
The S15 photoelectric sensor is recommended for cost and space savings with a wide selection of optic functions, ranging from retro reflective to diffuse proximity, and from a long distance through beam to a shorter distance background suppression.
Features & Benefits:
·Plastic short case version for cost and space saving
·All optic functions at optimal operating distance
·Models with fixed setting or trimmer adjustment
·Pre-cabled, M12 connector and pig-tail versions
Applications:
·Automatic machines
·Packaging lines
·Beverage and Bottling
·Transportation lines
·Automatic warehouses

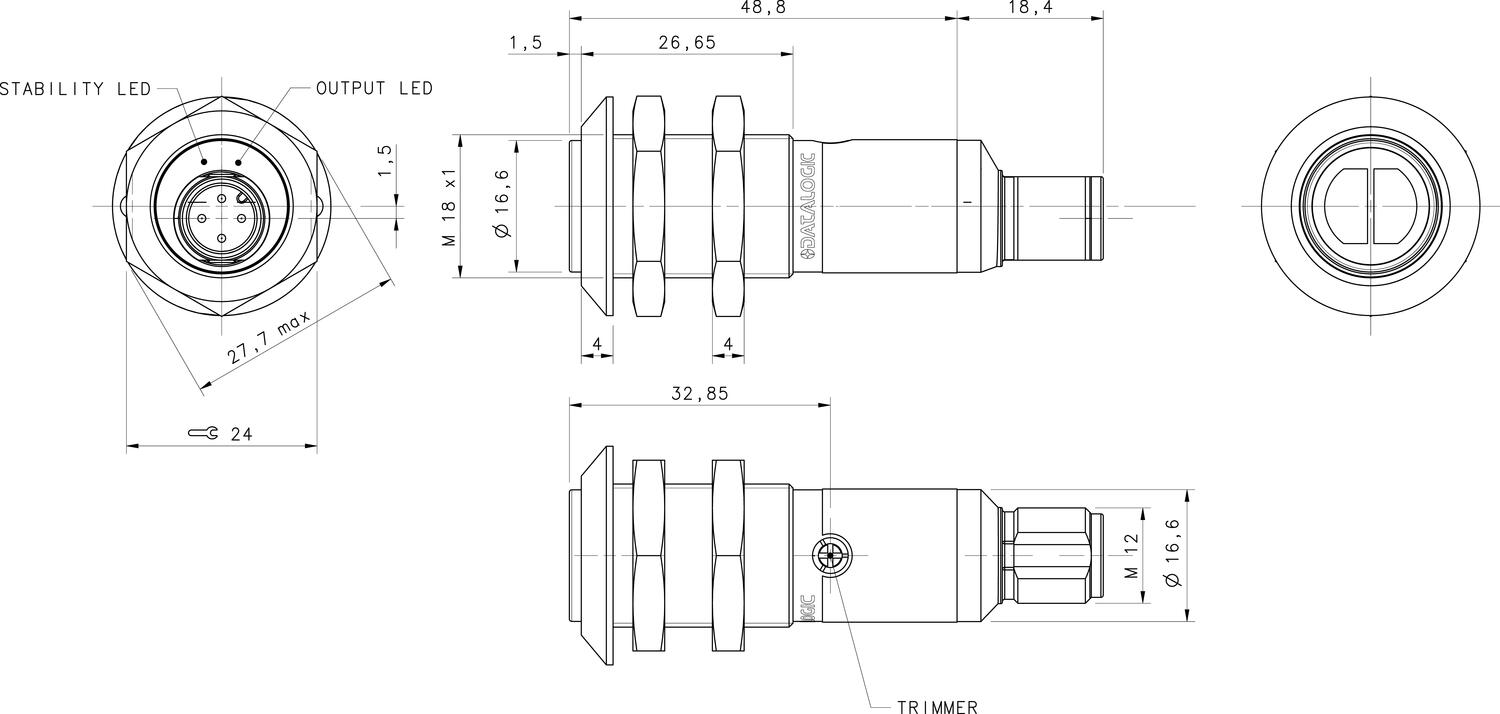

- M18 barrel housing
- M12 Connector
- Short threaded housing
- PNP or NPN output
Selected variant
Specifications
| Approvals | CE, UL |
|---|---|
| Distance Max | 20000 mm |
| Distance Min | 0 mm |
| Electrical connection | M12 4 pole connector |
| Function | Dark On/Light On |
| IP Class | IP69K |
| LED indicator | Yes |
| Lens material | PMMA |
| Light type | IR LED |
| Material of body | ABS plastic |
| Output current max | 0.1 A |
| Photocell technology | Through beam emitter |
|---|---|
| Power consumption max | 0.025 A |
| Reaction time | 2 ms |
| Supply voltage | 12-30 V DC |
| Temperature range bearing, from | -25 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 55 °C |
| Weight | 40 g |
Product description
The S15 photoelectric sensor is recommended for cost and space savings with a wide selection of optic functions, ranging from retro reflective to diffuse proximity, and from a long distance through beam to a shorter distance background suppression.
Features & Benefits:
·Plastic short case version for cost and space saving
·All optic functions at optimal operating distance
·Models with fixed setting or trimmer adjustment
·Pre-cabled, M12 connector and pig-tail versions
Applications:
·Automatic machines
·Packaging lines
·Beverage and Bottling
·Transportation lines
·Automatic warehouses
