MIDWEST OPTICAL SYSTEMS

Midwest Optical - BP660

Midwest Optical Sytems bandpass filters are ideal for use in combination with LED or laser diode lighting. The filter consists of a precision polished glass filter with an anti-reflex coating. They are more rugged, thinner, less angular and have a very high transmission compared to conventional filters. Use of the band-pass filter enhances contrast and often undesirable effects of disturbing light from the surroundings are eliminated.



Read more

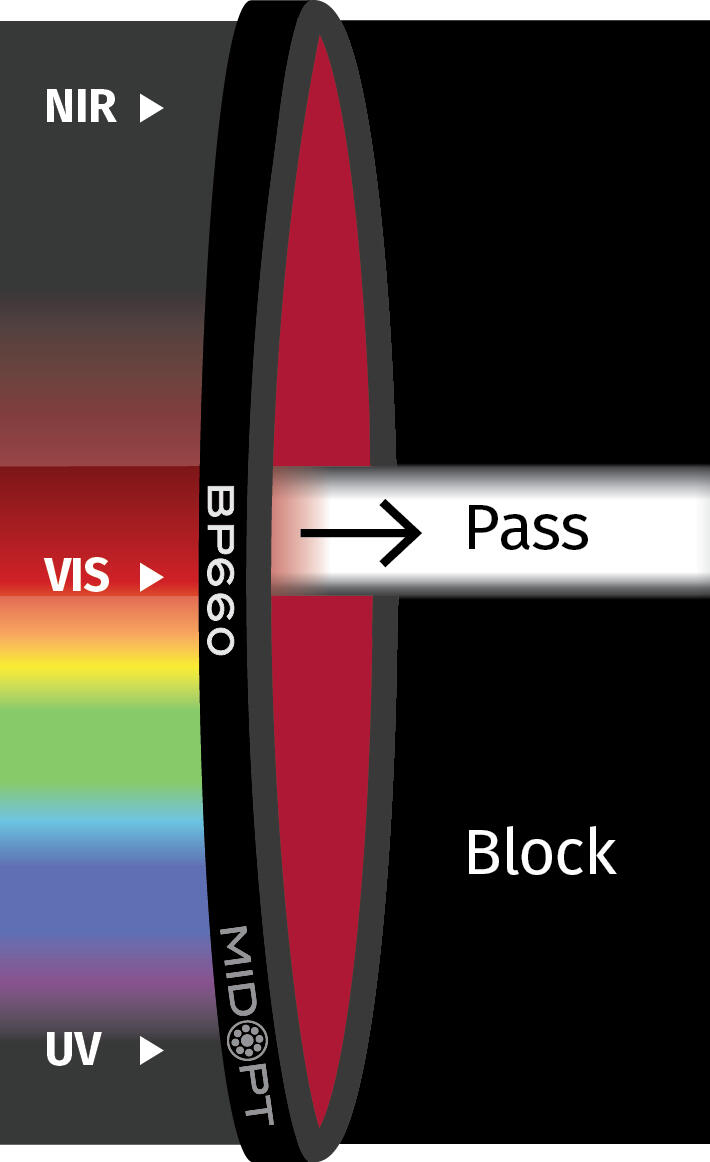

  • Dark red bandpass filter

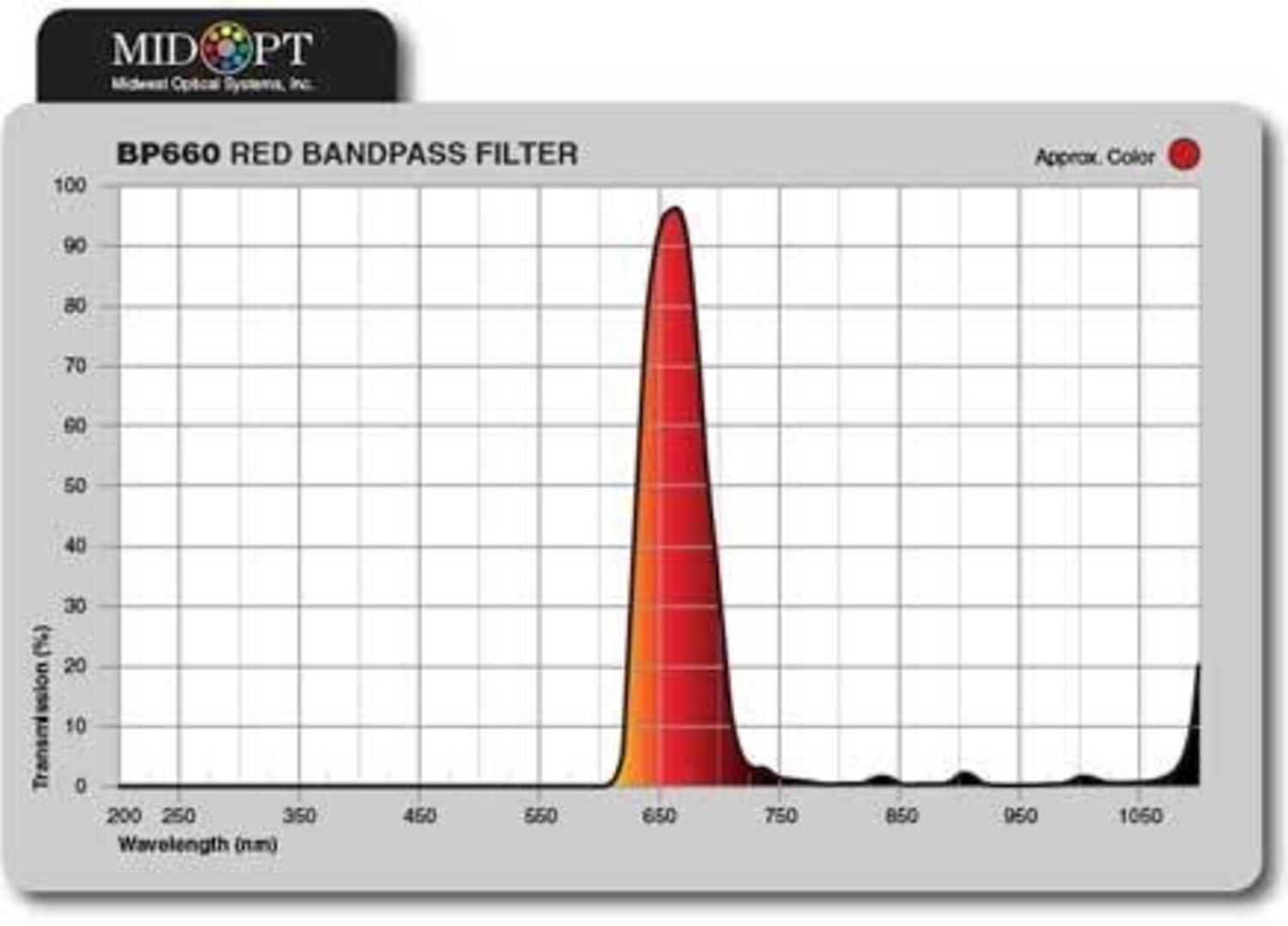

  • Work area 630-690 nm
  • For dark red LED

Selected variant

MIDOPT.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Filter thread (thread diameter x pitch) C-Mount

Downloads

Technical illustrations

Product description

Midwest Optical Sytems bandpass filters are ideal for use in combination with LED or laser diode lighting. The filter consists of a precision polished glass filter with an anti-reflex coating. They are more rugged, thinner, less angular and have a very high transmission compared to conventional filters. Use of the band-pass filter enhances contrast and often undesirable effects of disturbing light from the surroundings are eliminated.



Accessories

Articles Filter thread (thread diameter x pitch)
Bandpassfilter - standard, 660nm, for C-Mount
Art:
F/BP660-C Copied
C-Mount
Bandpassfilter - standard, 660nm, for 13,25 mm thread
Art:
F/BP660-13.25 Copied
13,25
OPTIC ACC FLT 22.5
Art:
F/BP660-22.5 Copied
22.5
OPTIC ACC FLT BP 660 25,5
Art:
F/BP660-25.5 Copied
25.5
OPTIC ACC FLT BP 660 27
Art:
F/BP660-27 Copied
27
OPTIC ACC FLT BP 660 30.5
Art:
F/BP660-30.5 Copied
30.5
OPTIC ACC FLT 34
Art:
F/BP660-34 Copied
34
Bandpassfilter - standard, 660nm, for 35,5 mm thread
Art:
F/BP660-35.5 Copied
35.5
Bandpassfilter - standard, 660nm, for 37 mm thread
Art:
F/BP660-37 Copied
37
OPTIC ACC FLT BP 660 37.5
Art:
F/BP660-37.5 Copied
37.5
Bandpassfilter - standard, 660nm, for 39 mm thread
Art:
F/BP660-39 Copied
39
Bandpassfilter - standard, 660nm, for 40,5 mm thread
Art:
F/BP660-40.5 Copied
40.5
Bandpassfilter - standard, 660nm, for 43 mm thread
Art:
F/BP660-43 Copied
43
Bandpassfilter - standard, 660nm, for 46 mm thread
Art:
F/BP660-46 Copied
46
Bandpassfilter - standard, 660nm, for 48 mm thread
Art:
F/BP660-48 Copied
48
OPTIC ACC FLT 49
Art:
F/BP660-49 Copied
49
Bandpassfilter - standard, 660nm, for 52 mm thread
Art:
F/BP660-52 Copied
52
Bandpassfilter - standard, 660nm, for 55 mm thread
Art:
F/BP660-55 Copied
55
Bandpassfilter - standard, 660nm, for 58 mm thread
Art:
F/BP660-58 Copied
58
Bandpassfilter - standard, 660nm, for 62 mm thread
Art:
F/BP660-62 Copied
62
Bandpassfilter - standard, 660nm, for 67 mm thread
Art:
F/BP660-67 Copied
67
Bandpassfilter - standard, 660nm, for 82 mm thread
Art:
F/BP660-82 Copied
82
Bandpassfilter - standard, 660nm, for 72 mm thread
Art:
F/BP660-72 Copied
72
Bandpassfilter - standard, 660nm, for 77 mm thread
Art:
F/BP660-77 Copied
77
Bandpassfilter - standard, 660nm, for 86 mm thread
Art:
F/BP660-86 Copied
86
Bandpassfilter - standard, 660nm, for 95 mm thread
Art:
F/BP660-95 Copied
95
Bandpassfilter - standard, 660nm, for 105 mm thread
Art:
F/BP660-105 Copied
105
