STEGO
Roof Filter Fan
RFP
Filter fans for roof mounting are mainly used in the appliance cabinets where installed components emit a lot of heat, and the space does not allow side mounted fans.

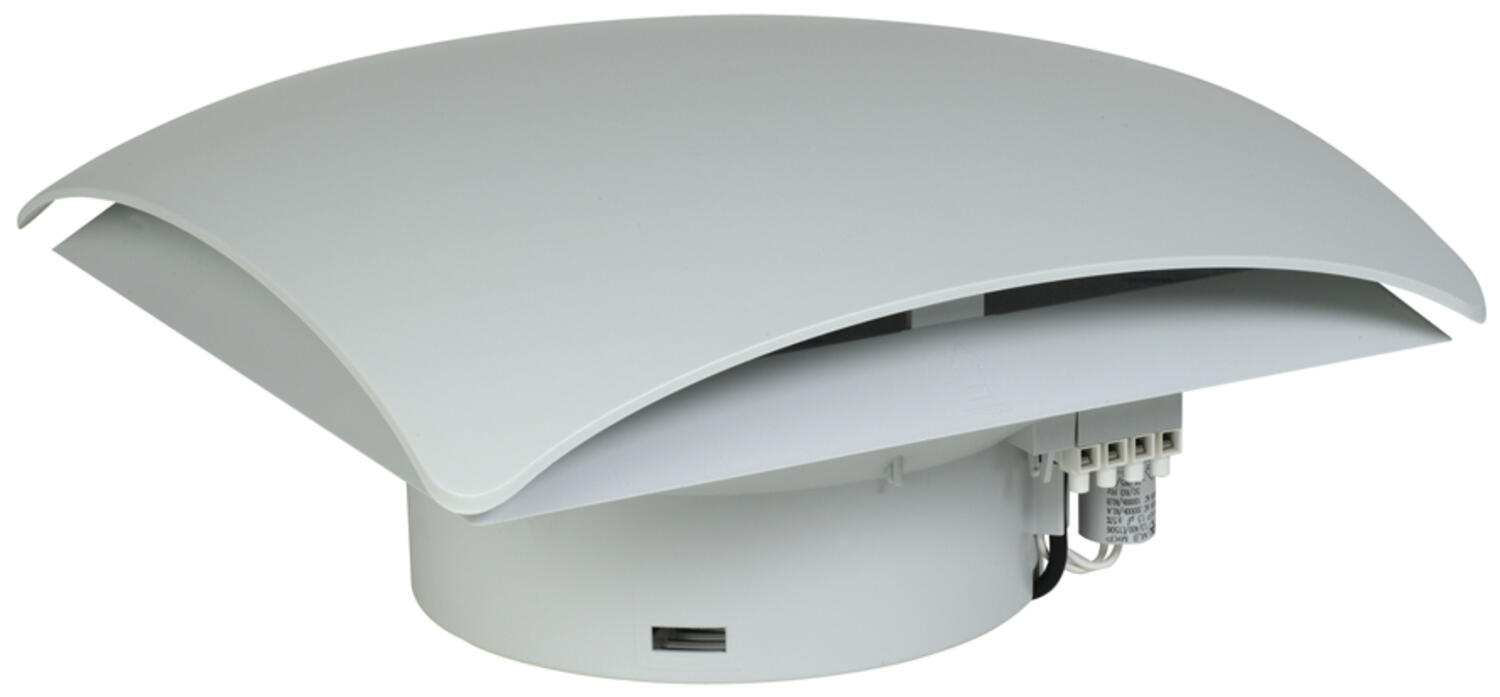

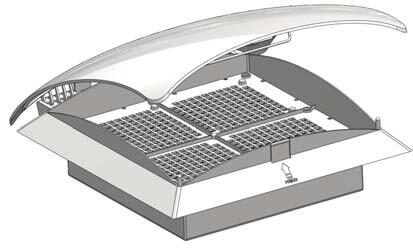

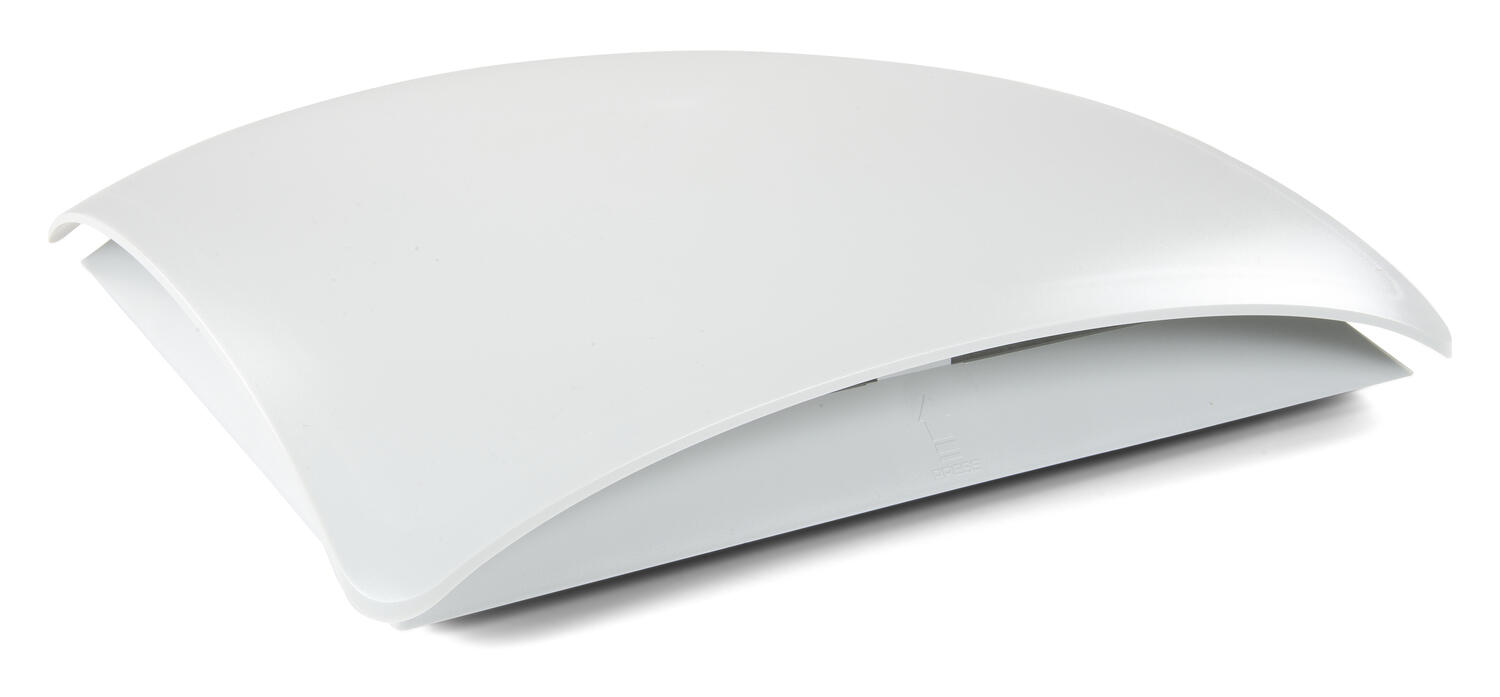

Filter fan RFP018 is available in two different versions. With four separate fans or a larger fan. The advantage of four fans is that 75% of the fan capacity is left even if a fan should blow. In addition, this solution allows for a minimum depth of building. In cases where passive ventilation is sufficient, a roof mounted evacuation filter can be fitted. When changing the filter mat, this is easily done by lifting the lid without tools.
- Very low noise level
- Minimum depth of field
- Reliable with long service life
- Easy installation
- IP32
Selected variant
Specifications
| Air Capacity | 400 m³/h |
|---|---|
| Air Volume Free Blowing | 400 m³/h |
| Air Volume Free Blowing With G3 Filter | 300 m³/h |
| Approvals | CE, EAC, RoHS, UL, UV - UL746C (f1), VDE |
| Color | Light Grey |

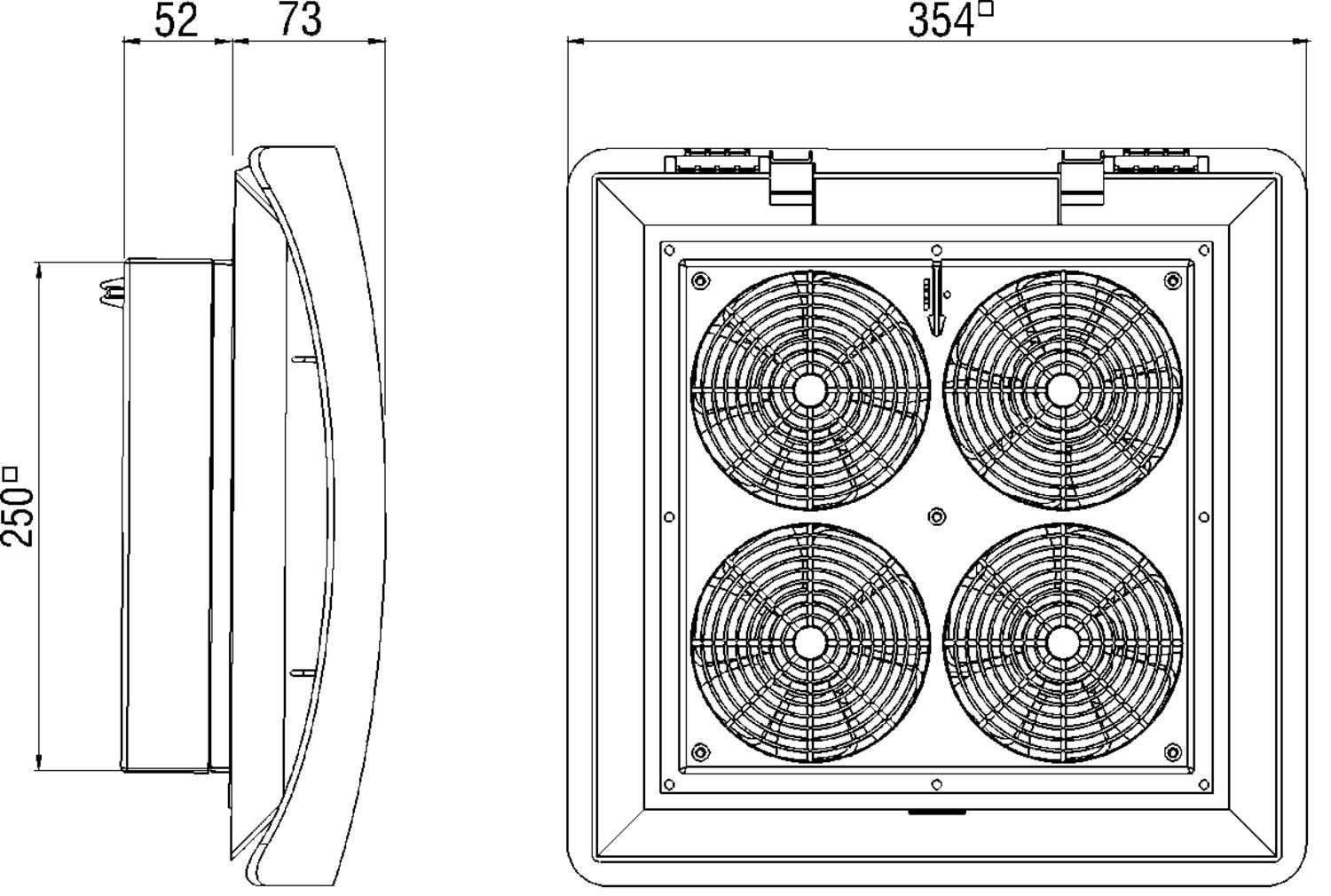

| Depth | 125 mm |
| Filtering degree | 85 % |
| Flamklass | UL94-V0 |
| Frequenze | 50 Hz |
| Height | 354 mm |
| Humidity Storage | <90 % RH |
| IP Class | IP32 |
| Life span | 50000 h |
| Material fan | Aluminium |
| Material of rotor | Plastic |
| Material Plastic Housing | Plastic |
|---|---|
| Number of fans | 4 |
| Operating Humidity | < 90% RH |
| Operational Temperature | -10°C ... +70°C |
| Power Consumption | 68 W |

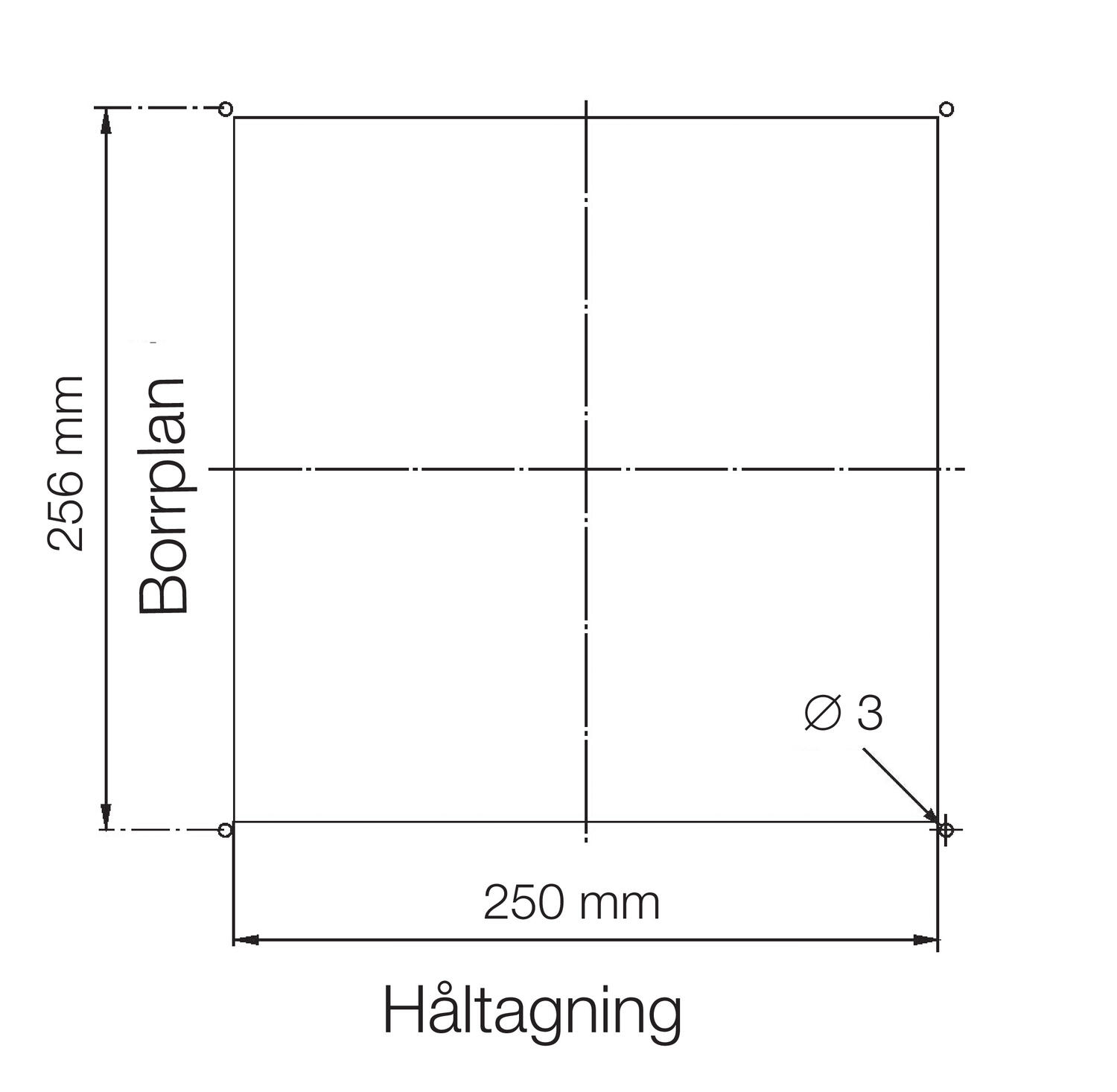

| Punching | 250x250 mm |
| Sound level | 55 dB |
| Storage temperature | -40°C ... +70°C |
| Structural Depth | 52 mm |
| Weight | 3.3 kg |
| Width | 354 mm |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
Product description
Filter fans for roof mounting are mainly used in the appliance cabinets where installed components emit a lot of heat, and the space does not allow side mounted fans.
Filter fan RFP018 is available in two different versions. With four separate fans or a larger fan. The advantage of four fans is that 75% of the fan capacity is left even if a fan should blow. In addition, this solution allows for a minimum depth of building. In cases where passive ventilation is sufficient, a roof mounted evacuation filter can be fitted. When changing the filter mat, this is easily done by lifting the lid without tools.
