Angle | 45° |
---|---|
Area Cable Single Wire Max | 4 mm² |
Cable Area Multi-Conductor Max | 2,5 mm² |
Conventional free air thermal current Ith | 20 A |
Function | Stable |
Mounting | Screw on |
Number Of Contacts | 1 |
Number of poles | 1 |
Number of positions | 2 |
Plate | 48x48 mm |
Protection rating front of panel | IP40 |
Protection rating rear of panel | IP20 |
Rated insulation voltage ac (IEC 60947-1) | 690 V |
Rated insulation voltage ac (UL 508) | 600 V |
Rated insulation voltage Ui | 690 V |
Rated operating current Ie (AC15/230V) | 6 A |
Rated operating current Ie (AC21A/22A) | 16 A |
---|---|
Rated operating current Ie (DC-1/24 VDC) | 16 A |
Rated operating power (AC23A/3x230V) | 4 kW |
Rated operating power (AC23A/3x400V) | 7,5 kW |
Rated operating power (AC23A/3x500V) | 5,5 kW |
Rated operating power (AC23A/3x690V) | 4 kW |
Rated operating power (AC3/3x230V) | 3 kW |
Rated operating power (AC3/3x400V) | 4 kW |
Rated operating power (AC3/3x500V) | 5,5 kW |
Rated operating power (AC3/3x690V) | 3 kW |
Standards | BV, CB, CCC, CE, CSA, IEC 60947-3, IEC 60947-1, UL, UL 508 |
Temperature range from | -20 °C |
Temperature range to | 70 °C |
Type/Model | ON-OFF switch |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Angle | Function | Number Of Contacts | Number of poles | Number of positions | Type/Model | ||
---|---|---|---|---|---|---|---|---|
![]()
PR12 cam switch 16 A "0-1" 1-pole. screw mount
Art:
PR121101A8E
Copied
|
45°
|
Stable
|
1
|
1
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 1-pole. screw mount
Art:
PR121101A4E
Copied
|
90°
|
Stable
|
1
|
1
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 2-poles screw mount
Art:
PR121102A8E
Copied
|
45°
|
Stable
|
2
|
2
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 2-poles screw mount
Art:
PR121102A4E
Copied
|
90°
|
Stable
|
2
|
2
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 3-poles screw mount
Art:
PR121103A8E
Copied
|
45°
|
Stable
|
3
|
3
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 3-poles screw mount
Art:
PR121103A4E
Copied
|
90°
|
Stable
|
3
|
3
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 4-pole. screw mount
Art:
PR121104A8E
Copied
|
45°
|
Stable
|
4
|
4
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 4-poles screw mount
Art:
PR121104A4E
Copied
|
90°
|
Stable
|
4
|
4
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 5-pole. screw mount
Art:
PR121105A8E
Copied
|
45°
|
Stable
|
5
|
5
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "0-1" 6-pole. screw mount
Art:
PR121106A8E
Copied
|
45°
|
Stable
|
6
|
6
|
2
|
ON-OFF switch
|
| |
![]()
PR12 cam switch 16 A "1-0-2" 1-pole screw mount
Art:
PR122201C8E
Copied
|
45°
|
Stable
|
2
|
1
|
3
|
Change-over switch
|
| |
![]()
PR12 cam switch 16 A "1-0<-2" 1-pole screw mount
Art:
PR122201CR12E
Copied
|
45°
|
Spring return
|
2
|
1
|
3
|
Change-over switch
|
| |
![]()
PR12 cam switch 16 A "1-0-2" 2-pole screw mount
Art:
PR122202C8E
Copied
|
45°
|
Stable
|
4
|
2
|
3
|
Change-over switch
|
| |
![]()
PR12 cam switch 16 A "1-0-2" 3-pole screw mount
Art:
PR122203C8E
Copied
|
45°
|
Stable
|
6
|
3
|
3
|
Change-over switch
|
| |
![]()
PR12 cam switch 16 A "1-0-2" 4-pole screw mount
Art:
PR122204C8E
Copied
|
45°
|
Stable
|
8
|
4
|
3
|
Change-over switch
|
| |
![]()
PR12 cam switch 16 A "1-2" 1-pole screw mount
Art:
PR122251D4E
Copied
|
90°
|
Stable
|
2
|
1
|
2
|
Change-over switch
|
| |
![]()
PR12 cam switch 16 A "1-2" 2-pole screw mount
Art:
PR122252D4E
Copied
|
90°
|
Stable
|
4
|
2
|
2
|
Change-over switch
|
| |
![]()
"NOKKAKYTKIN ""1-2"" 3-NAP."
Art:
PR122253D4E
Copied
|
90°
|
Stable
|
6
|
3
|
2
|
Change-over switch
|
| |
![]()
PR12 cam switch 16 A "1-2" 4-pole screw mount
Art:
PR122254D4E
Copied
|
90°
|
Stable
|
8
|
4
|
2
|
Change-over switch
|
| |
![]()
PR12 cam switch 16A "0-1-2-3" 1-pole screw mount
Art:
PR122301A4E
Copied
|
90°
|
Stable
|
3
|
1
|
4
|
Selector switch
|
| |
![]()
PR12 cam switch 16A "0-1-2-3" 2-pole screw mount
Art:
PR122302A4E
Copied
|
90°
|
Stable
|
6
|
2
|
4
|
Selector switch
|
| |
![]()
PR12 cam switch 16A "0-1-2-3" 3-pole screw mount
Art:
PR122303A4E
Copied
|
90°
|
Stable
|
9
|
3
|
4
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "0-1-2-3" 1-pole screw mount
Art:
PR122301A8E
Copied
|
45°
|
Stable
|
3
|
1
|
4
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "0-1-2-3" 2-pole screw mount
Art:
PR122302A8E
Copied
|
45°
|
Stable
|
6
|
2
|
4
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "0-1-2-3" 3-pole screw mount
Art:
PR122303A8E
Copied
|
45°
|
Stable
|
9
|
3
|
4
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "1-2-3" 1-pole screw mount
Art:
PR122351A8E
Copied
|
45°
|
Stable
|
3
|
1
|
3
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "1-2-3" 2-pole screw mount
Art:
PR122352A8E
Copied
|
45°
|
Stable
|
6
|
2
|
3
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "1-2-3" 3-pole screw mount
Art:
PR122353A8E
Copied
|
45°
|
Stable
|
9
|
3
|
3
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "0-1-2-3-4" 1-pole screw mount
Art:
PR122401A8E
Copied
|
45°
|
Stable
|
4
|
1
|
5
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "1-2-3-4" 1-pole screw mount
Art:
PR122451A8E
Copied
|
45°
|
Stable
|
4
|
1
|
4
|
Selector switch
|
| |
![]()
PR12 cam switch 16 A "REW-0-FWD" screw mount
Art:
PR129151C8E
Copied
|
45°
|
Stable
|
5
|
1
|
3
|
3 phase motor forward/reverse switch
|
| |
![]()
PR12 cam switch 16 A "0-Y-Δ" screw mount
Art:
PR129551A8E
Copied
|
90°
|
Stable
|
8
|
1
|
3
|
Star-delta switch
|
| |
![]()
PR12 motor control switch 16A "0-PV-GV" screw mount
Art:
PR129552B4E
Copied
|
90°
|
Stable
|
8
|
1
|
3
|
Dahlander switch
|
| |
![]()
PR12 motor control switch 16A "PV-0-GV" screw mount
Art:
PR129552C4E
Copied
|
90°
|
Stable
|
8
|
1
|
3
|
Dahlander switch
|
| |
![]()
PR12 ammeter switch 16 A screw mount
Art:
PR128151A4E
Copied
|
90°
|
Stable
|
6
|
1
|
4
|
Ammeter switch
|
| |
![]()

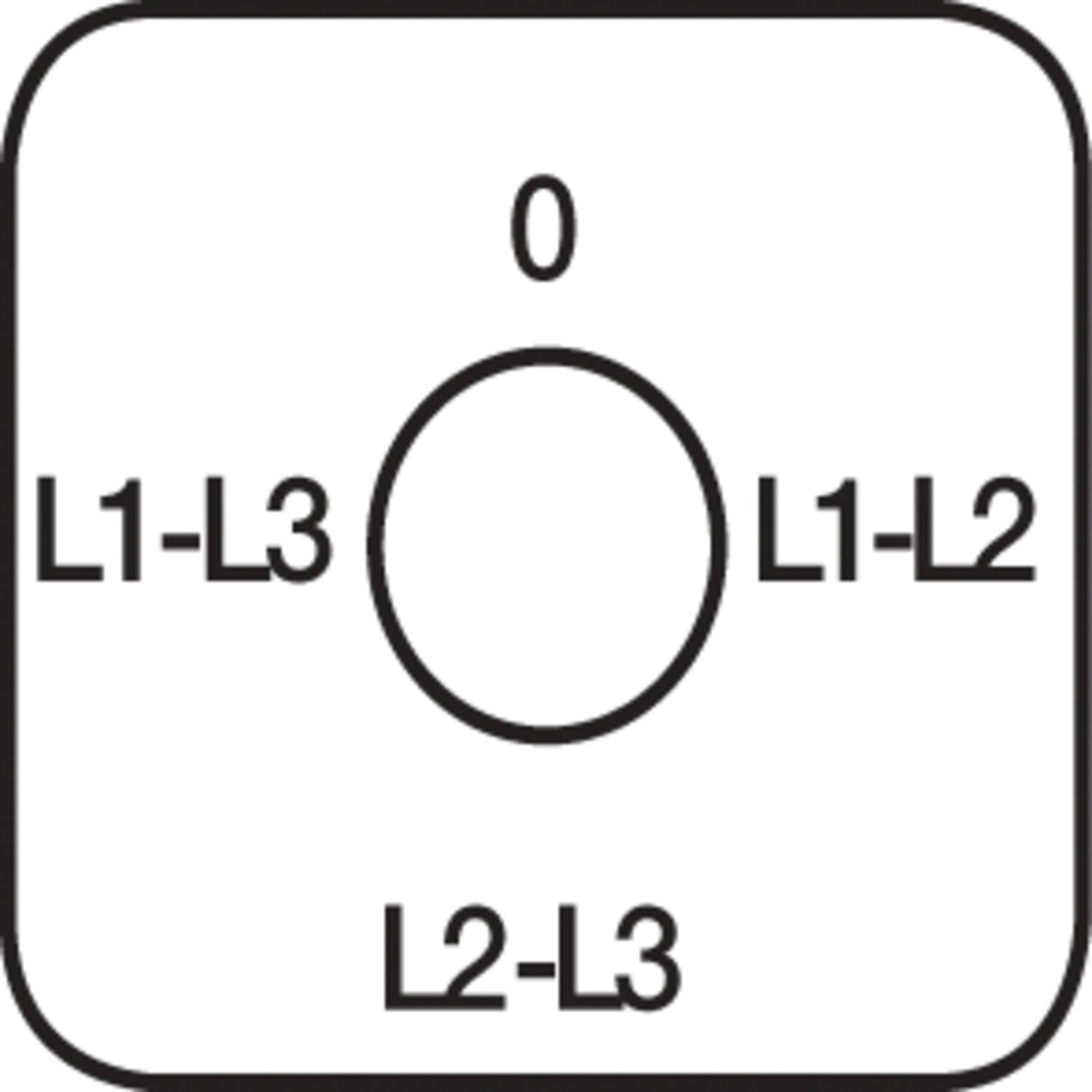

PR12 voltmeter switch 16A screw mount
Art:
PR128351A4E
Copied
|
90°
|
Stable
|
4
|
1
|
4
|
Voltmeter switch
|
| |
![]()
PR12 voltimeter switch 16 A screw mount
Art:
PR128357C8E
Copied
|
45°
|
Stable
|
6
|
1
|
7
|
Voltmeter switch
|
|
