Selected variant
Specifications
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate-resistant heat | IEC 60068-2-30 |
| Function | Spring return |
| Illuminated | No |
| Impact resistance | IK05 |
| IP Class | IP66, IP69, IP69K |
| Protection Class | II (double insulated) |
| Recommended Torque | 3 |
|---|---|
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |

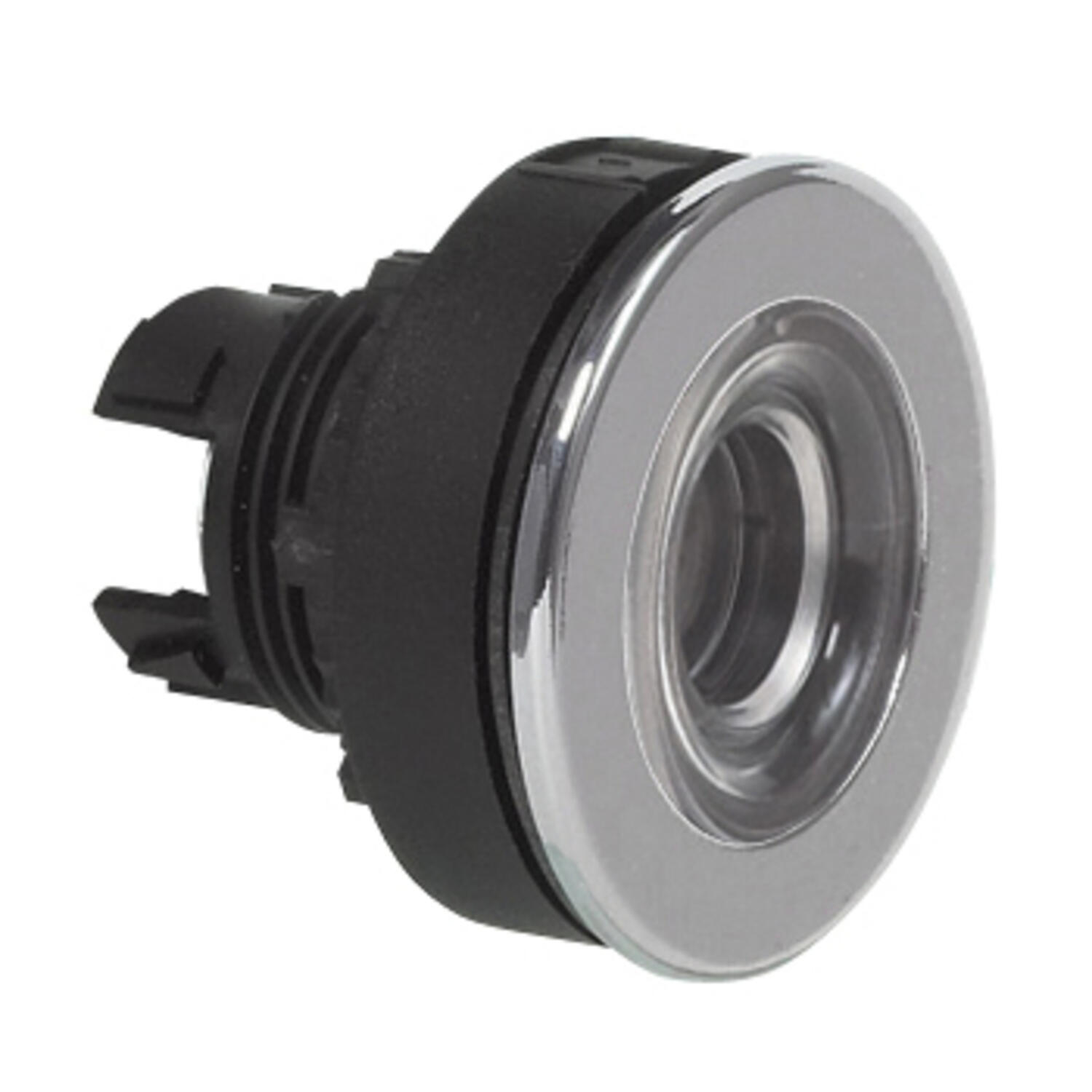

| Type/Model | Flush pushbutton |
| Weight | 15.8 g |
