BACO
Non Illuminated Selector Switch
Long Lever Handle

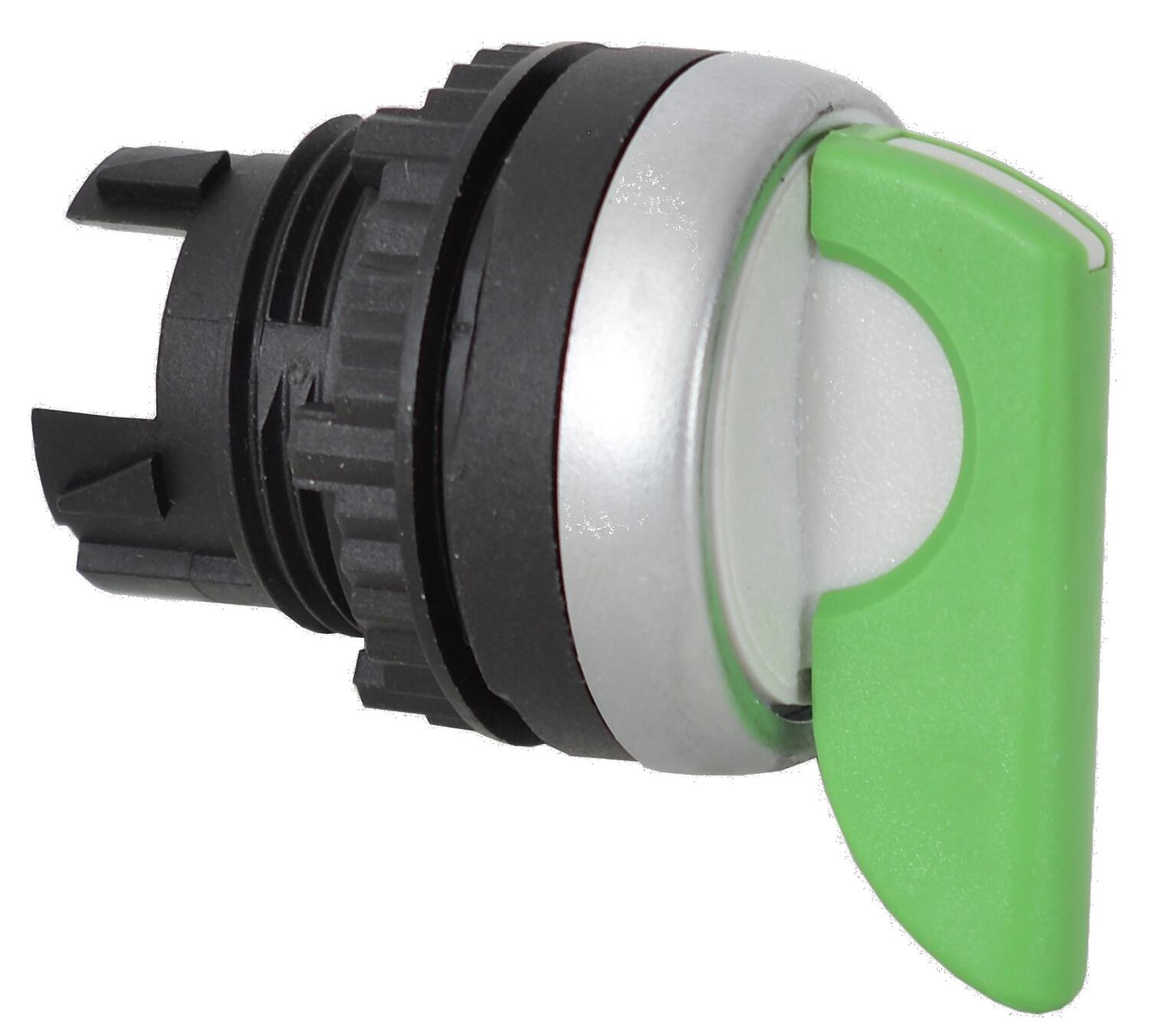

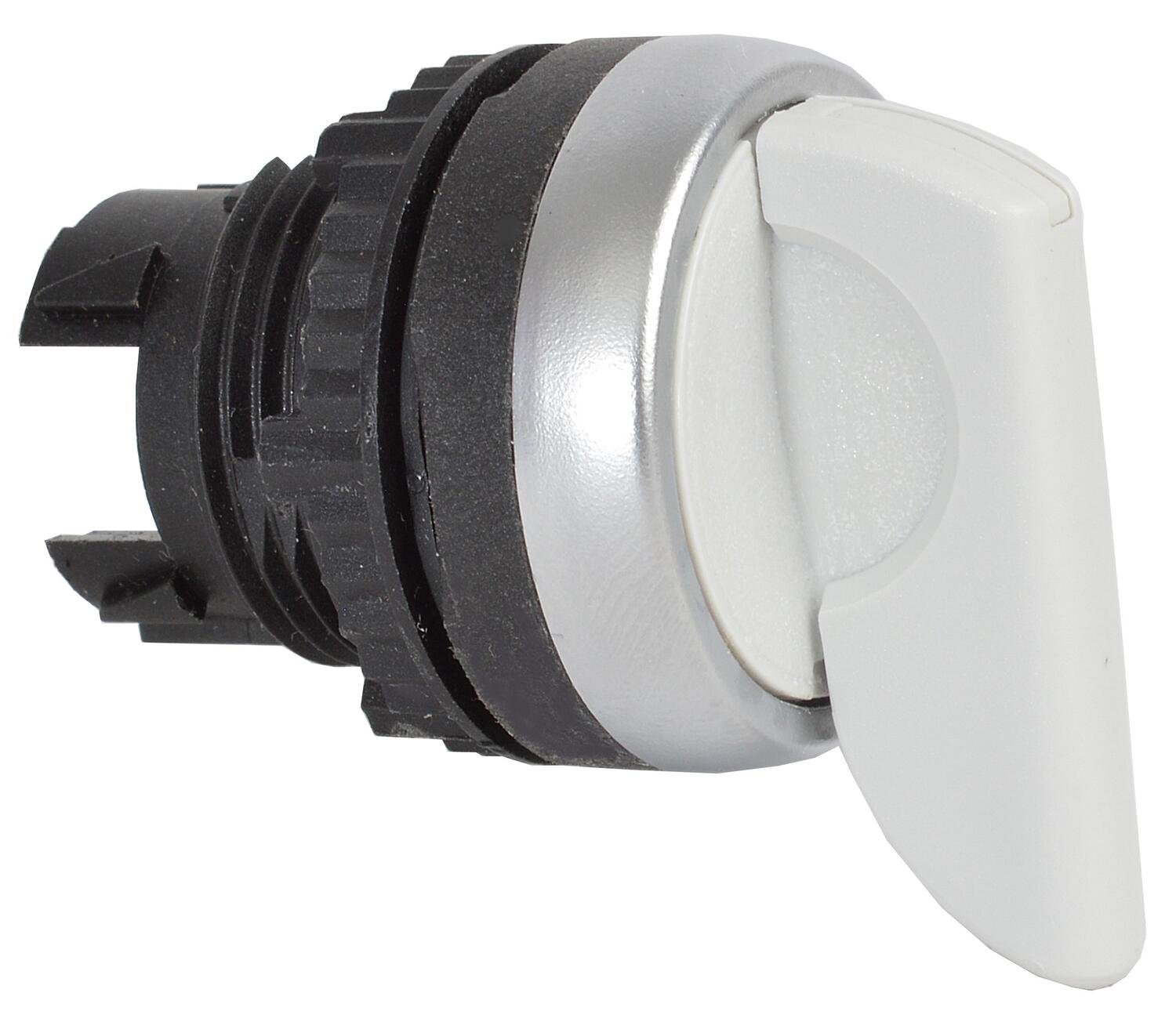

Non illuminated selector switch head with a long lever handle that mount in a 22.5mm hole with protection rating IP66 / IP69K
Combine with separate clip and contact blocks to make complete switch assembly.
Standard body colour is grey with a black lever but also available with red, green & grey lever please enquire for more details.
Available in 2 or 3 position, latching or spring return in various switching angles.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
- IP66 / IP69K
- 2 or 3 position
- Latching or spring return
- Optional lever colours
Selected variant
Specifications
| Angle | 45° |
|---|---|
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate-resistant heat | IEC 60068-2-30 |
| Color | Red |
| Function | Stable |
| Illuminated | No |
| Impact resistance | IK05 |
| IP Class | IP66, IP69, IP69K |
| Number of positions | 2 |
|---|---|
| Protection Class | II (double insulated) |
| Recommended Torque | 3 |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Type/Model | Long lever |
| Weight | 17.8 g |
Product description
Non illuminated selector switch head with a long lever handle that mount in a 22.5mm hole with protection rating IP66 / IP69K
Combine with separate clip and contact blocks to make complete switch assembly.
Standard body colour is grey with a black lever but also available with red, green & grey lever please enquire for more details.
Available in 2 or 3 position, latching or spring return in various switching angles.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
